TH-885B
  • Product Description
  • Product Specification
Frequency range: 840~930Mhz
Gain: 5dBi

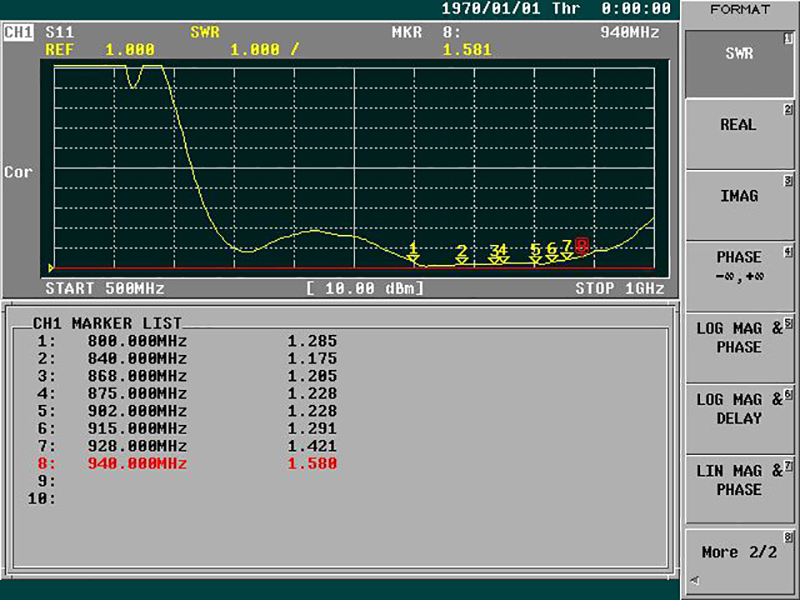

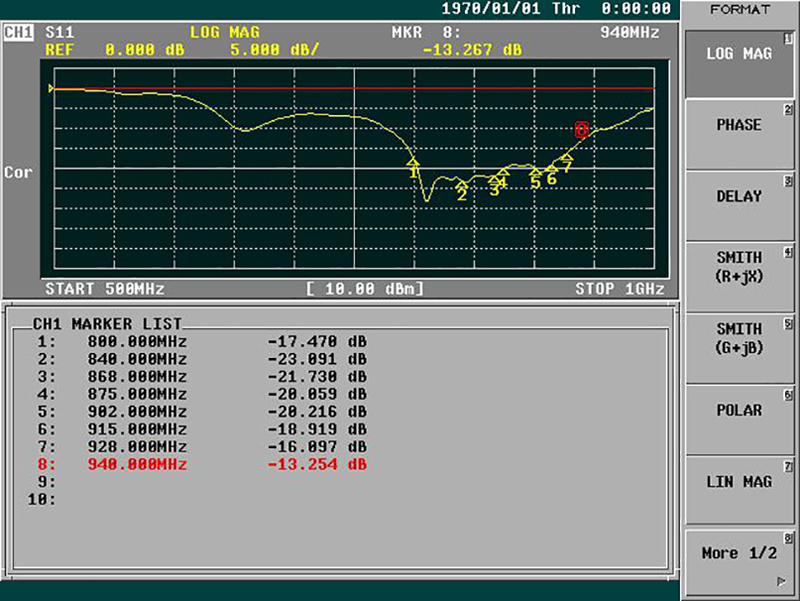

V.S.W.R: 2.0
Impedence: 50 ohm
Connector: N Type male
Dimension: 600mm +/-10 x OD22.5mm
Weight: 0.25Kg
Polarization : vertical
Power handling : 100W
Materials : Fiberglass & copper
Colour : White
Rated wind velocity : 60m/s
Working Temperature : -40~60℃
Lightning Protection : Direct Ground

* This specification is subject to change without prior notice

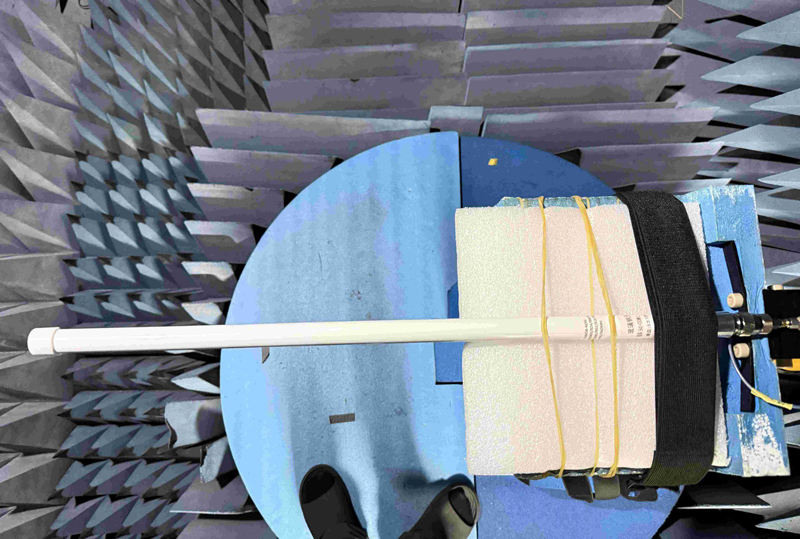

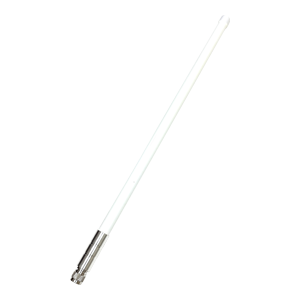

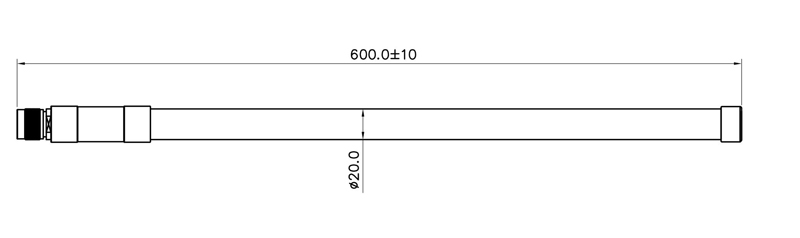

2.APPEARANCE:

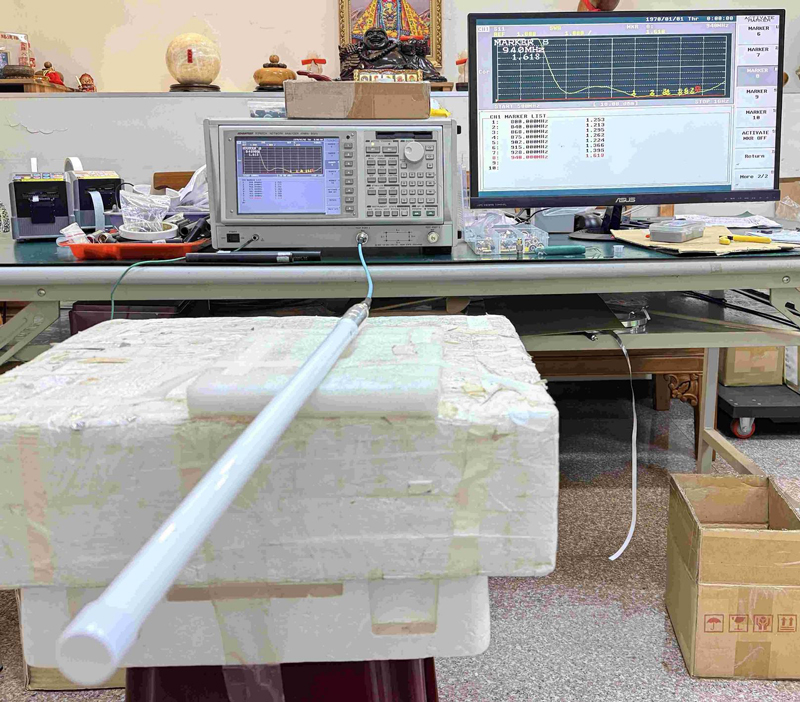

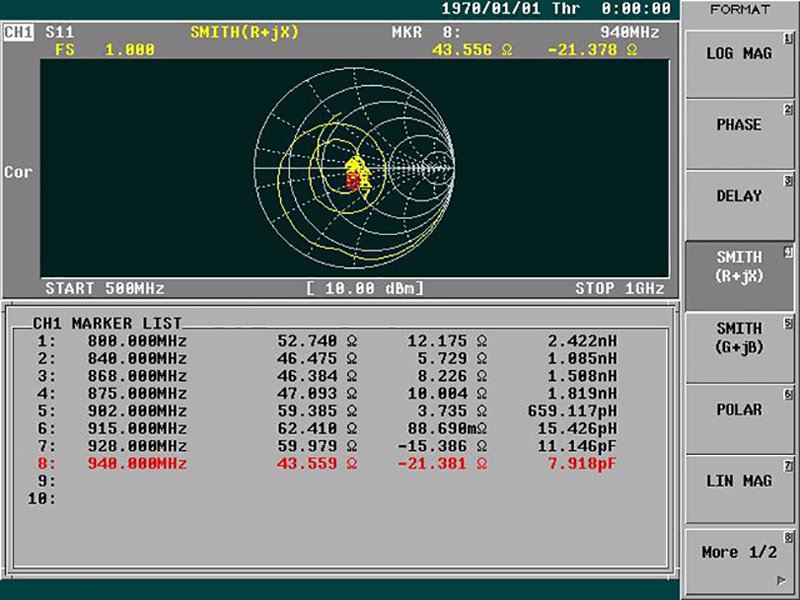

3.FREQUENCY:

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
824 MHz -4.78 -5.58 -2.15 60.93 2.35 -2.15
860 MHz -4.74 -2.41 -0.41 90.95 4.69 -0.41
868 MHz -4.58 -2.21 -0.22 94.99 4.78 -0.22
875 MHz -5.49 -3.15 -1.16 76.64 4.05 -1.16
890 MHz -6.26 -4.18 -2.09 61.82 3.03 -2.09
900 MHz -4.57 -2.85 -0.62 86.78 4.39 -0.62
902 MHz -4.34 -2.68 -0.42 90.74 4.39 -0.42
915 MHz -3.41 -2.08 0.32 92.02 5.32 0.32
928 MHz -3.34 -2.18 0.29 92.10 5.29 0.29
930 MHz -3.55 -2.39 0.08 92.01 5.01 0.08
940 MHz -2.75 -1.59 0.88 94.07 5.91 0.88
950 MHz -2.75 -1.52 0.92 95.42 6.08 0.92
960 MHz -3.93 -2.76 -0.29 86.46 4.71 -0.29

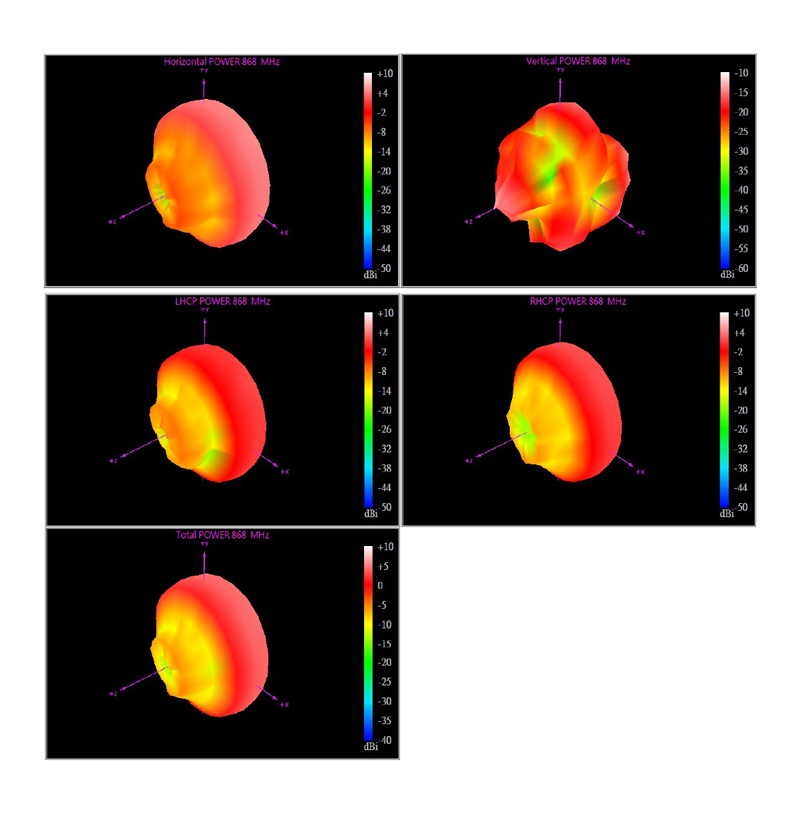

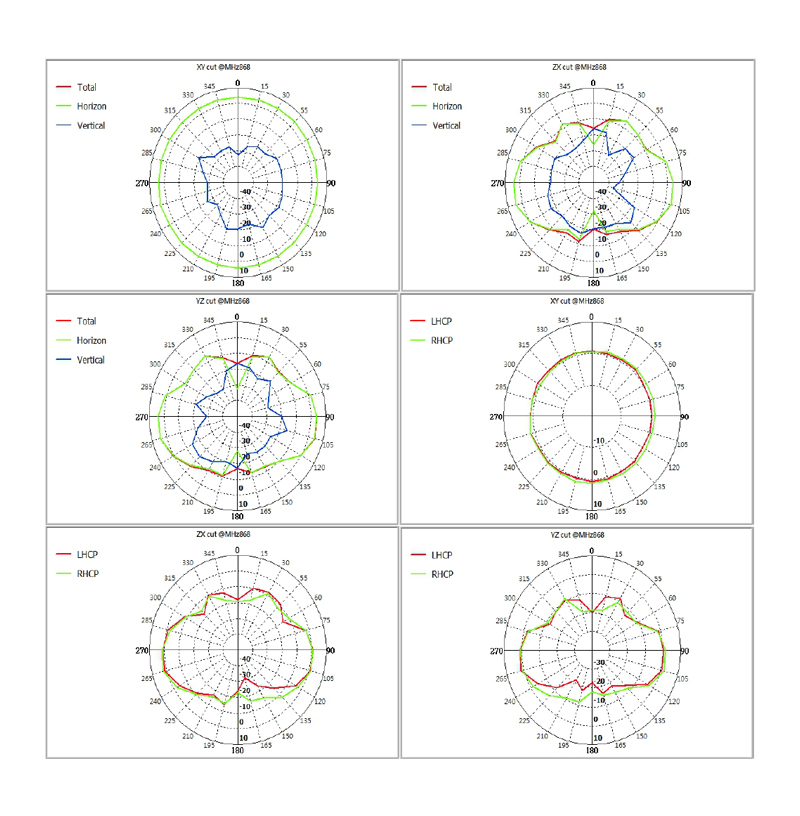

868Mhz:

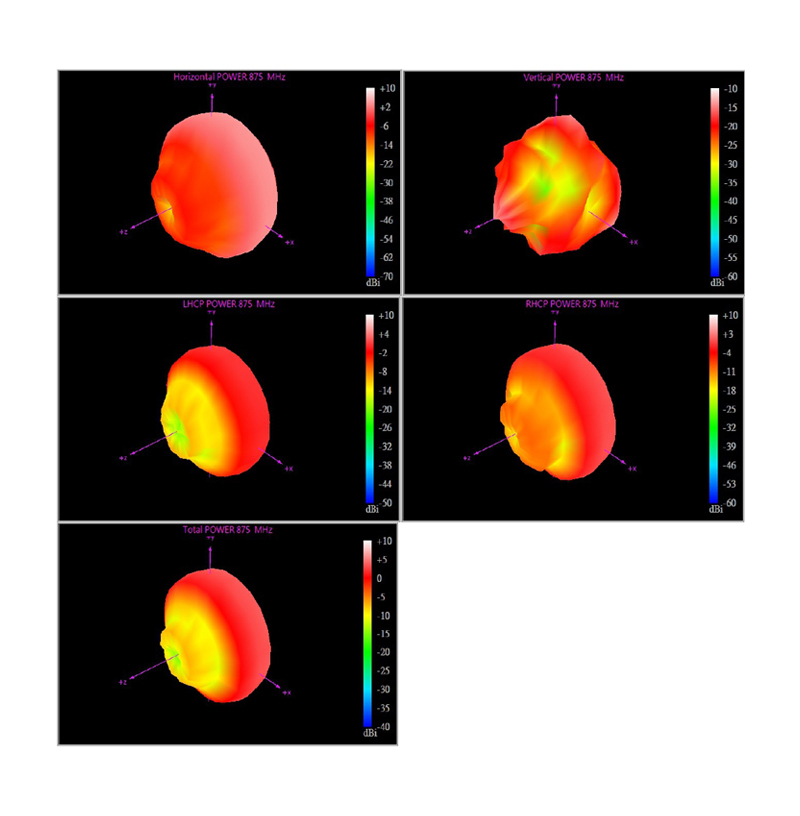

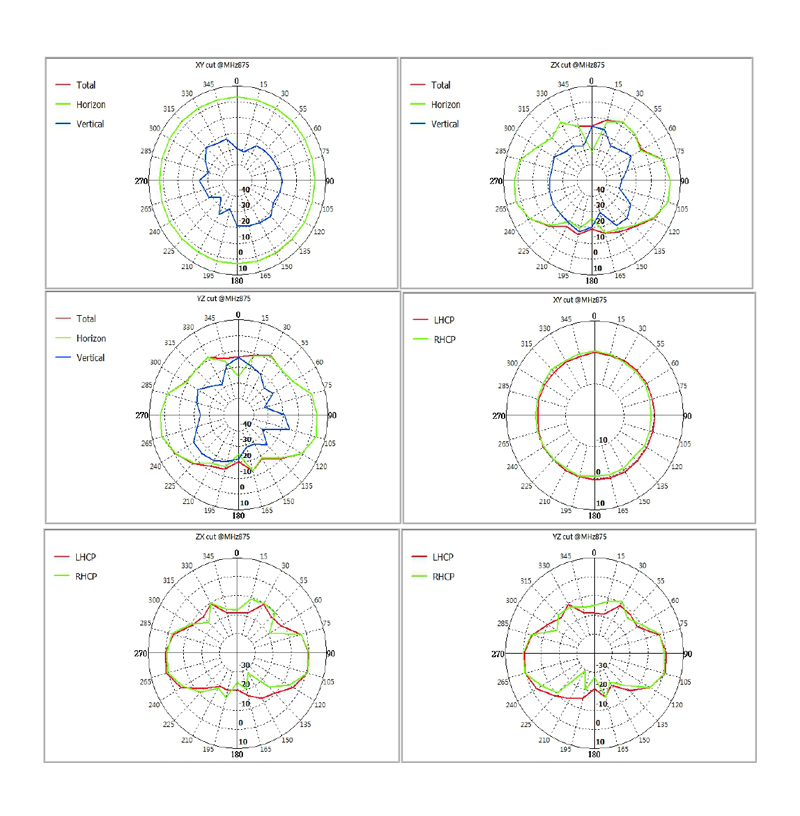

875Mhz:

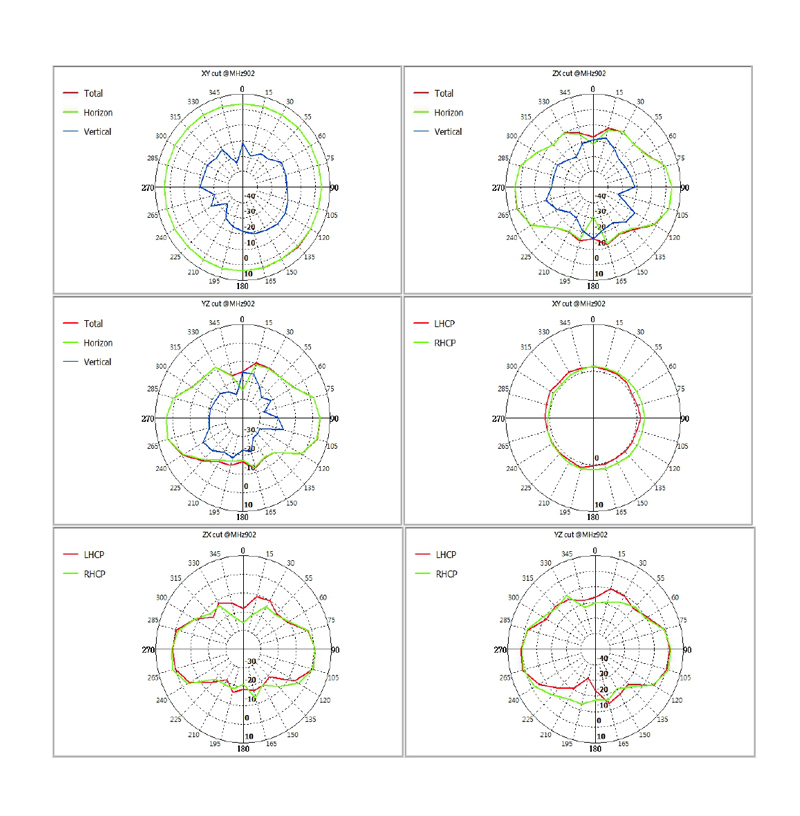

902Mhz:

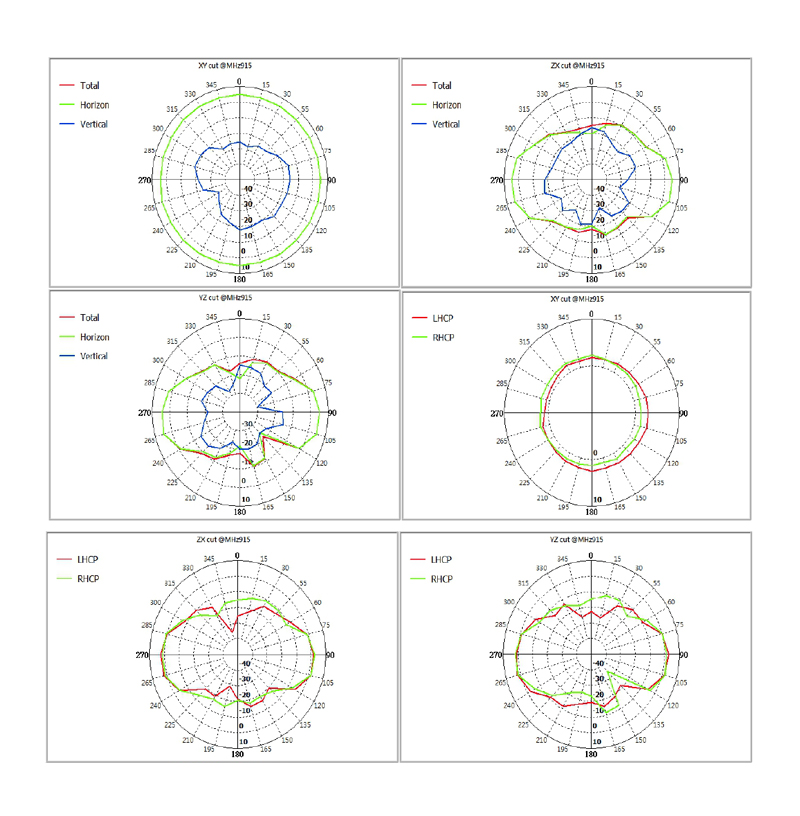

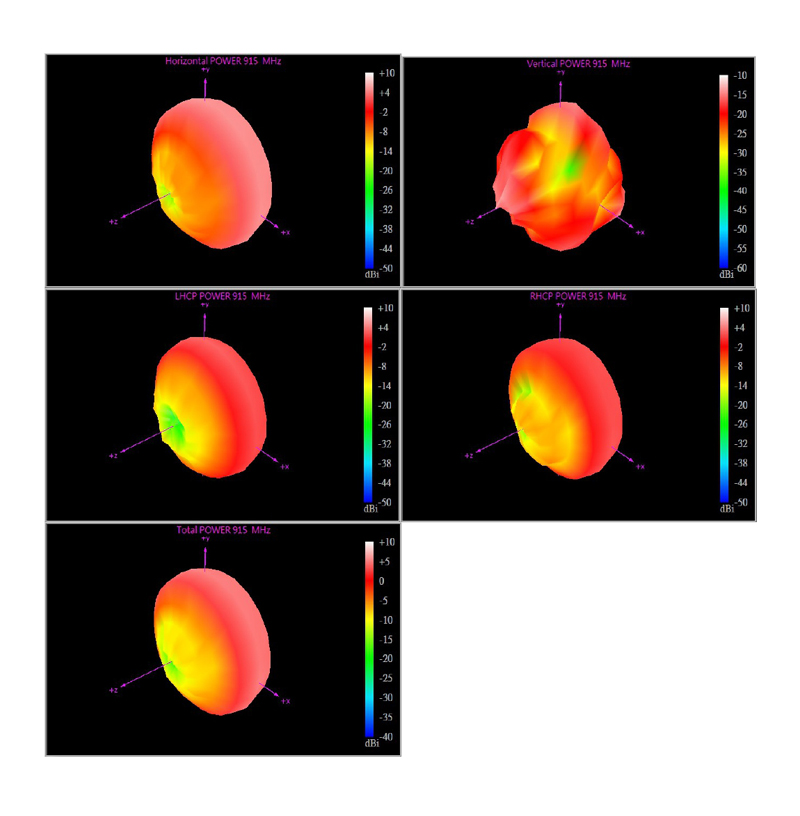

915Mhz:

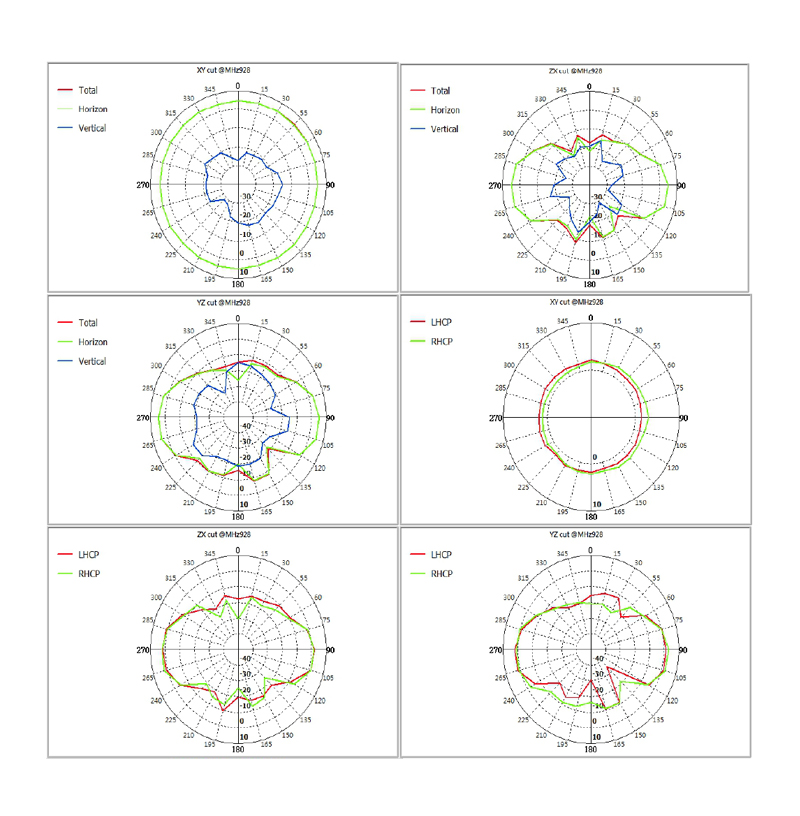

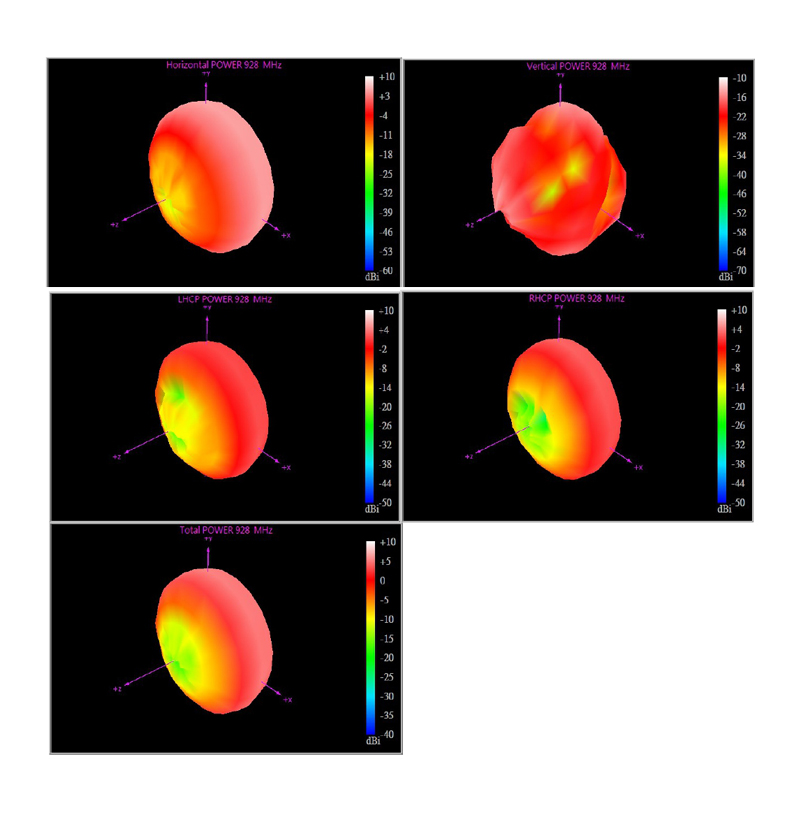

928Mhz:
