TH-2458-6
  • Product Description
  • Product Specification
Frequency range 2400~2500 & 5700~5900Mhz
Gain 4 & 6dBi
V.S.W.R 2.0
Impedence 50 ohm
Connector N Type male

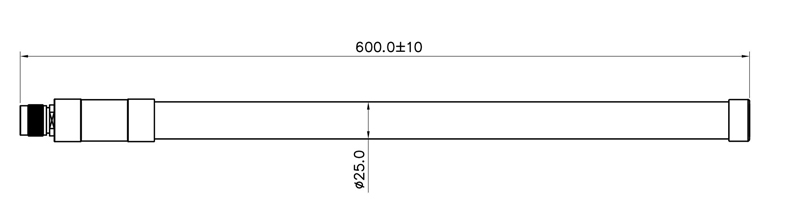

Dimension 600mm +/-10 x OD27.9mm
Weight 0.25Kg
Polarization vertical
Power handling 100W
Materials Fiberglass & copper
Colour White
Rated wind velocity 60m/s
Working Temperature -40~60℃
Lightning Protection Direct Ground

* This specification is subject to change without prior notice

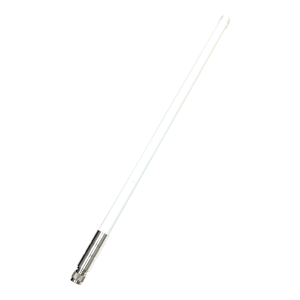

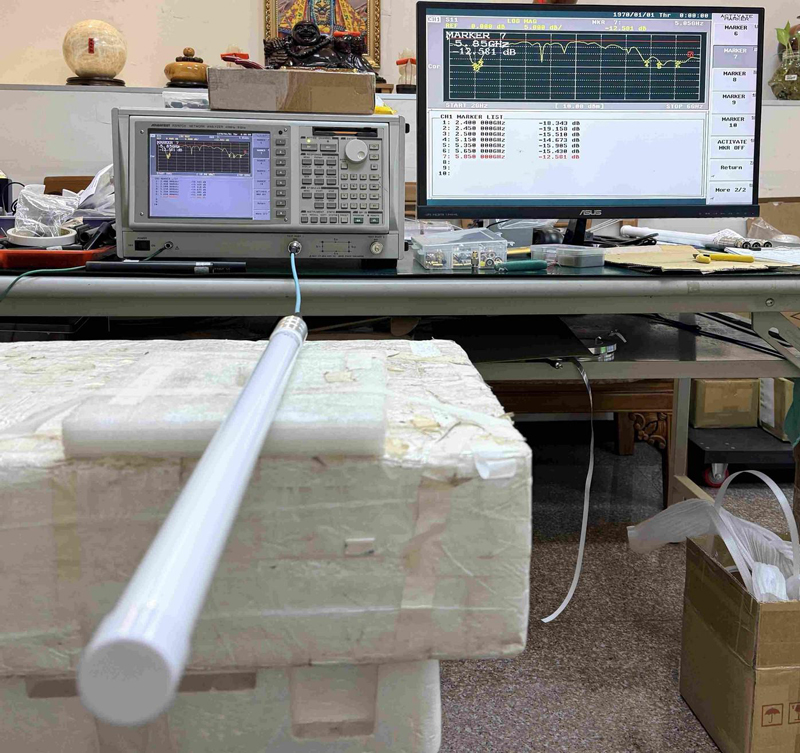

2.APPEARANCE:

3.FREQUENCY:

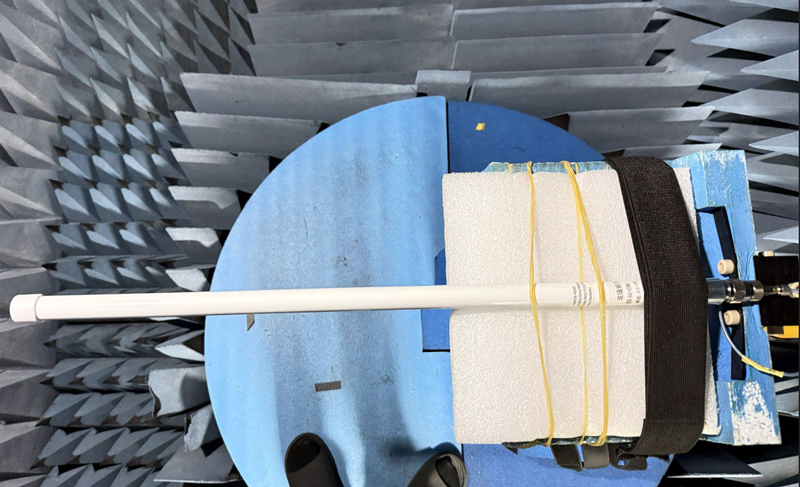

3D Total

Frequency (MHz) Upper Hem. PRP (dBm) Lower HEM. PRP (dBm) Efficiency (dB) Efficiency (%) Gain (dBi) Tot. Rad.Pwr. (dBm)
2350 MHz -7.61 -2.71 -1.49 70.93 4.90 -1.49
2400 MHz -7.91 -3.07 -1.84 65.44 3.98 -1.84
2450 MHz -6.23 -3.26 -1.48 71.08 4.00 -1.48
2500 MHz -5.66 -4.47 -2.01 62.95 3.63 -2.01
2550 MHz -4.99 -4.92 -1.95 63.88 3.45 -1.95
5100 MHz -4.35 -7.01 -2.47 56.67 4.10 -2.47
5150 MHz -3.71 -6.50 -1.88 64.93 4.05 -1.88
5200 MHz -4.02 -6.84 -2.20 60.28 4.68 -2.20
5250 MHz -2.95 -6.05 -1.22 75.53 4.76 -1.22
5300 MHz -4.82 -7.82 -3.05 49.52 3.28 -3.05
5350 MHz -4.46 -7.50 -2.71 53.60 6.01 -2.71
5400 MHz -4.34 -7.69 -2.69 53.81 5.26 -2.69
5450 MHz -5.18 -7.78 -3.28 46.99 3.44 -3.28
5500 MHz -5.10 -7.47 -3.11 48.81 4.30 -3.11
5550 MHz -5.63 -7.06 -3.28 47.01 3.37 -3.28
5600 MHz -4.55 -5.60 -2.03 62.60 4.91 -2.03
5650 MHz -3.70 -5.09 -1.33 73.64 5.86 -1.33
5700 MHz -5.24 -6.77 -2.93 50.95 4.22 -2.93
5750 MHz -4.10 -5.79 -1.85 65.29 4.69 -1.85
5800 MHz -4.98 -6.70 -2.75 53.14 4.12 -2.75
5850 MHz -4.96 -6.67 -2.72 53.47 4.10 -2.72

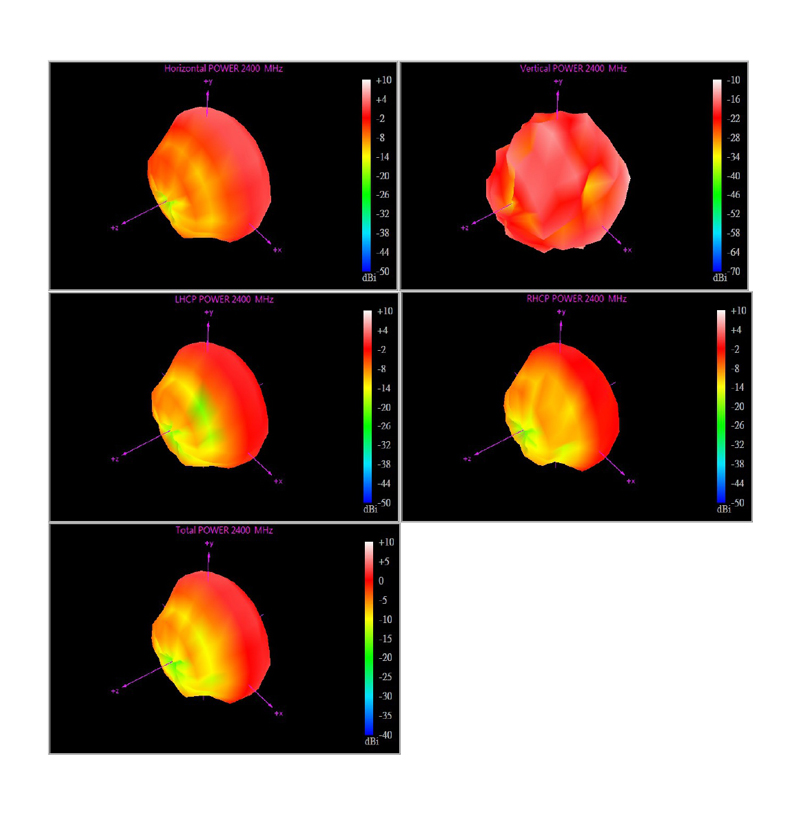

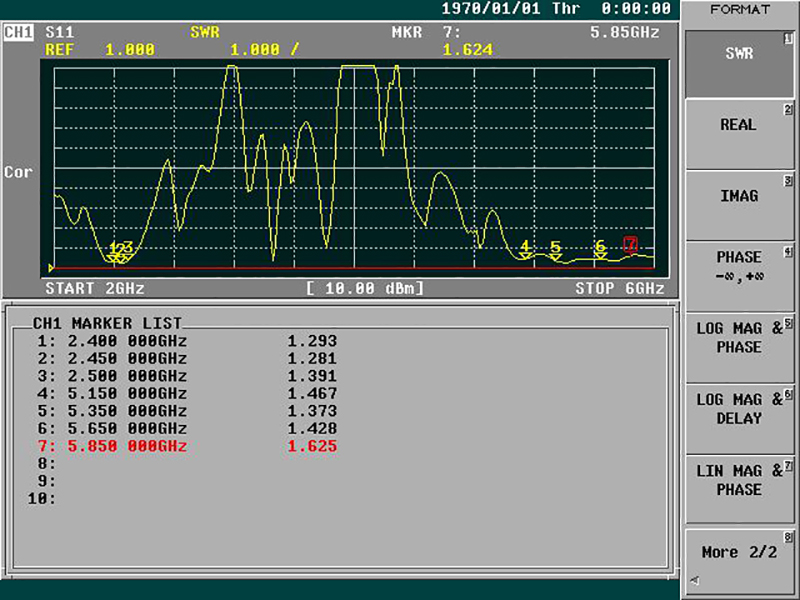

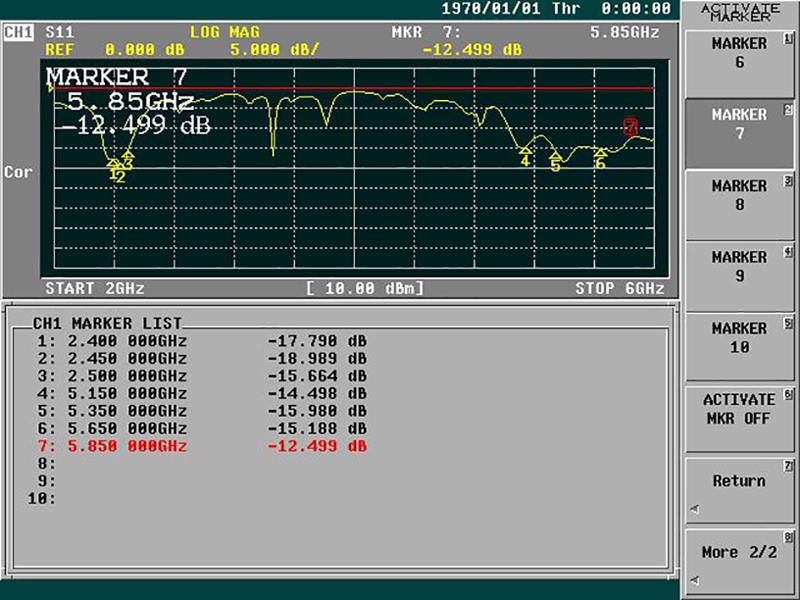

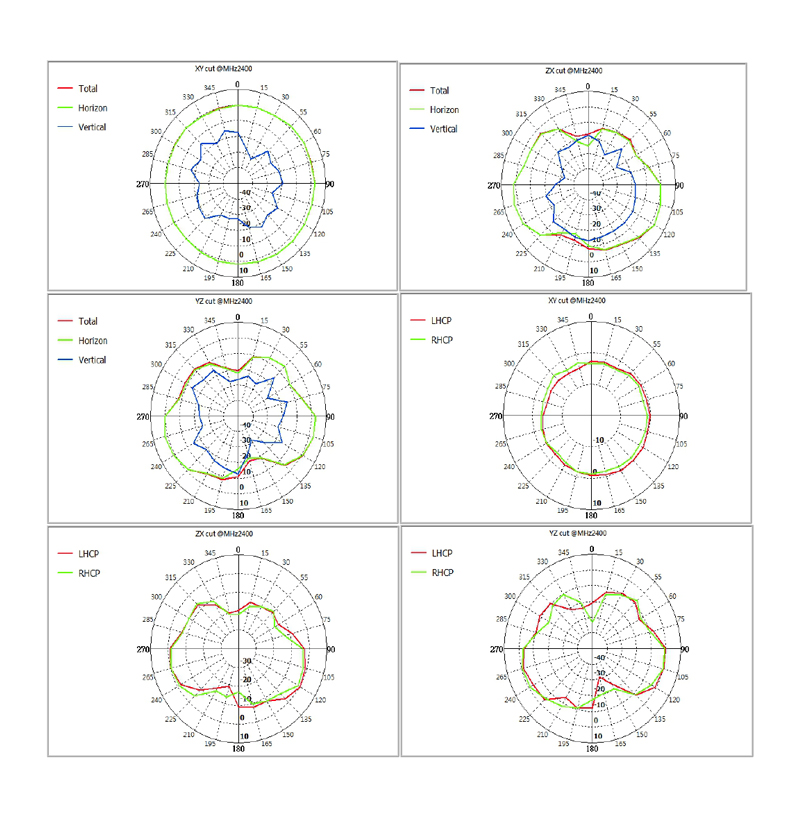

2.4Ghz:

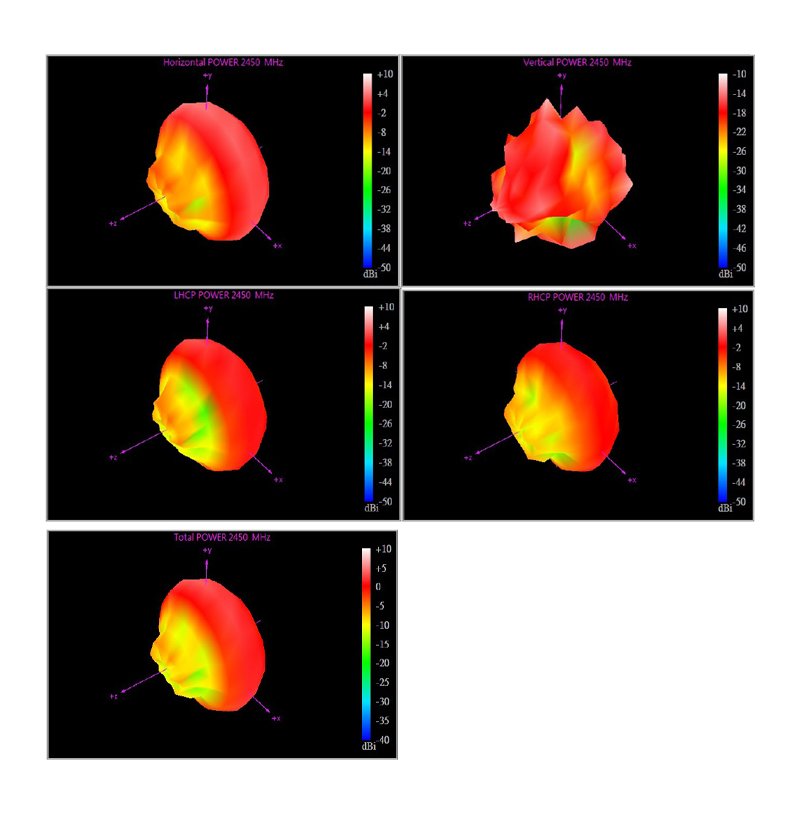

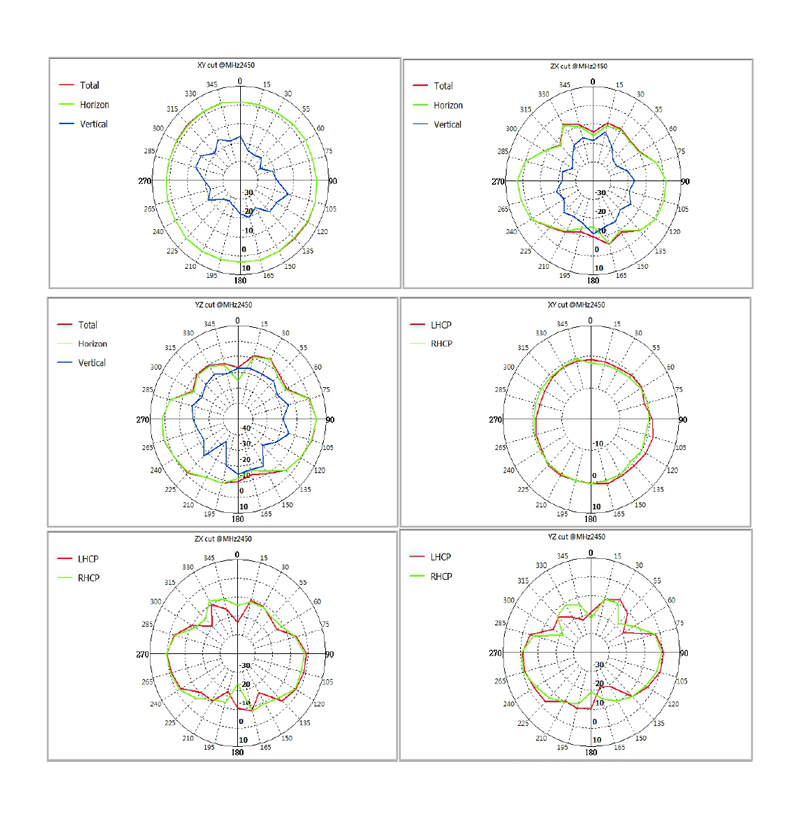

2.45Ghz:

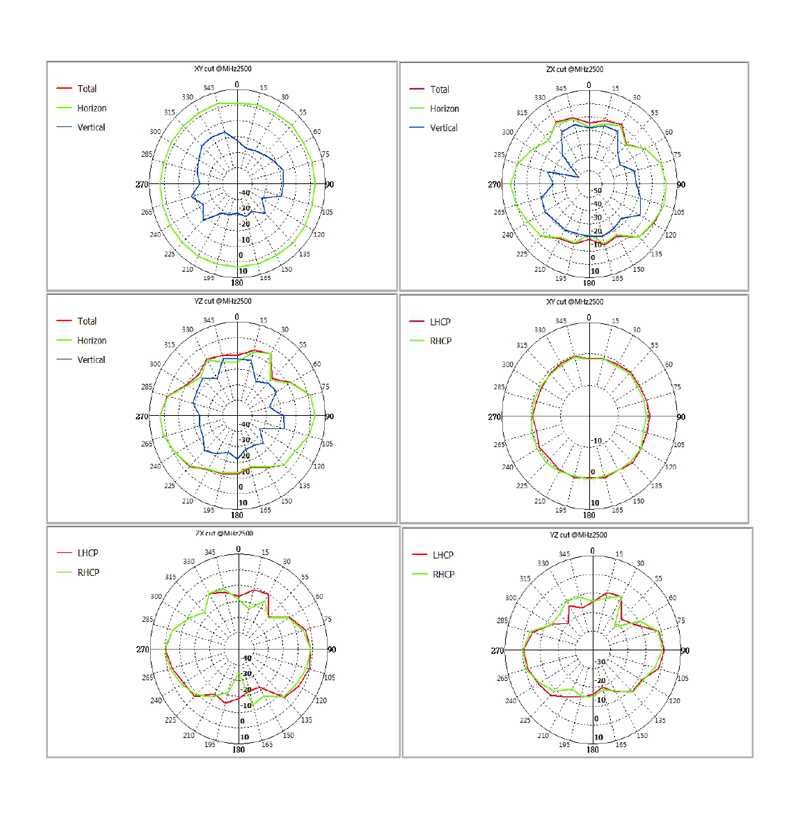

2.5Ghz:

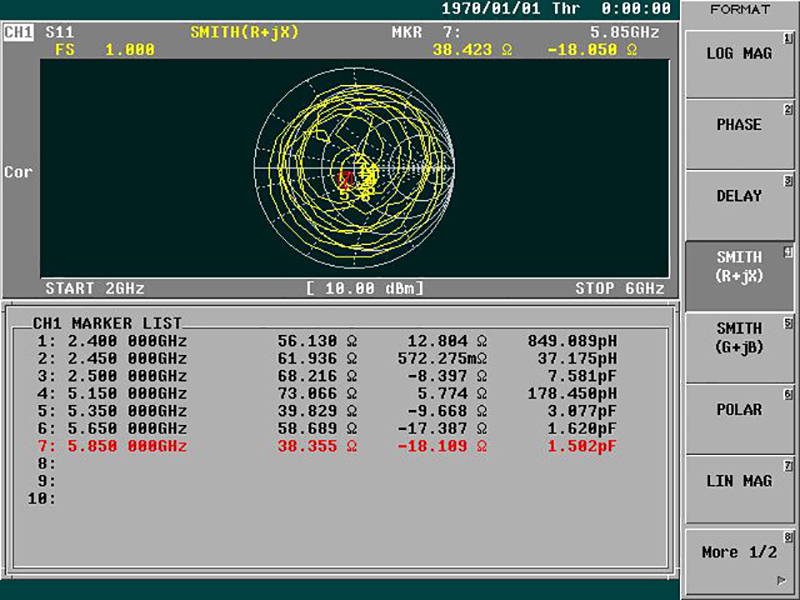

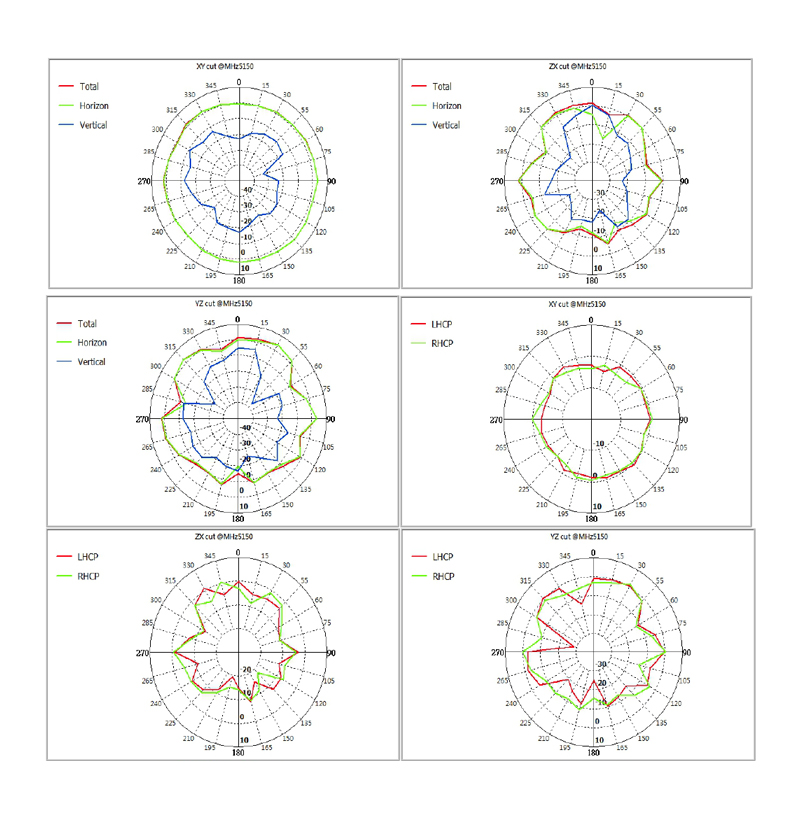

5.15Ghz:

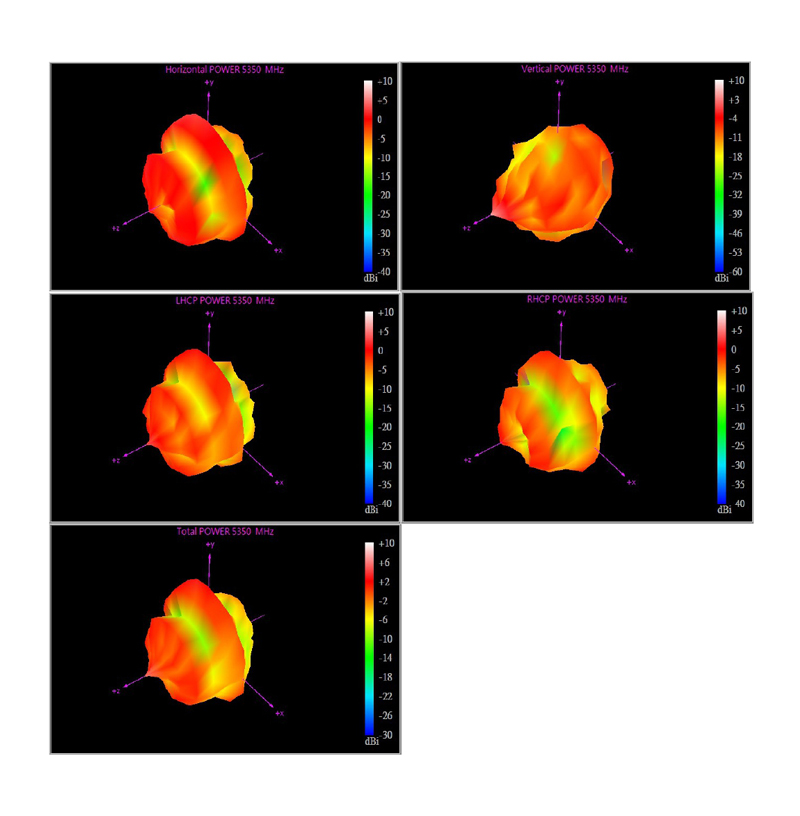

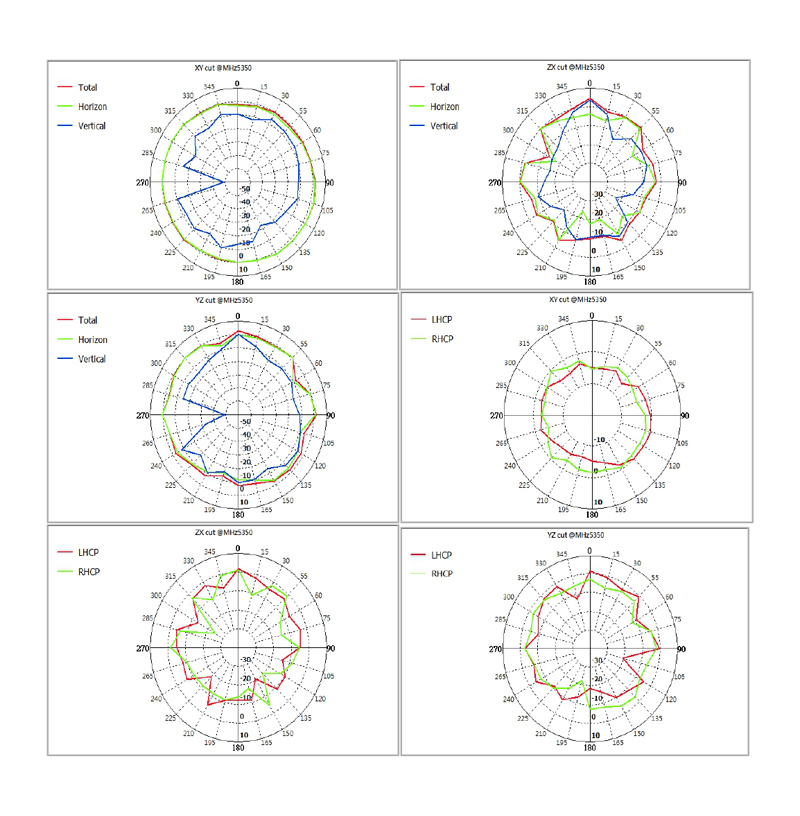

5.35Ghz:

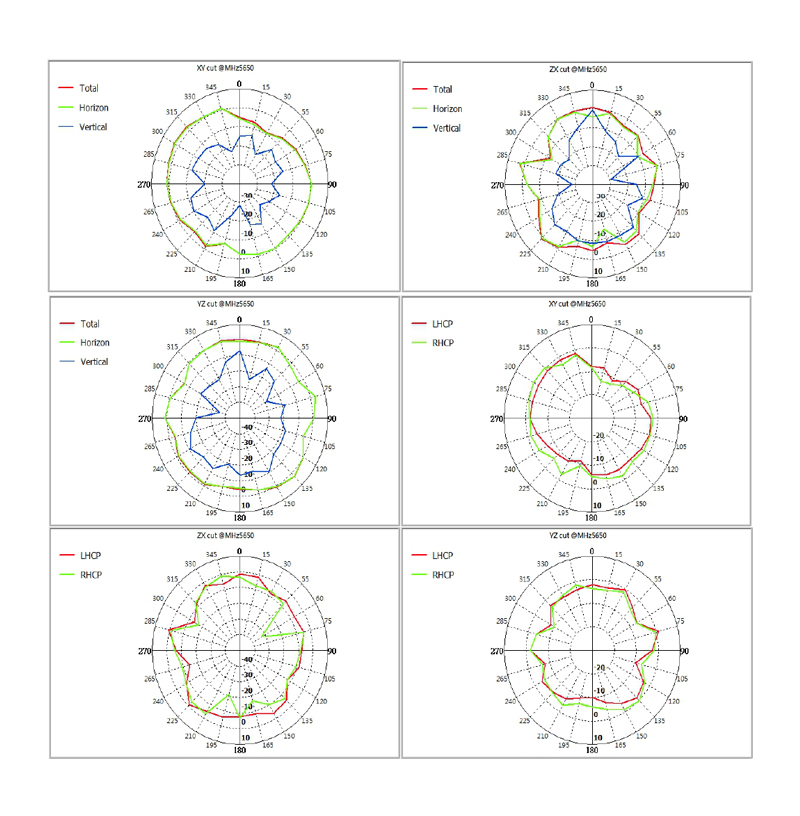

5.65Ghz:

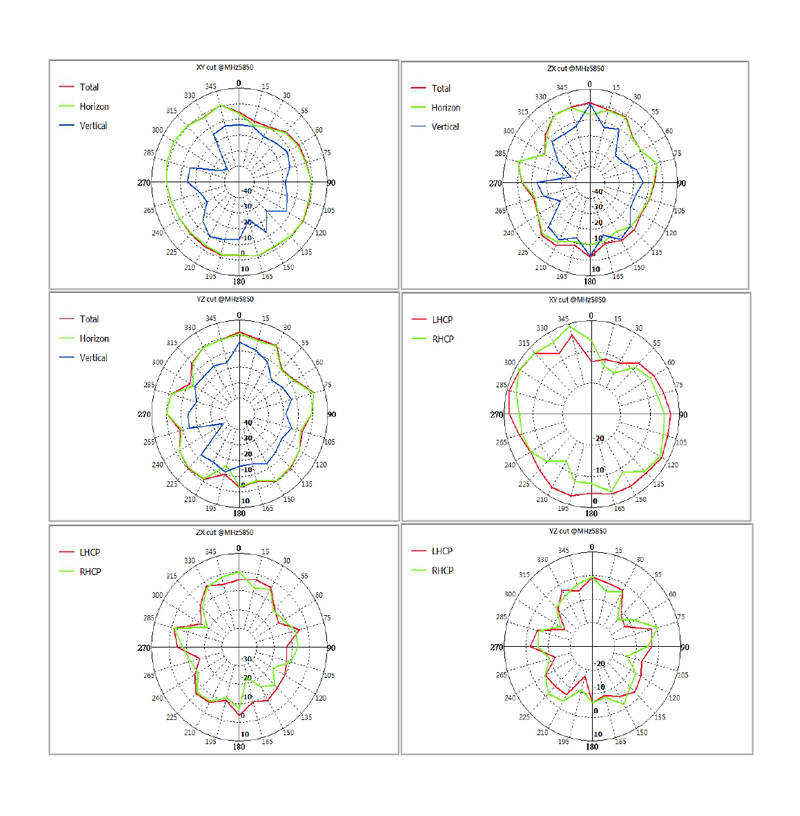

5.85Ghz:
