TH-780D
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

P/N
TH780D-BNC(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 780+/-20MHz
Nominal impedance 50ohm
Polarization Vertical
V.S.W.R 2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Cover PU
Touch Type Screw Type
Connector Type BNC 180° (Male)
Antenna Dimensions 286 mm±5
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

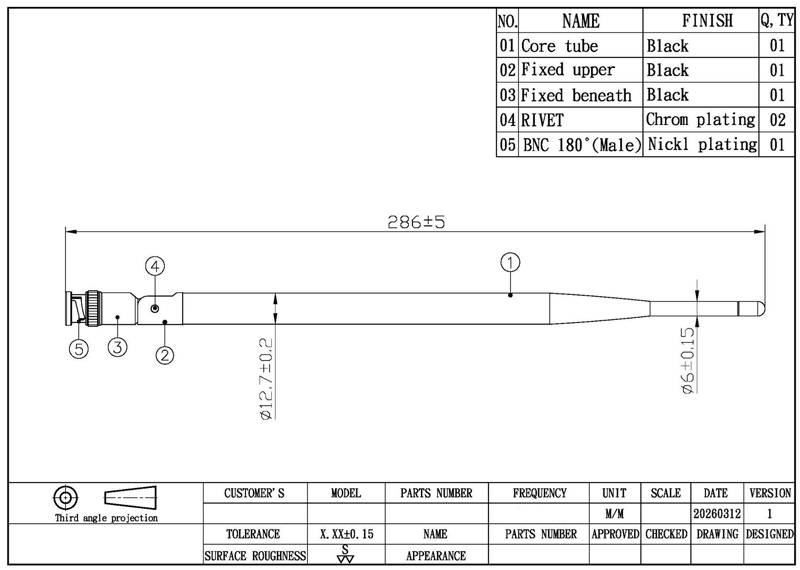

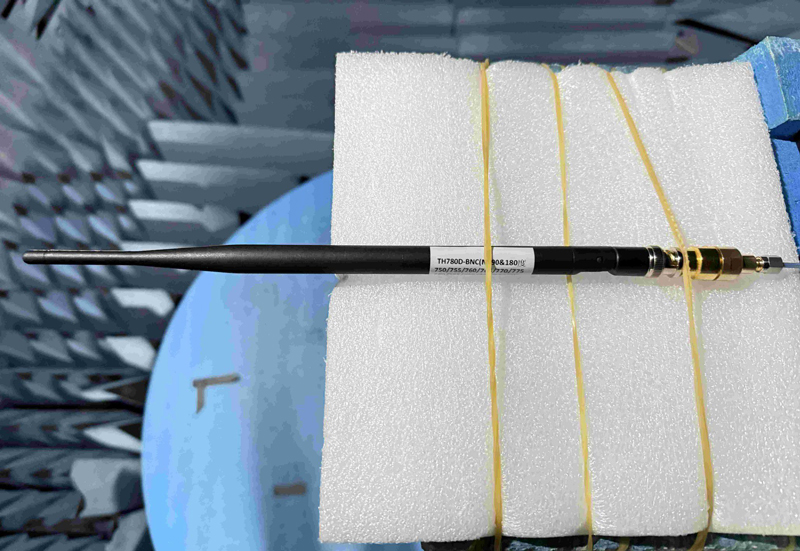

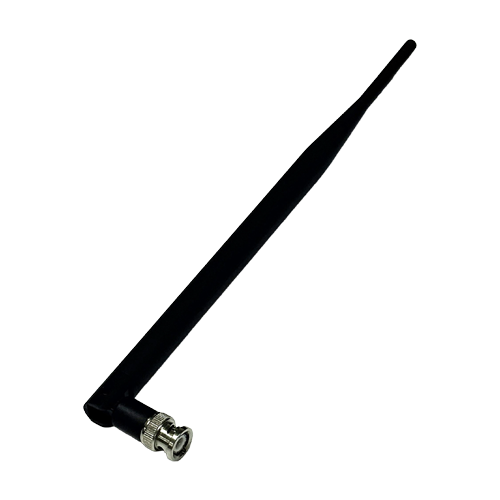

2. APPEARANCE:

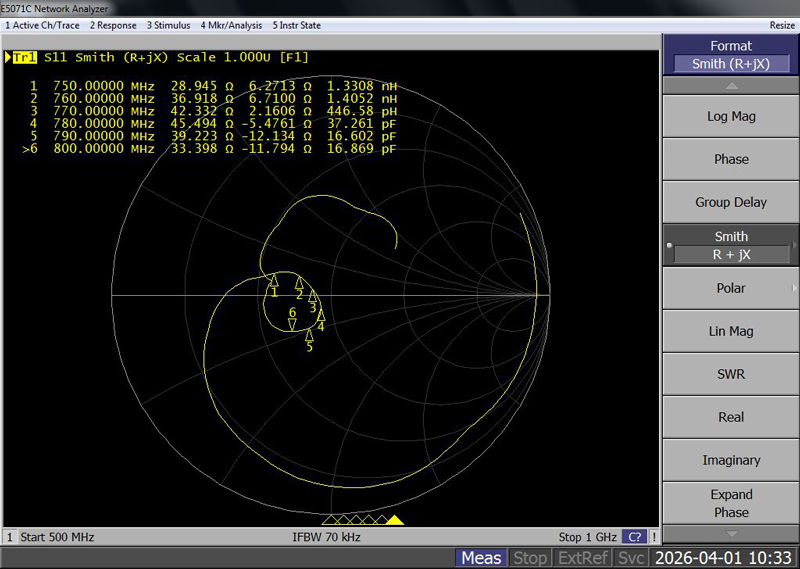

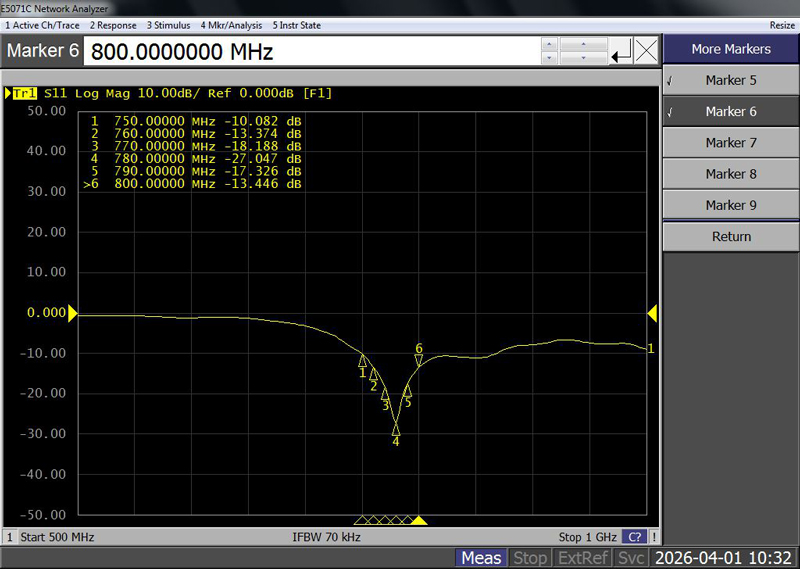

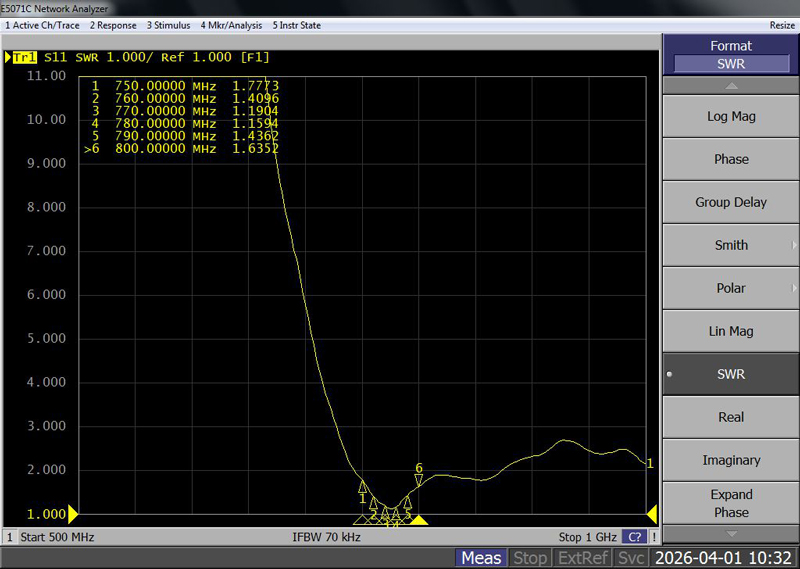

3. Return Loss, V.S.W.R. and Smith Chart

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
750 MHz -5.46 -2.98 -1.03 78.81 3.88 -1.03
755 MHz -6.09 -3.53 -1.61 68.96 2.24 -1.61
760 MHz -5.75 -3.05 -1.19 76.11 3.02 -1.19
765 MHz -5.84 -3.28 -1.36 73.04 2.65 -1.36
770 MHz -5.83 -3.17 -1.29 74.29 2.94 -1.29
775 MHz -6.52 -3.44 -1.71 67.51 2.35 -1.71
780 MHz -6.30 -3.50 -1.67 68.14 2.51 -1.67
785 MHz -6.44 -3.45 -1.68 67.89 2.32 -1.68
790 MHz -6.24 -3.20 -1.45 71.61 2.49 -1.45
795 MHz -7.48 -4.42 -2.68 53.98 1.31 -2.68
800 MHz -7.87 -4.69 -2.99 50.25 1.31 -2.99

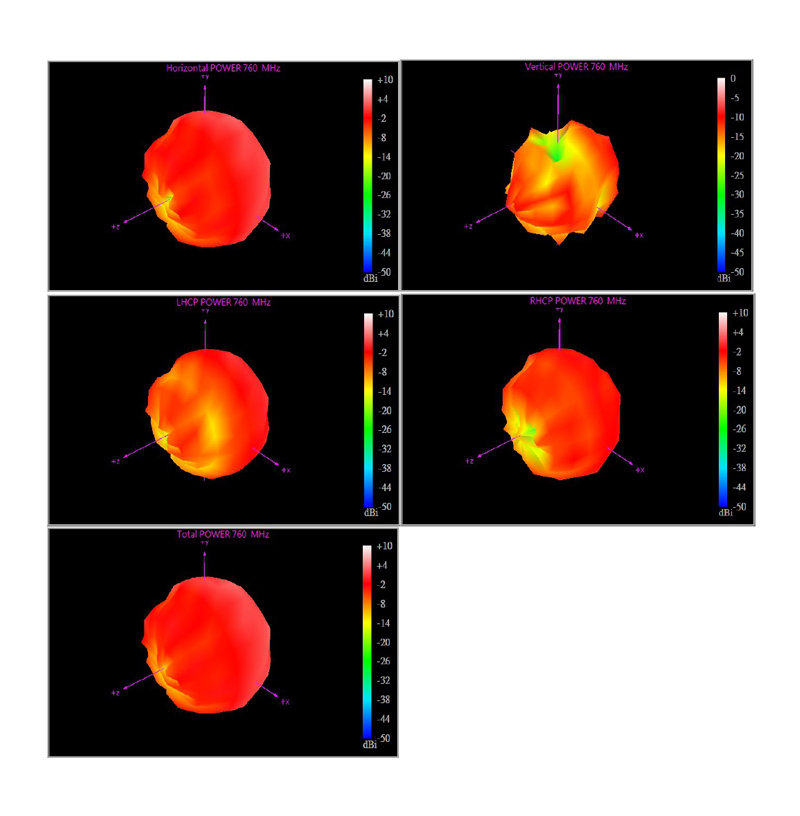

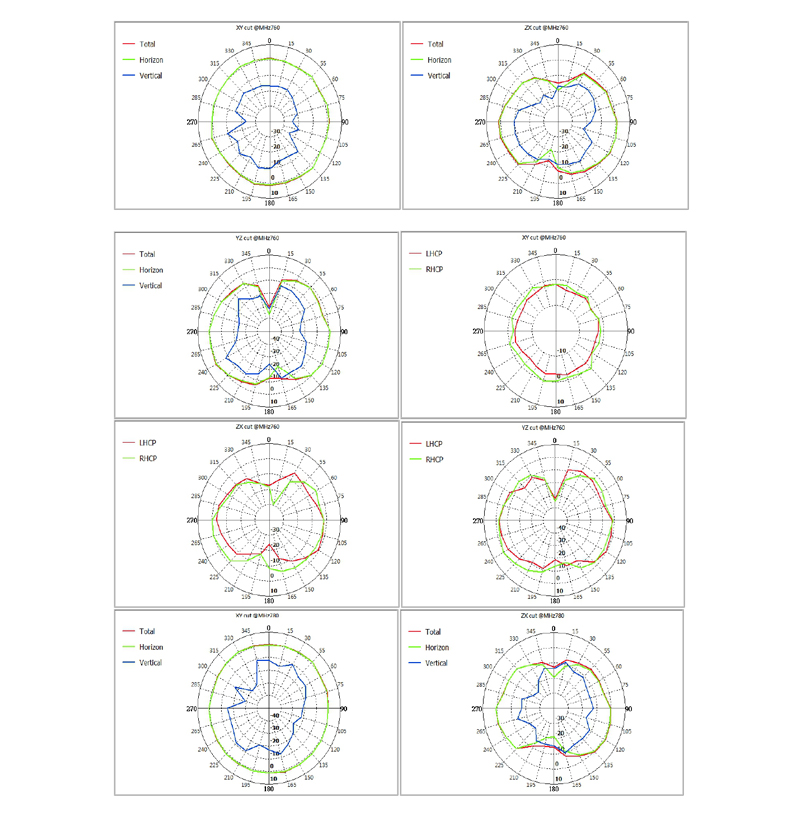

760Mhz:

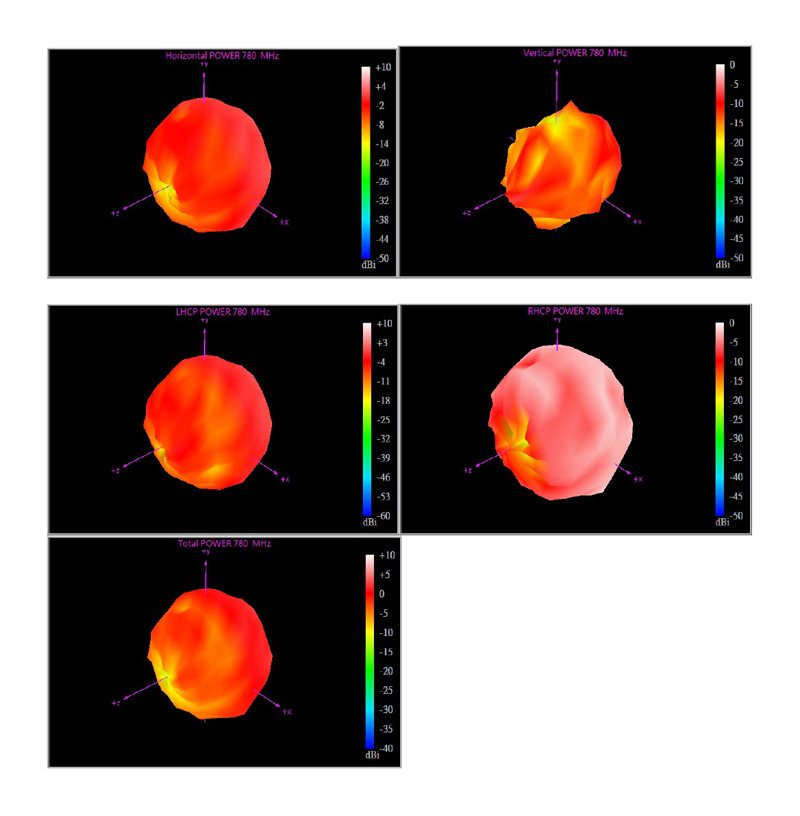

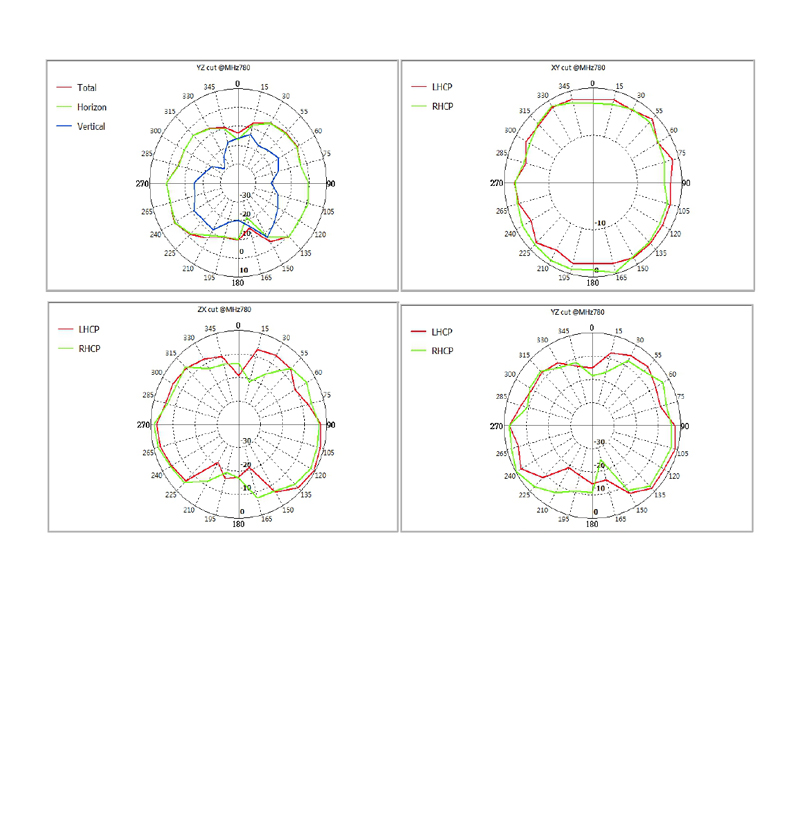

780Mhz:

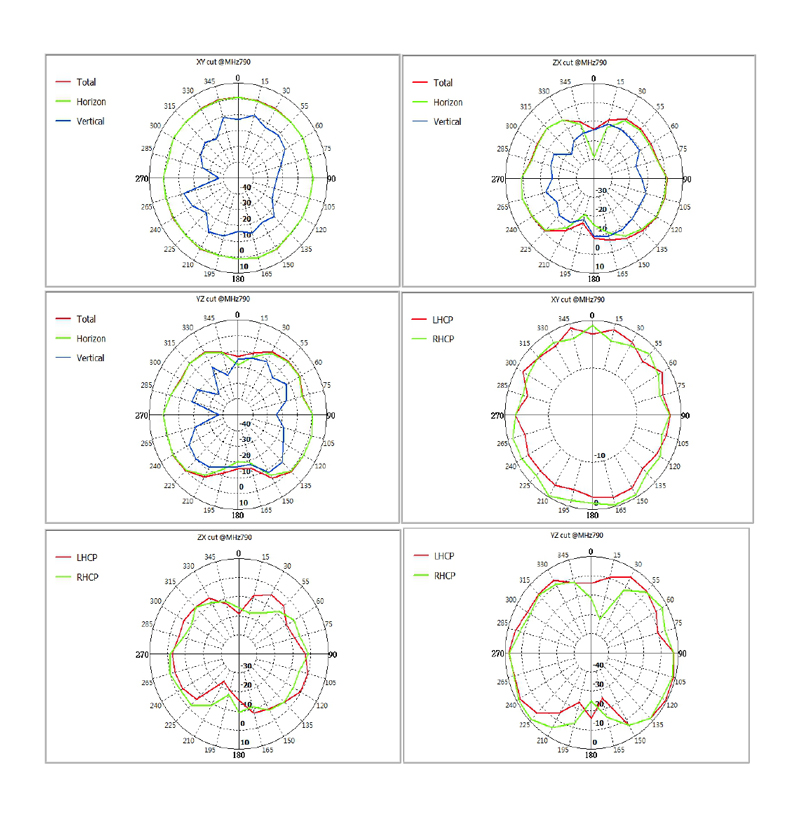

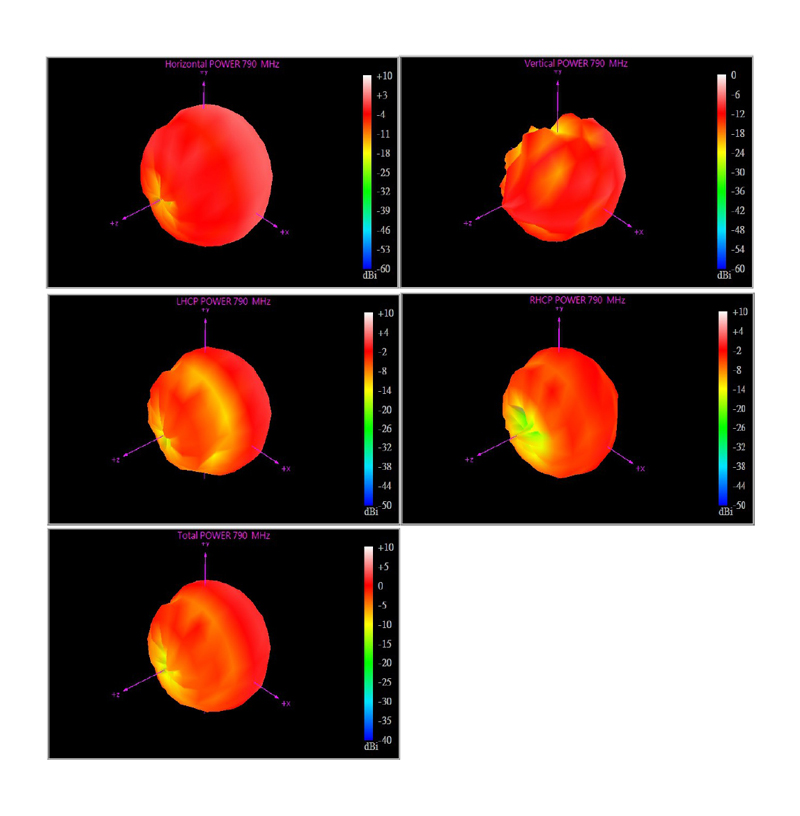

790Mhz:
