  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

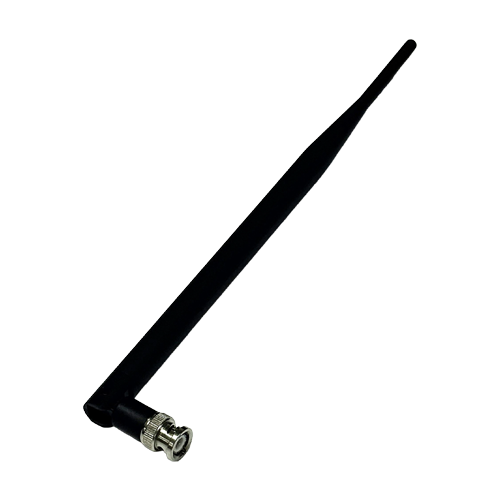

P/N
TH734-BNC(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 734±13MHz
Nominal impedance 50ohm
Polarization Vertical

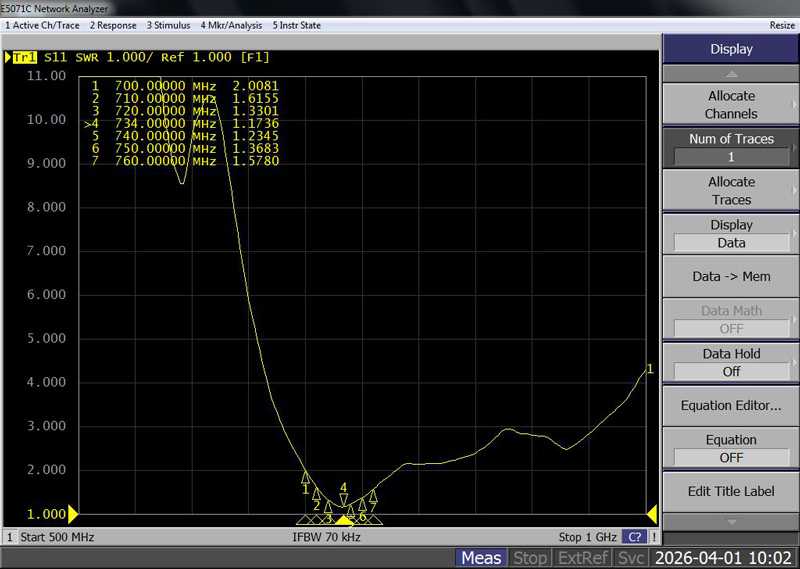

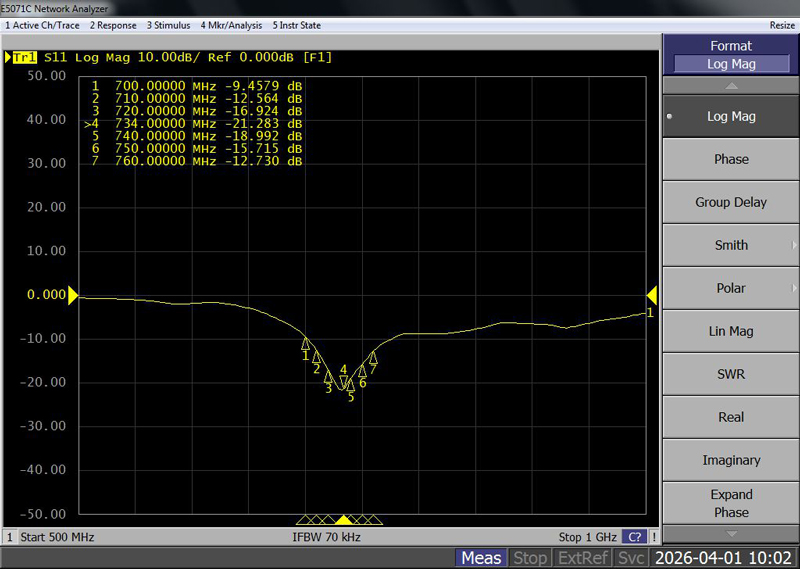

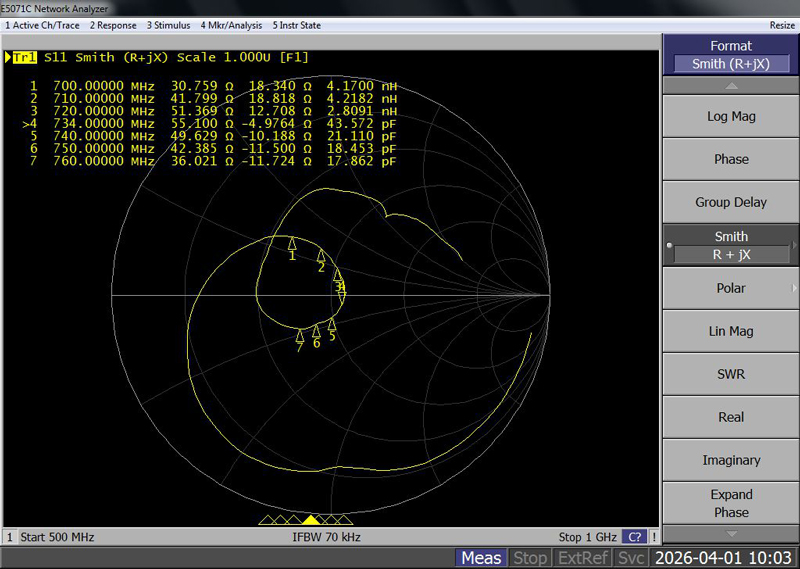

V.S.W.R 2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Cover PU
Touch Type Screw Type
Connector Type BNC 180° (Male)
Antenna Dimensions 286 mm±5
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

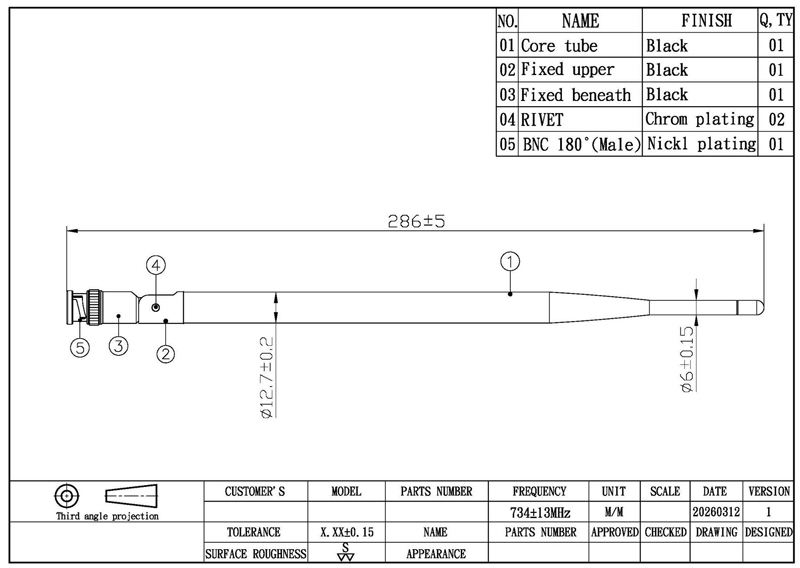

2. APPEARANCE:

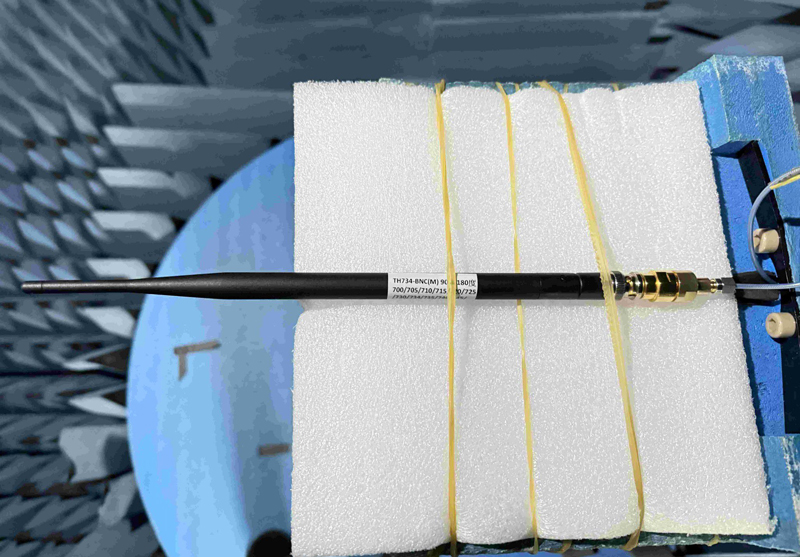

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
700 MHz -5.37 -5.53 -2.44 57.03 0.67 -2.44
705 MHz -6.91 -6.29 -3.58 43.85 -0.65 -3.58
710 MHz -5.76 -4.92 -2.31 58.74 1.18 -2.31
715 MHz -6.61 -5.31 -2.90 51.31 1.09 -2.90
720 MHz -6.14 -4.74 -2.37 57.90 1.22 -2.37
725 MHz -6.42 -4.71 -2.47 56.64 1.59 -2.47
730 MHz -5.99 -3.89 -1.80 66.06 1.76 -1.80
734 MHz -5.99 -3.77 -1.73 67.20 2.57 -1.73
735 MHz -6.16 -3.69 -1.75 66.91 2.44 -1.75
740 MHz -6.53 -3.94 -2.04 62.57 2.24 -2.04
745 MHz -6.70 -3.98 -2.12 61.42 2.42 -2.12
750 MHz -5.25 -2.40 -0.59 87.33 3.43 -0.59
755 MHz -6.07 -3.10 -1.32 73.73 2.81 -1.32
760 MHz -5.87 -2.59 -0.92 80.95 3.51 -0.92
765 MHz -6.09 -3.00 -1.27 74.70 3.23 -1.27
770 MHz -6.18 -3.07 -1.34 73.37 2.87 -1.34

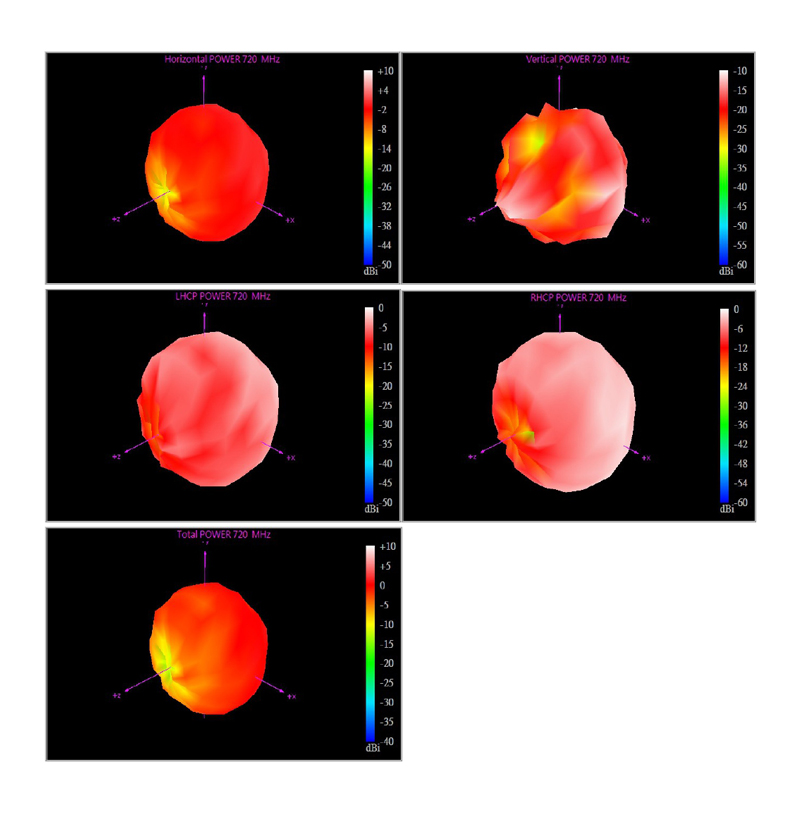

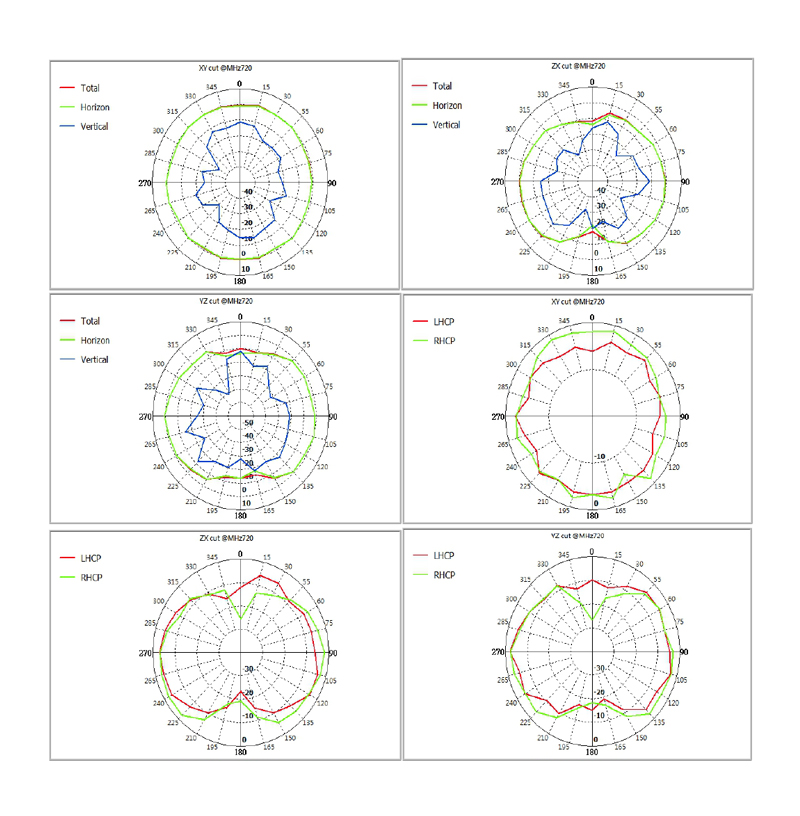

720Mhz:

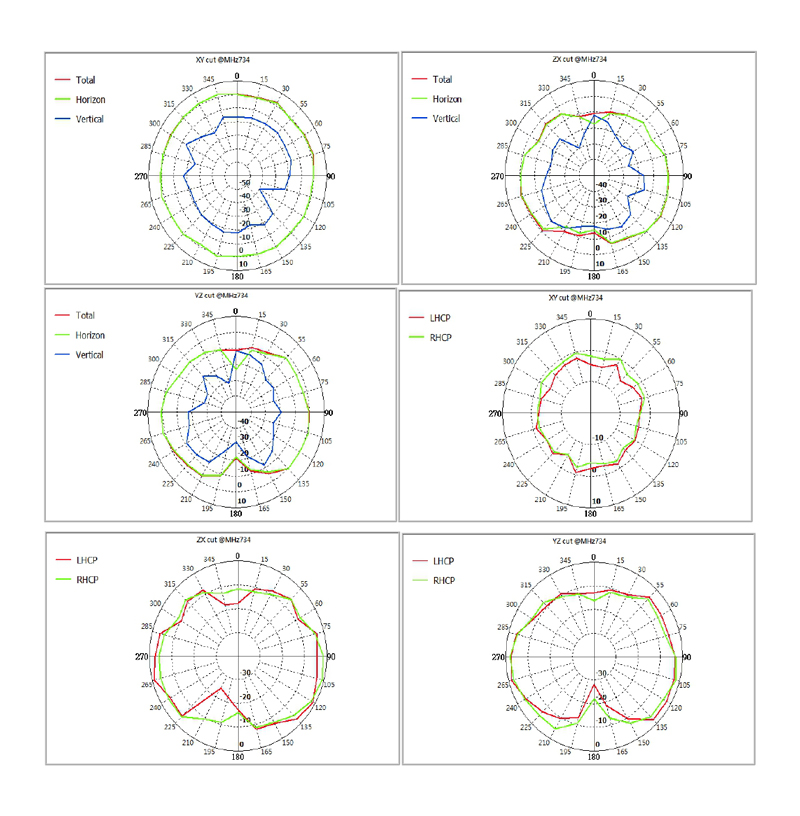

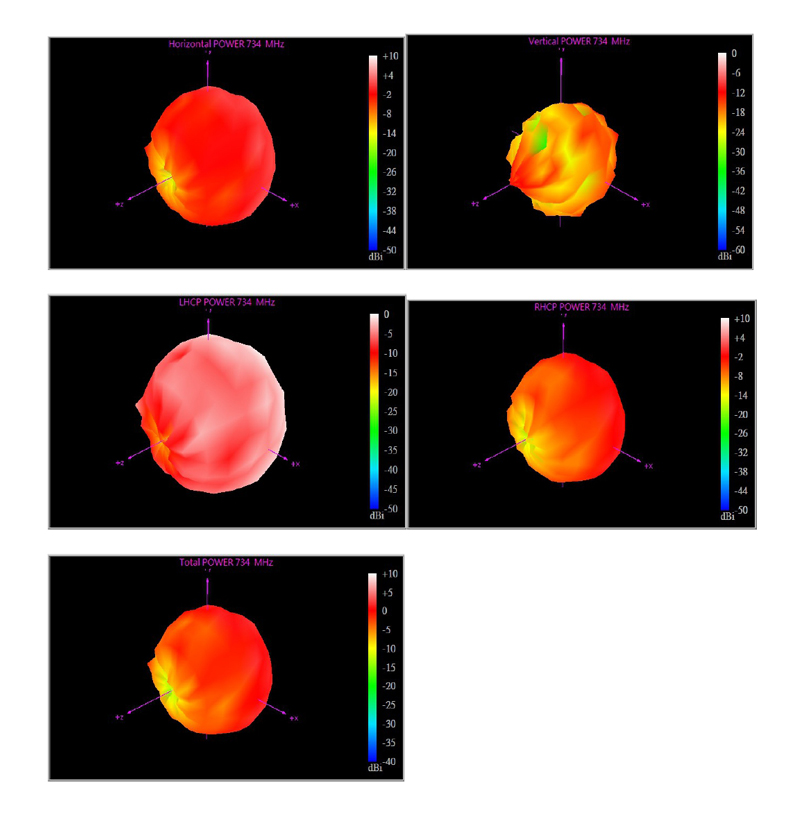

734Mhz:

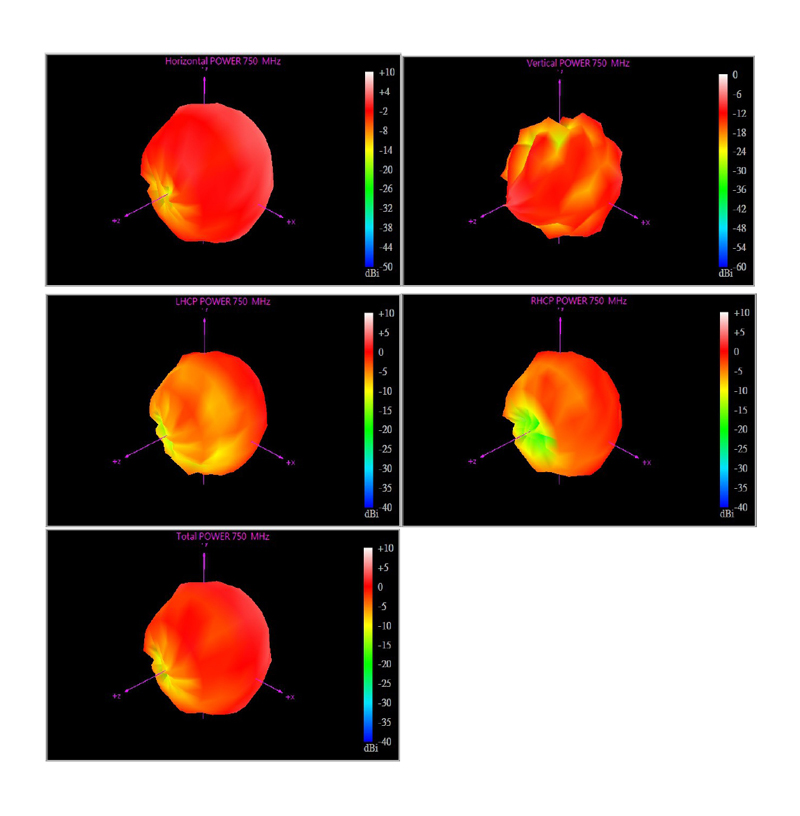

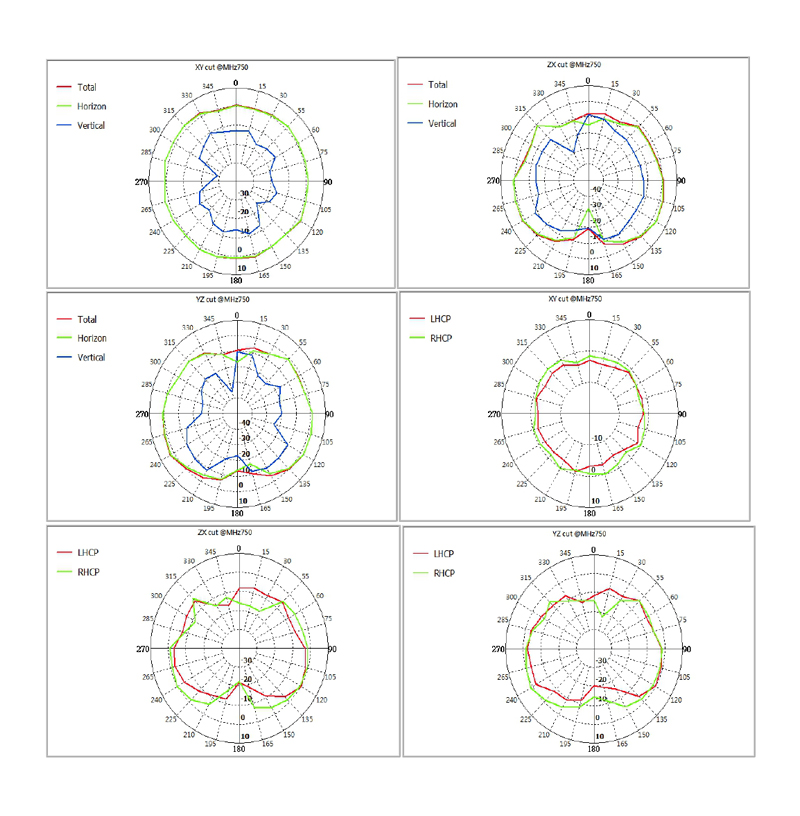

750Mhz:
