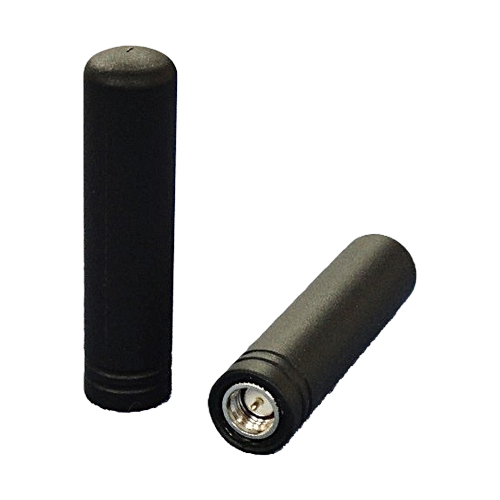

1. GENERAL DESCRIPTION
| Model No |
P/N |
| TH-430C |
TH430C-SMA(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
425~435MHz ON GND |

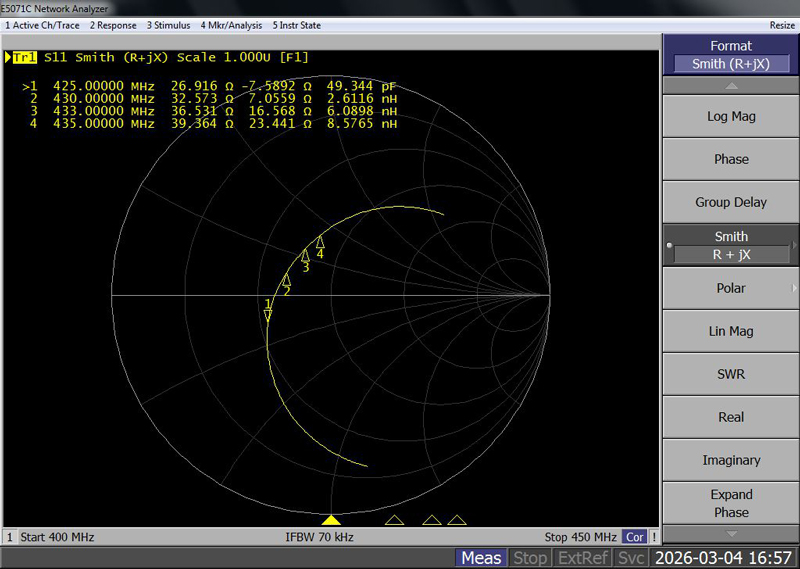

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
1/4λ |
| Admitted Power radiation |
1W |

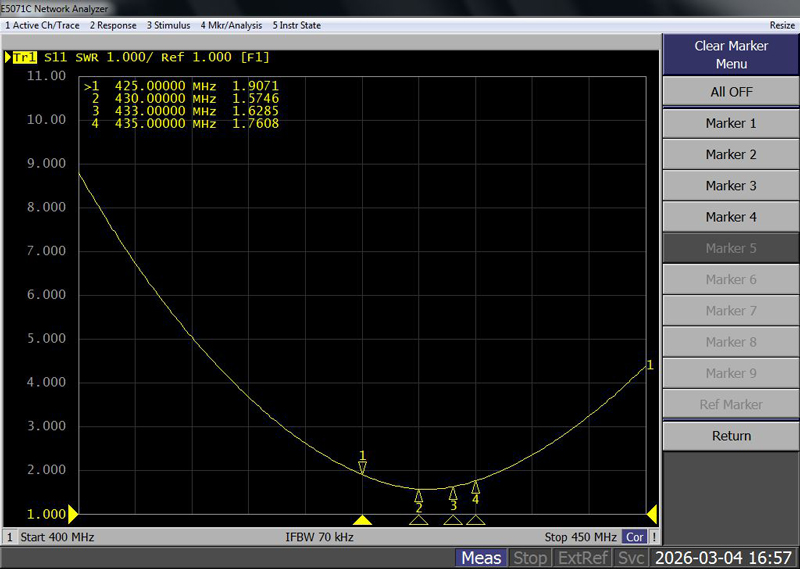

| V.S.W.R |
2.0:1 Max |
| Antenna Peak Gain |
0~2 dB |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Material |
TPU |
| Touch Type |
Screw Type |
| Connector Type |
SMA (Male) |

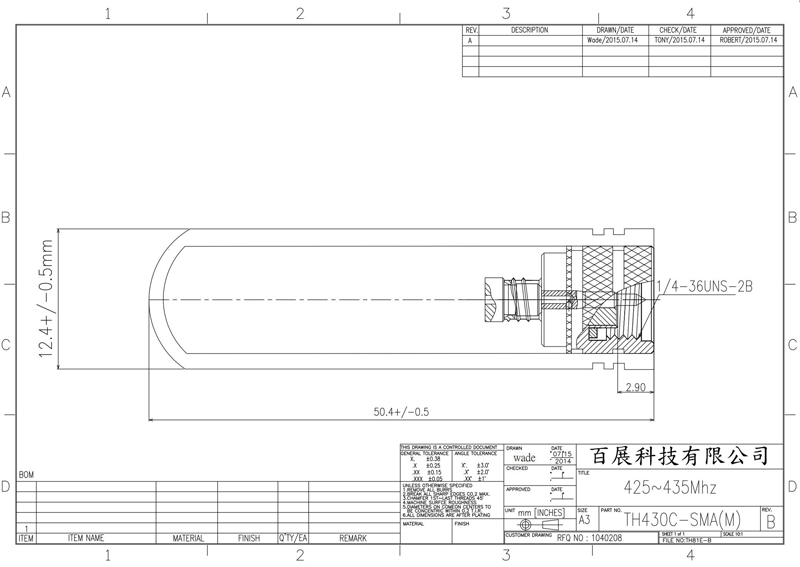

| Antenna Dimensions |
OD12.4 x 50.4mm±0.5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+80°C |
| Storage Temperature Range |
-30°C~+80°C |
