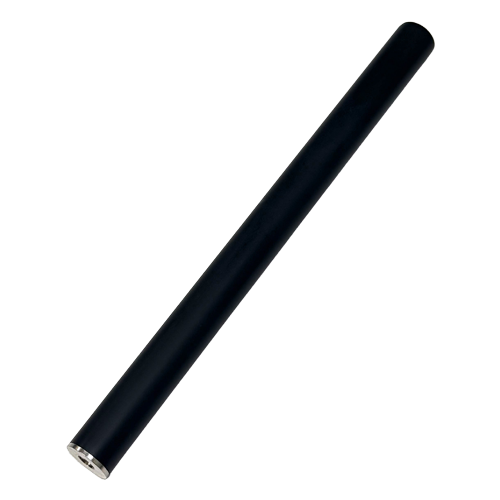

TH-1450i

TH-1450i

Inquiry

Download

TH-1450i
  • Product Description
  • Product Specification

1. Electrical Properties

Parameter Description
Frequency Band 1400~1500Mhz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

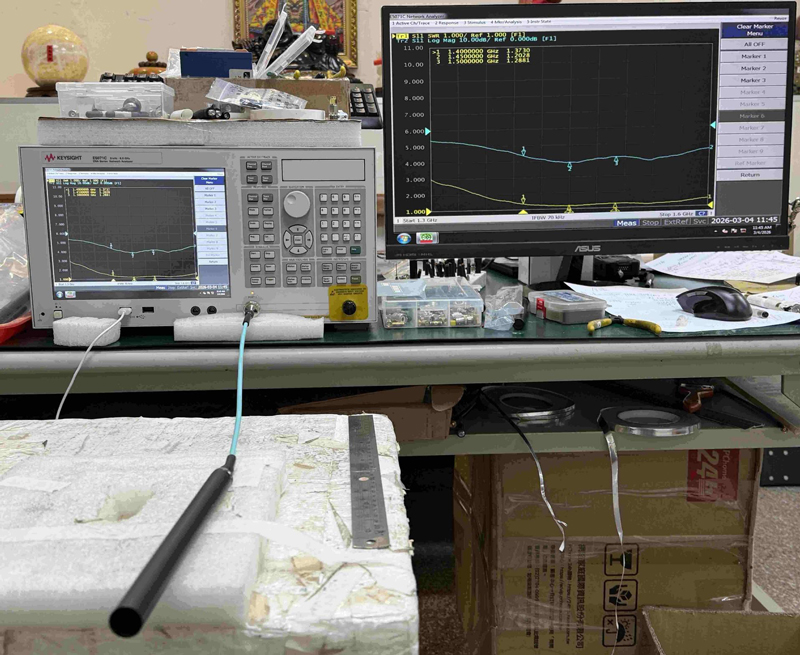

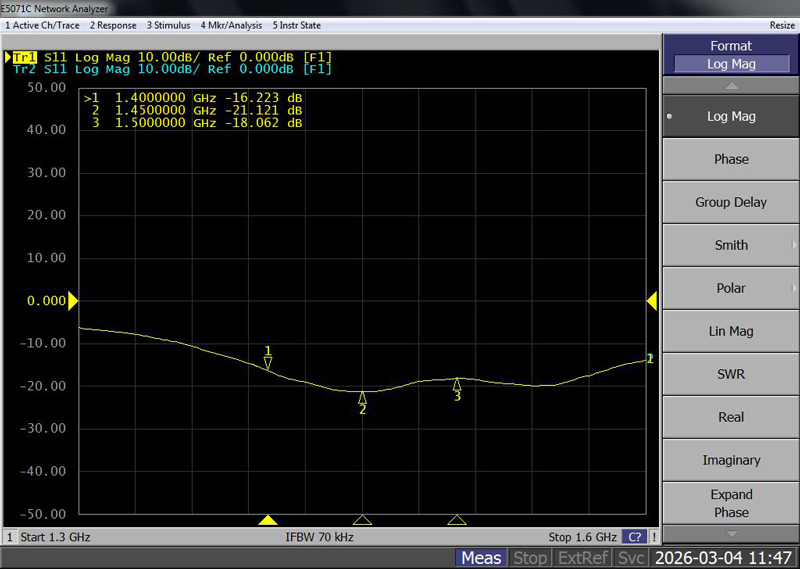

Return Loss Please See Data-1

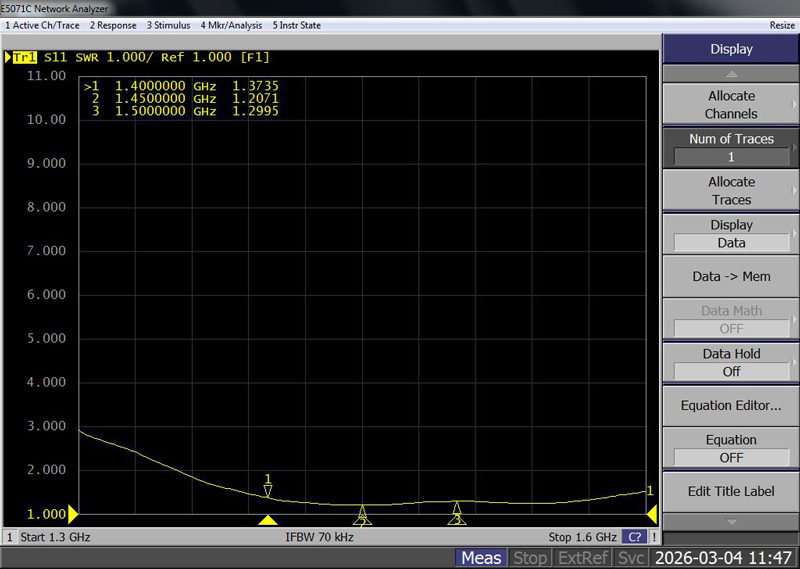

V.S.W.R 2.0:1
Antenna Peak Gain 3dBi


2. Mechanical Properties

Parameter Description
Antenna Type External Antenna
Connector Type SMA(M)

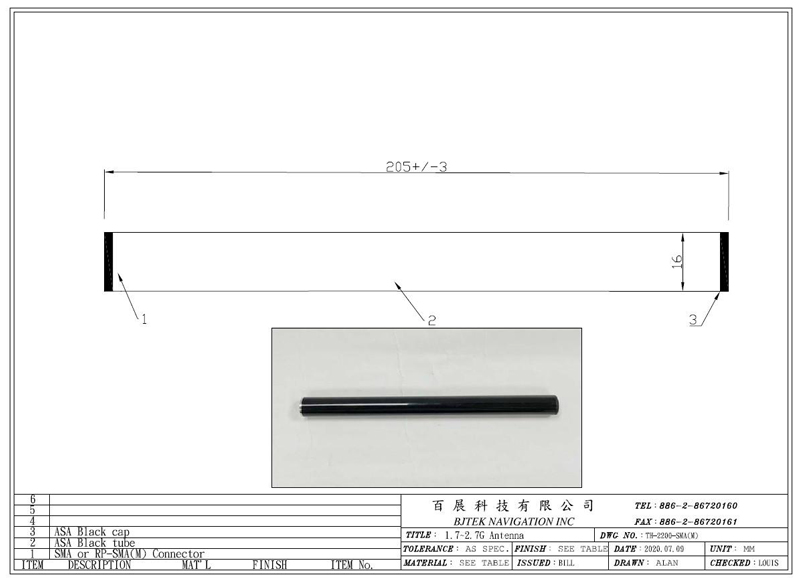

Antenna Dimensions 205 mm ± 3
Antenna Color ASA-UV-Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C
Waterproof IPX7
