Specifications:
| Frequency range: |
1350MHz~1490MHz |
| Gain: |
14 dBi |
| V.S.W.R: |
2.0 Max |
| Impedence: |
50 ohm |
| Connector: |
N Type Female |
| Dimension: |
305 x 305 x 35mm |
| Weight: |
1.1Kg |
| Polarization: |
Linear |
| Power handling |
50W Max |
| HPBW / horizontal |
35° |
| HPBW / vertical |
35° |
| Radome color |
white |
| radome material |
ABS +Aluminium allo |
*This specification is subject to change without prior notice

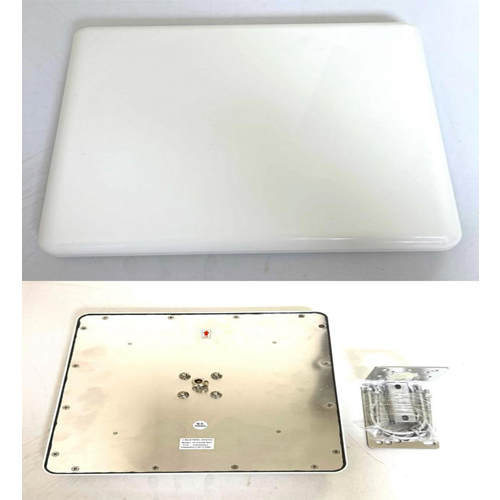

Our TP-1314 / TP-1314A are Panel Antenna for L Band communication transmission equipment.
You can apply them with UAV control data image transmission, wireless AP, PA signal transmission, interference, etc. The Outdoor Panel L-band high-gain directional antenna includes L-mounting for adjusting antenna's signal transmission and reception angles. Please don’t hesitate to email us if you have any questions.
3D Total
Frequency
(MHz) |
Upper Hem.
PRP (dBm) |
Lower HEM.
PRP (dBm) |
Efficiency
(dB) |
Efficiency
(%) |
Gain (dBi) |
Tot. Rad.Pwr.
(dBm) |
| 1350 MHz |
-2.46 |
-14.10 |
-2.17 |
60.63 |
13.62 |
-2.17 |
| 1360 MHz |
-2.42 |
-14.25 |
-2.15 |
61.00 |
13.65 |
-2.15 |
| 1370 MHz |
-2.18 |
-14.46 |
-1.93 |
64.12 |
13.79 |
-1.93 |
| 1380 MHz |
-2.09 |
-14.04 |
-1.83 |
65.69 |
14.35 |
-1.83 |
| 1390 MHz |
-2.40 |
-14.37 |
-2.13 |
61.17 |
14.39 |
-2.13 |
| 1400 MHz |
-2.62 |
-14.79 |
-2.36 |
58.03 |
13.65 |
-2.36 |
| 1410 MHz |
-2.44 |
-14.62 |
-2.18 |
60.51 |
14.22 |
-2.18 |
| 1420 MHz |
-2.85 |
-15.28 |
-2.61 |
54.82 |
13.59 |
-2.61 |
| 1430 MHz |
-3.40 |
-15.79 |
-3.16 |
48.30 |
13.29 |
-3.16 |
| 1440 MHz |
-2.86 |
-15.45 |
-2.63 |
54.57 |
13.87 |
-2.63 |
| 1450 MHz |
-2.84 |
-15.92 |
-2.63 |
54.51 |
13.63 |
-2.63 |
| 1460 MHz |
-3.04 |
-16.53 |
-2.85 |
51.88 |
13.52 |
-2.85 |
| 1470 MHz |
-2.61 |
-16.21 |
-2.42 |
57.25 |
13.90 |
-2.42 |
| 1480 MHz |
-2.72 |
-16.47 |
-2.54 |
55.72 |
13.86 |
-2.54 |
| 1490 MHz |
-2.64 |
-16.57 |
-2.47 |
56.62 |
13.78 |
-2.47 |
| 1500 MHz |
-2.91 |
-16.92 |
-2.74 |
53.20 |
13.43 |
-2.74 |

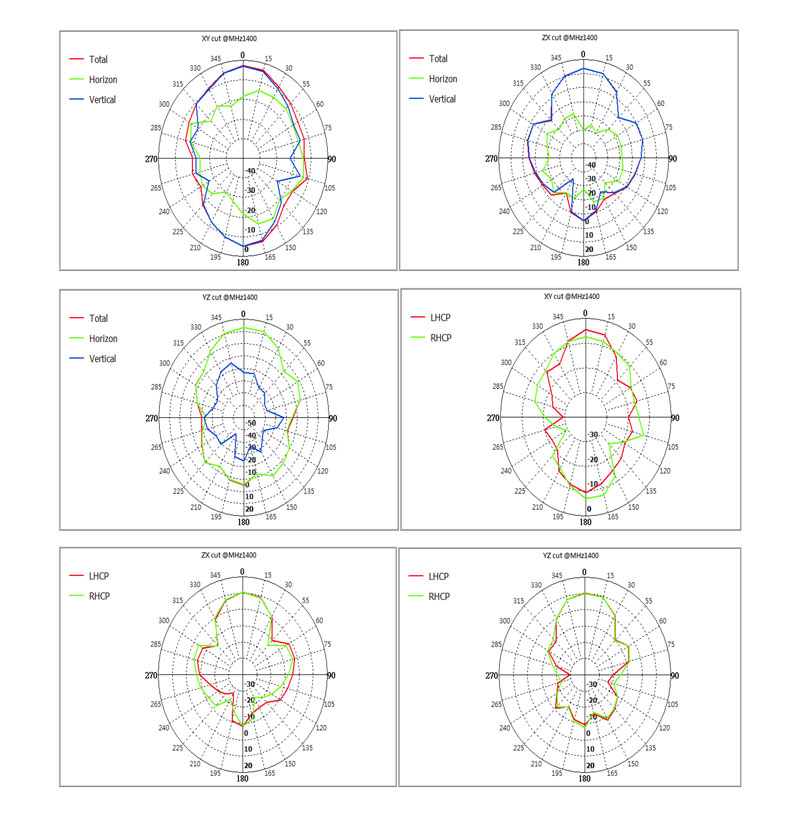

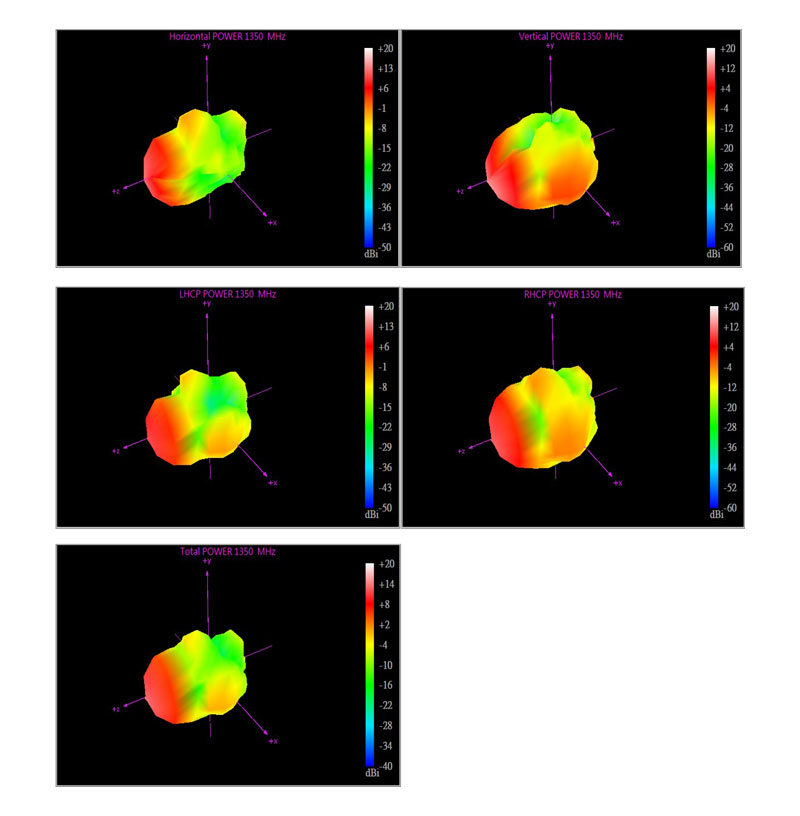

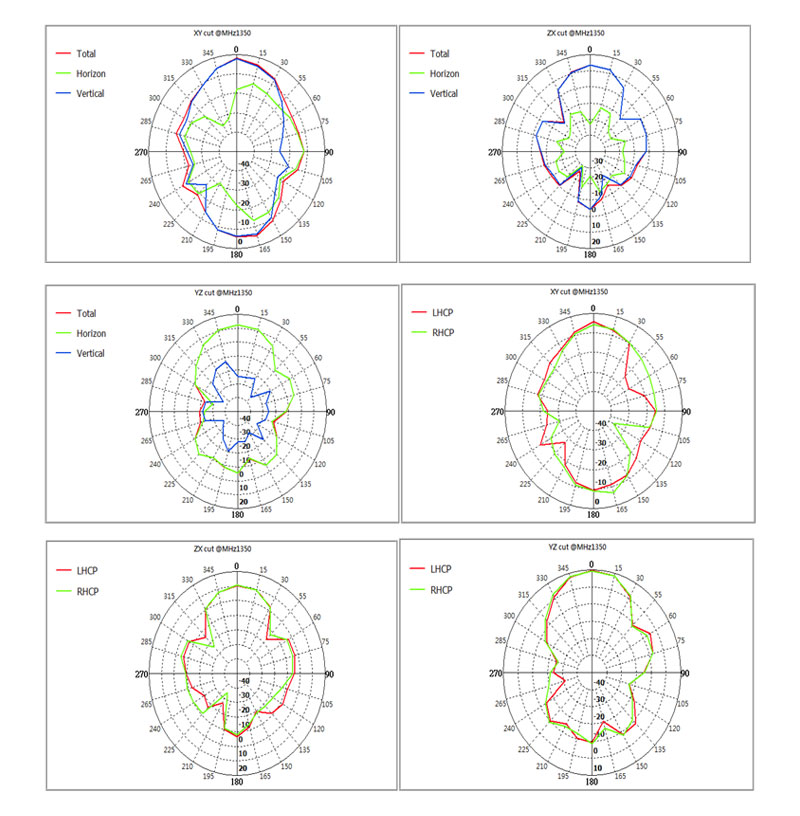

1350Mhz:

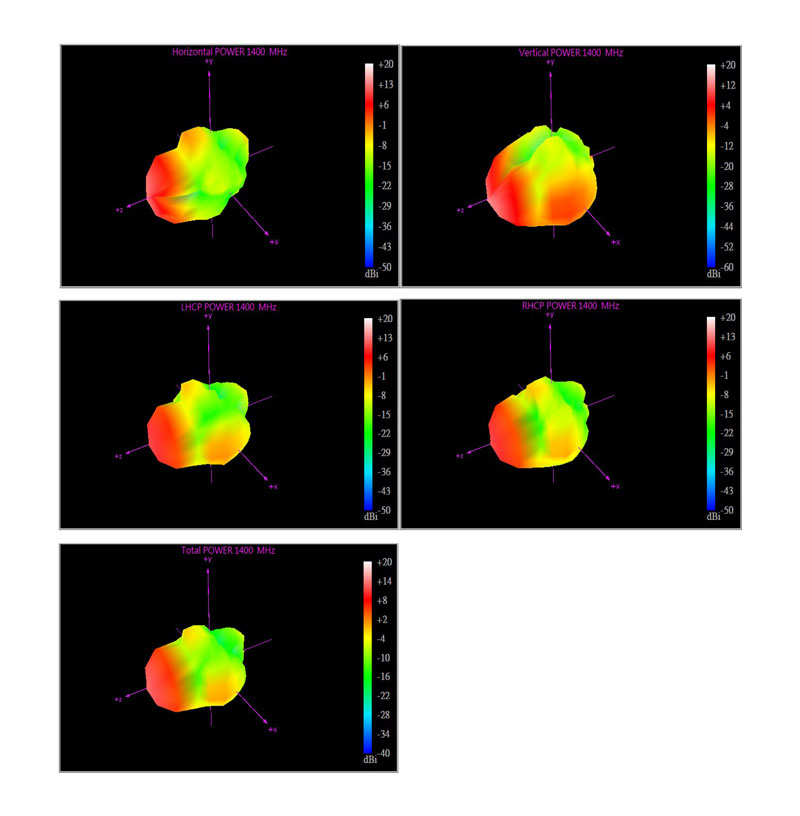

1400Mhz:

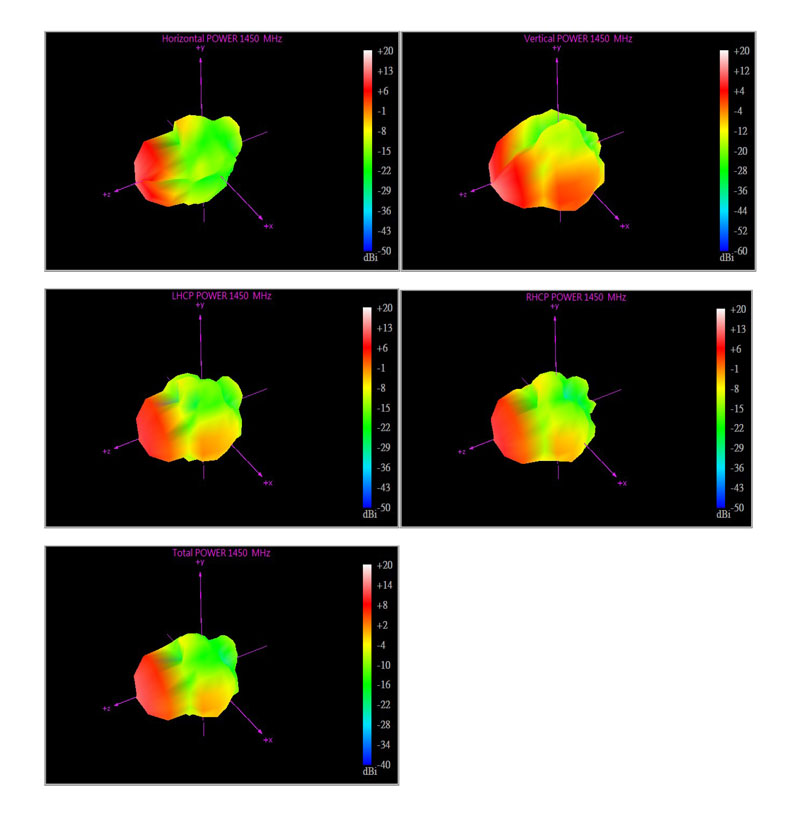

1450Mhz:

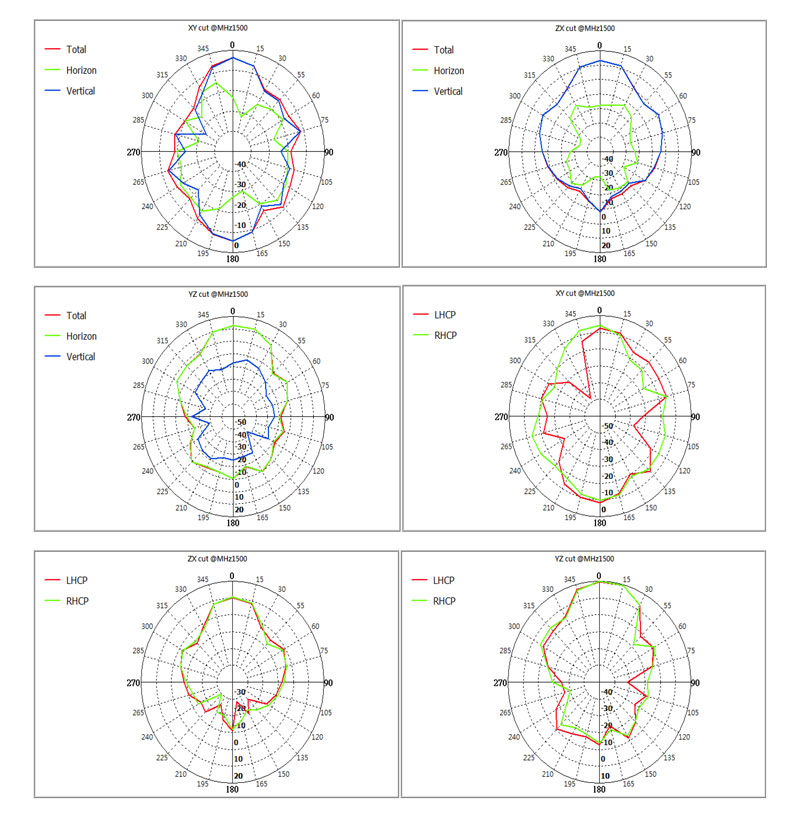

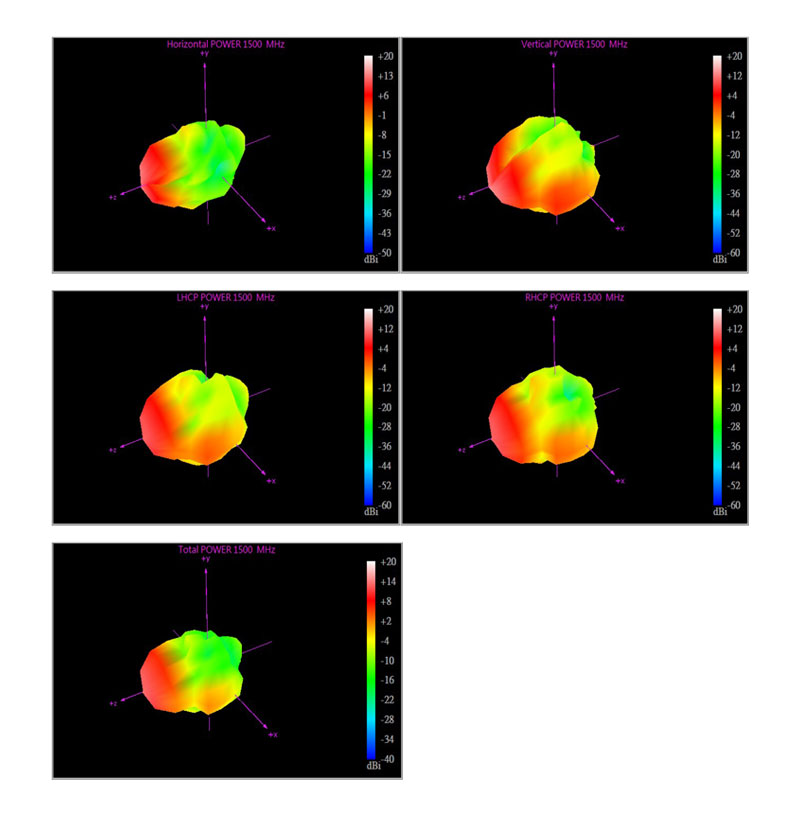

1500Mhz:
