Specifications:
| Frequency range: |
1350MHz~1490MHz |
| Gain: |
9 dBi |
| V.S.W.R: |
2.0 Max |
| Impedence: |
50 ohm |
| Connector: |
N Type Female |
| Dimension: |
205 x 180 x 45mm |
| Weight: |
0.6Kg |
| Polarization: |
Linear |
| Power handling |
50W Max |
| HPBW / horizontal |
65° |
| HPBW / vertical |
55° |
| Radome color |
white |
| radome material |
ABS +Aluminium allo |
*This specification is subject to change without prior notice

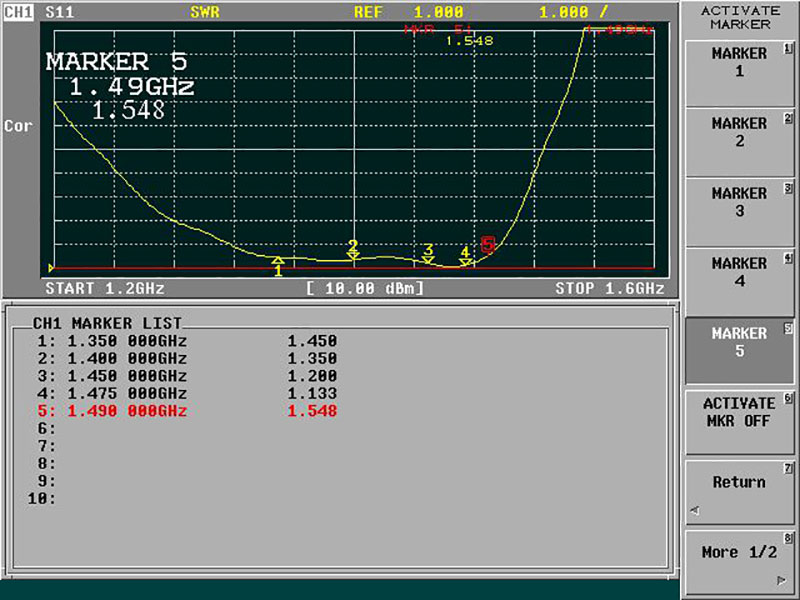

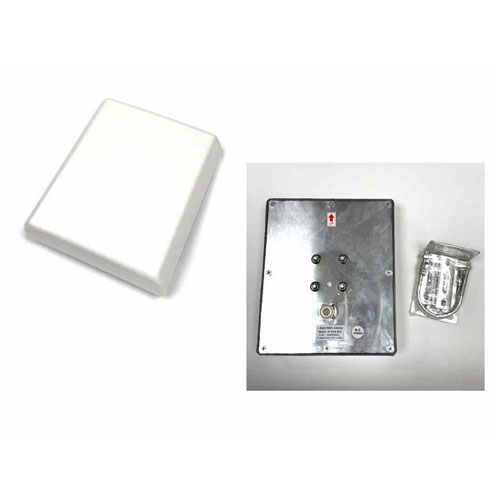

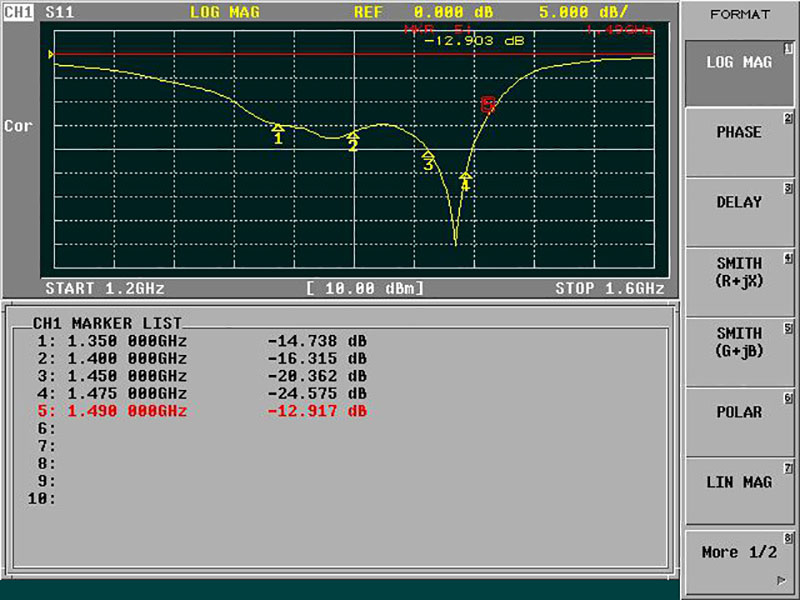

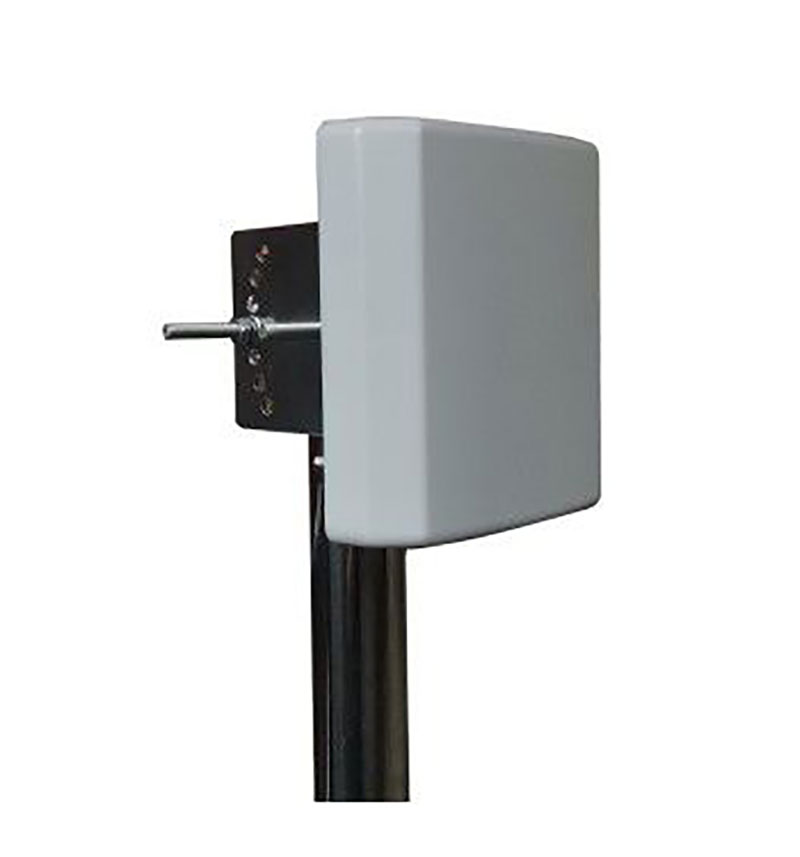

Our TP-1314 / TP-1314A are Panel Antenna for L Band communication transmission equipment.
You can apply them with UAV control data image transmission, wireless AP, PA signal transmission, interference, etc. The Outdoor Panel L-band high-gain directional antenna includes L-mounting for adjusting antenna's signal transmission and reception angles. Please don’t hesitate to email us if you have any questions.

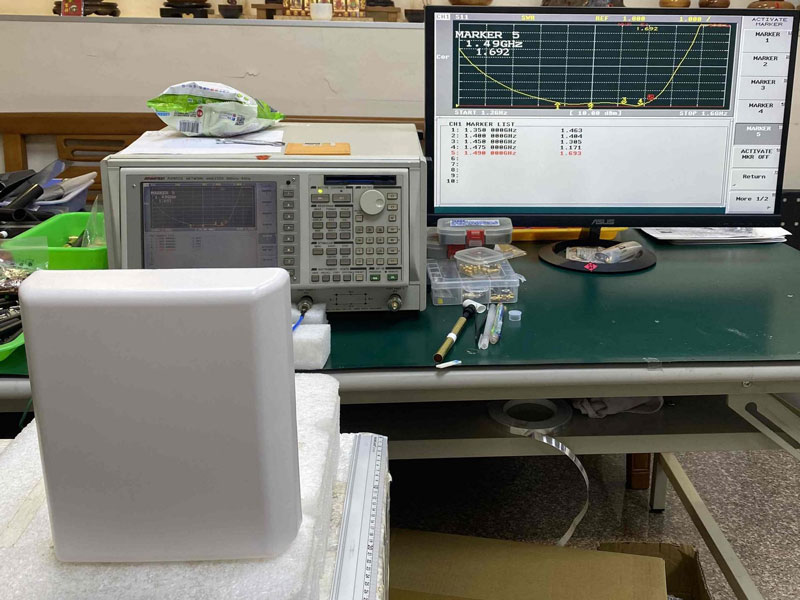

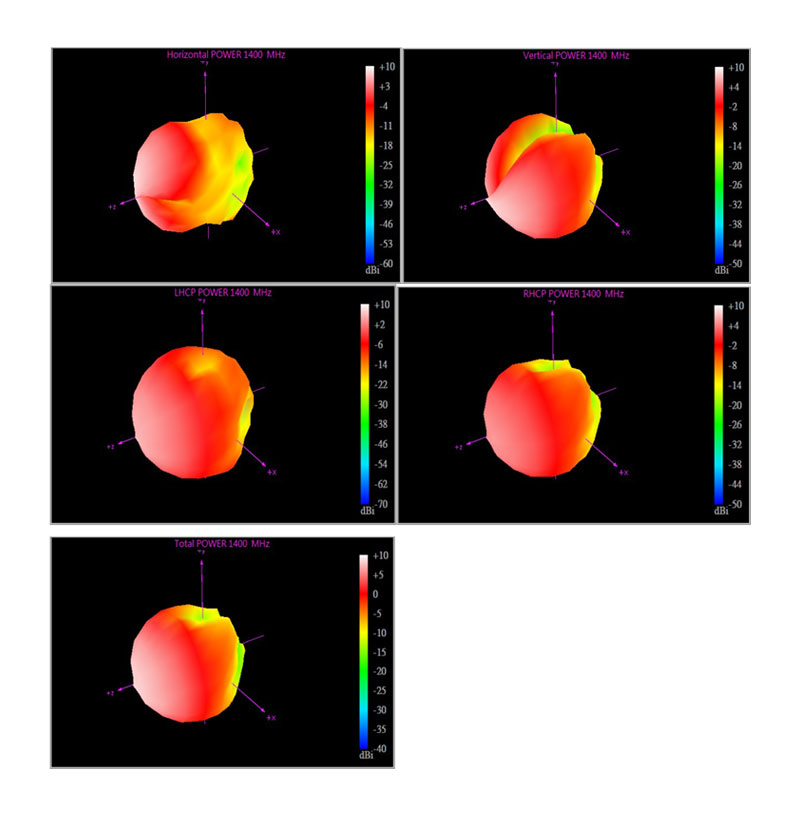

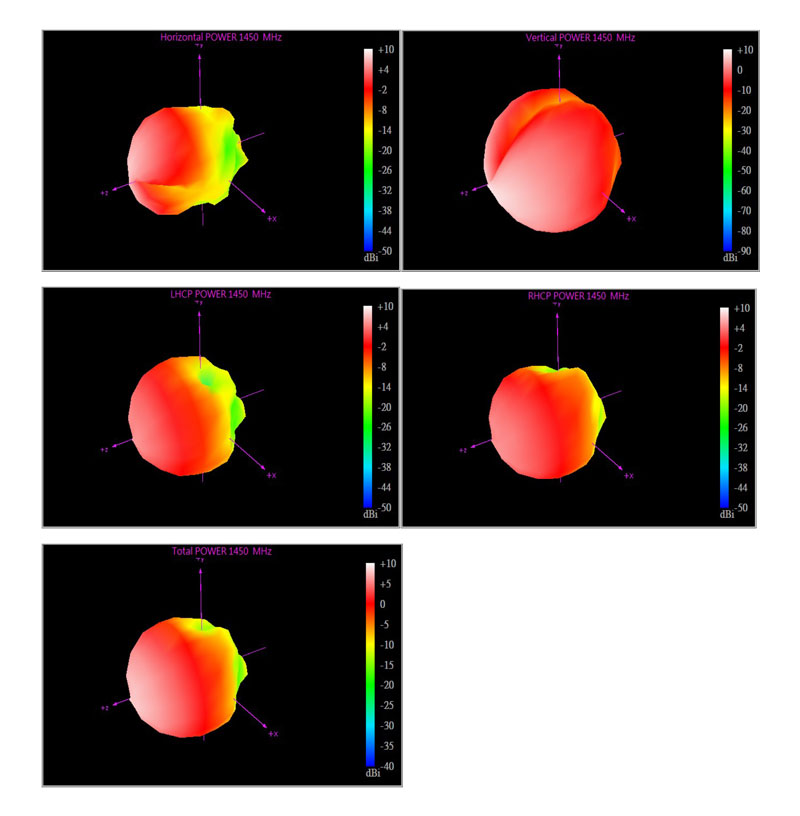

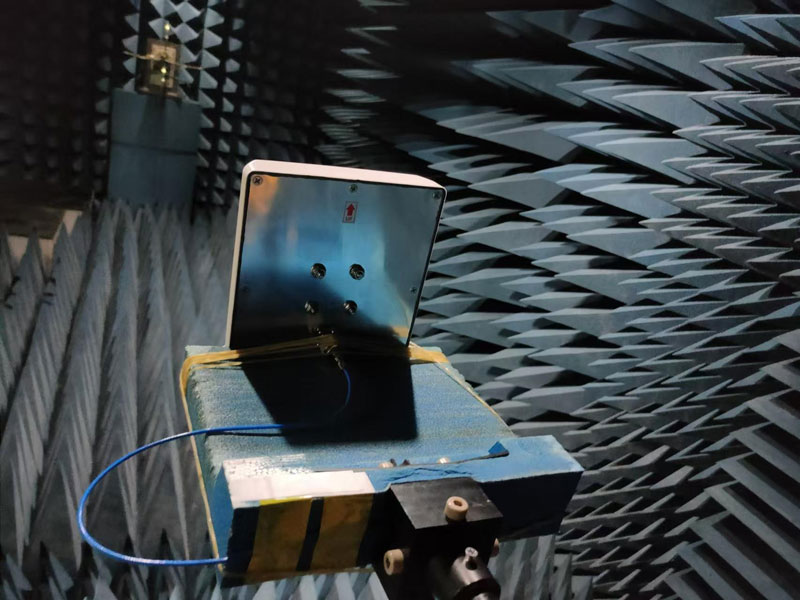

3D Total
Frequency
(MHz) |
Upper Hem.
PRP (dBm) |
Lower HEM.
PRP (dBm) |
Efficiency
(dB) |
Efficiency
(%) |
Gain (dBi) |
Tot. Rad.Pwr.
(dBm) |
| 1350 MHz |
-2.40 |
-14.27 |
-2.12 |
61.35 |
9.13 |
-2.12 |
| 1360 MHz |
-2.39 |
-14.29 |
-2.12 |
61.44 |
9.06 |
-2.12 |
| 1370 MHz |
-2.31 |
-13.98 |
-2.02 |
62.78 |
8.99 |
-2.02 |
| 1380 MHz |
-2.20 |
-13.85 |
-1.91 |
64.43 |
9.36 |
-1.91 |
| 1390 MHz |
-2.34 |
-14.16 |
-2.06 |
62.25 |
9.45 |
-2.06 |
| 1400 MHz |
-2.64 |
-14.47 |
-2.37 |
58.01 |
8.60 |
-2.37 |
| 1410 MHz |
-2.48 |
-14.46 |
-2.22 |
60.03 |
9.01 |
-2.22 |
| 1420 MHz |
-2.92 |
-15.11 |
-2.66 |
54.17 |
8.23 |
-2.66 |
| 1430 MHz |
-3.24 |
-15.65 |
-3.00 |
50.13 |
8.00 |
-3.00 |
| 1440 MHz |
-2.81 |
-15.51 |
-2.58 |
55.22 |
8.55 |
-2.58 |
| 1450 MHz |
-2.84 |
-15.76 |
-2.63 |
54.63 |
8.16 |
-2.63 |
| 1460 MHz |
-2.95 |
-16.09 |
-2.75 |
53.12 |
7.93 |
-2.75 |
| 1470 MHz |
-2.64 |
-16.31 |
-2.46 |
56.76 |
8.32 |
-2.46 |
| 1480 MHz |
-2.80 |
-16.68 |
-2.63 |
54.61 |
8.04 |
-2.63 |
| 1490 MHz |
-3.03 |
-17.26 |
-2.87 |
51.62 |
7.43 |
-2.87 |
| 1500 MHz |
-3.89 |
-18.01 |
-3.72 |
42.44 |
6.40 |
-3.72 |

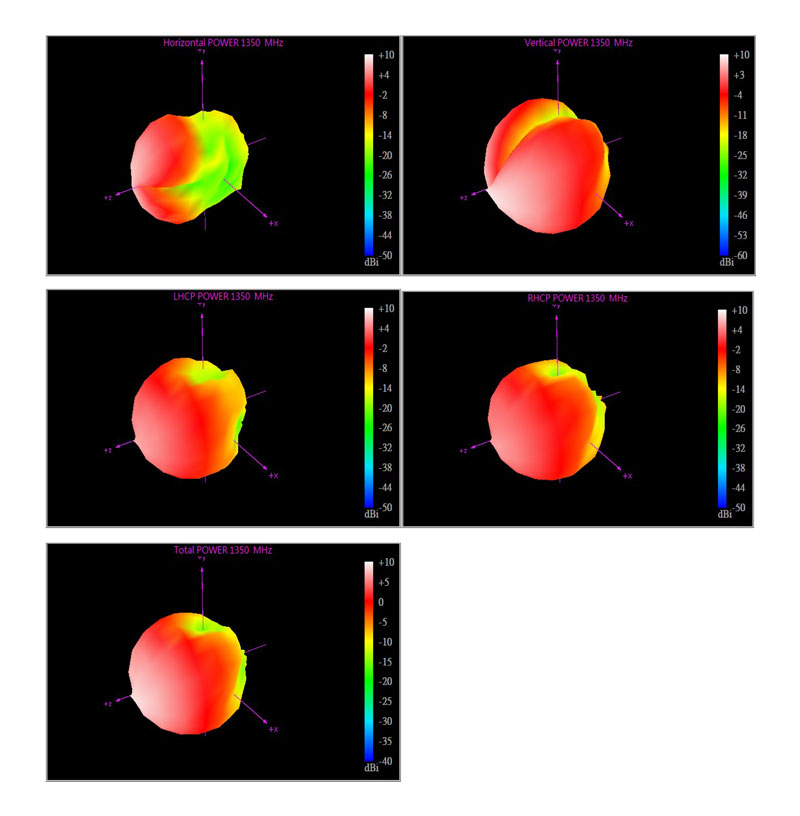

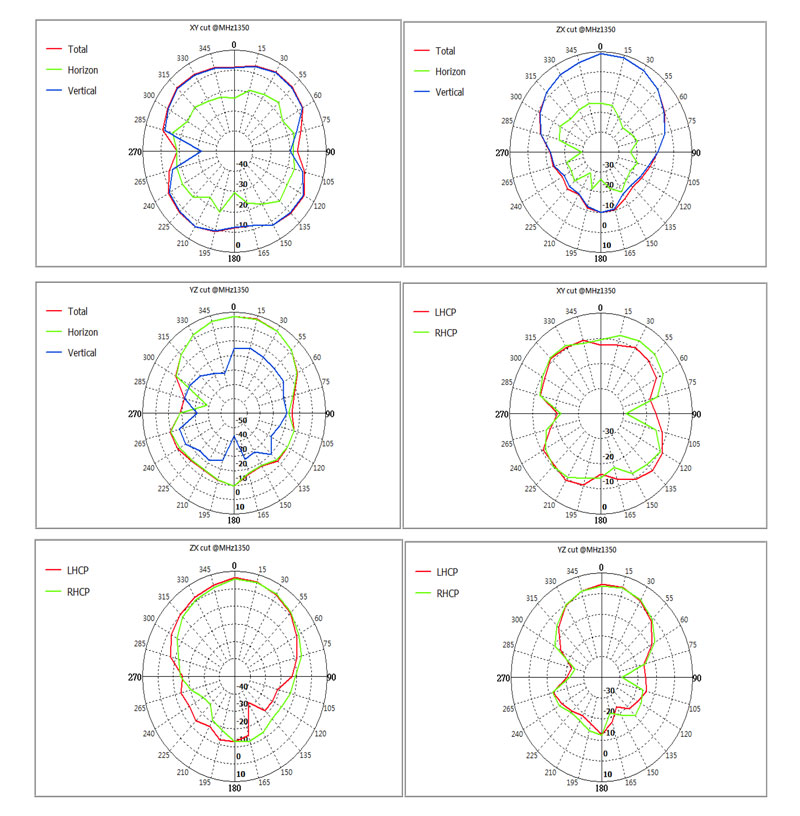

1350Mhz:

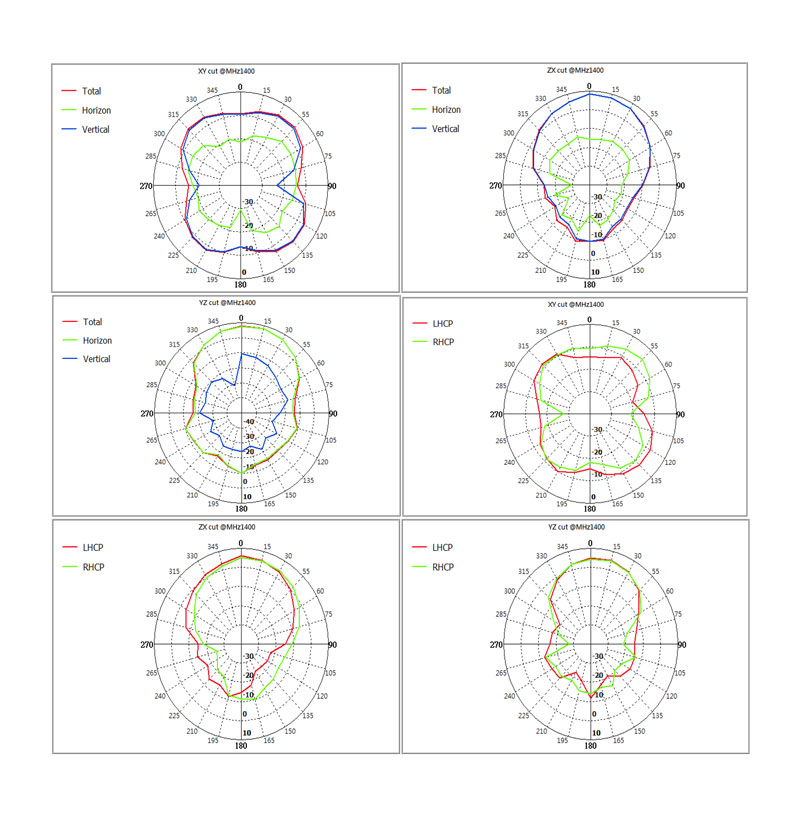

1400Mhz:

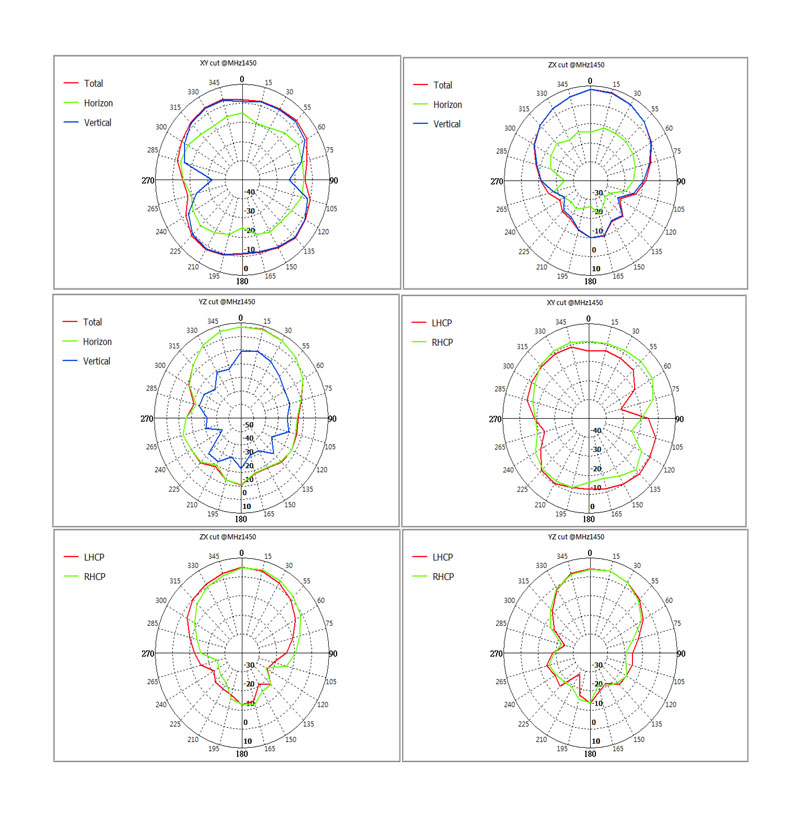

1450Mhz:

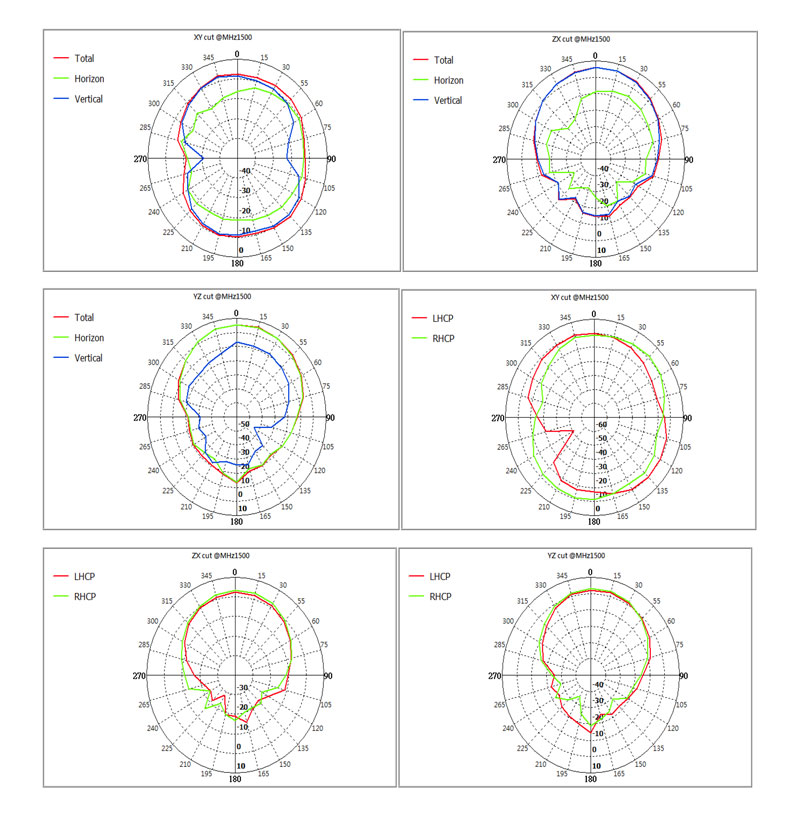

1500Mhz:
