TH‐1375
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH1375-TNC(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1300~1450Mhz
Nominal Impedance 50 ohm
Polarization Vertical

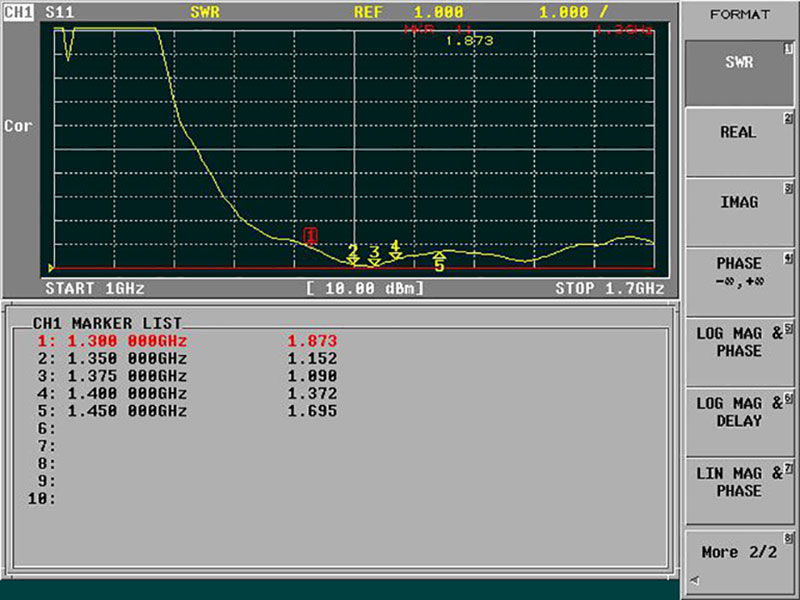

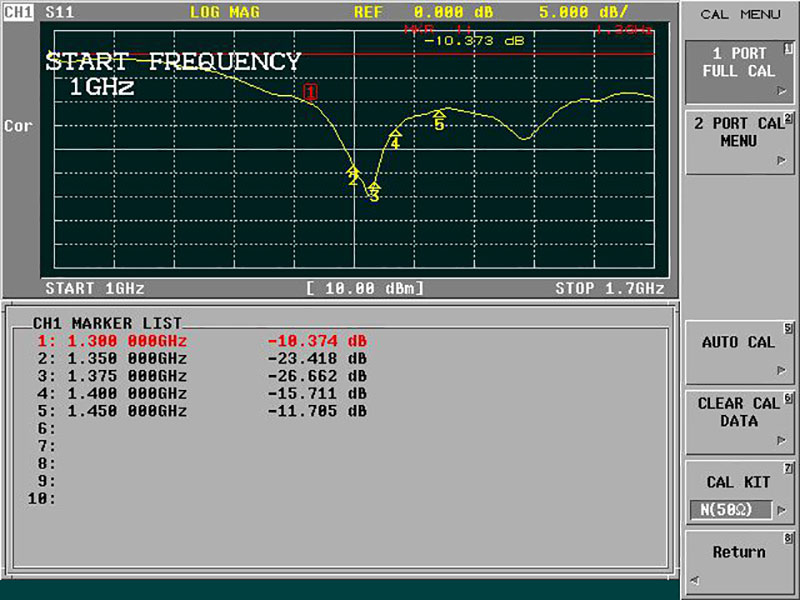

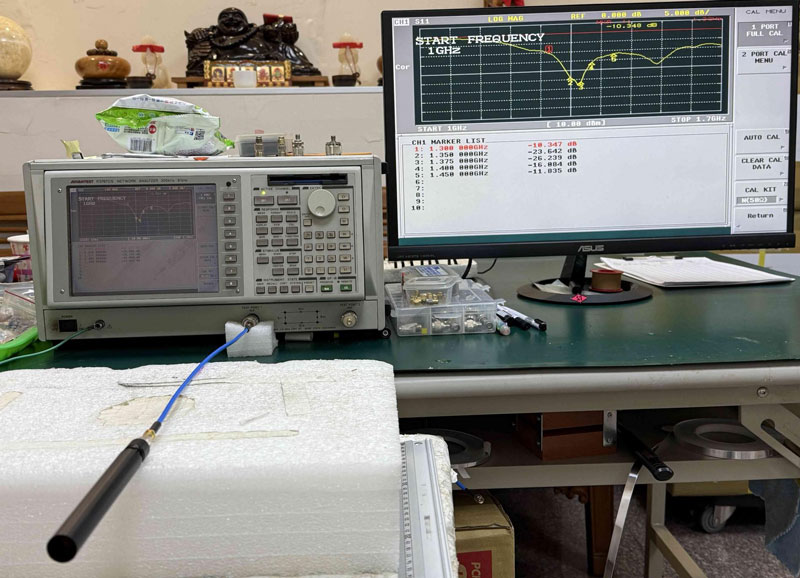

V.S.W.R 2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type TNC connector (Male)

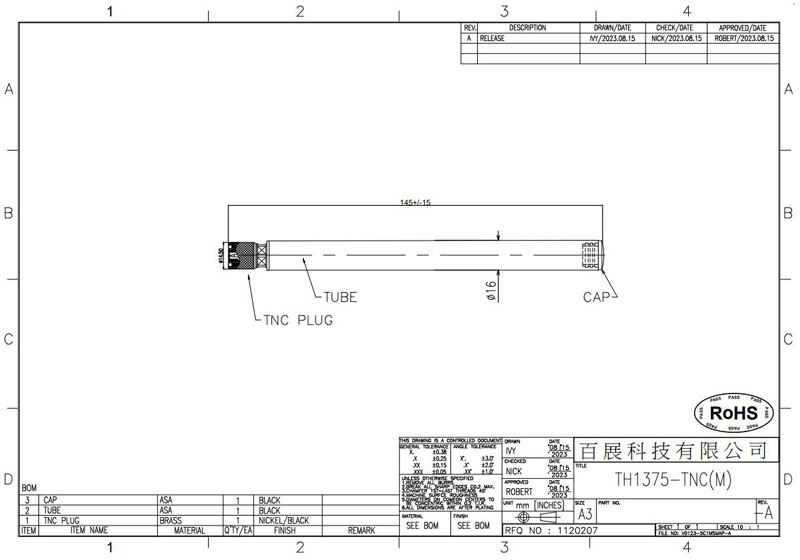

Antenna Dimensions Ø16 x 145mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

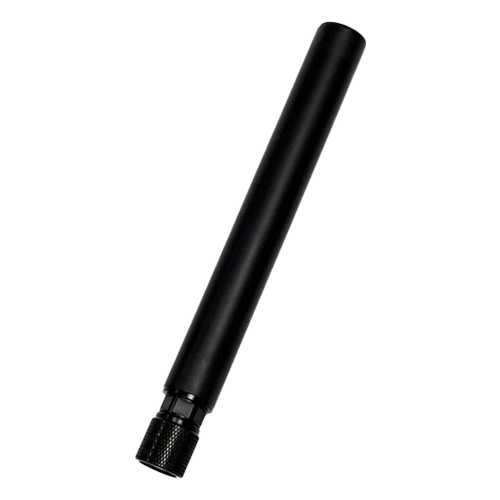

Our TH-1375 is a Passive Antenna is designed with L Band and best for Iridium devices. It is suitable for short-range, long-range communication services with L Band radio positioning technology, industrial, scientific, medical, interference technology applications... etc. The ASA is strong weather resistance and its anti-aging performance is more than 10 times that of ABS. Please don’t hesitate to email us if you have any questions.

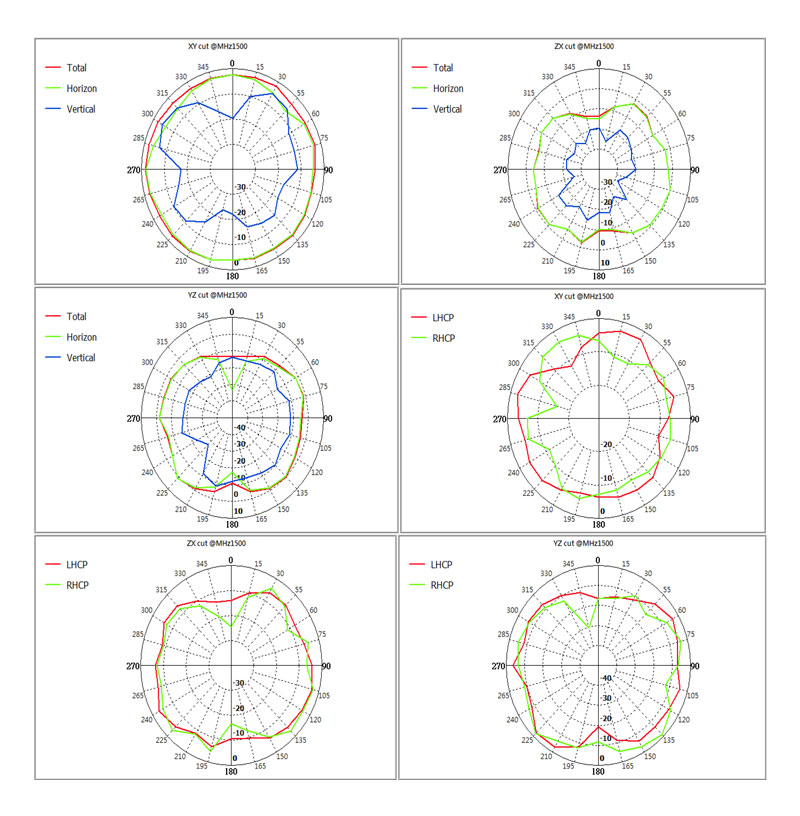

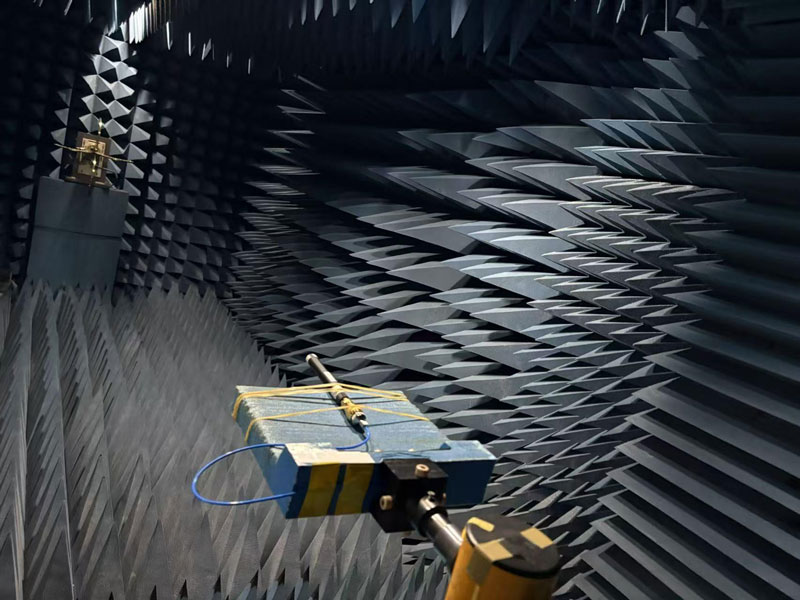

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1300 MHz -6.88 -4.60 -2.58 55.19 1.57 -2.58
1325 MHz -7.09 -4.38 -2.52 55.98 1.75 -2.52

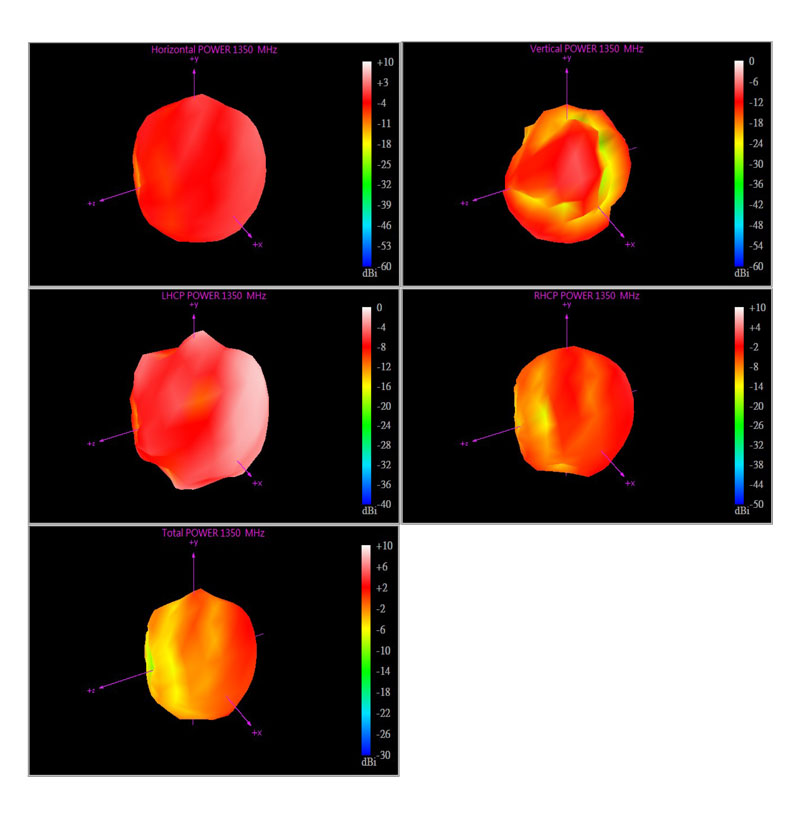

1350 MHz -6.55 -4.04 -2.11 61.55 2.22 -2.11

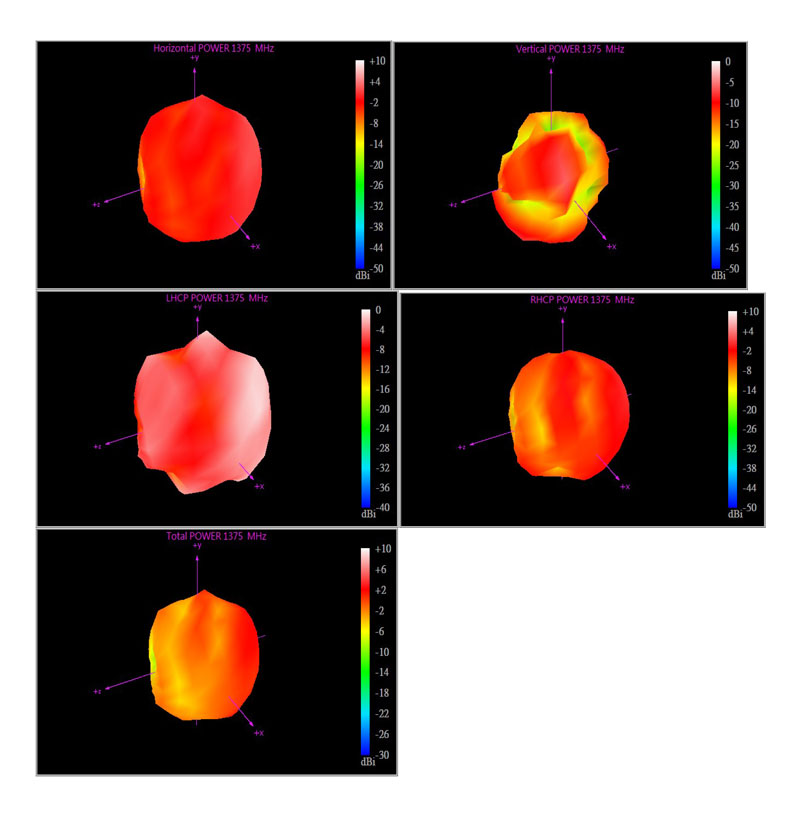

1375 MHz -5.93 -3.86 -1.76 66.66 2.40 -1.76
1400 MHz -5.90 -4.16 -1.93 64.07 2.26 -1.93
1450 MHz -6.39 -4.85 -2.54 55.68 2.02 -2.54
1475 MHz -6.39 -4.72 -2.46 56.71 2.08 -2.46

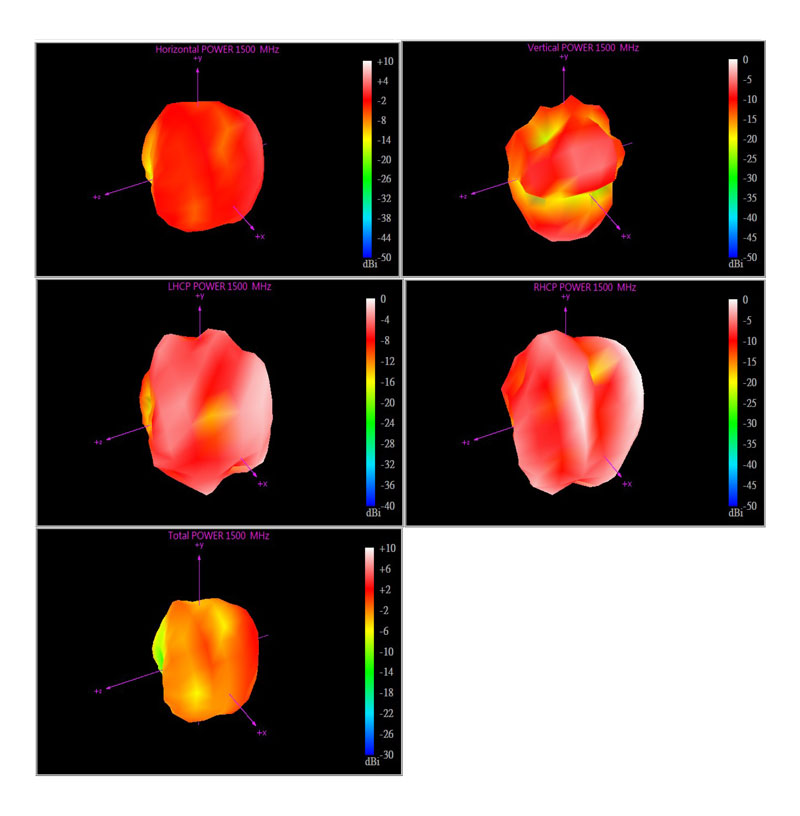

1500 MHz -6.97 -4.98 -2.85 51.84 1.91 -2.85
1525 MHz -6.56 -4.57 -2.44 56.97 2.66 -2.44
1550 MHz -7.02 -4.82 -2.77 52.81 2.66 -2.77
1575 MHz -6.74 -4.45 -2.43 57.09 3.69 -2.43
1600 MHz -7.40 -4.86 -2.94 50.86 3.22 -2.94

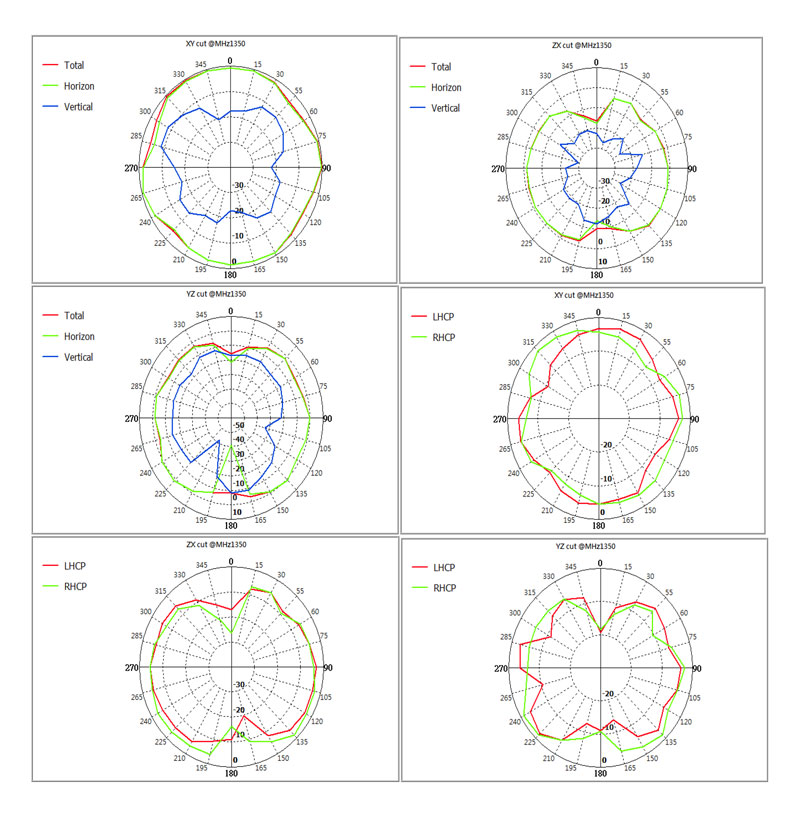

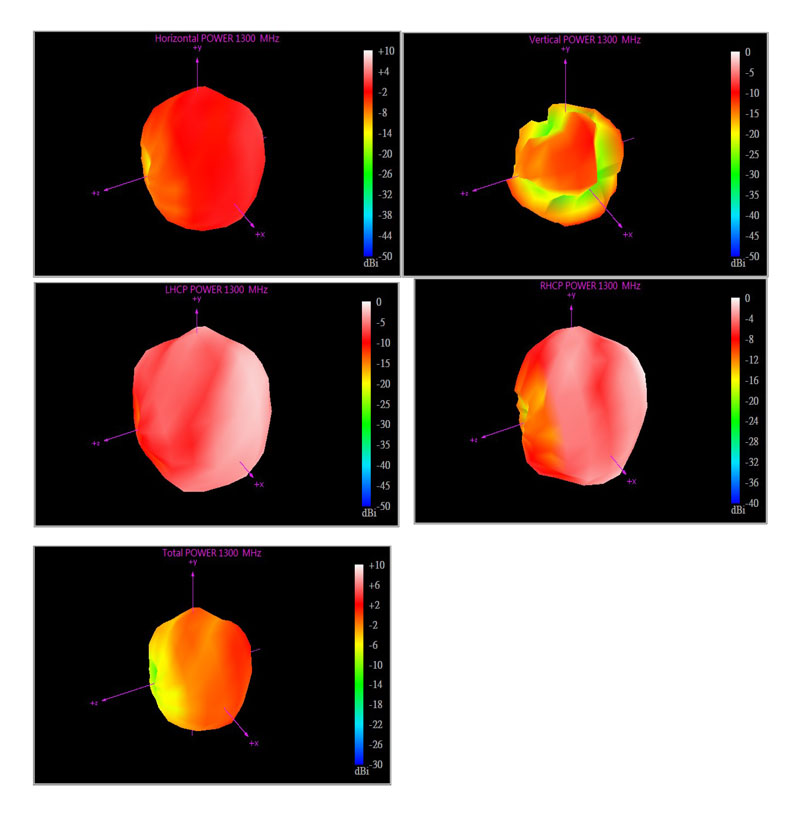

1300Mhz:

1350Mhz:

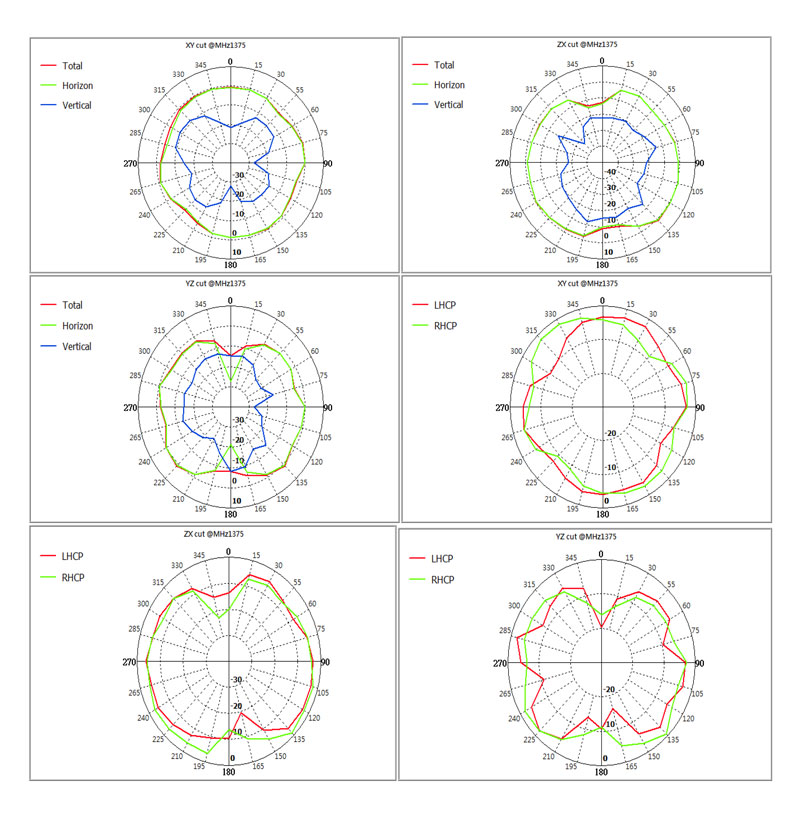

1375Mhz:

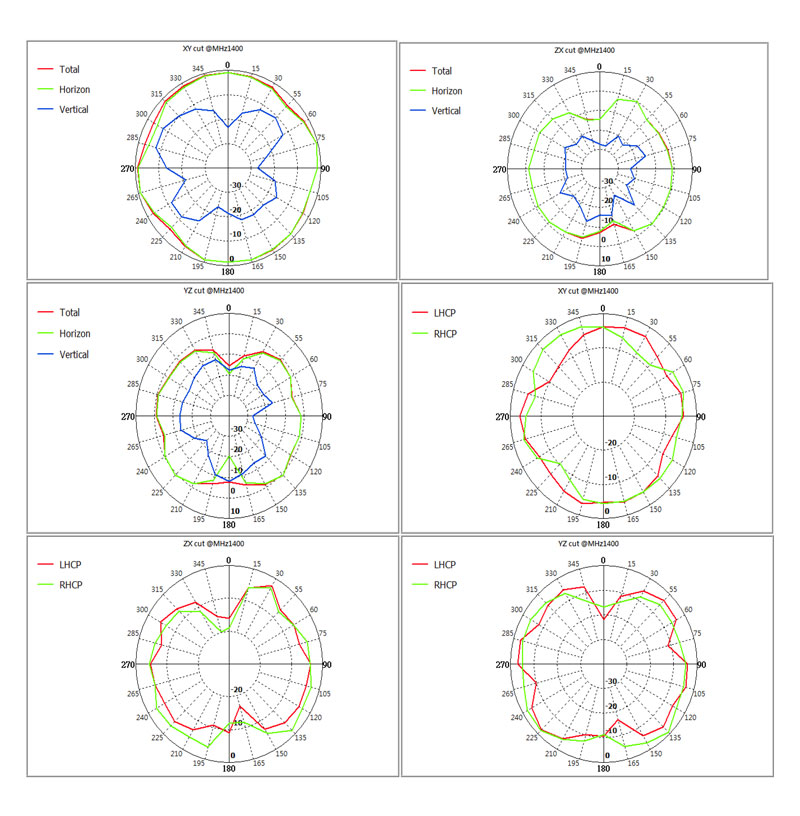

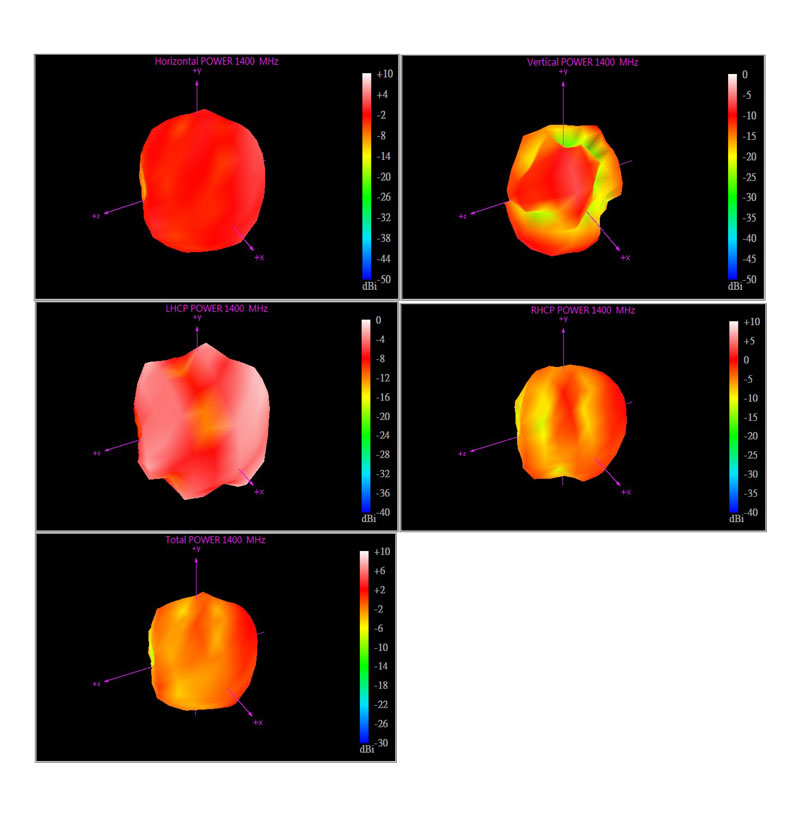

1400Mhz:

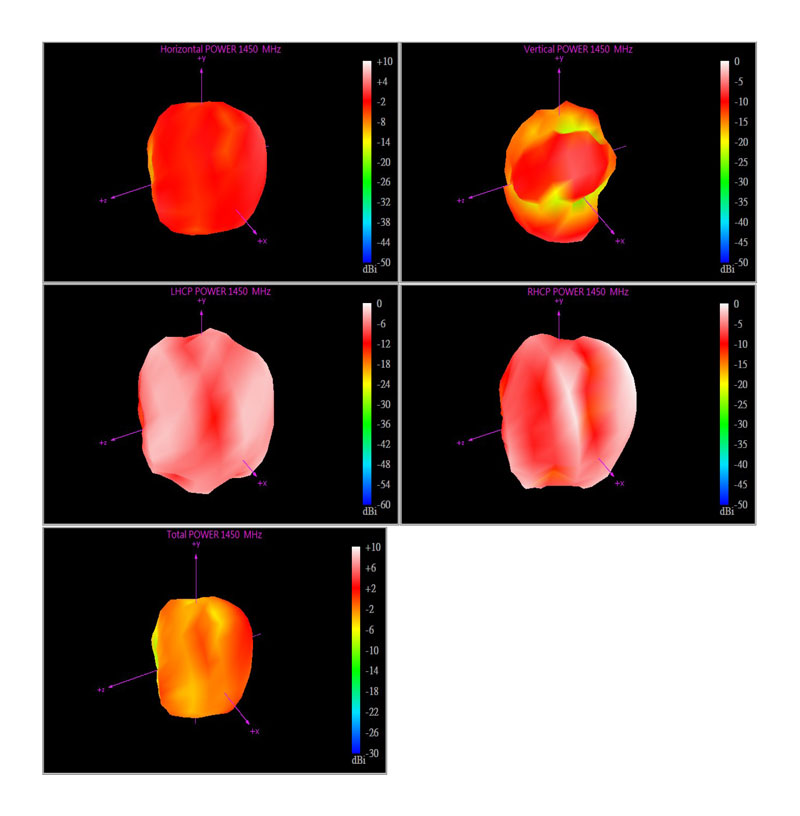

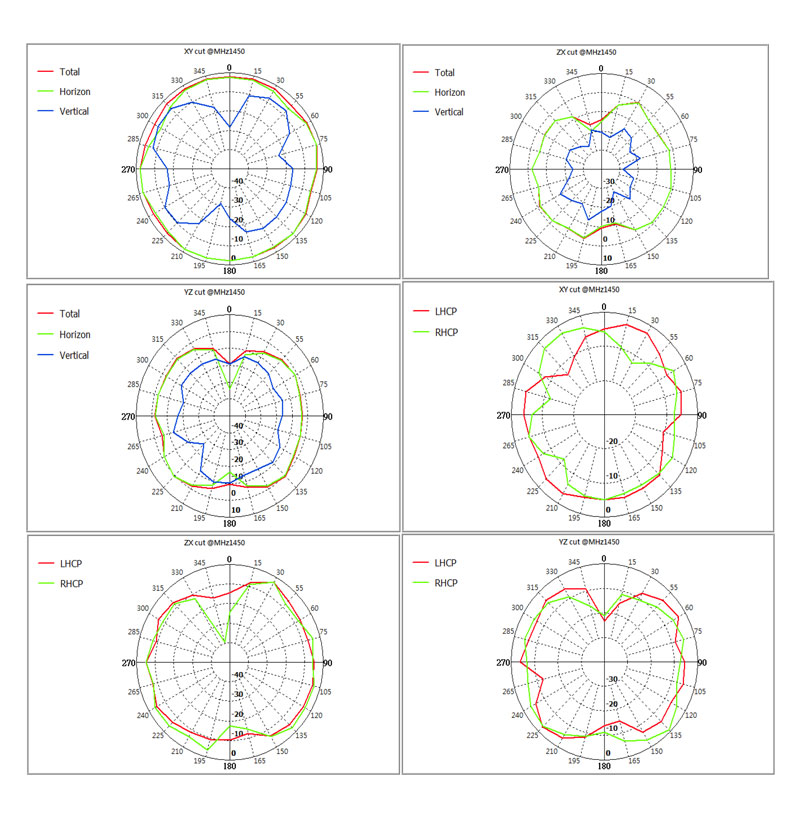

1450Mhz:
