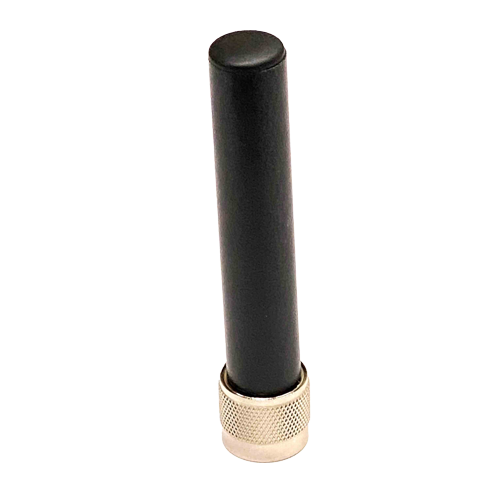

1.GENERAL DESCRIPTION

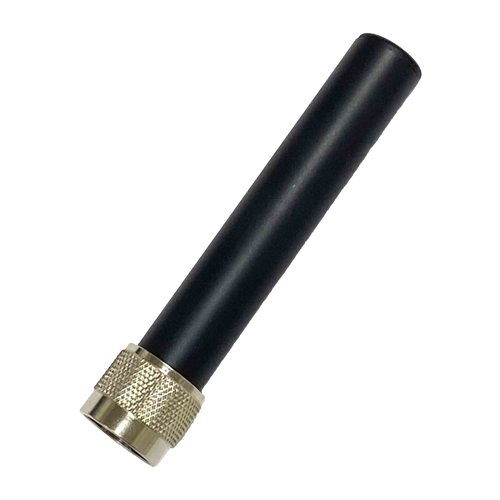

Model No
TH1450G-N(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1350~1550MHz
Nominal Impedance 50 ohm
Polarization Vertical

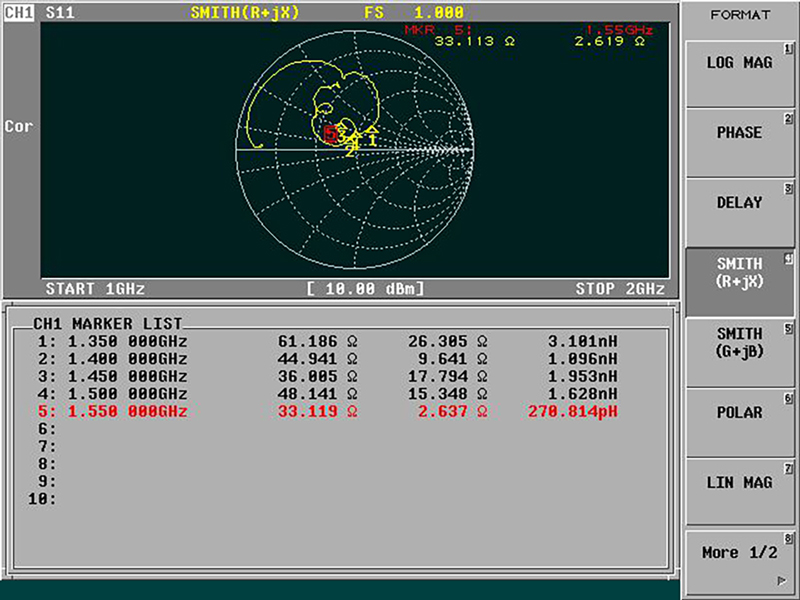

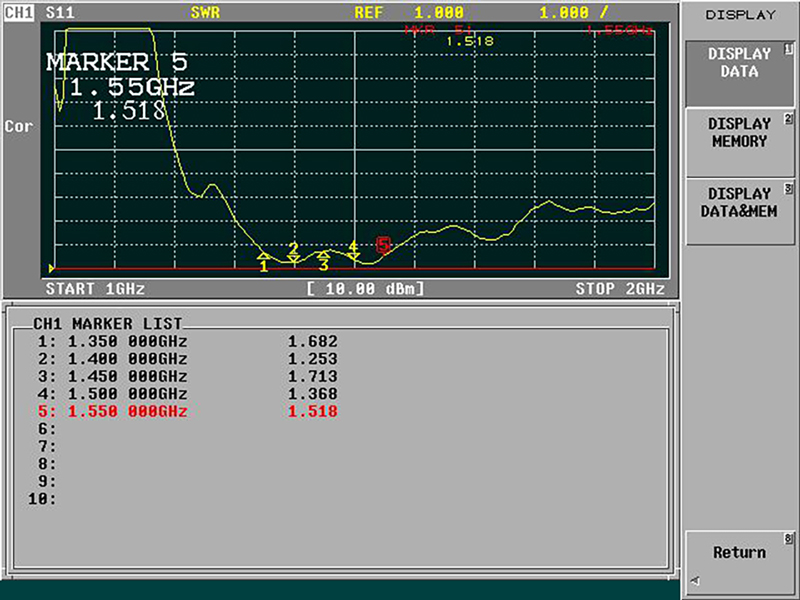

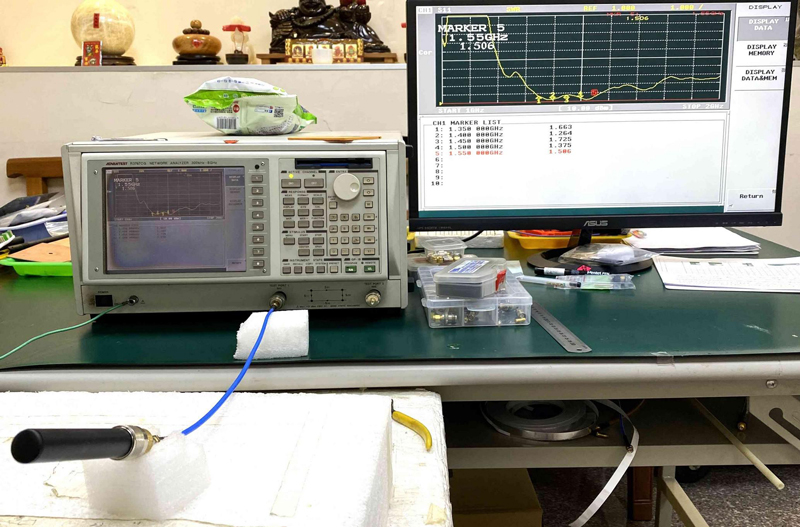

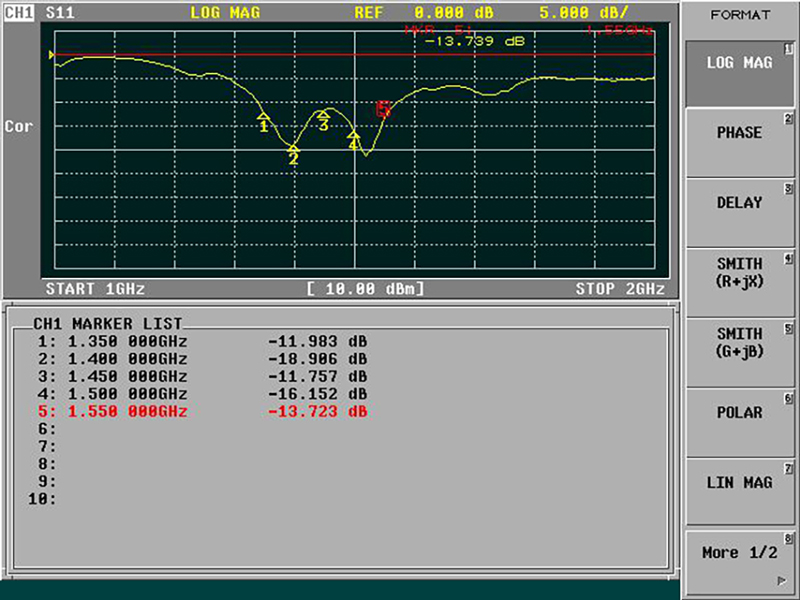

V.S.W.R 2.0:1
Peak gain 0dbi
Power 30W

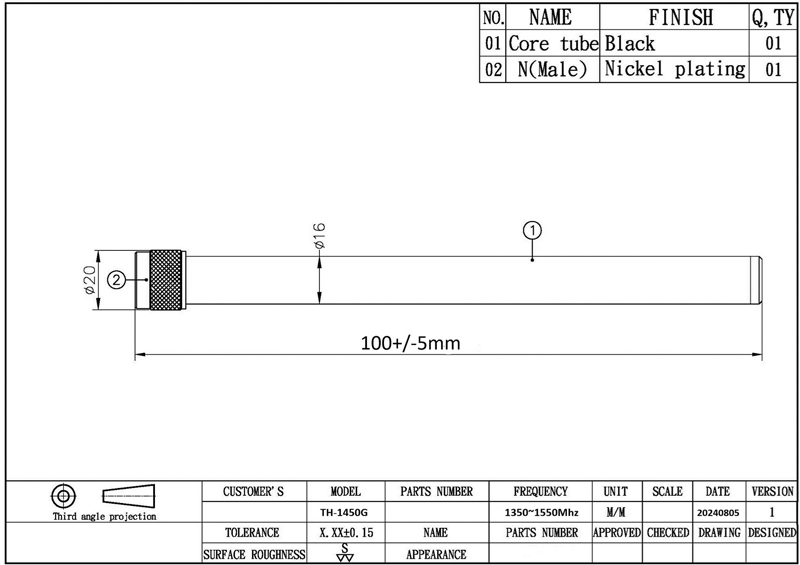

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Materal ASA
Touch Type Screw Type
Connector Type N connector (Male)
Antenna Dimensions 100mm ±5
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

Our TH-1450G is a Passive Antenna, which is best for L-Band communication transmission equipment, drone control data transmission, wireless AP, PA signal transmission or interference... etc. The ASA is strong weather resistance and its anti-aging performance with high temperature resistance. Please don’t hesitate to email us if you have any questions.

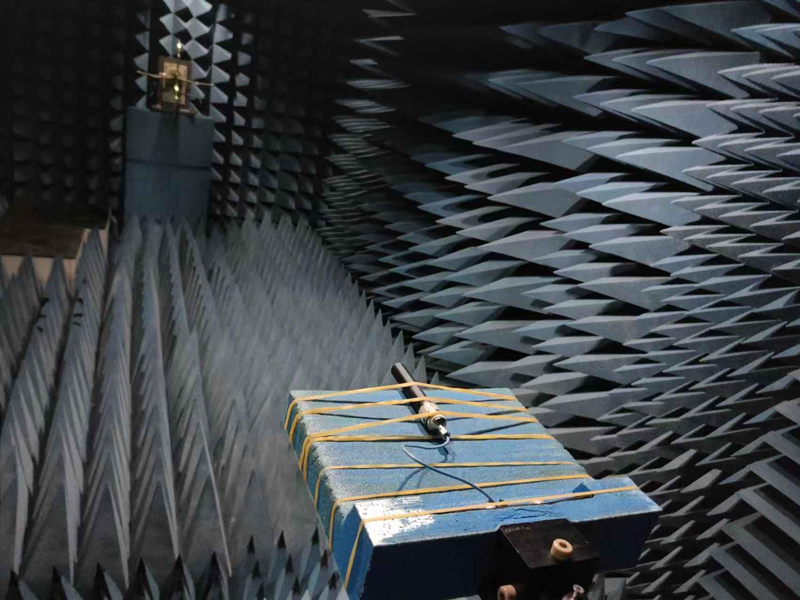

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1300 MHz -9.40 -5.65 -4.12 38.70 0.54 -4.12
1350 MHz -8.47 -5.53 -3.75 42.21 0.65 -3.75
1400 MHz -7.11 -5.57 -3.26 47.21 0.28 -3.26
1450 MHz -7.02 -6.08 -3.51 44.52 -0.06 -3.51
1500 MHz -7.34 -6.13 -3.68 42.85 0.02 -3.68
1550 MHz -7.70 -6.15 -3.85 41.23 0.43 -3.85
1570 MHz -7.55 -5.89 -3.63 43.35 0.22 -3.63
1600 MHz -7.69 -5.86 -3.67 42.98 0.33 -3.67

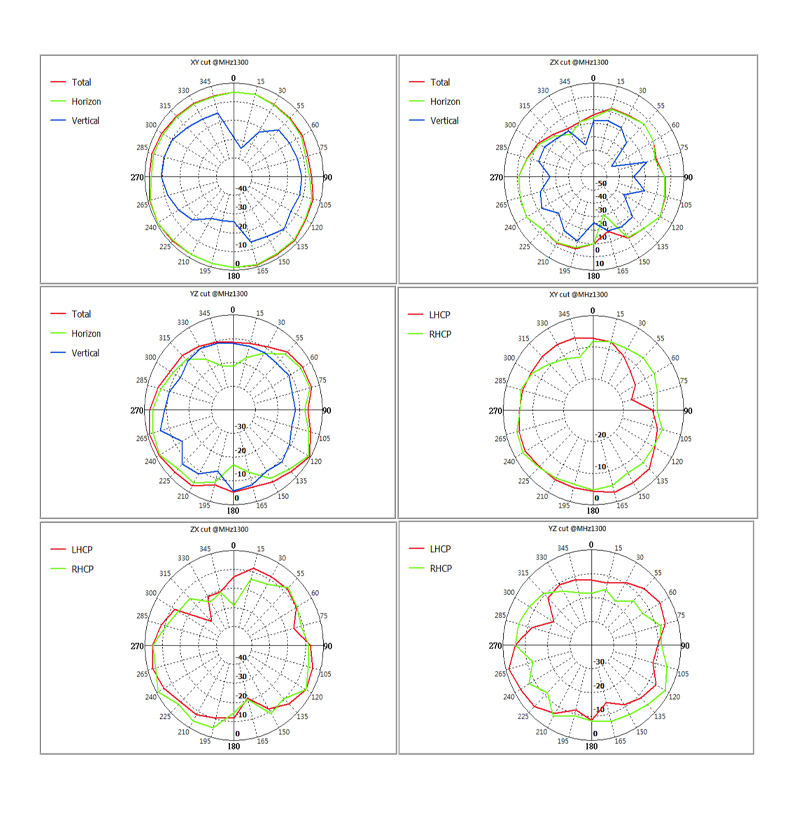

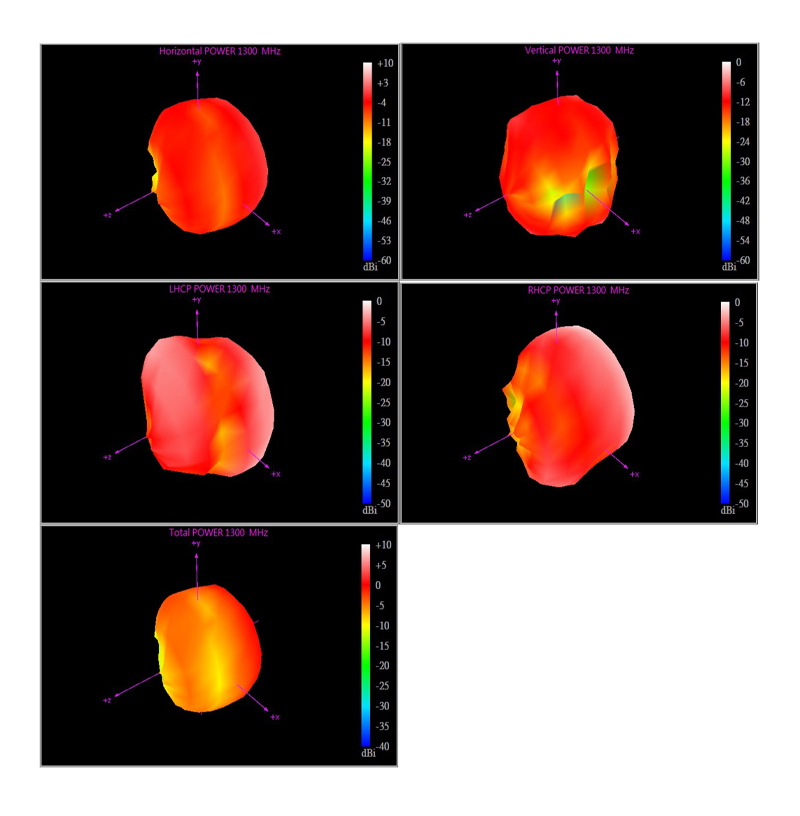

1300Mhz:

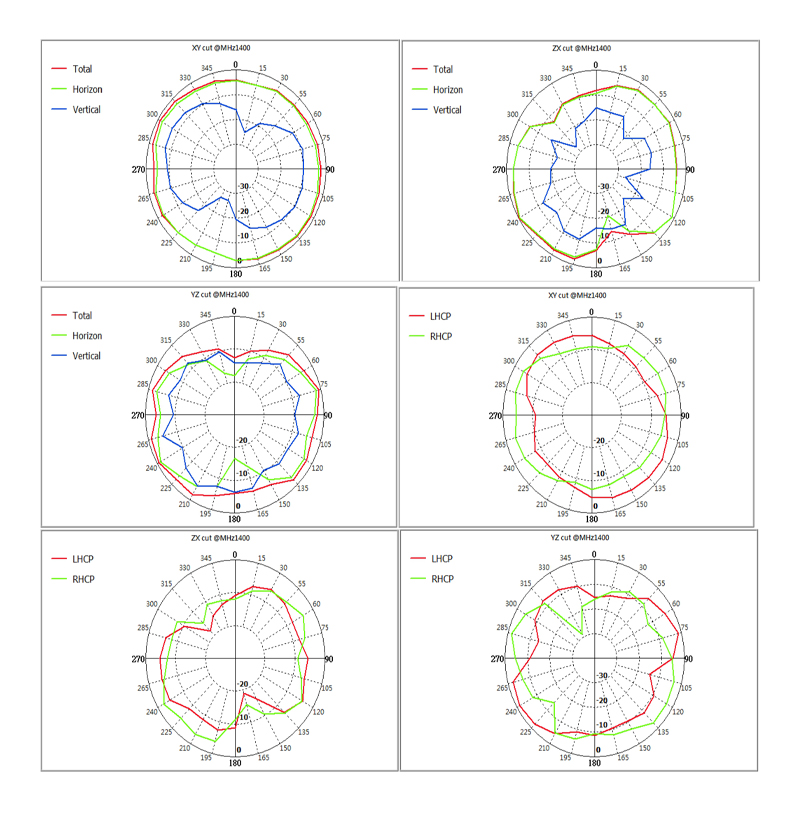

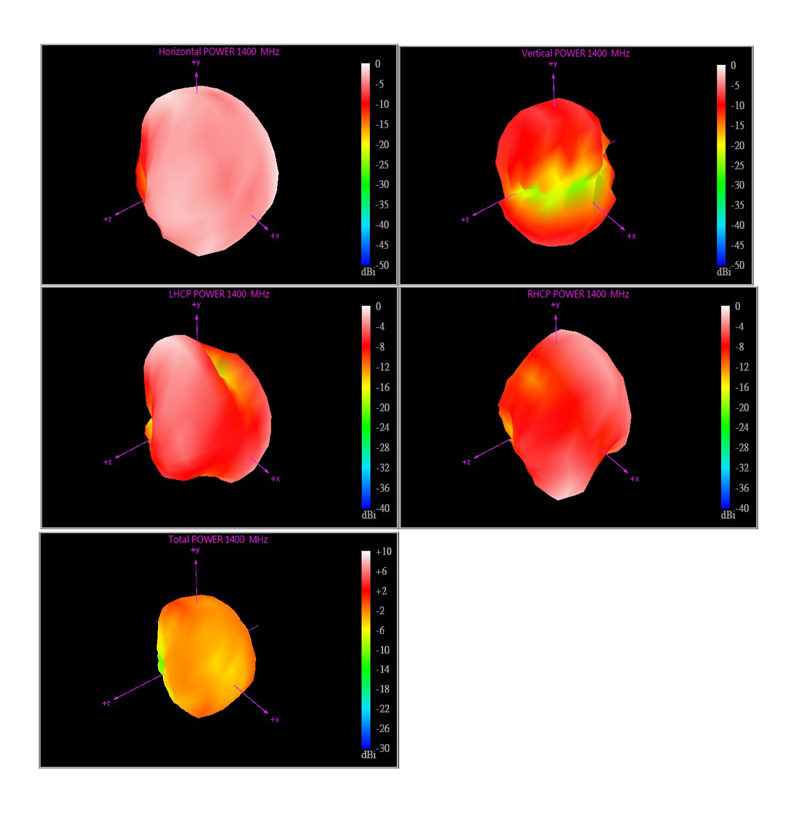

1400Mhz:

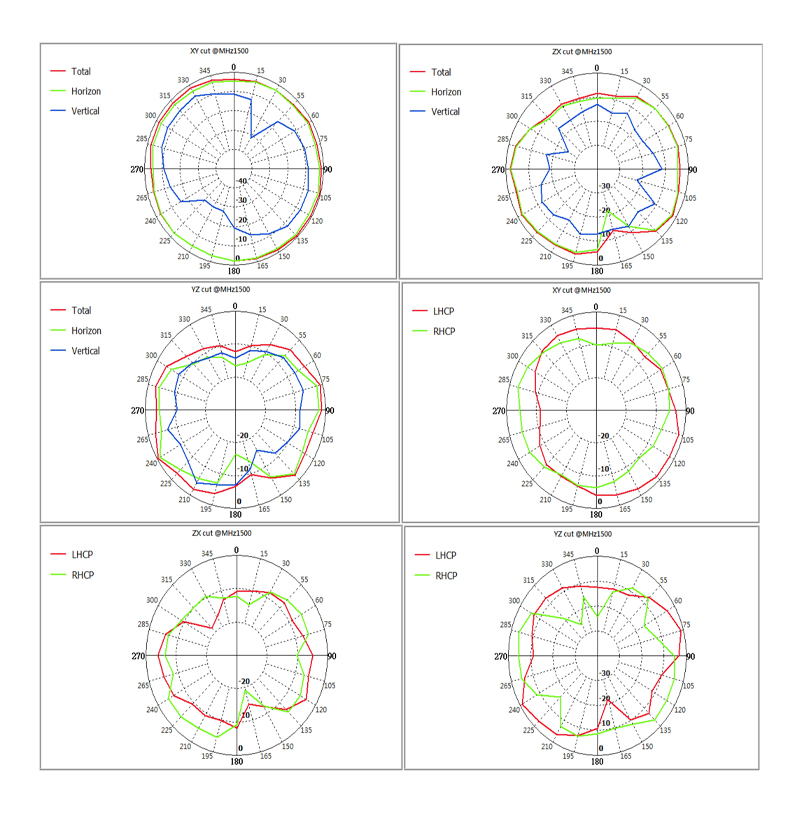

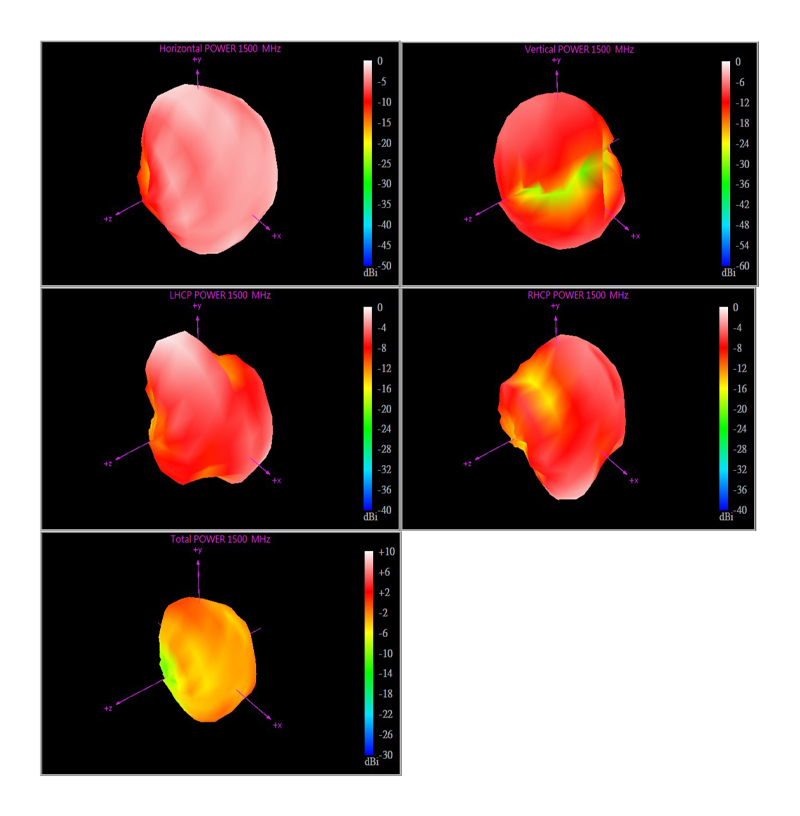

1500Mhz:

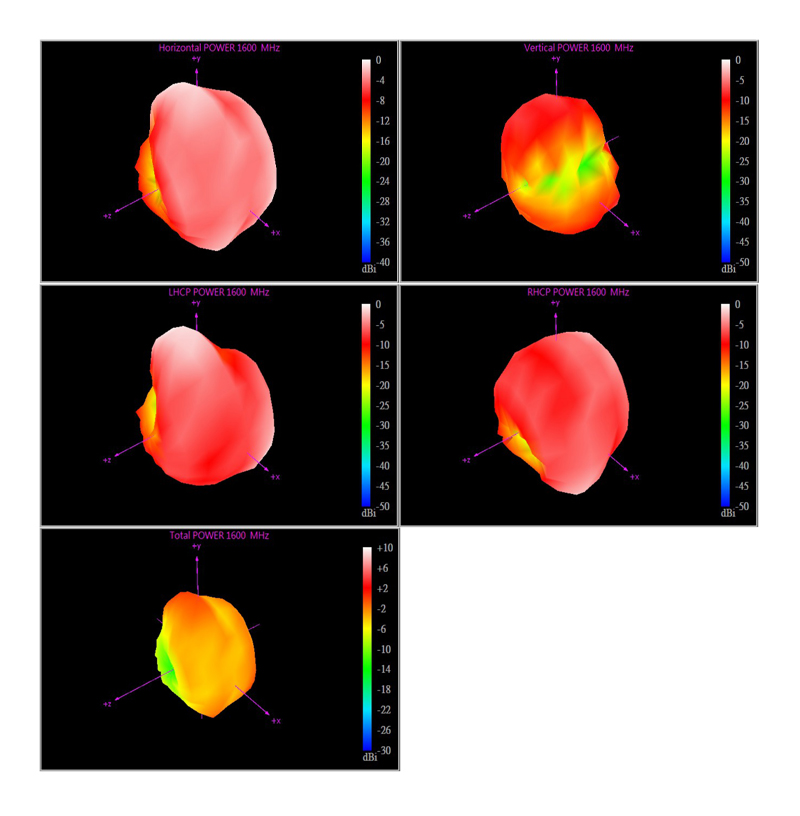

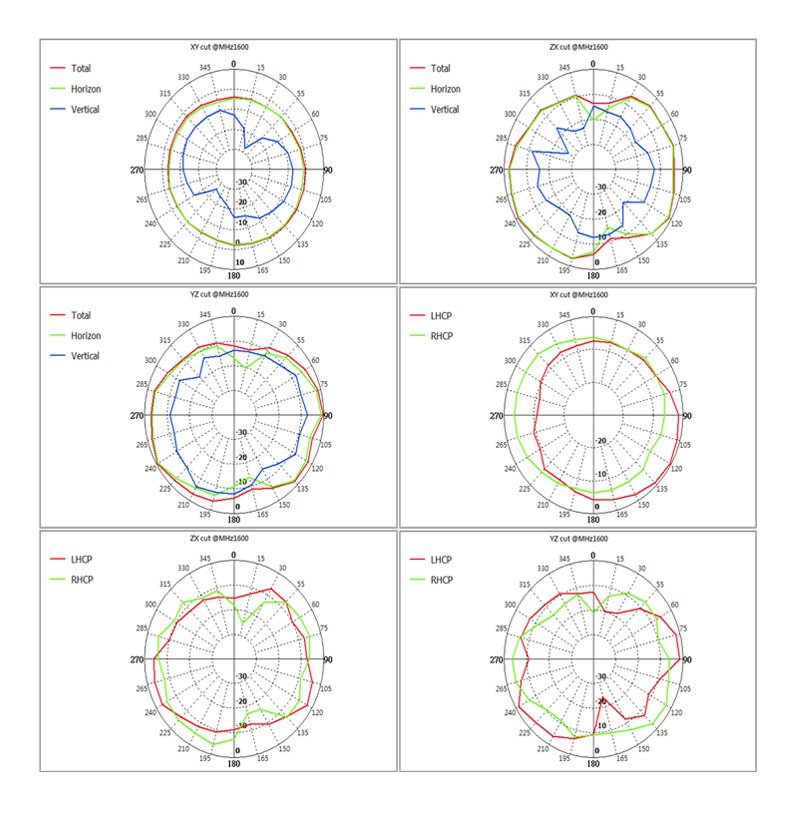

1600Mhz:
