1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1400~1500MHz |

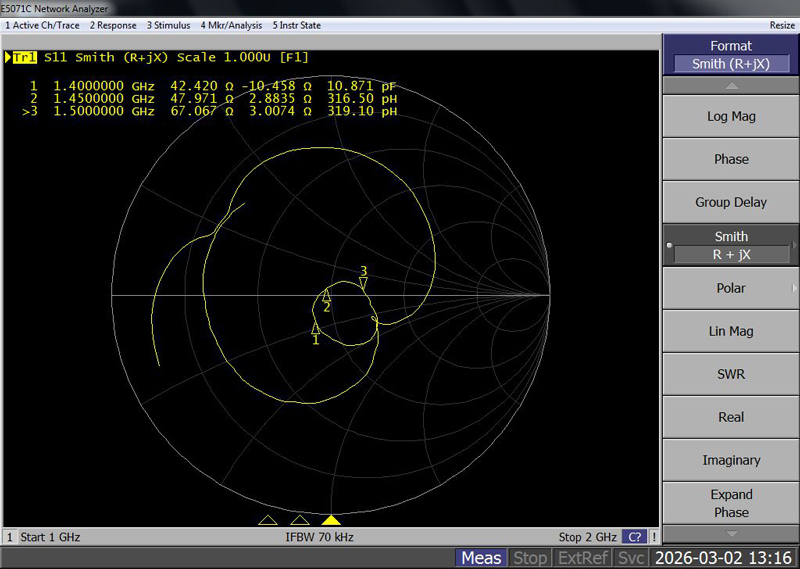

| Nominal Impedance |
50 ohm |

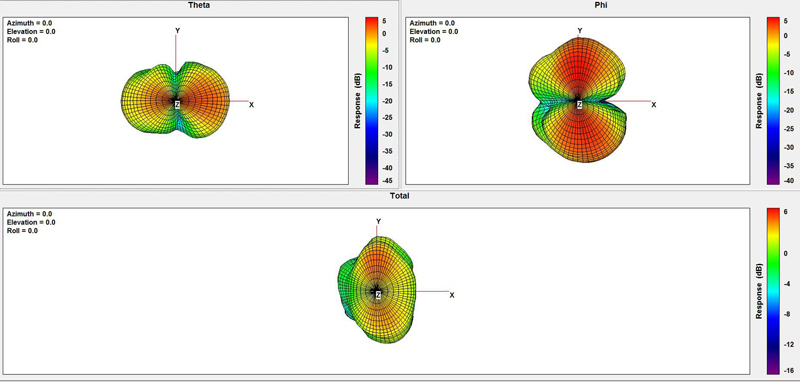

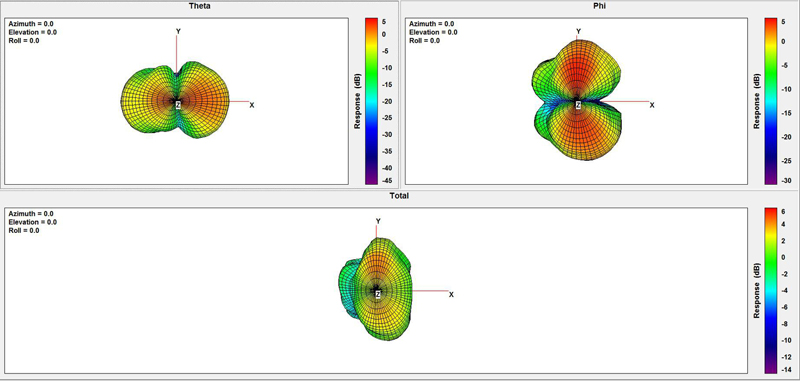

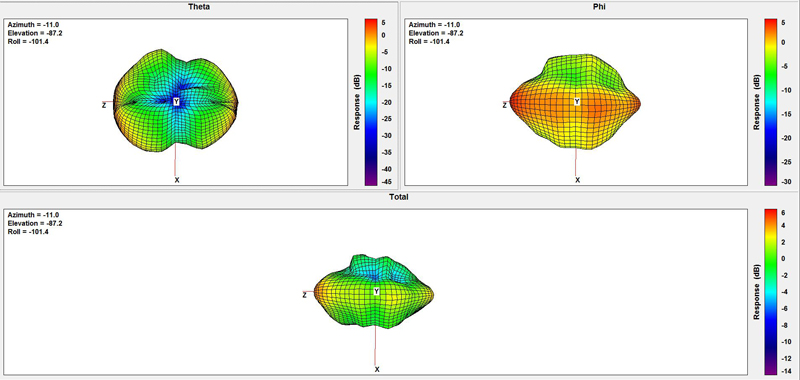

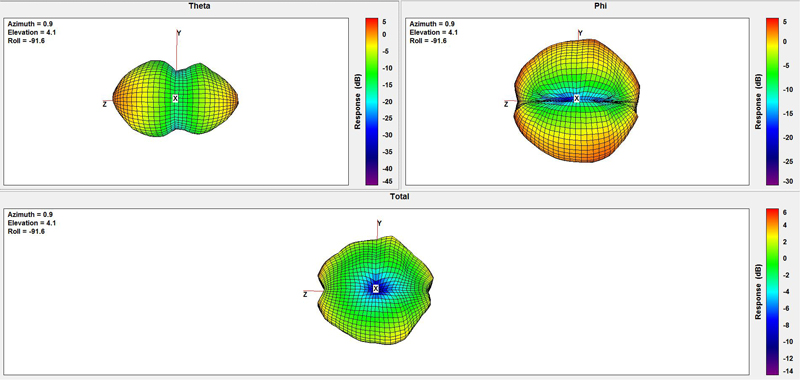

| Polarization |
Vertical |

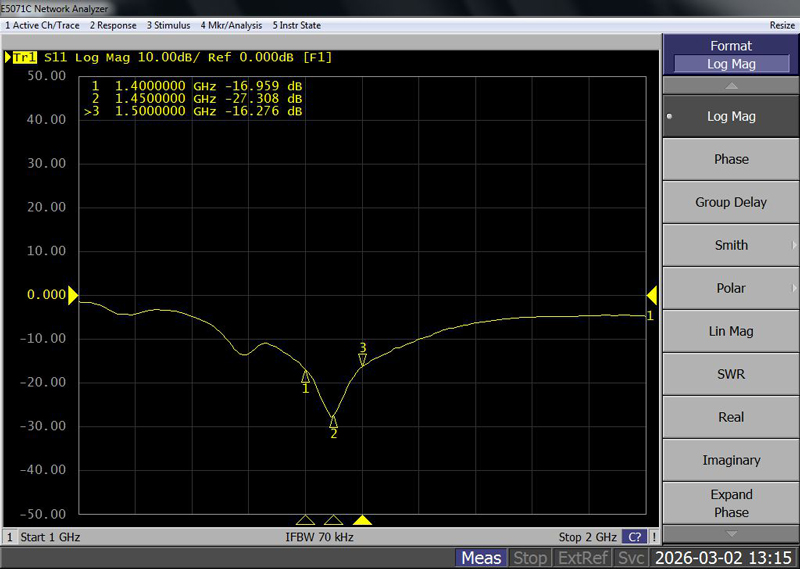

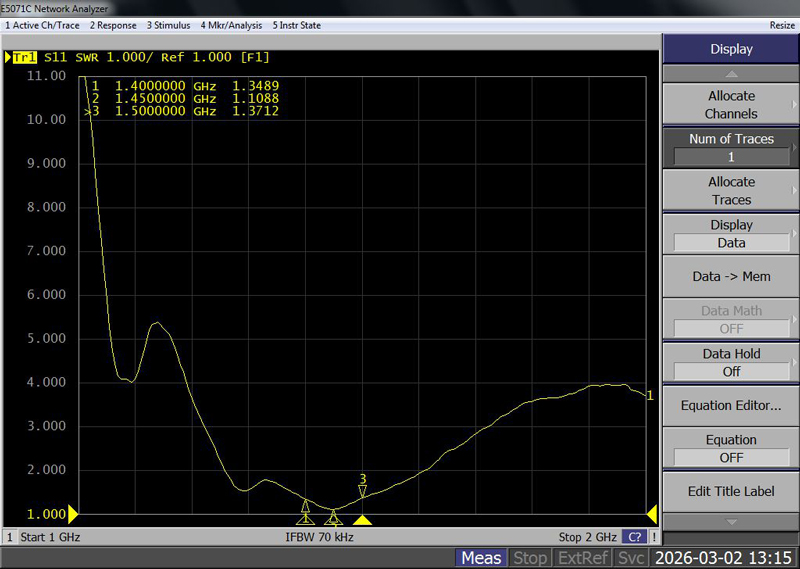

| V.S.W.R |
2.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Materal |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
N connector (Male) |

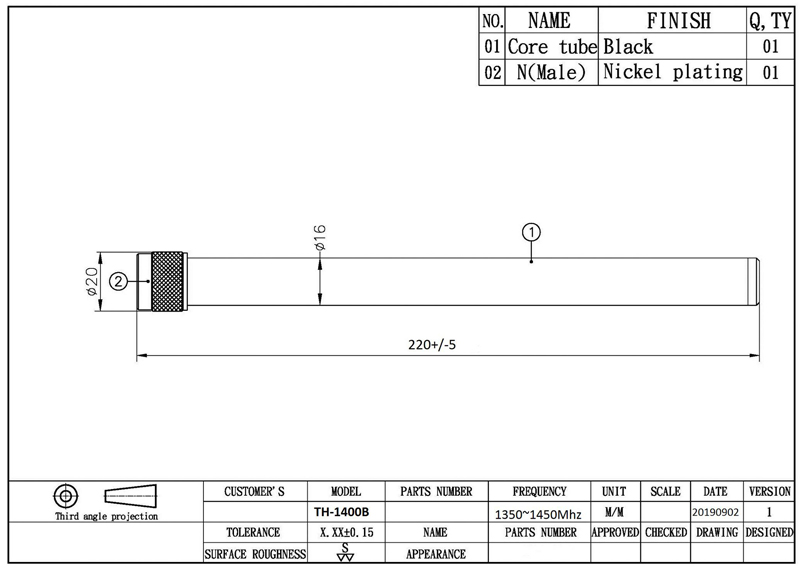

| Antenna Dimensions |
220mm ±5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
