TH-5250B

TH-5250B

Inquiry

Download

TH-5250B
  • Product Description
  • Product Specification
Frequency range: 5150~5350Mhz
Gain: 8dBi
V.S.W.R: 2.0
Impedence: 50 ohm
Connector: N Type male
Dimension: 605mm +/-10 x OD36mm
Weight: 0.34Kg
Polarization : vertical
Power handling : 100W
Materials : Fiberglass & copper
Colour : Black
Rated wind velocity : 60m/s
Working Temperature : -40~60℃
Lightning Protection : Direct Ground

＊This specification is subject to change without prior notice

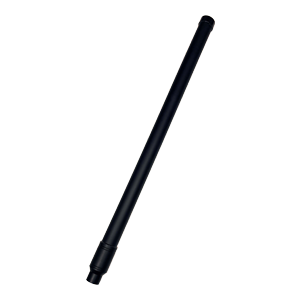

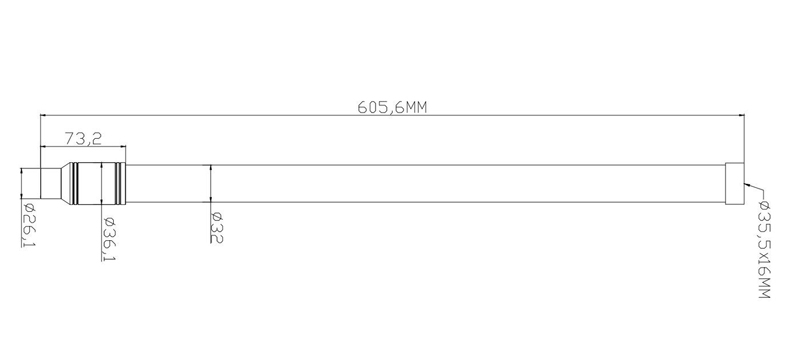

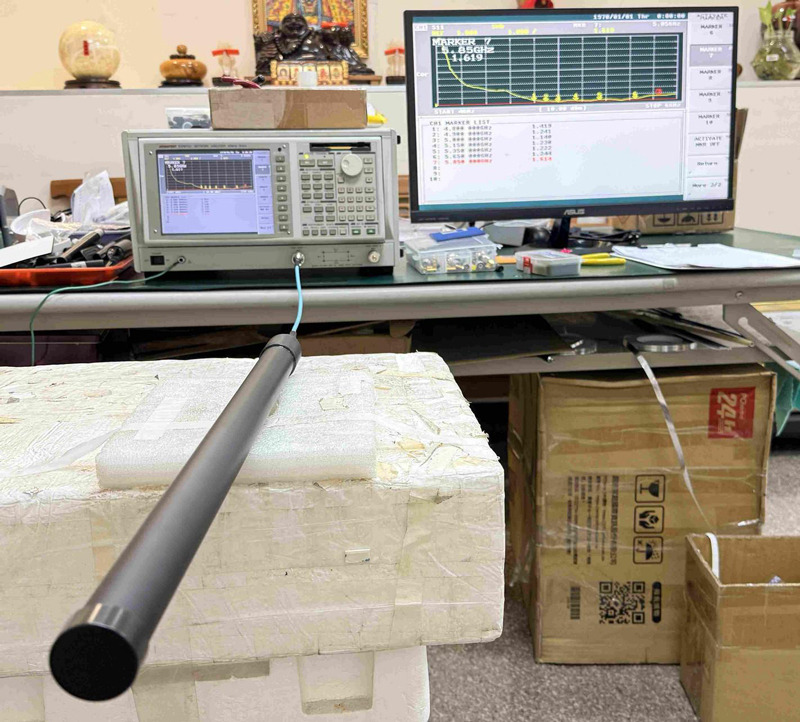

2. APPEARANCE:

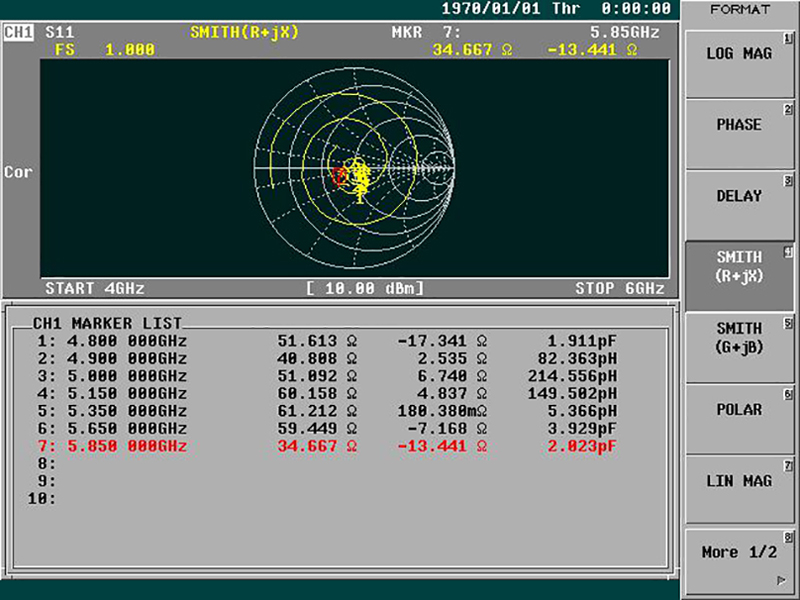

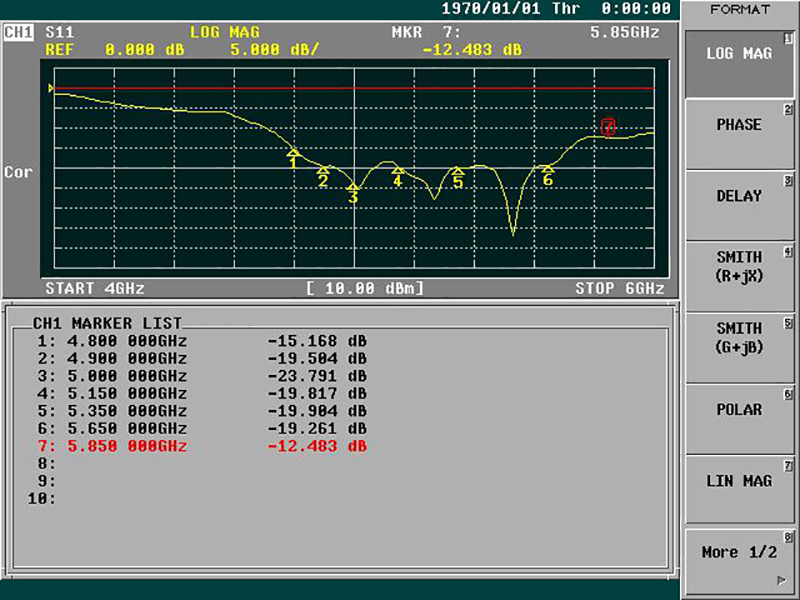

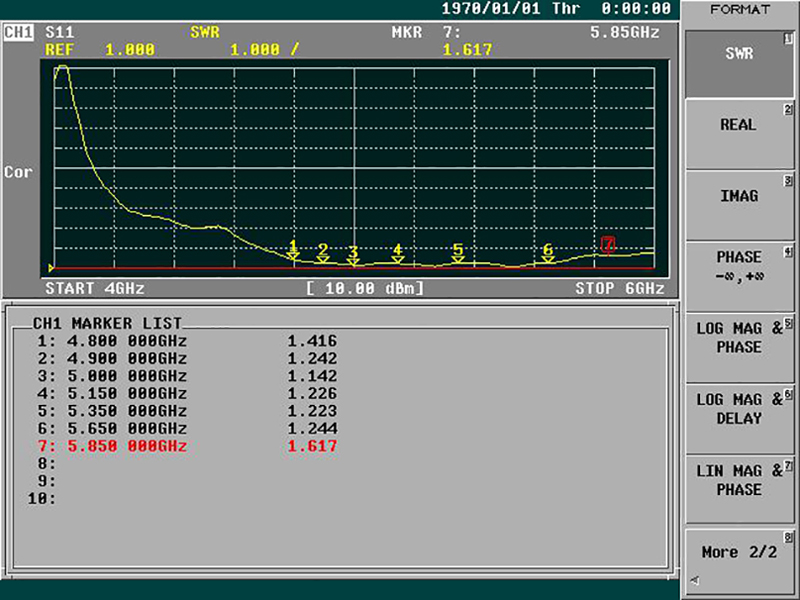

3. FREQUENCY:

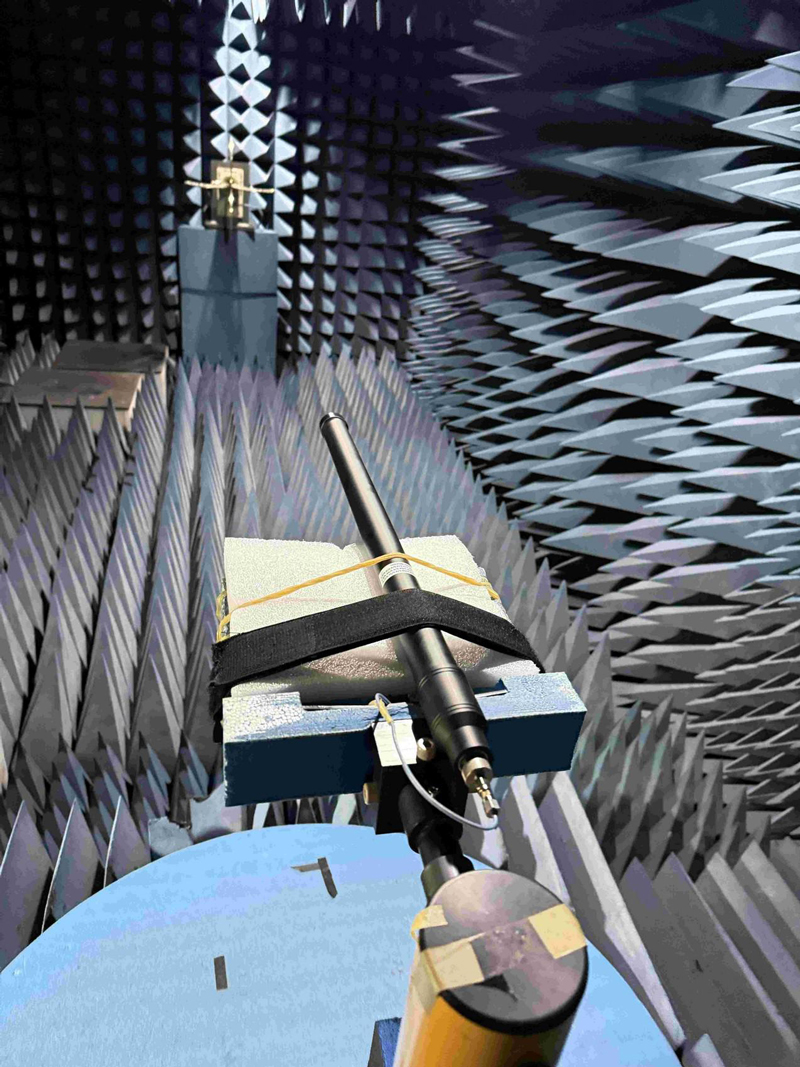

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
4700 MHz -6.43 -6.01 -3.20 47.83 2.60 -3.20
4800 MHz -4.67 -6.84 -2.61 54.83 4.72 -2.61
4900 MHz -2.68 -5.87 -0.98 79.85 6.92 -0.98
5000 MHz -3.43 -7.32 -1.94 63.91 5.66 -1.94
5100 MHz -3.13 -9.11 -2.16 60.87 6.65 -2.16
5150 MHz -2.22 -8.98 -1.39 72.65 7.64 -1.39
5200 MHz -2.64 -9.55 -1.83 65.56 7.58 -1.83
5250 MHz -1.97 -7.73 -0.95 80.39 8.11 -0.95
5300 MHz -3.82 -8.70 -2.60 55.01 6.25 -2.60
5350 MHz -3.93 -7.50 -2.35 58.24 5.91 -2.35
5400 MHz -4.29 -7.23 -2.51 56.13 5.60 -2.51
5450 MHz -5.40 -8.61 -3.70 42.64 3.86 -3.70
5500 MHz -5.48 -9.72 -4.09 38.96 3.61 -4.09
5550 MHz -5.03 -9.22 -3.63 43.35 2.81 -3.63
5600 MHz -4.08 -8.29 -2.68 53.90 3.93 -2.68
5650 MHz -3.12 -6.62 -1.52 70.50 5.78 -1.52
5700 MHz -4.47 -7.23 -2.62 54.67 4.49 -2.62
5750 MHz -3.70 -6.47 -1.86 65.17 5.75 -1.86
5800 MHz -4.65 -7.40 -2.80 52.50 4.17 -2.80
5850 MHz -4.25 -6.74 -2.31 58.76 4.72 -2.31
5900 MHz -3.81 -6.80 -2.04 62.53 4.32 -2.04
5950 MHz -2.97 -6.13 -1.26 74.83 5.44 -1.26
6000 MHz -3.68 -6.18 -1.74 66.99 5.74 -1.74

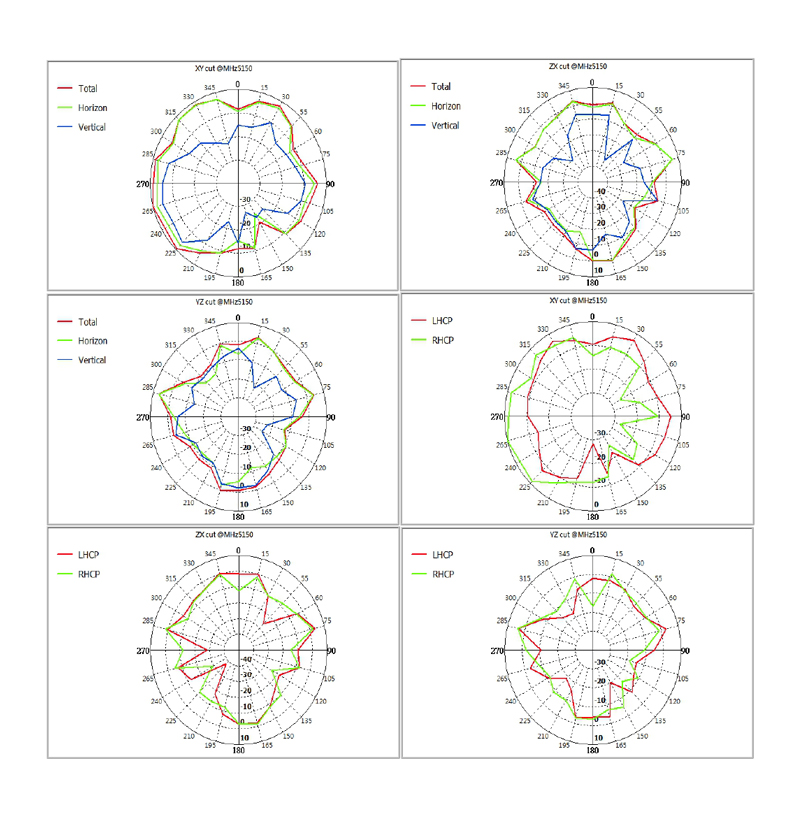

5150Mhz:

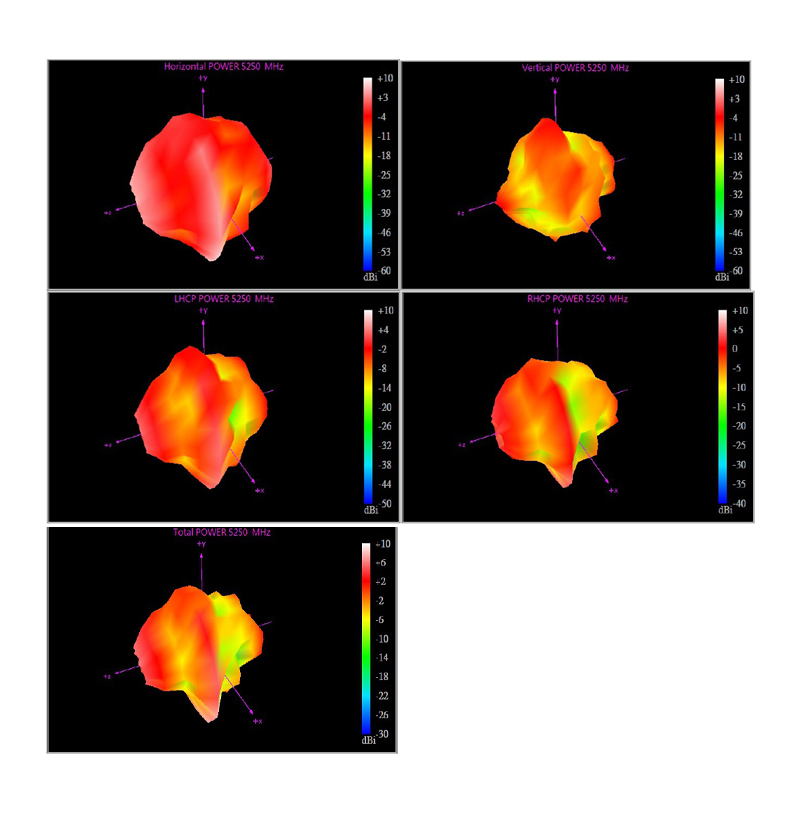

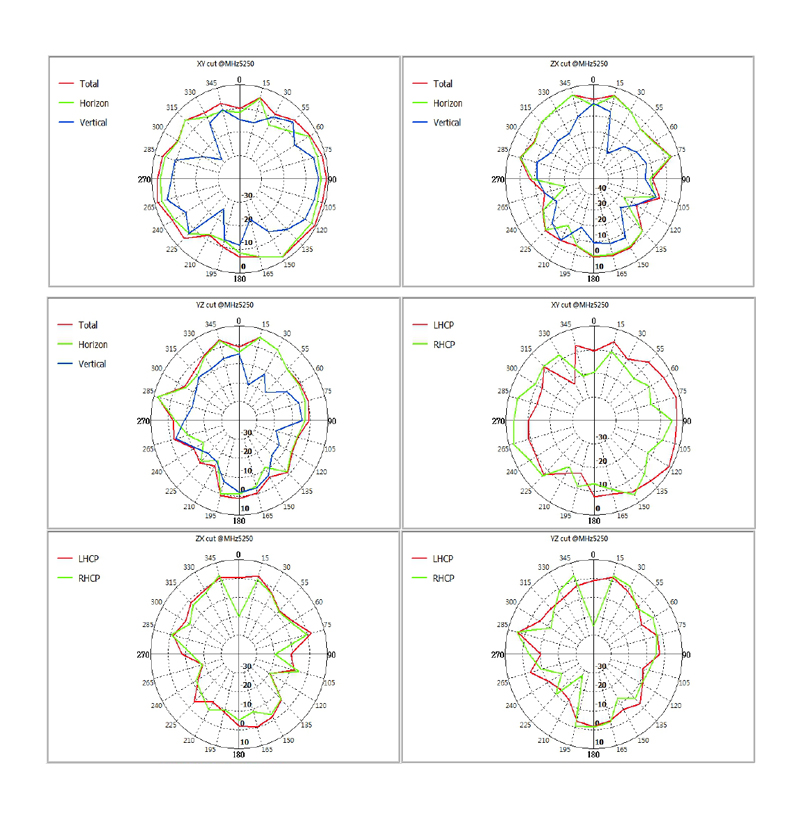

5250Mhz:

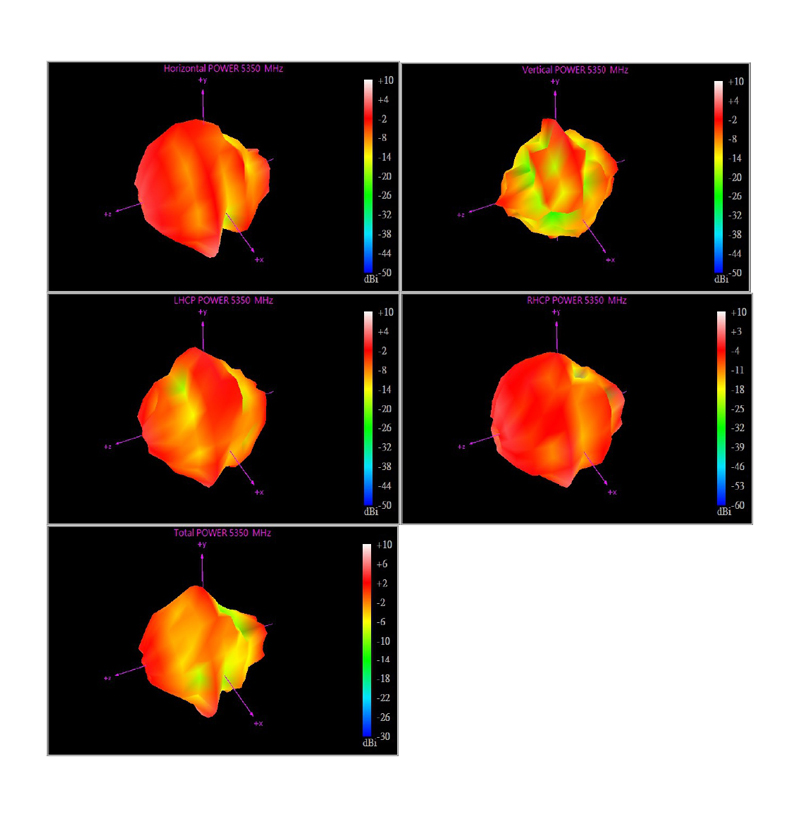

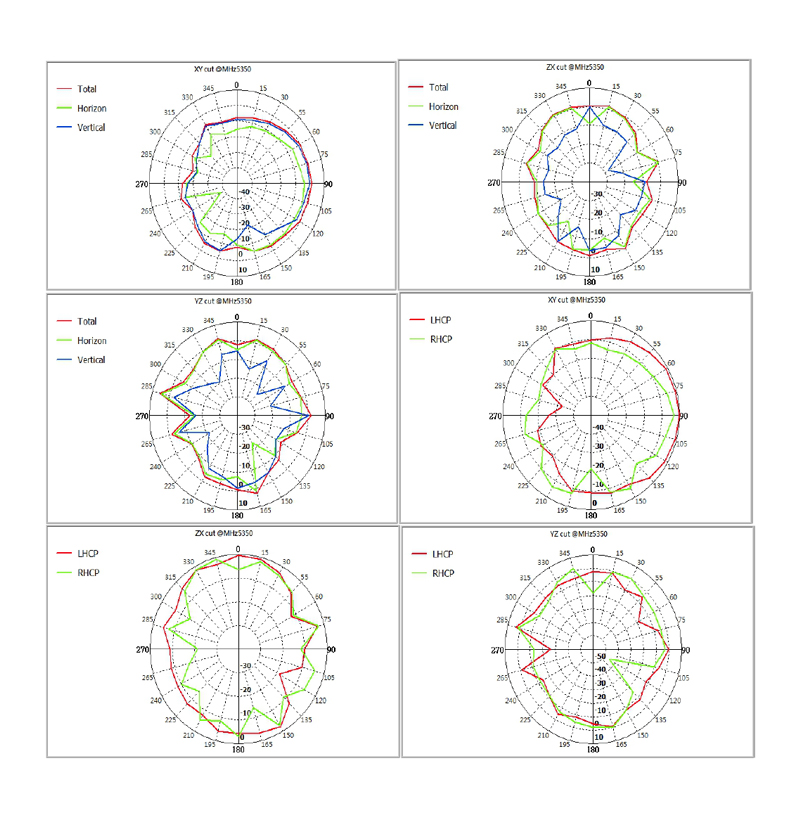

5350Mhz:

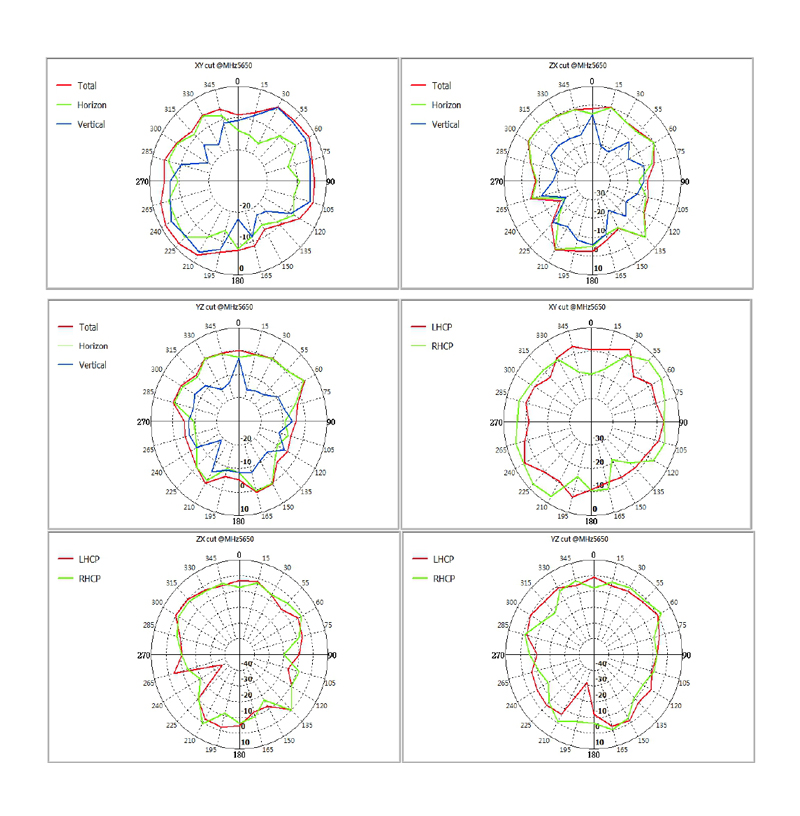

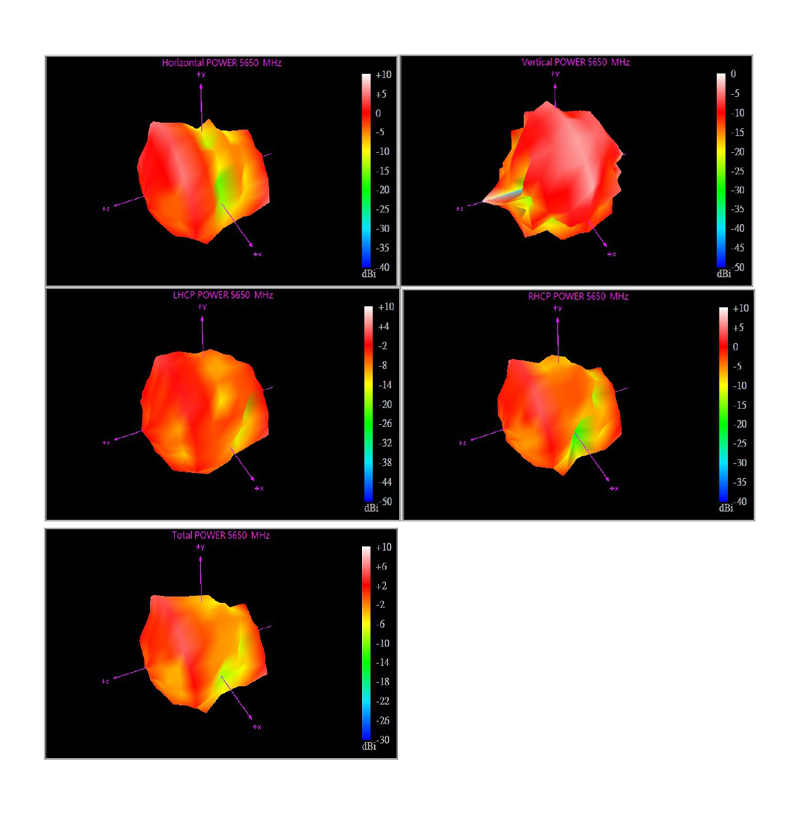

5650Mhz:

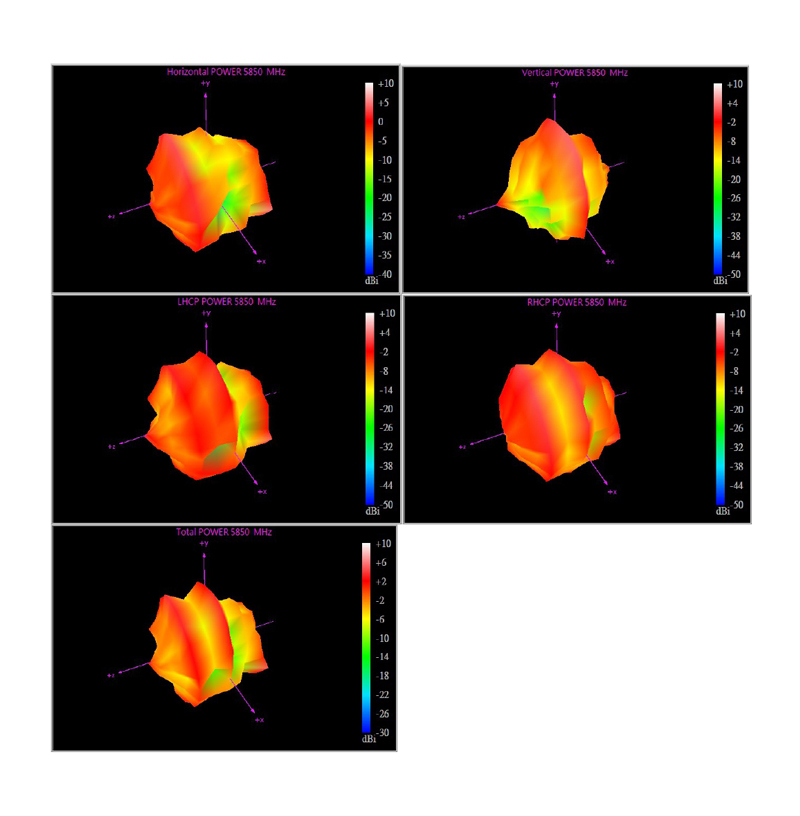

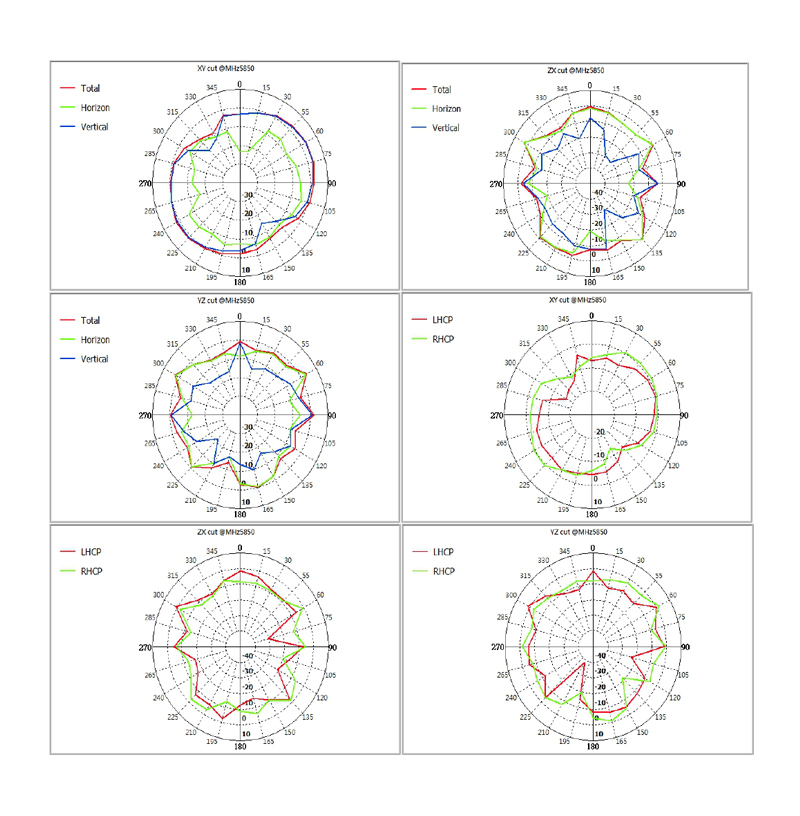

5850Mhz:
