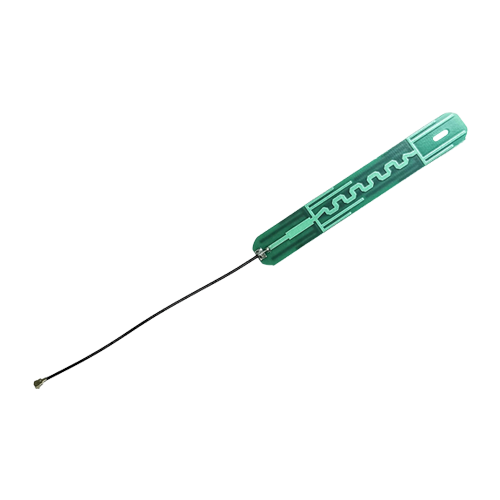

IAP-2458D
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No P/N
IAP-2458D IAP-2458D-90mm-IPEX

Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 2.4~2.5/5.1~5.85Ghz

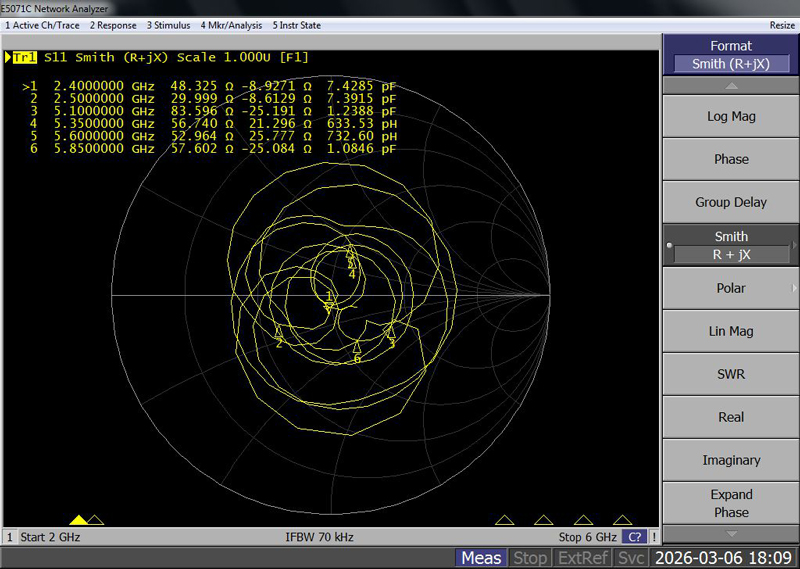

Nominal Impedance 50 ohm
Polarization Linear
Radiation Pattern Omni-Directional
Peak Gain 0-4dbi
Admitted Power radiation 5W

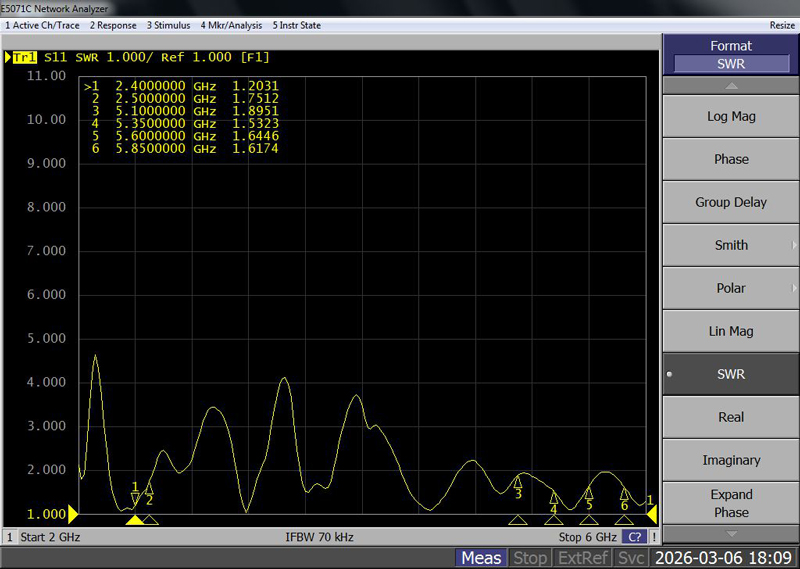

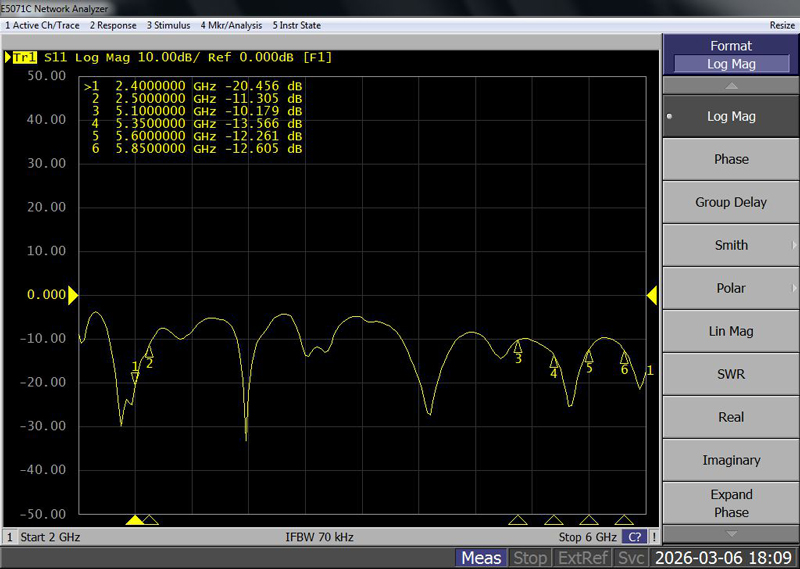

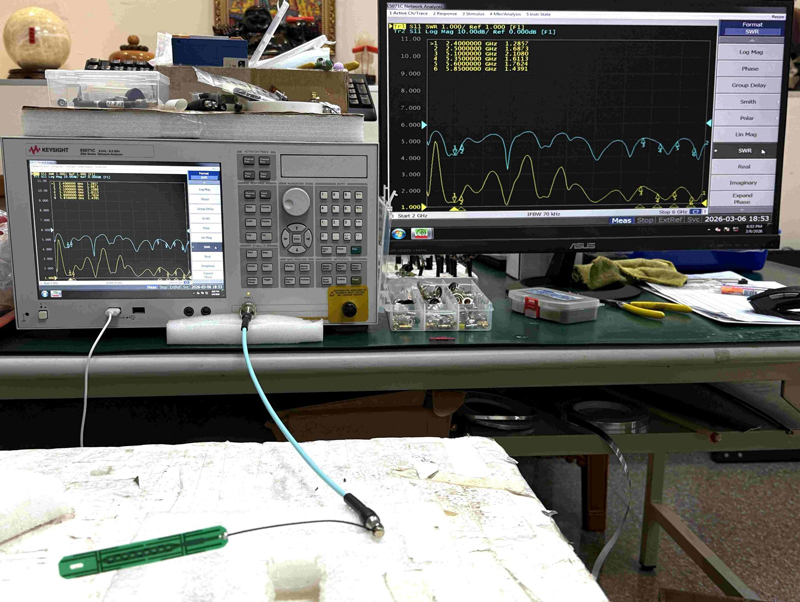

V.S.W.R 2.5:1

1.2 Mechanical Properties

Parameter Description
Antenna Type Self-Adhesive
Material FR4-0.6T
Connector Type IPEX or other

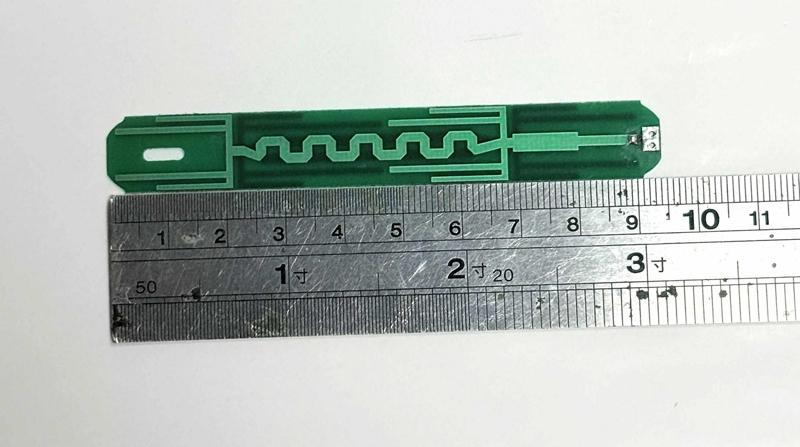

Antenna Dimensions 13.4 x 94.8mm±0.5
Antenna Color Green
Operating Temperature Range -40°C ~ +80°C
Storage Temperature Range -40°C ~ +80°C

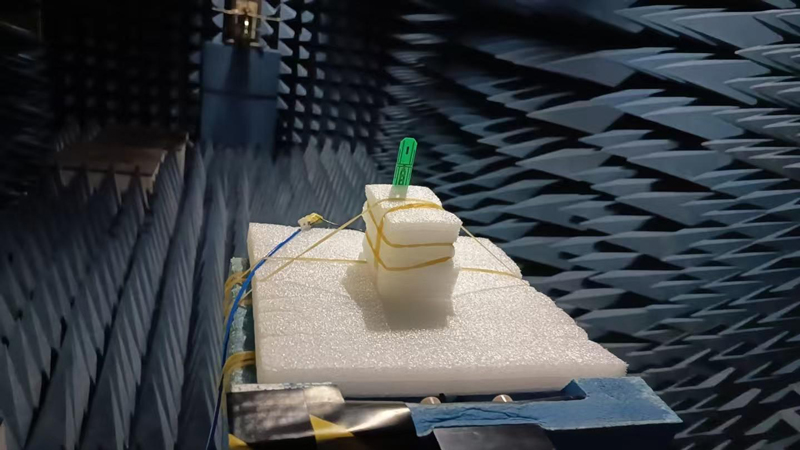

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.(dBm)
2400 MHz -6.06 -6.77 -3.39 45.81 2.90 -3.39
2450 MHz -5.19 -6.07 -3.63 43.35 3.71 -3.63
2500 MHz -5.60 -6.34 -3.94 40.36 3.02 -3.94
2600 MHz -6.18 -5.82 -2.99 50.23 2.67 -2.99
4900 MHz -9.84 -10.02 -4.92 32.21 0.99 -4.92
5000 MHz -12.42 -12.75 -4.57 34.91 2.05 -4.57
5100 MHz -11.63 -11.78 -5.71 26.85 1.28 -5.71
5200 MHz -9.22 -9.04 -5.12 30.76 2.71 -5.12
5300 MHz -9.97 -9.30 -5.61 27.48 2.07 -5.61
5400 MHz -7.67 -7.40 -4.52 35.32 4.69 -4.52
5500 MHz -9.69 -9.86 -4.77 33.34 1.58 -4.77
5600 MHz -9.75 -9.14 -5.42 28.71 0.57 -5.42
5700 MHz -9.15 -8.69 -4.94 32.06 1.24 -4.94
5800 MHz -8.90 -8.24 -4.55 35.08 1.69 -4.55
5900 MHz -9.10 -8.76 -4.91 32.28 2.36 -4.91
6000 MHz -8.47 -8.05 -4.24 37.67 1.29 -4.24

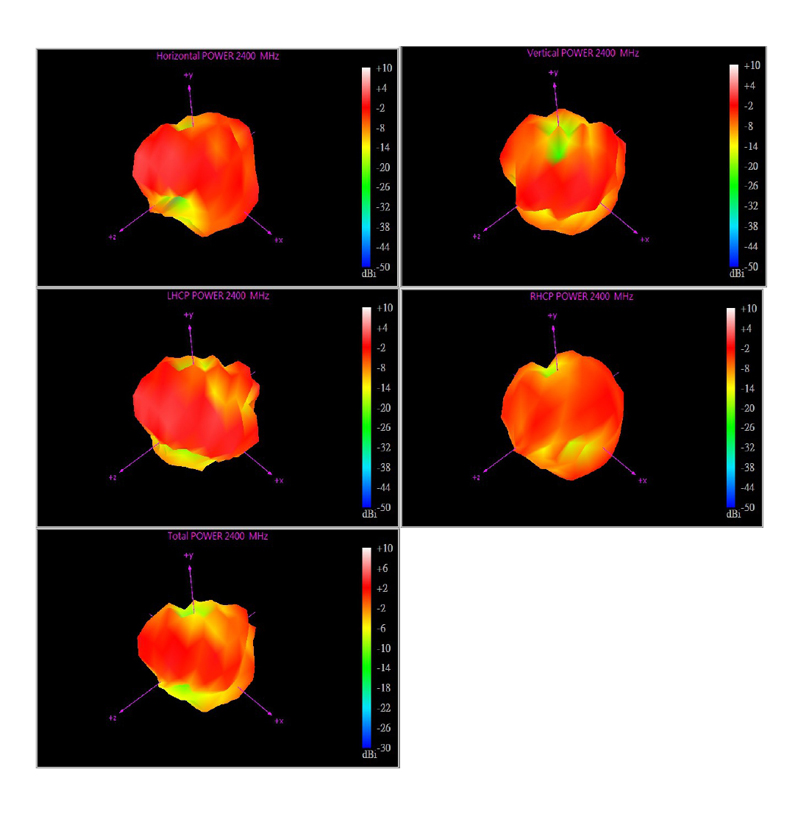

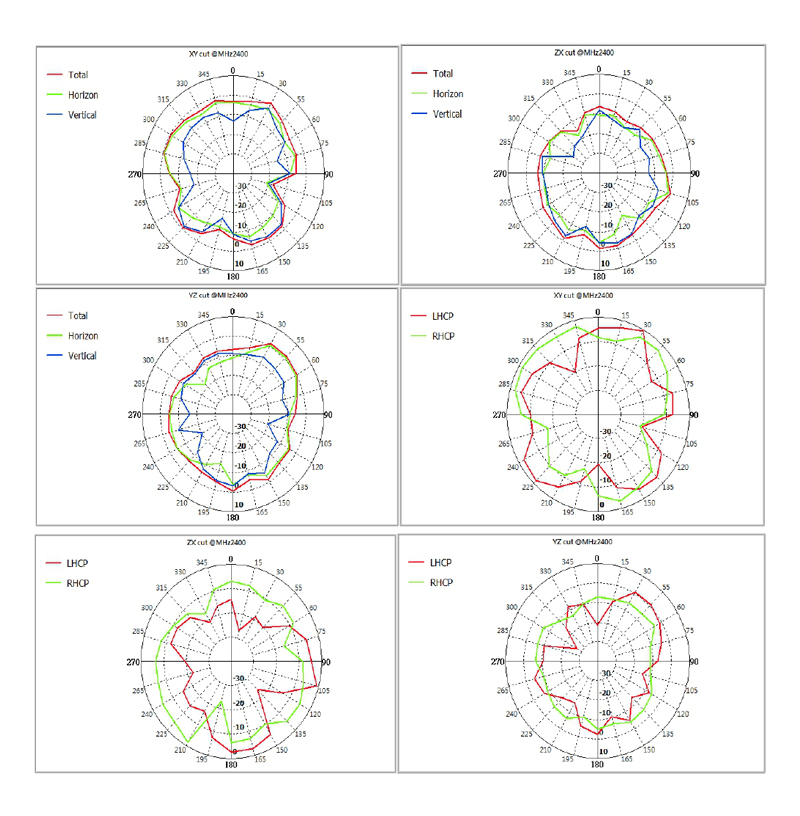

2400Mhz:

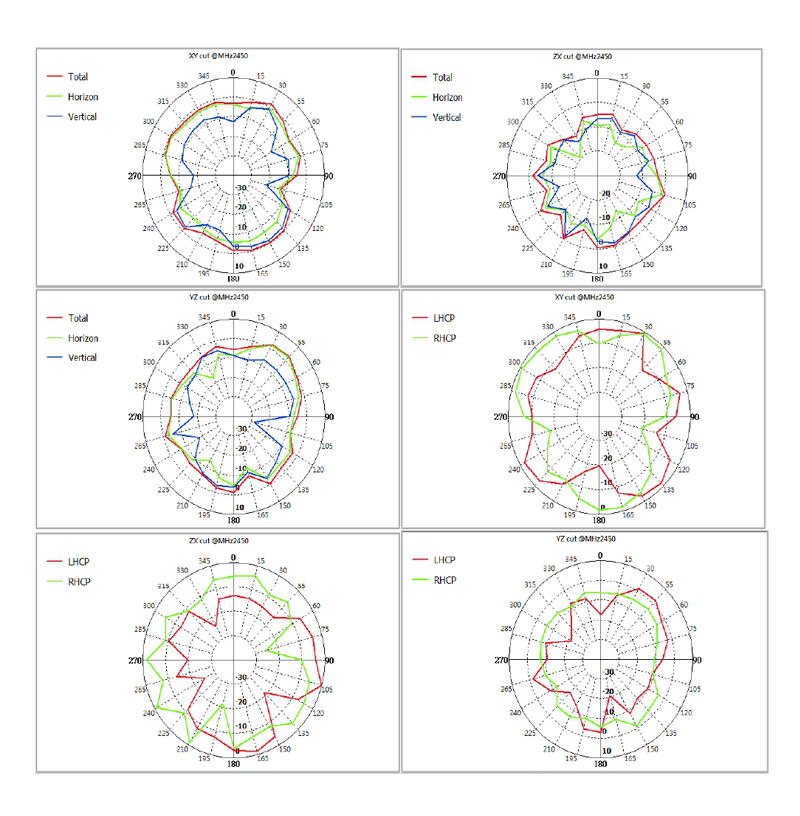

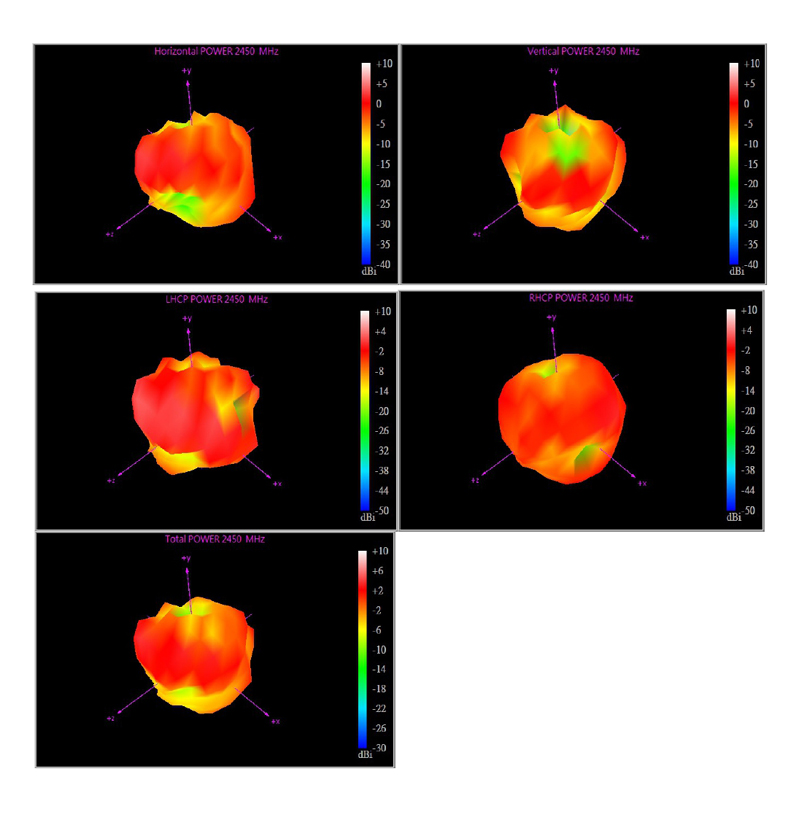

2450Mhz:

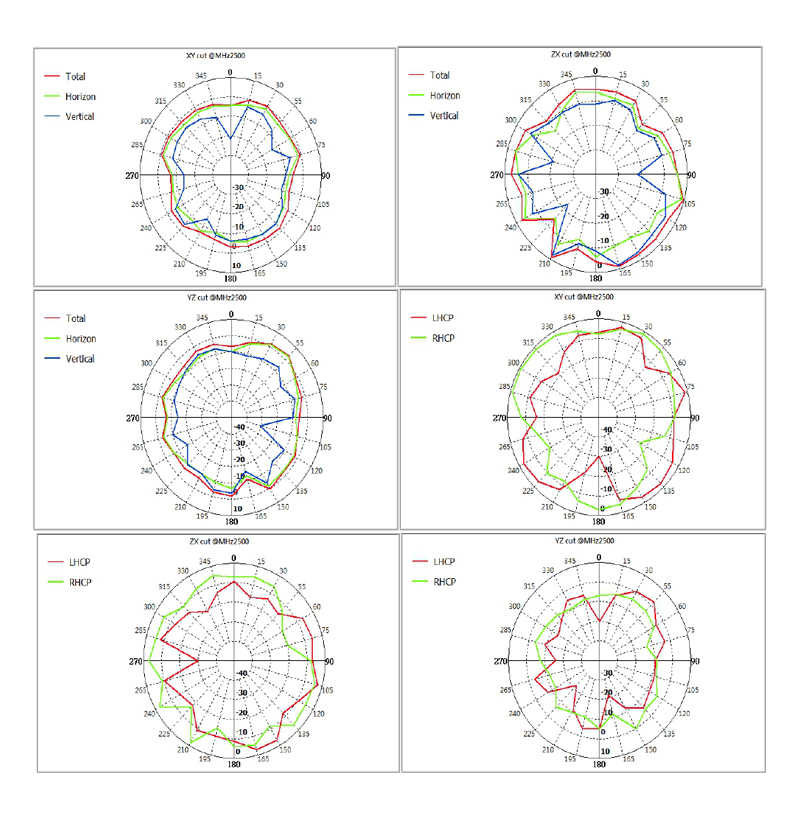

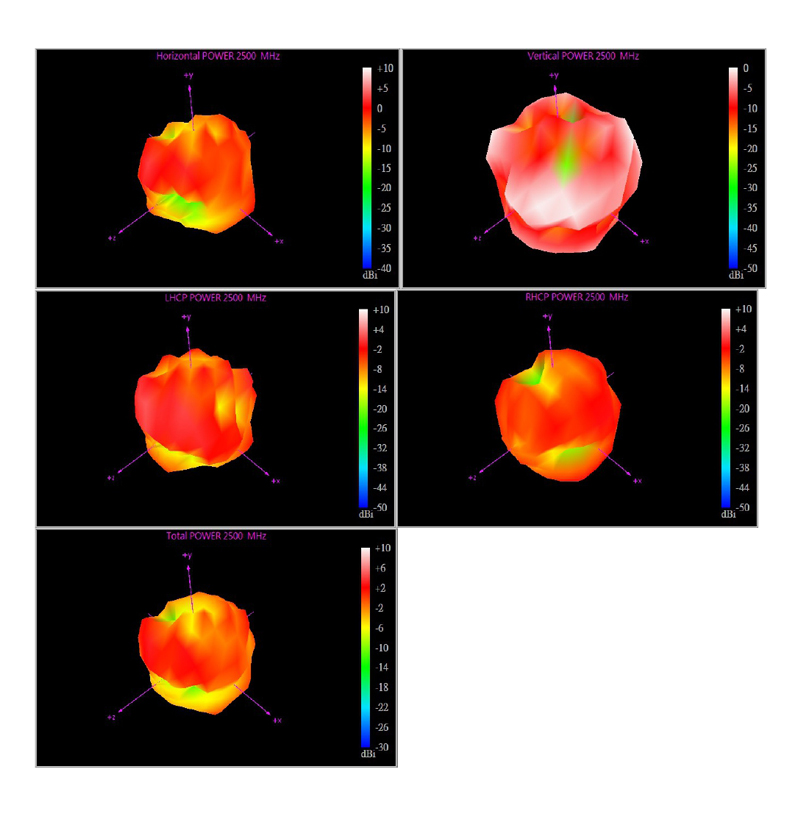

2500Mhz:

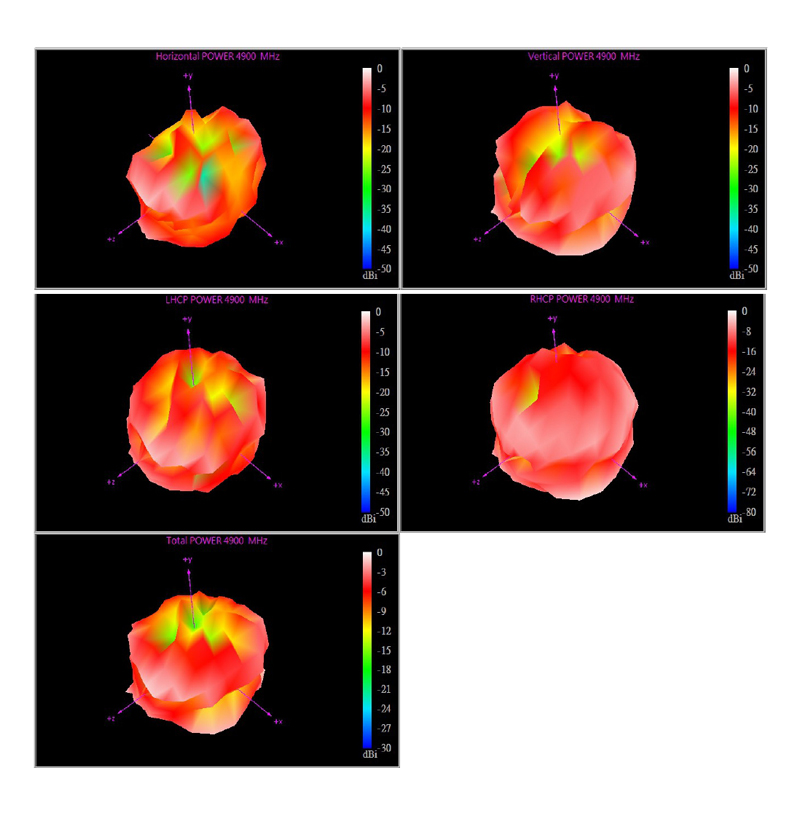

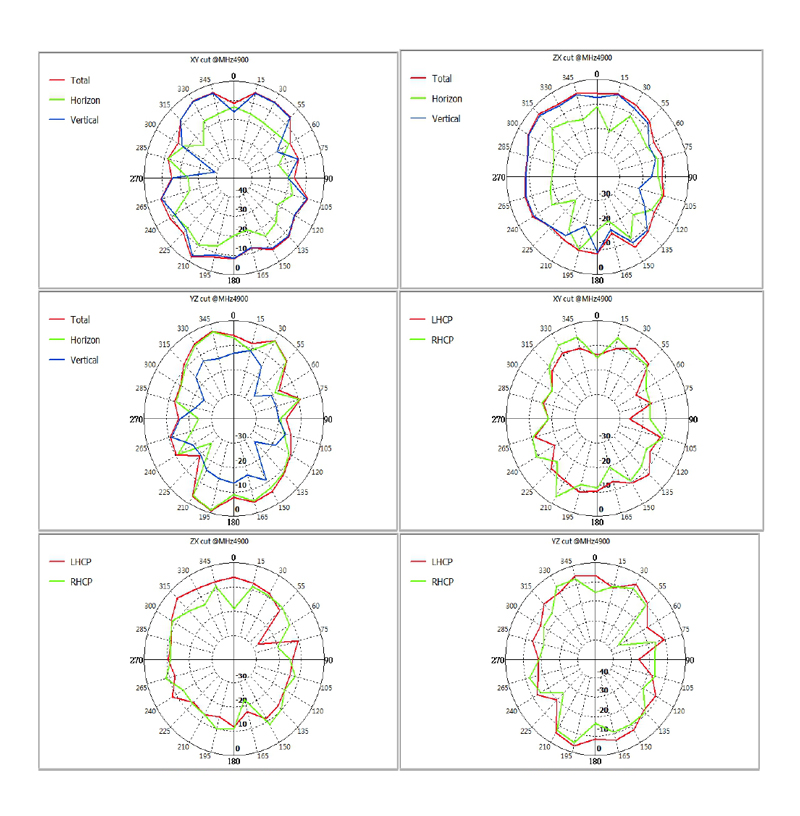

4900Mhz:

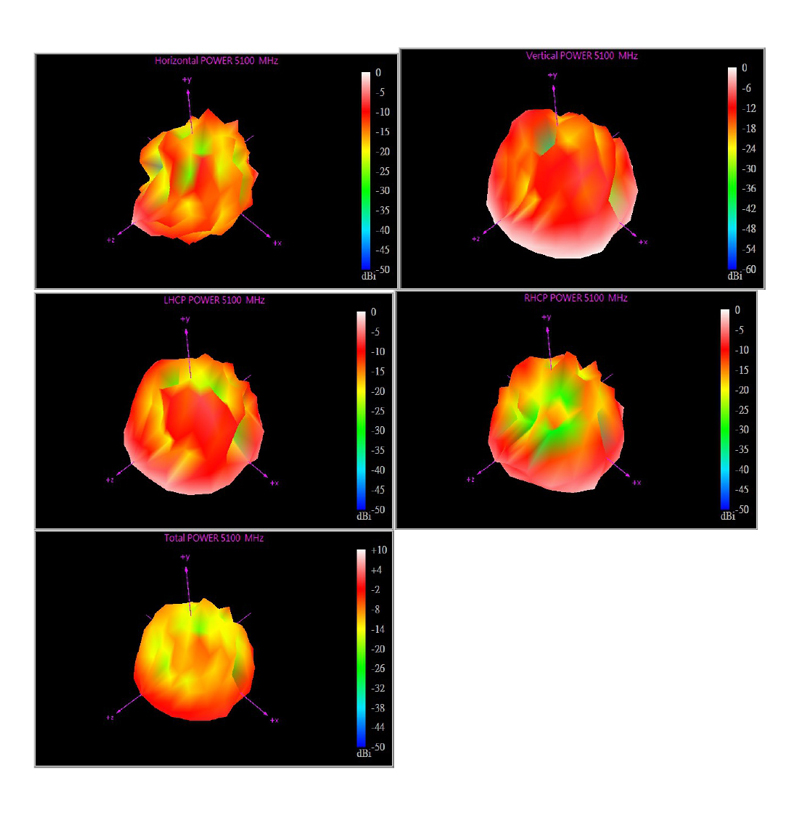

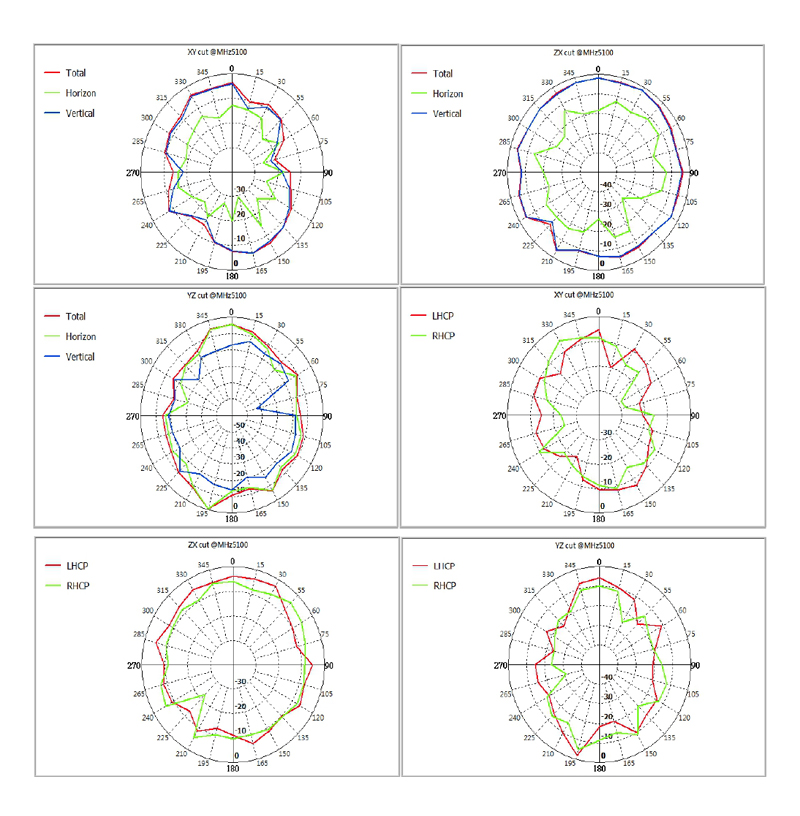

5100Mhz:

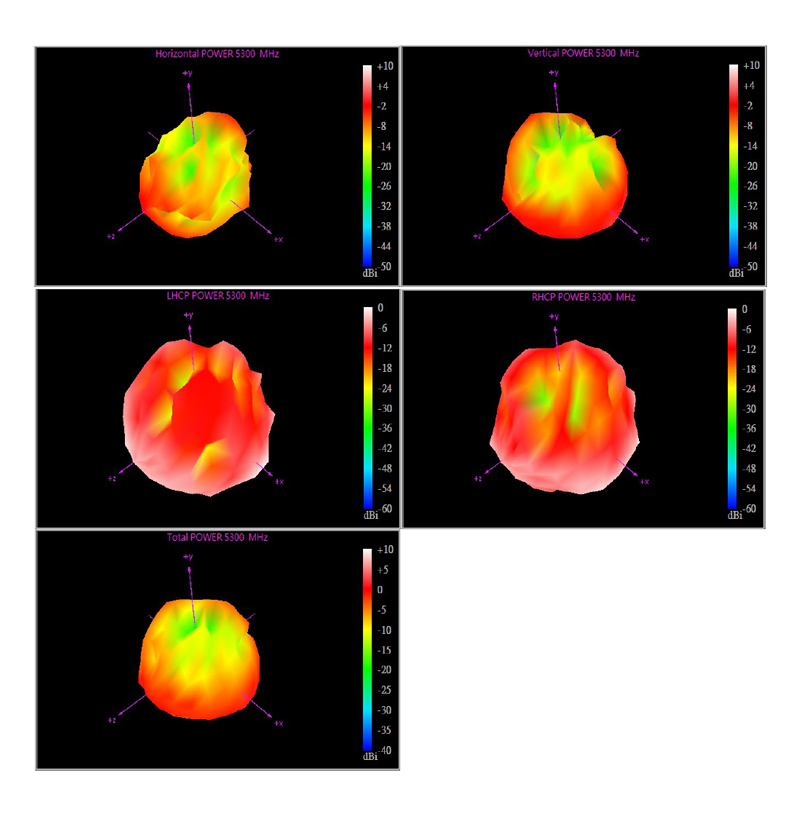

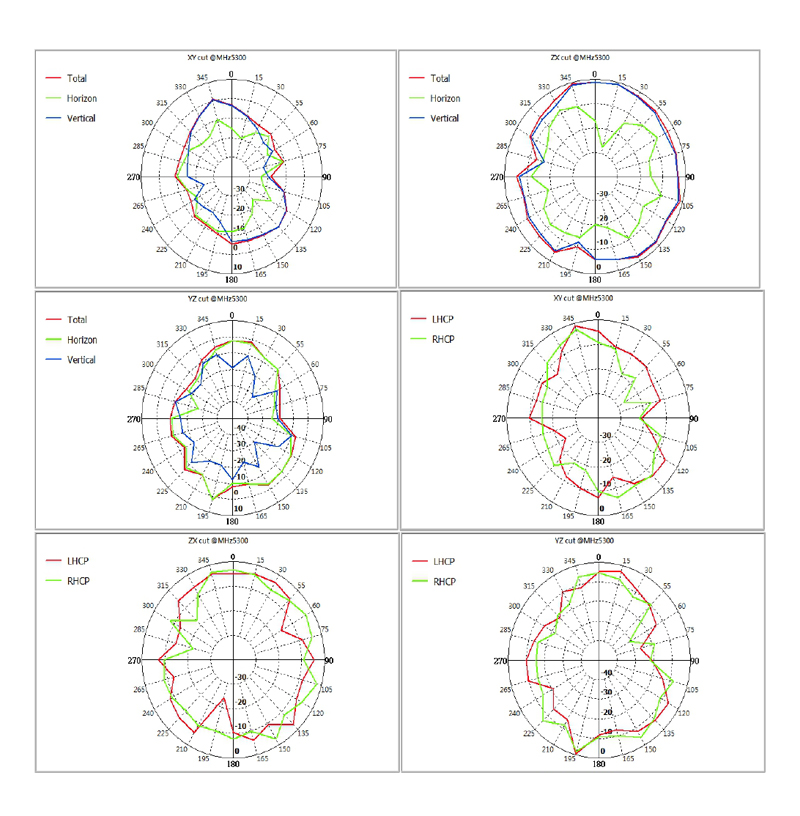

5300Mhz:

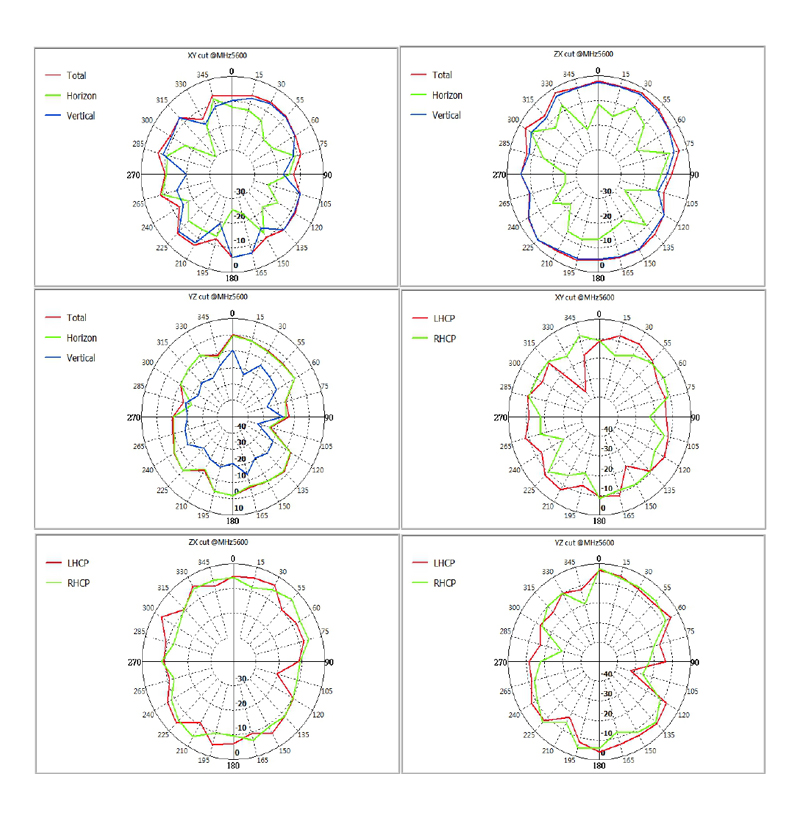

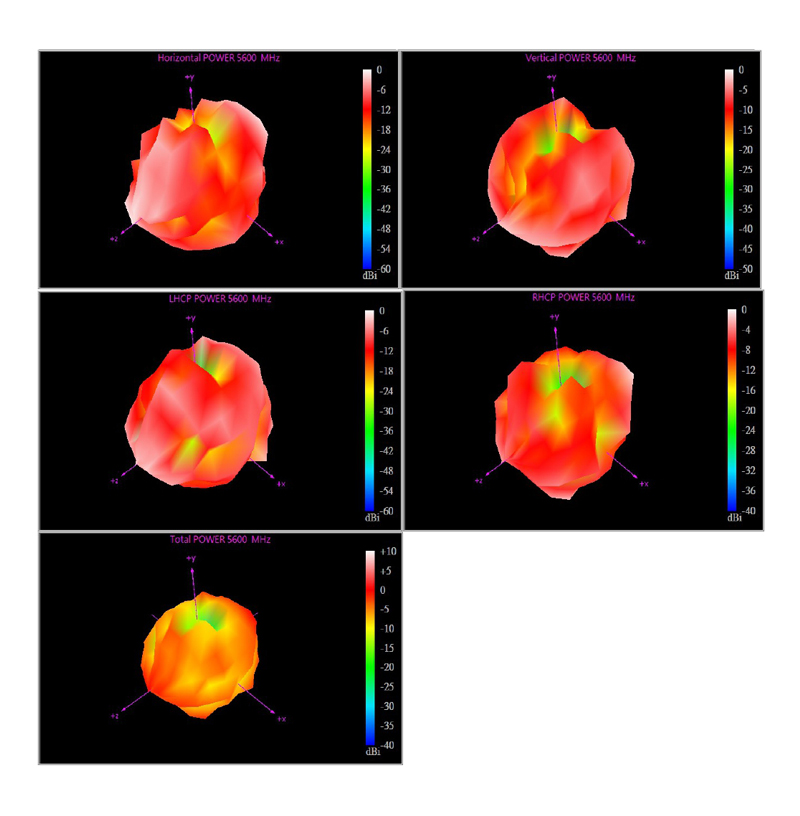

5600Mhz:

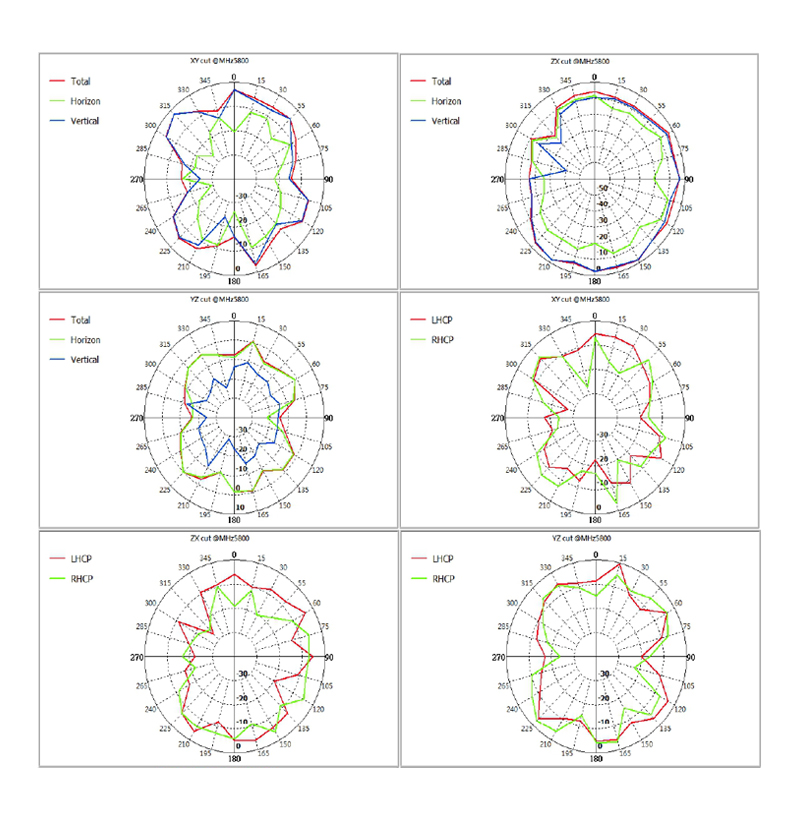

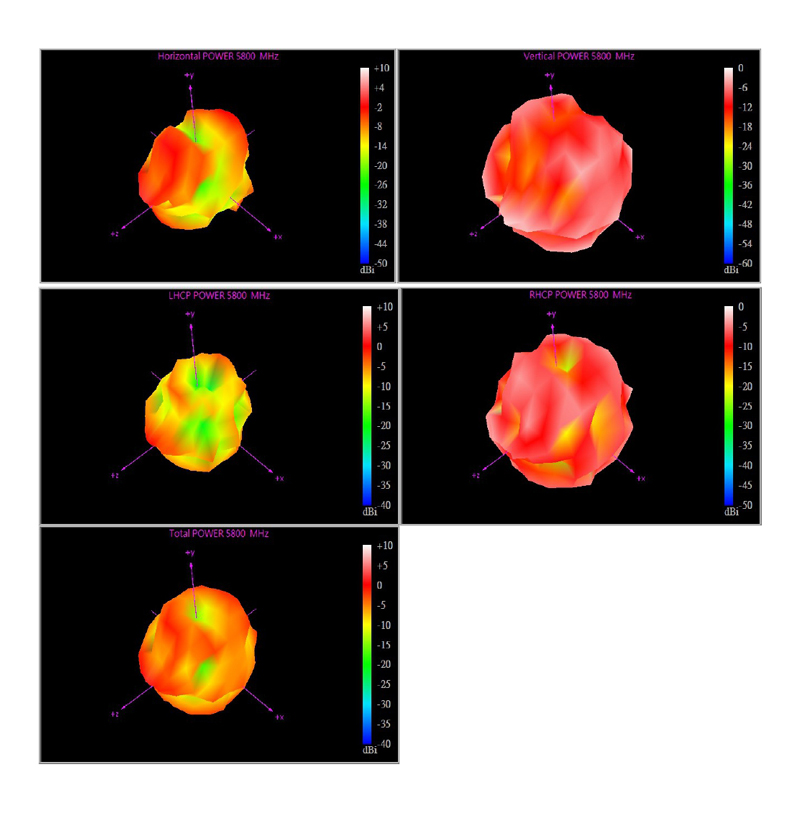

5800Mhz:
