1.GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
495~515Hz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Return Loss |

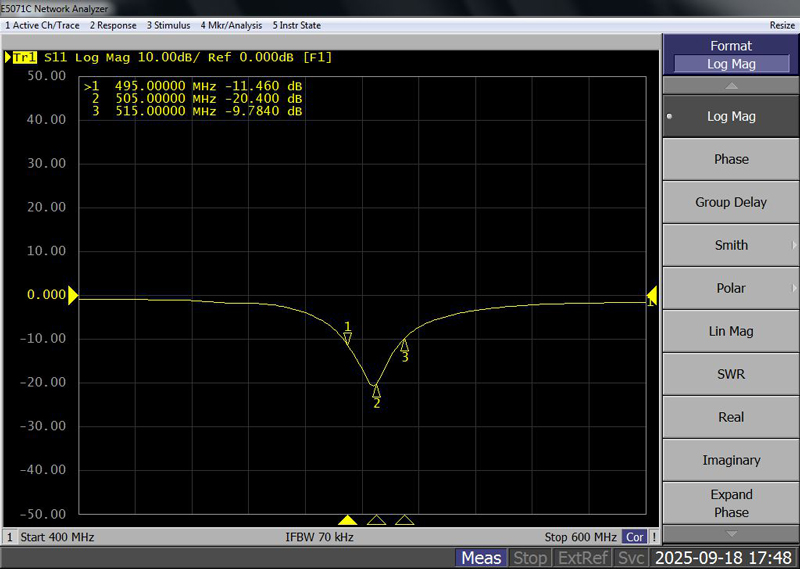

Please See Data-1 |

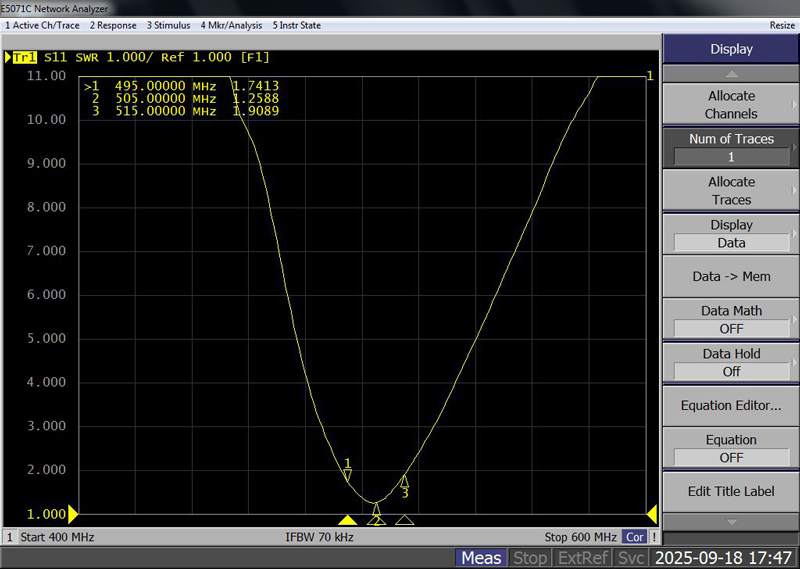

| V.S.W.R |
2.0：1 ( ON customer device GND ) |
| Gain |
0dbi |
| Power |
10W |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Antenna Material |
ASA-UV |
| Touch Type |
Screw Type |
| Connector Type |
SMA 180˚(Male) OD10.0mm |

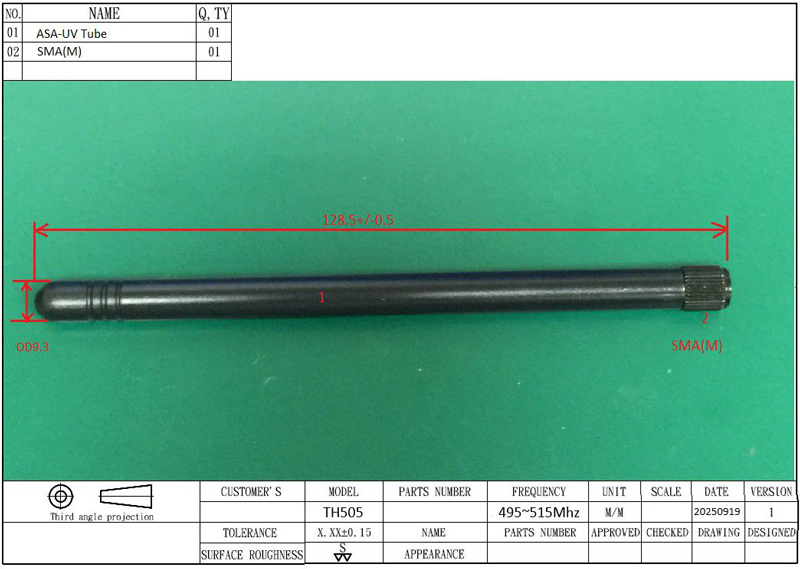

| Antenna Dimensions |
OD9.3 x 128.5mm ±0.5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+80°C |
| Storage Temperature Range |
-40°C~+80°C |
