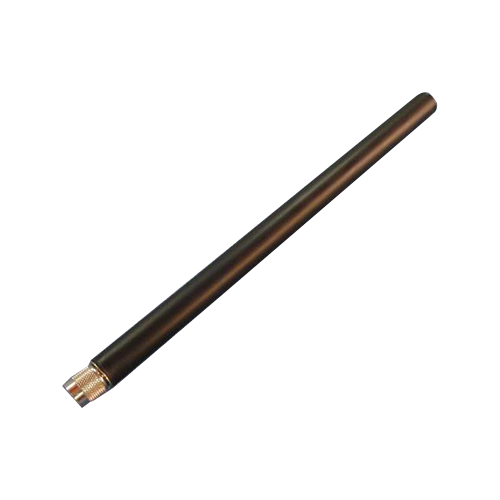

1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH-460G |
TH460G-TNC(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
450~470 MHz ON GND |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |

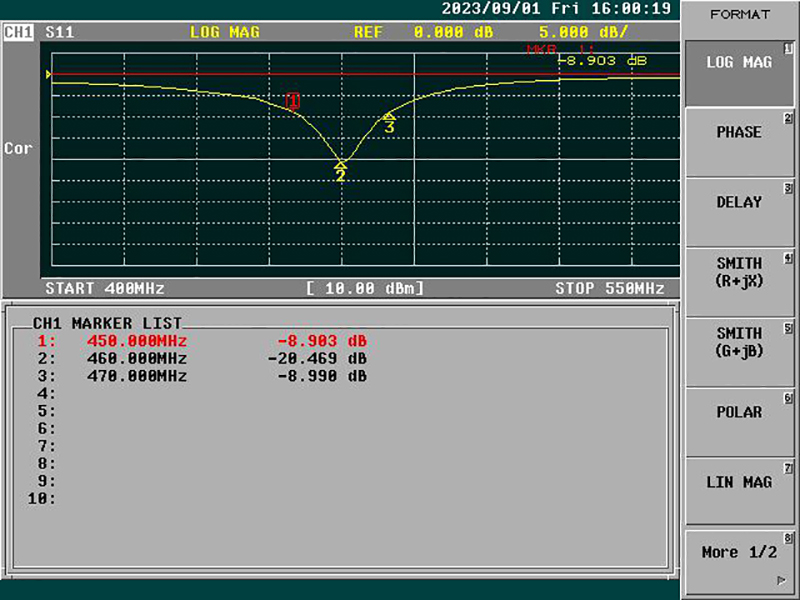

| Return Loss |
Please See Data-1 |

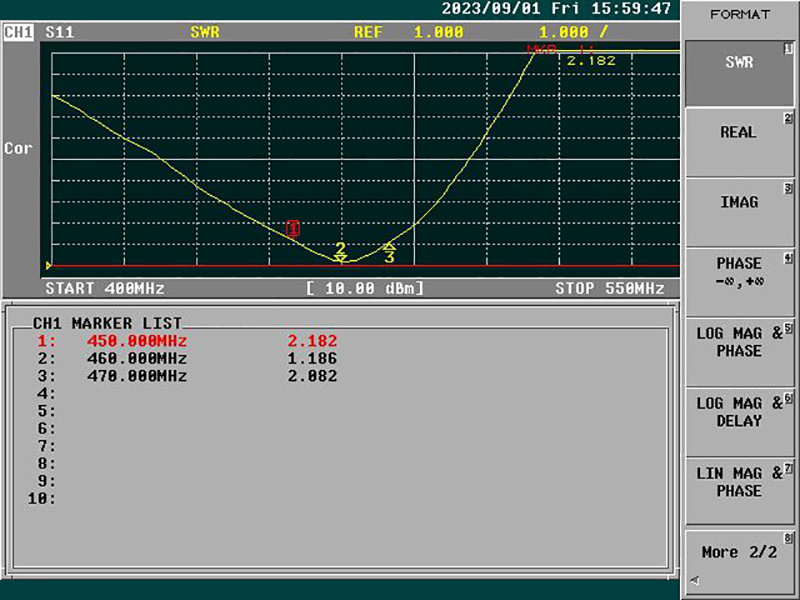

| V.S.W.R |
2.5：1 |
| Gain |
3db |
| Power |
10W |

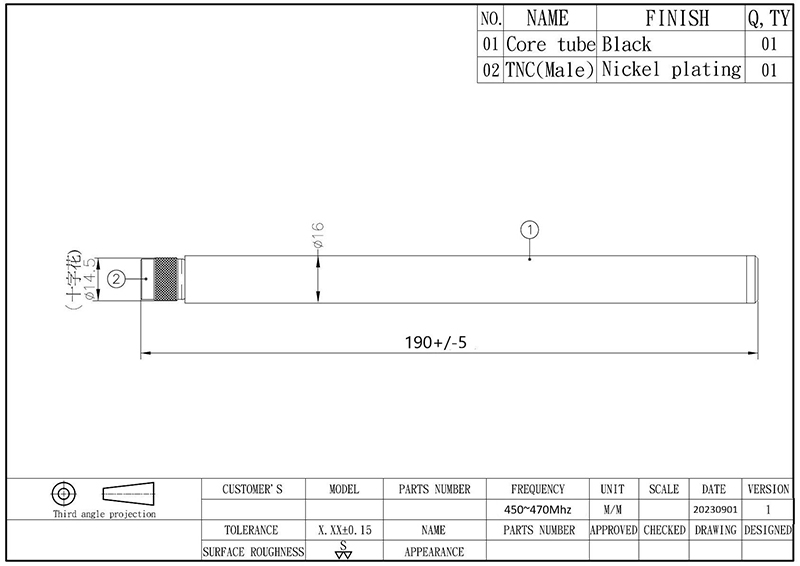

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC (Male) |
| Antenna Dimensions |
190mm ±5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+80°C |
| Storage Temperature Range |
-40°C~+80°C |
