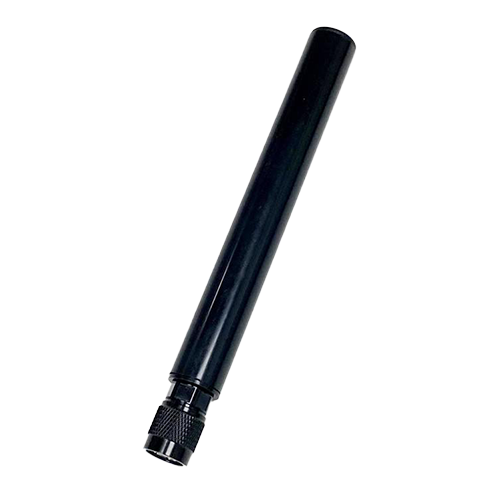

TH‐2100 S Band Antenna
  • Product Description
  • Product Specification

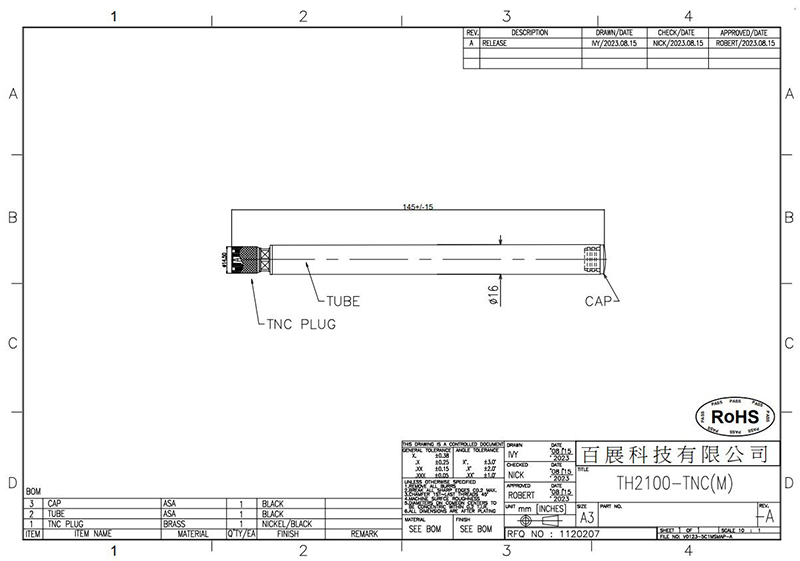

1.GENERAL DESCRIPTION

Model No
TH2100-TNC(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1900~2200Mhz
Nominal Impedance 50 ohm
Polarization Vertical
2.0:1

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type TNC connector (Male)
Antenna Dimensions Ø16 x 145mm ±15
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

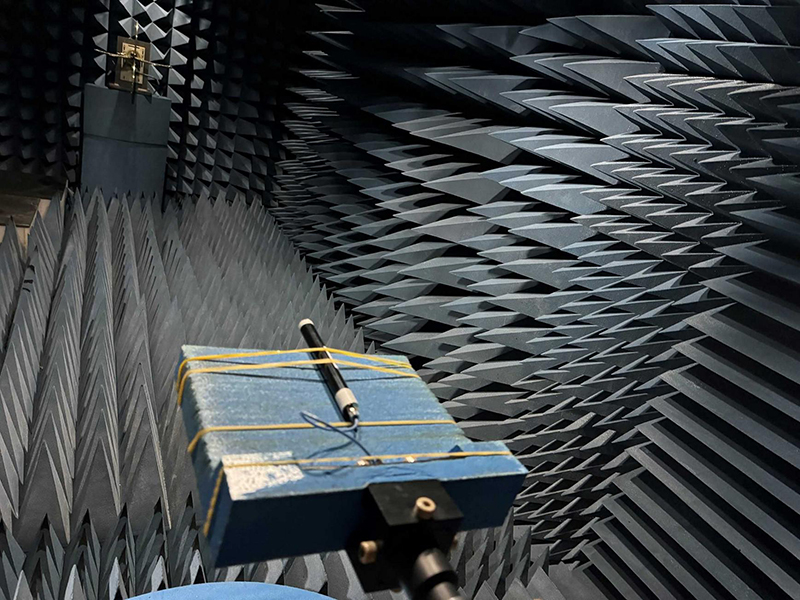

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1900 MHz -7.10 -3.58 -1.99 63.28 1.98 -1.99
2000 MHz -8.42 -2.95 -1.87 65.09 2.84 -1.87
2100 MHz -9.16 -2.88 -1.96 63.67 3.73 -1.96
2200 MHz -7.56 -3.49 -2.05 62.36 3.27 -2.05

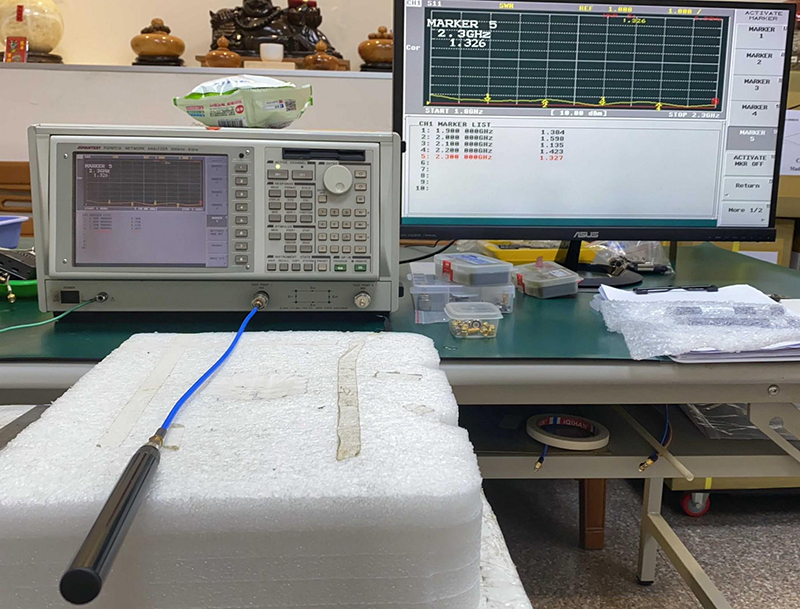

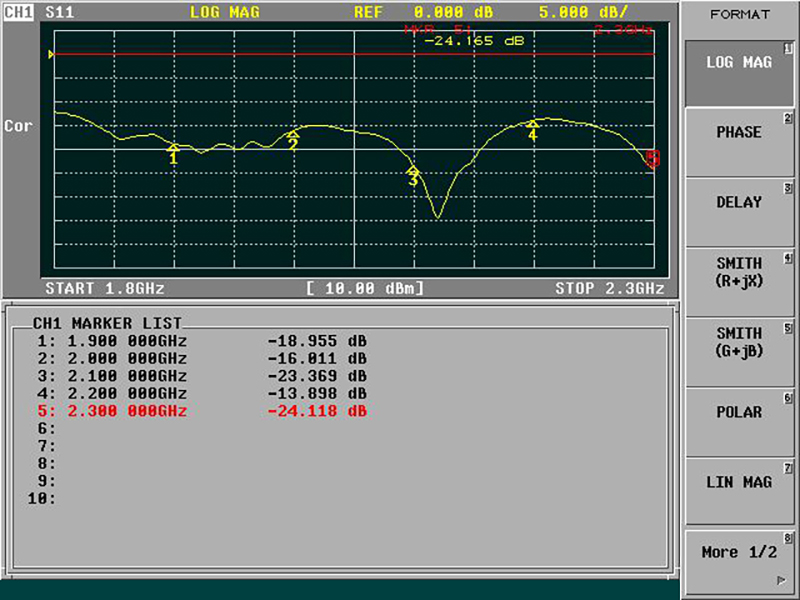

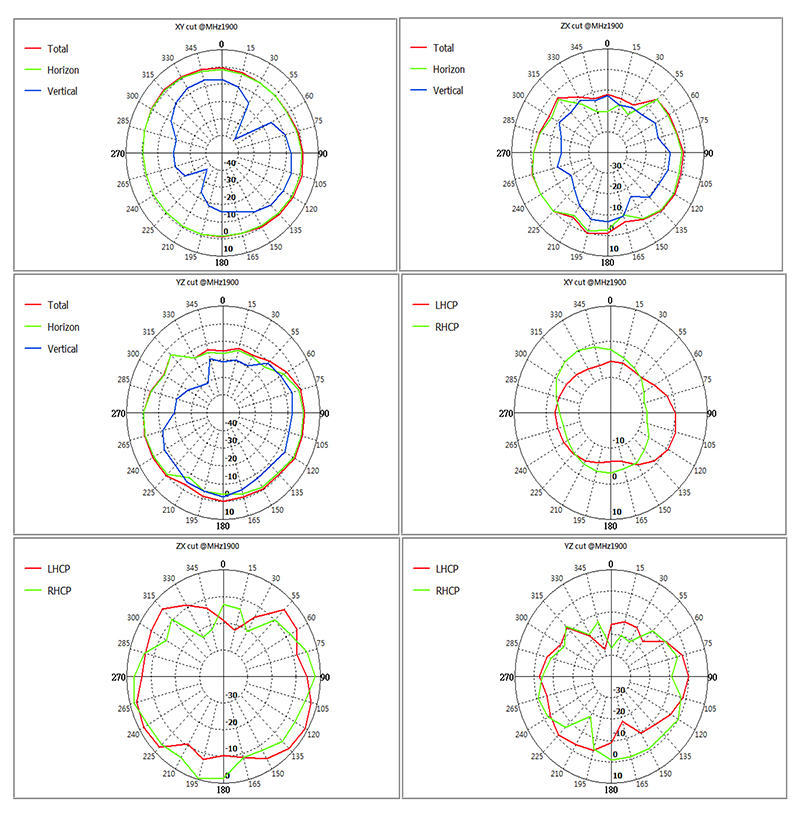

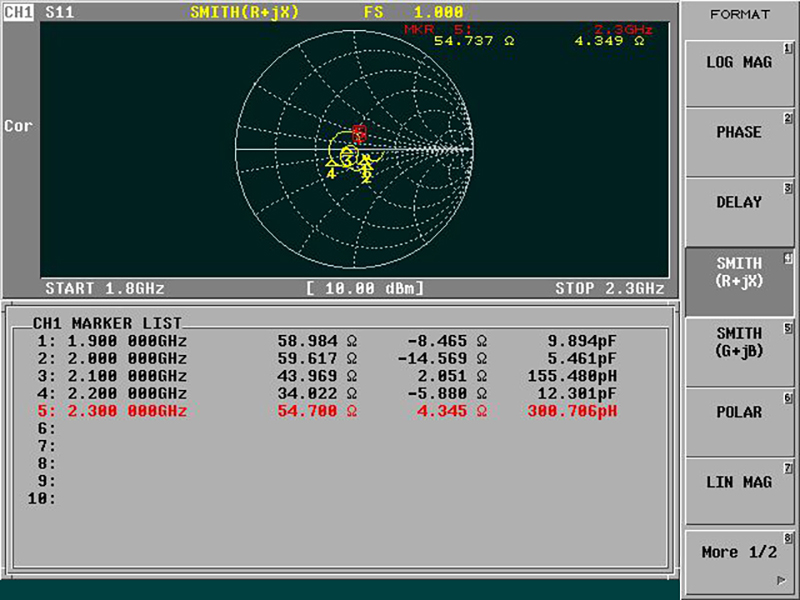

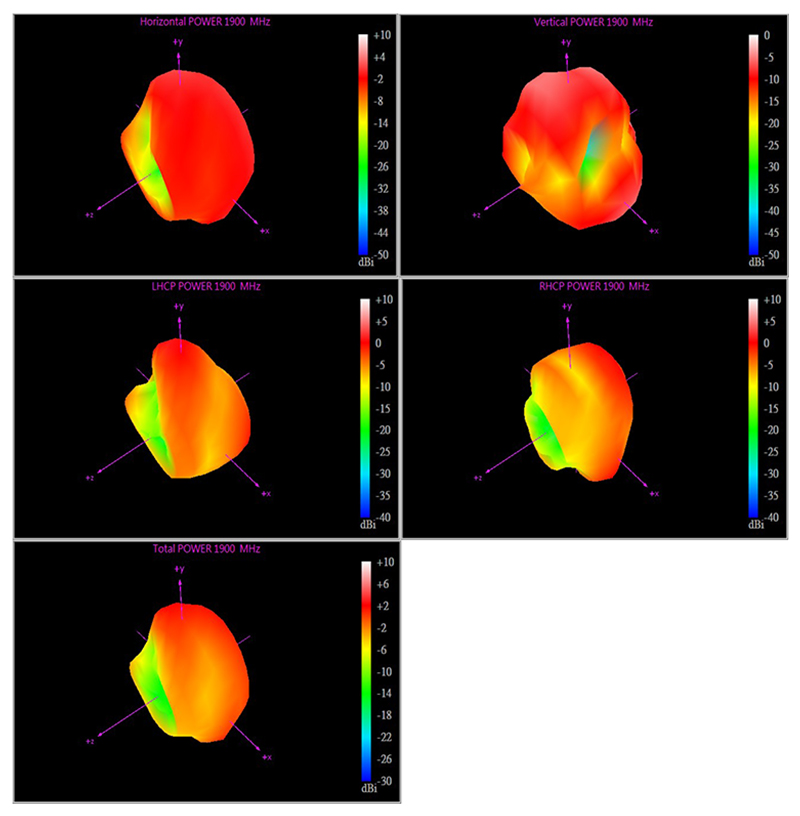

1900Mhz:

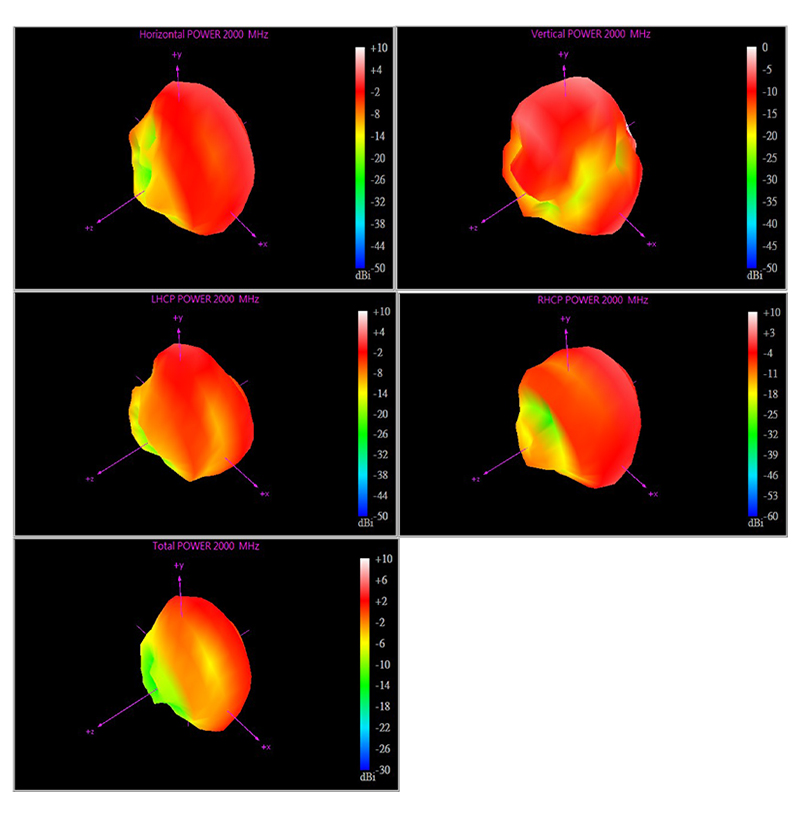

2000Mhz:

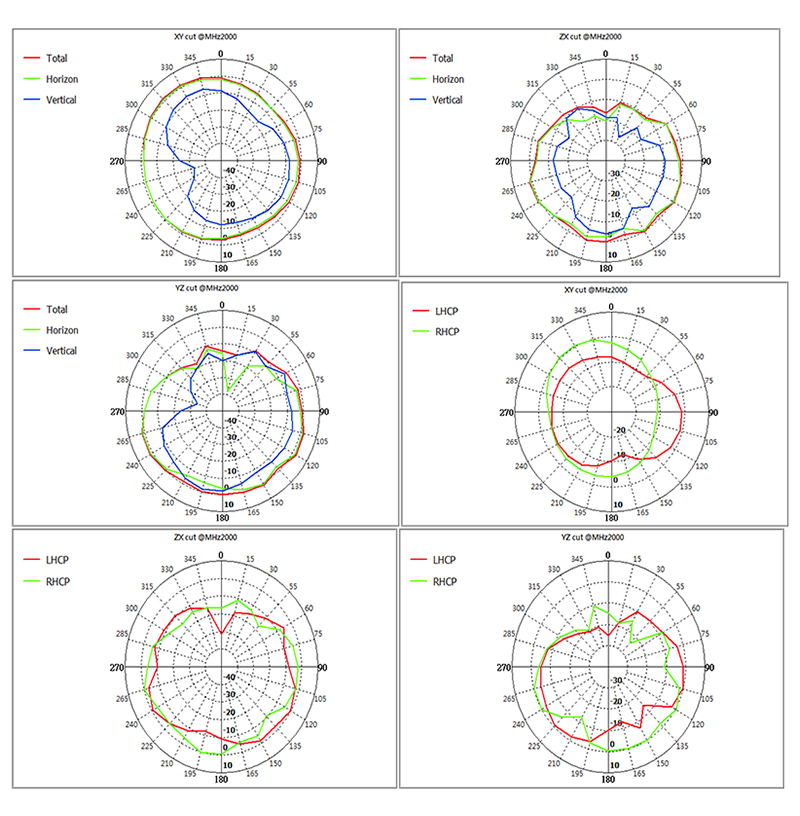

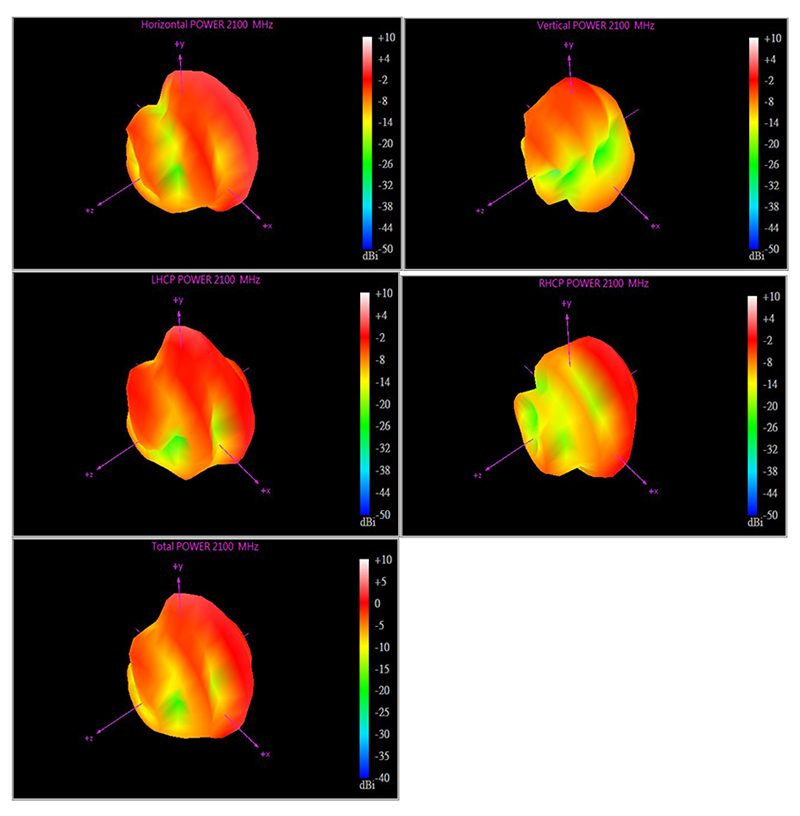

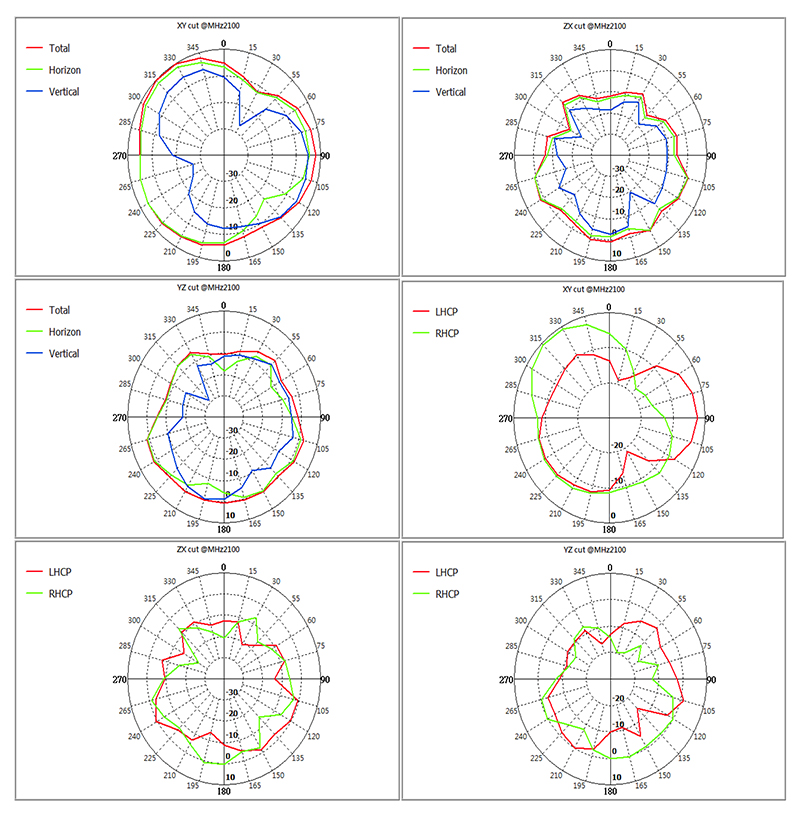

2100Mhz:

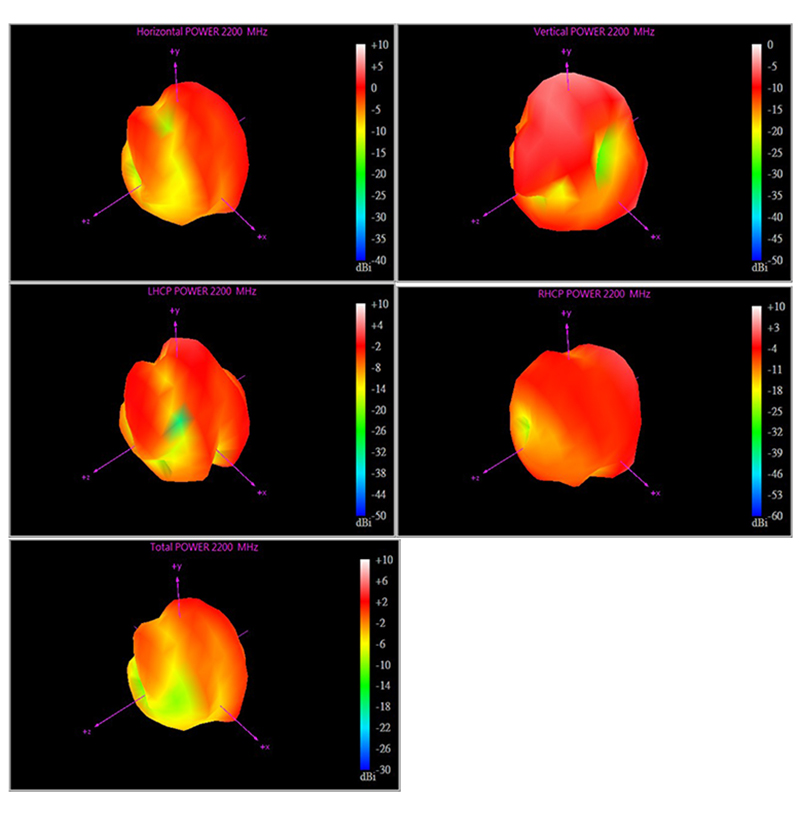

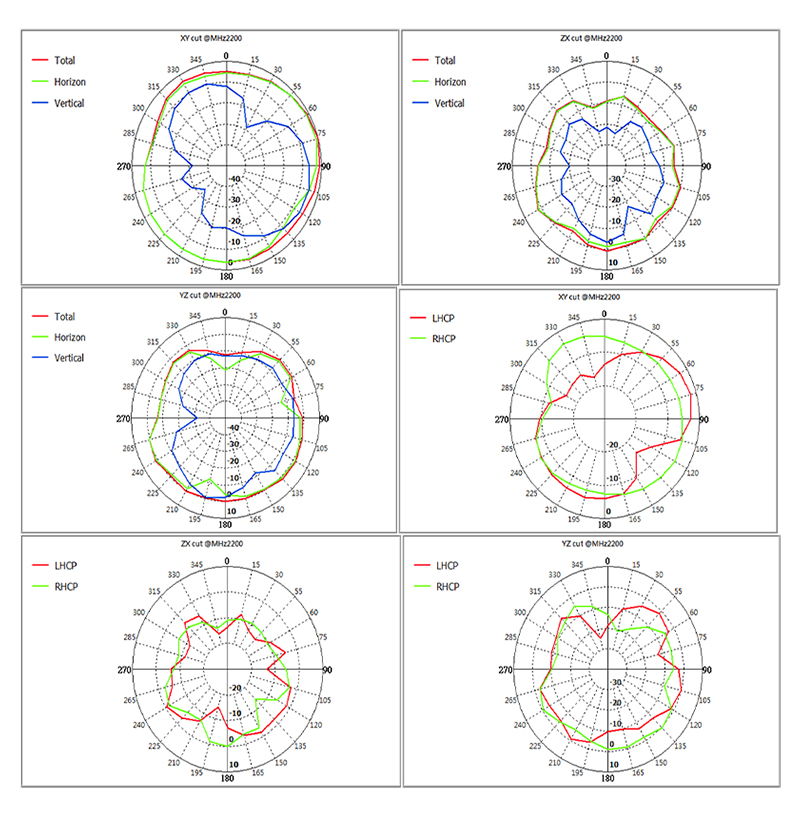

2200Mhz:

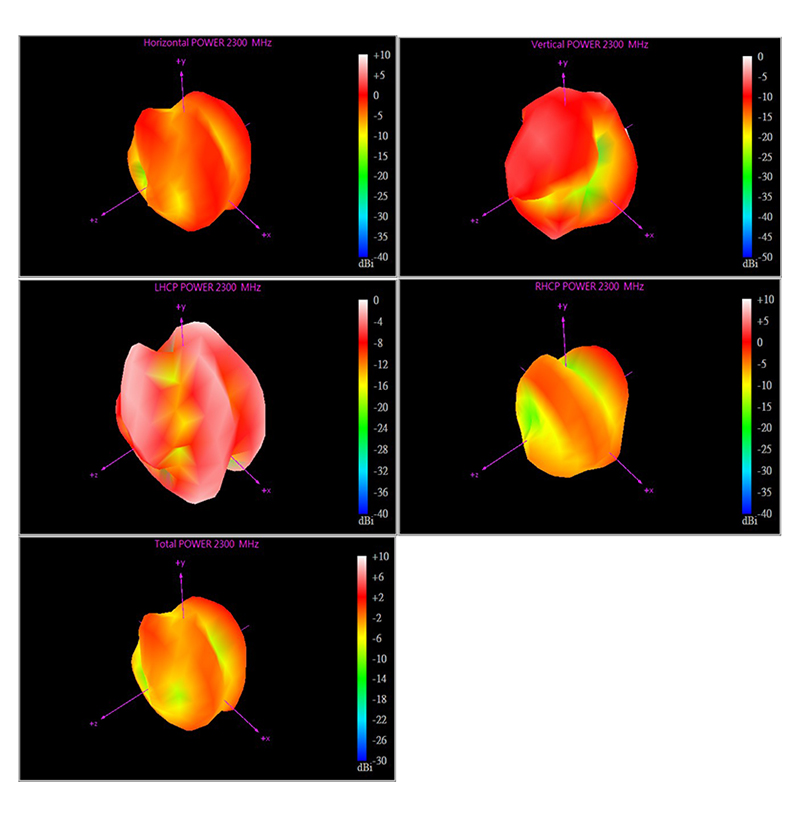

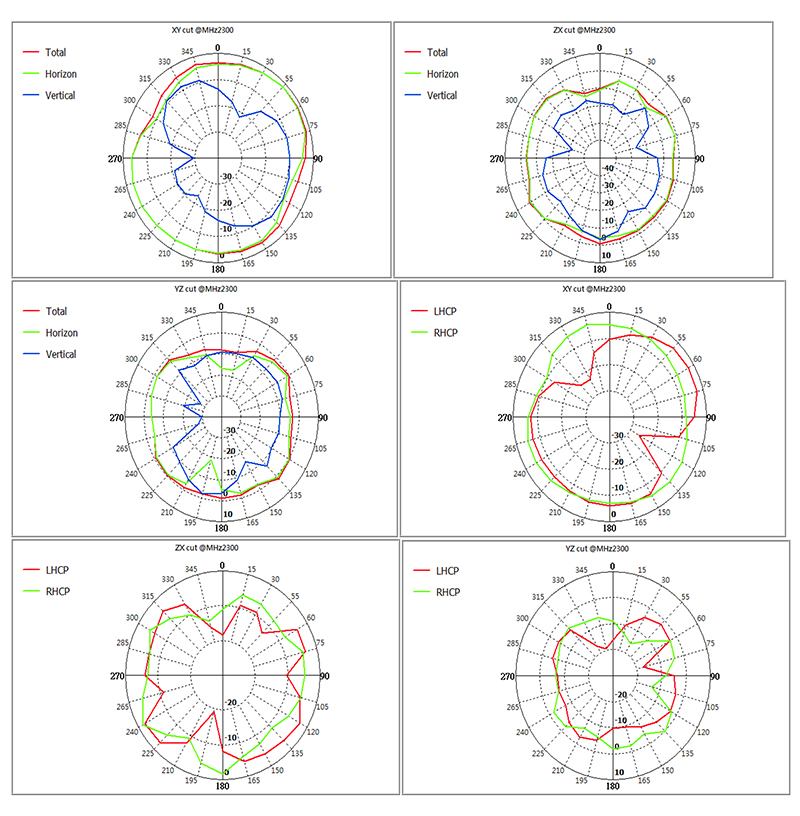

2300Mhz:
