| Model |
GA-240 |
GA-2575 |
GA-2625 |
GA-2680 |
| Frequency |
2400-2500MHz |
2530~2625MHz |
2560~2690MHz |
2670~2690MHz |
| Polarization |
R.H.C.P |
| Gain |
4~5dbi |
| Connector |
SMA(F) |
| Dimensions |
OD60x18.5mm |
| Mounting |

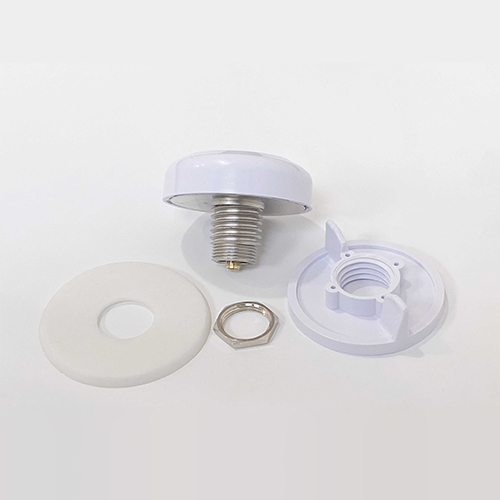

Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |
| Radome |
ASA-UV |
| Waterproof |
IPX7 |
| Operating Temperature: |
-40℃~85℃ |
| Storage Temperature |
-40℃~85℃ |
Our GA-240 / GA-2575 / GA-2625 / GA-2680 are suitable for cars, trucks, buses, engineering vehicles, snowplows... special vehicles. The radomes are made from ASA-UV polyester while the base is from Zinc alloy, which is mechanically resistant and corrosion-resistant. They’re small and ruggedness. They demand vehicle locating and marine navigation WIFI or S-Band Antenna that will sustain harsh environment. Don’t hesitate to email us if you have any questions.
