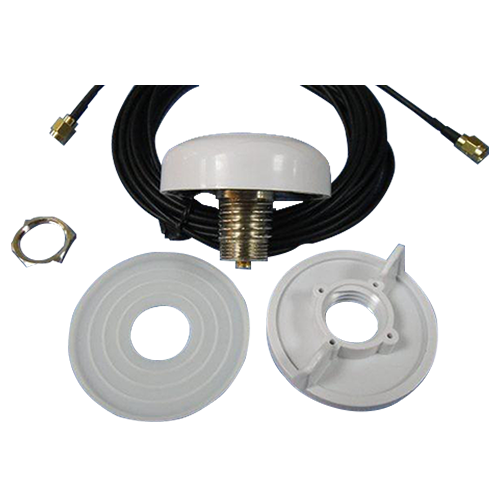

The antenna operates at S band with high performance which makes it suitable Telemetry application. A wide beam width ensures satellite communication from low elevation angles. The S band antenna can easily mounted using the screw mounting and protected using rugged ASA-UV plastic radome & IPX7.
Specifications:
| PHYSICAL CONDITION |
| Constructions: |
ASA radome |

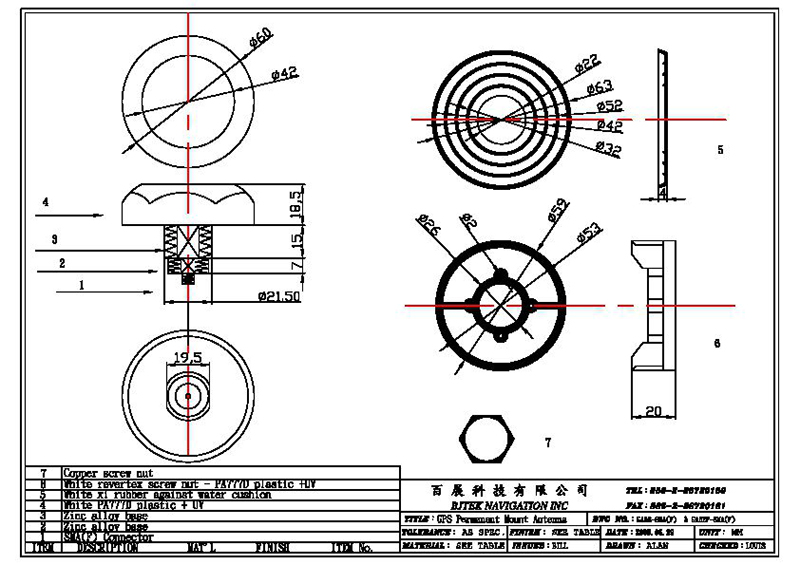

| Dimensions: |
60mm(Dia.) x 18.5mm(H) |
| Weight: |
65grams (w/o cable & connector). |
| Color: |
White-UV |
| Mounting: |
Bulkhead mount with 0.8 inch threaded wing nut (standard accessory). |
| Cable & Connector |
| RF cable: |
SMA(M) +CFD200-3 meter +TNC(M) (standard) other length (optional) |
| Pulling strength: |
6 Kg @ 5sec. molded plastic on connector end for strain relief. |
| Connector |
SMA(F) or TNC(F) |
| Antenna Element |
| Frequency: |
2200~2300MHz |
| Polarization: |
R.H.C.P. (Right Handed Circular Polarization).. |
| Peak Gain |
4dBi |

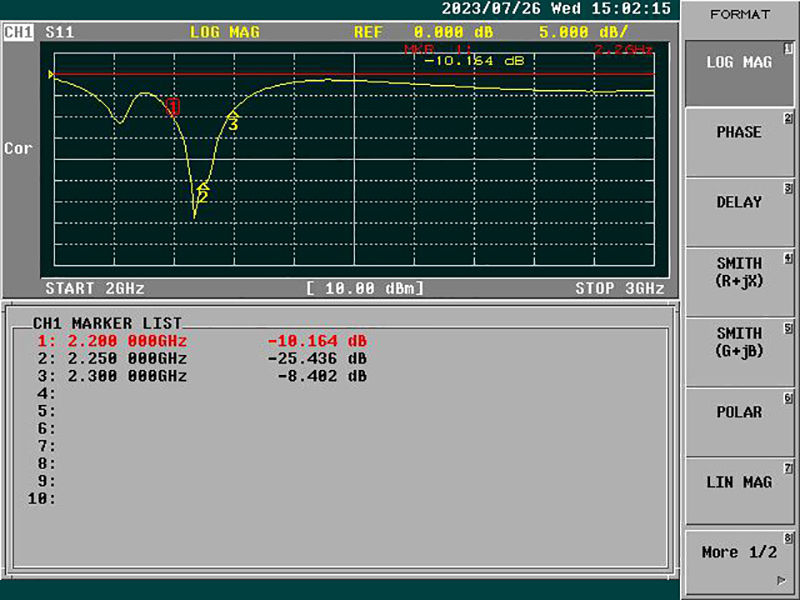

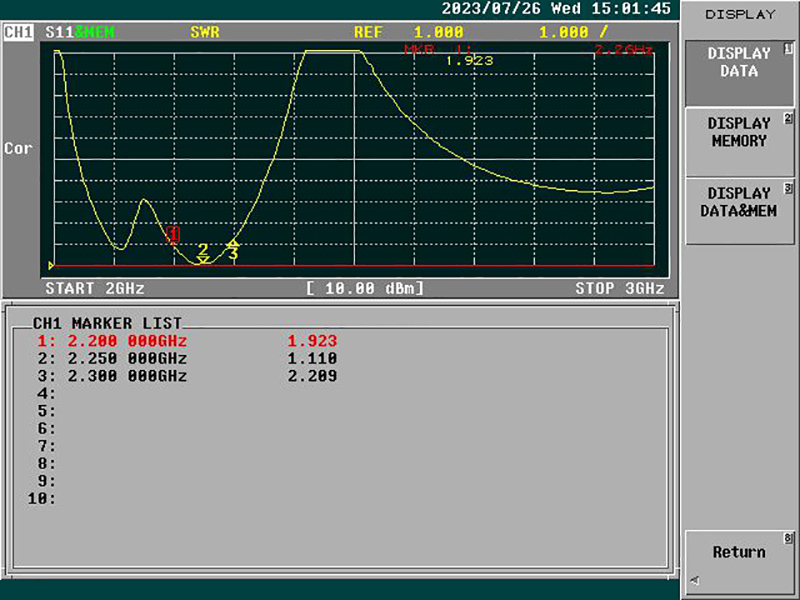

| Output VSWR: |
3.0 max |

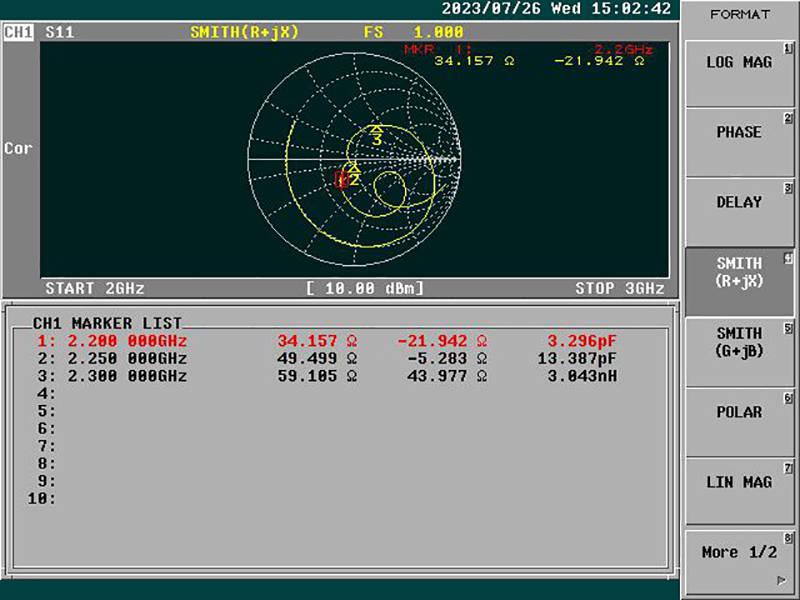

| Output Impedance: |
50 ohm |
| Environmental |
| Operating Temperature: |
-40oC~ +85oC. |
| Storage Temperature: |
-40oC~ +85oC. |
| Relative Humidity: |
95% non-condensing. |
| Water Resistance: |
100% waterproof. IPX7 |
＊This specification is subject to change without prior noticeData Updated: Jul.11, 2019

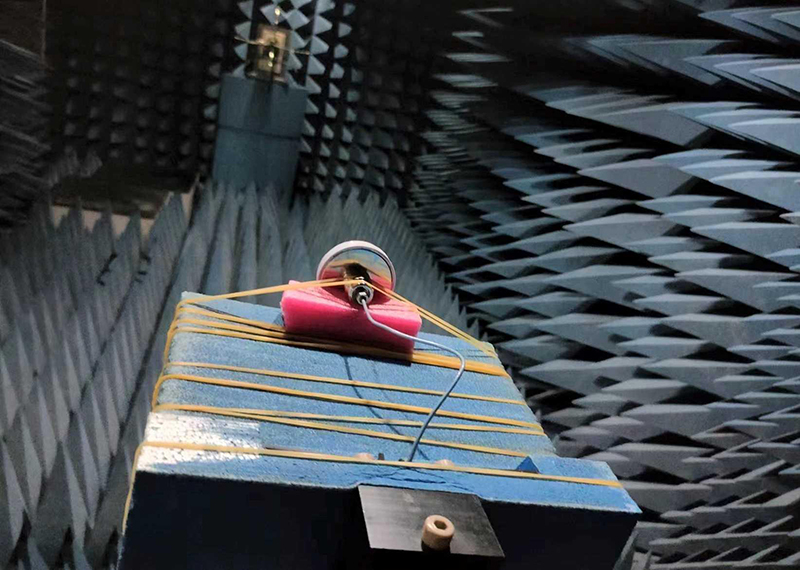

3D Total
Frequency
(MHz) |
Upper Hem.PRP
(dBm) |
Lower HEM.PRP
(dBm) |
Efficiency
(dB) |
Efficiency
(%) |
Gain
(dBi) |
Tot.Rad.Pwr.
(dBm) |
| 2200 MHz |
-3.64 |
-9.17 |
-2.57 |
55.37 |
4.47 |
-2.57 |
| 2250 MHz |
-3.61 |
-9.41 |
-2.60 |
54.95 |
4.98 |
-2.60 |
| 2300 MHz |
-3.77 |
-9.69 |
-2.78 |
52.72 |
4.56 |
-2.78 |

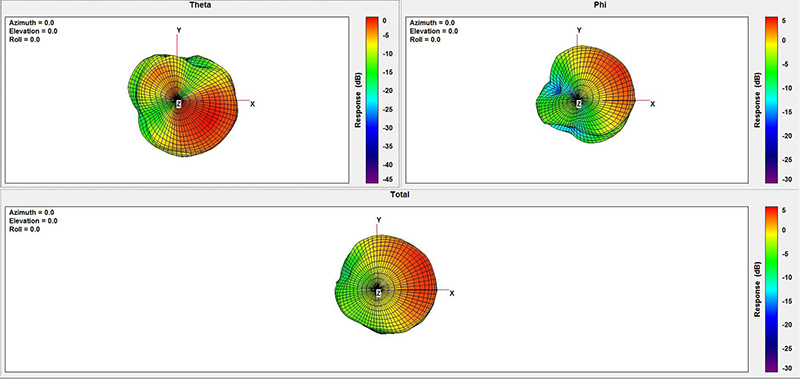

2200Mhz:

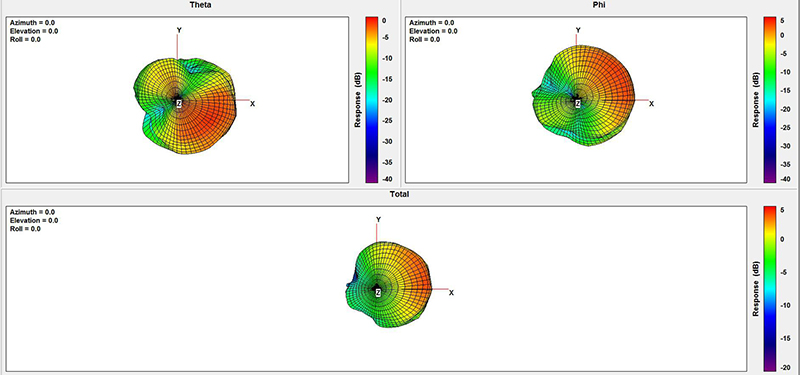

2250Mhz:
2300Mhz:
