1.GENERAL DESCRIPTION
| Model No |
| FPC-8693-100mm-IPEX |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |

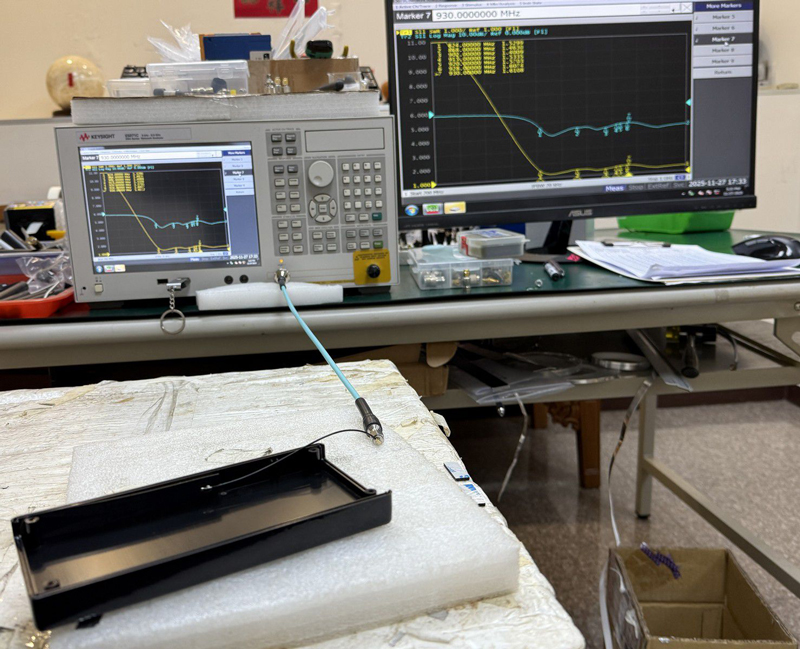

850~930Mhz (ON ABS shell) |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

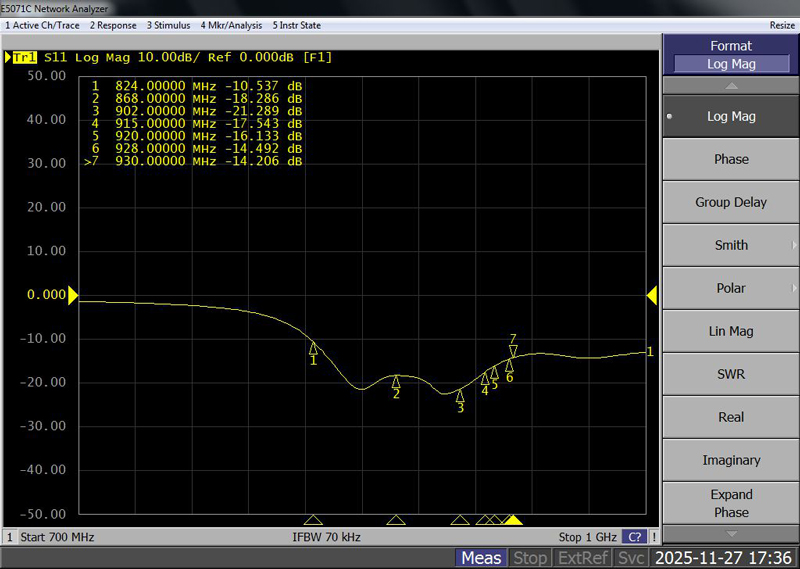

| Return Loss |
Please See Data-1 |
| Return Loss |
Please See Data-1 |

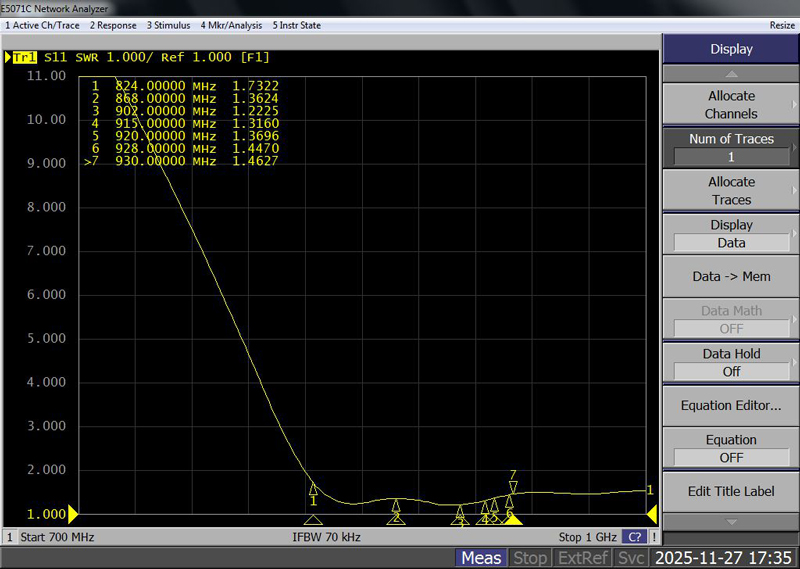

| V.S.W.R |
2.0:1 |
Note: Gain includes the cable loss
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
Internal Antenna |
| Antenna Material |
FPC |
| Touch Type |
3M Type |
| Connector Type |
IPEX OR other |
| Antenna Dimensions |

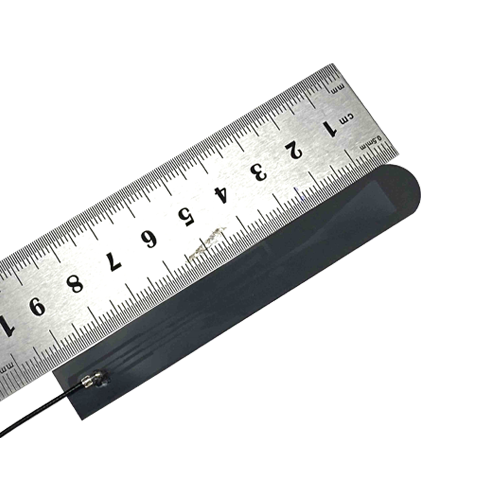

94×13.7×0.2mm |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+75°C |
| Storage Temperature Range |
-30°C~+75°C |
