1.GENERAL DESCRIPTION
| Model No |
P/N |

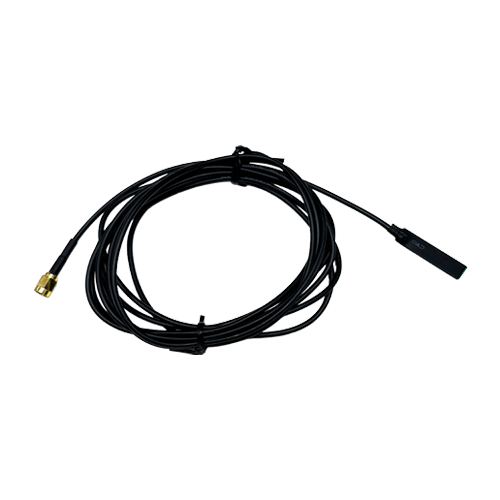

| TC868 |
TC868-3M-SMA(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
860~880MHZ |

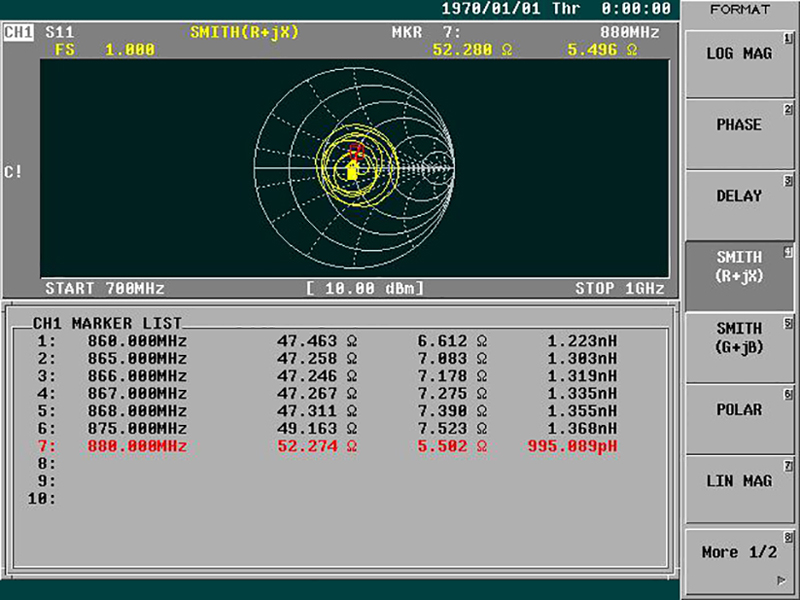

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical |
Dipole |

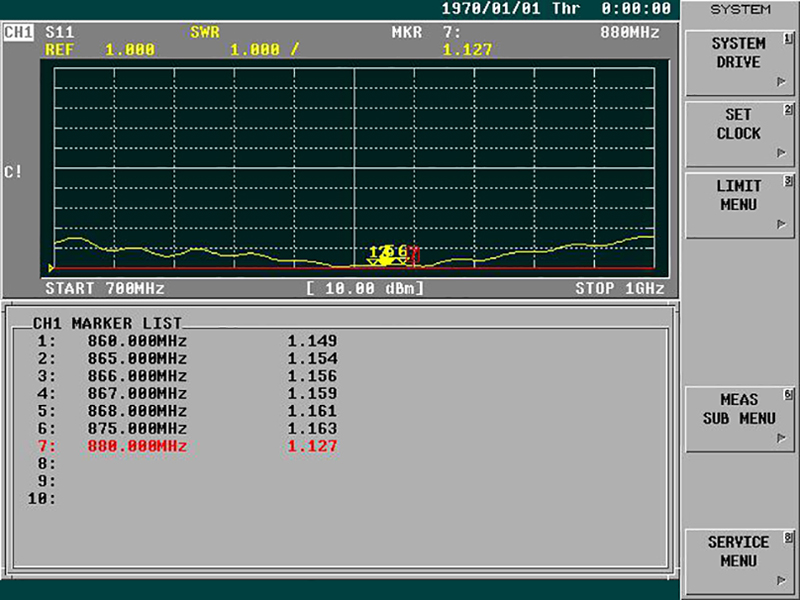

| V.S.W.R |
2.0:1 |
| Antenna Gain |
0-1.5dBi |
Note: Gain includes the cable loss
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
indoors Antenna |
| Antenna Material |
FR4 +heat shrink tubing |
| Connector Type |
SMA(M) |
| Antenna Dimensions |
8.8x35.7mm ± 1.5 |
| Antenna Cable Total Length |
3000mm ± 3.0 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
