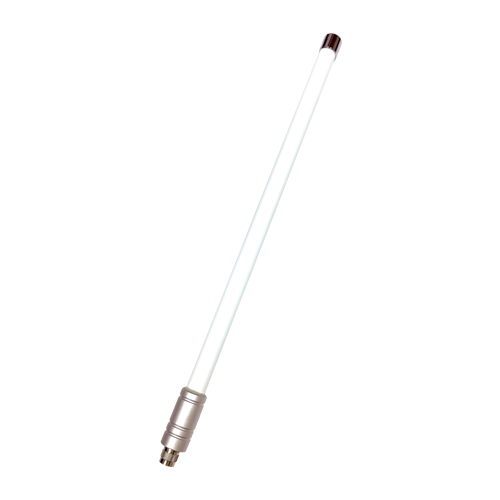

TH-1450J
  • Product Description
  • Product Specification
Frequency range 1400~1500Mhz
Gain 6dBi
V.S.W.R 2.0
Impedence 50 ohm
Connector N Type male
Dimension 600mm +/-10 x OD27.9mm
Weight 0.4Kg
Polarization vertical
Power handling 50W
Materials Fiberglass & copper
Colour White
Rated wind velocity 60m/s
Working Temperature -40~60°C
Lightning Protection Direct Ground

* This specification is subject to change without prior notice

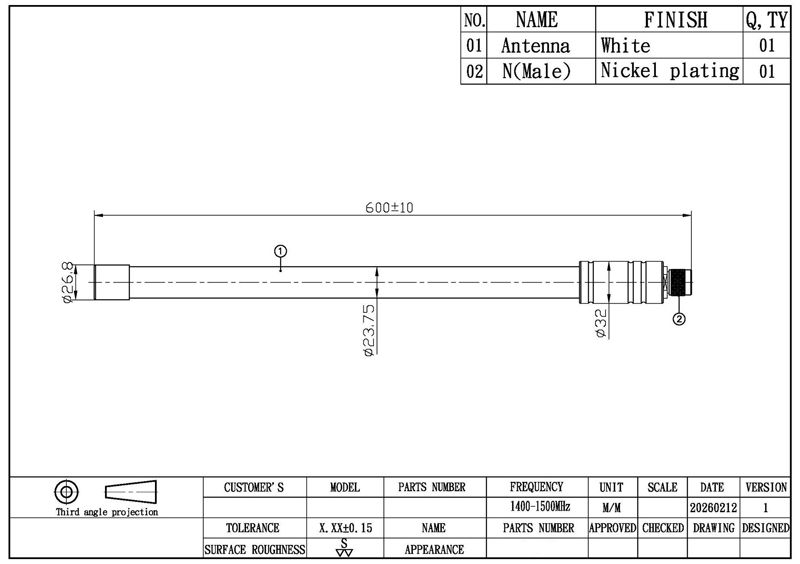

2.APPEARANCE

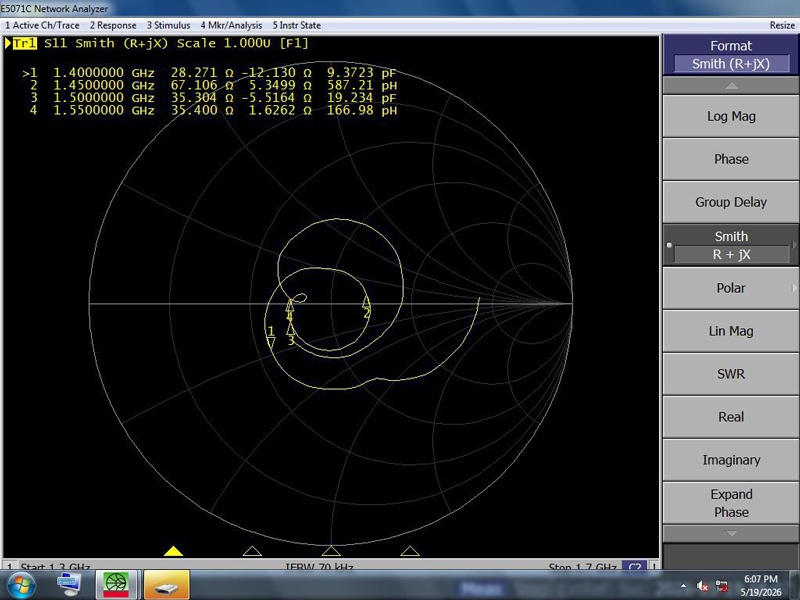

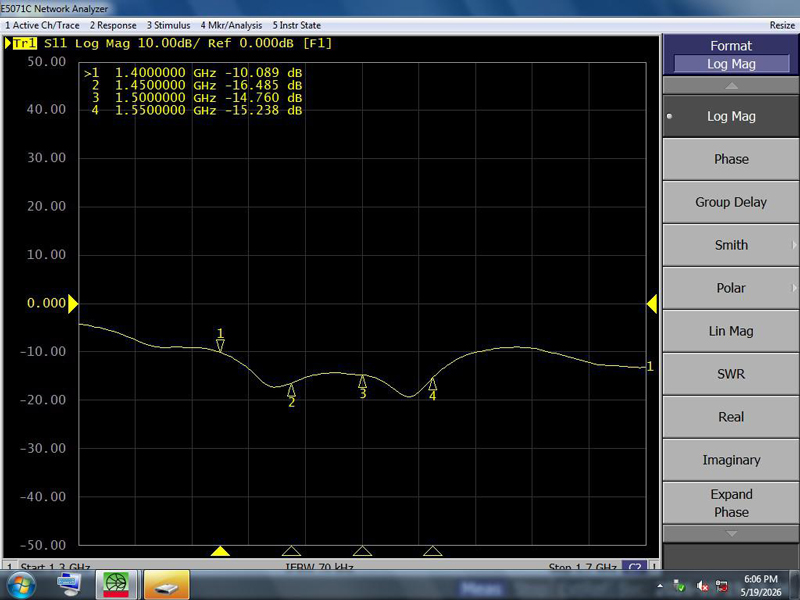

3.FREQUENCY

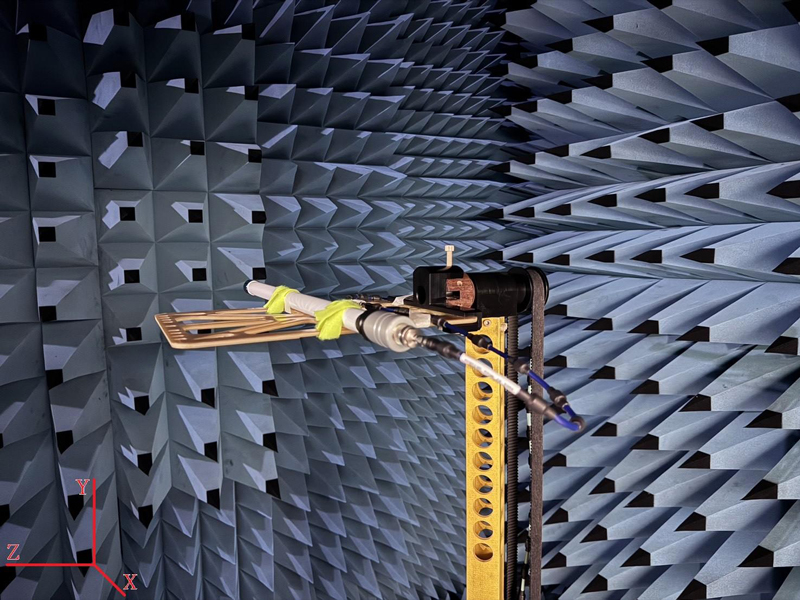

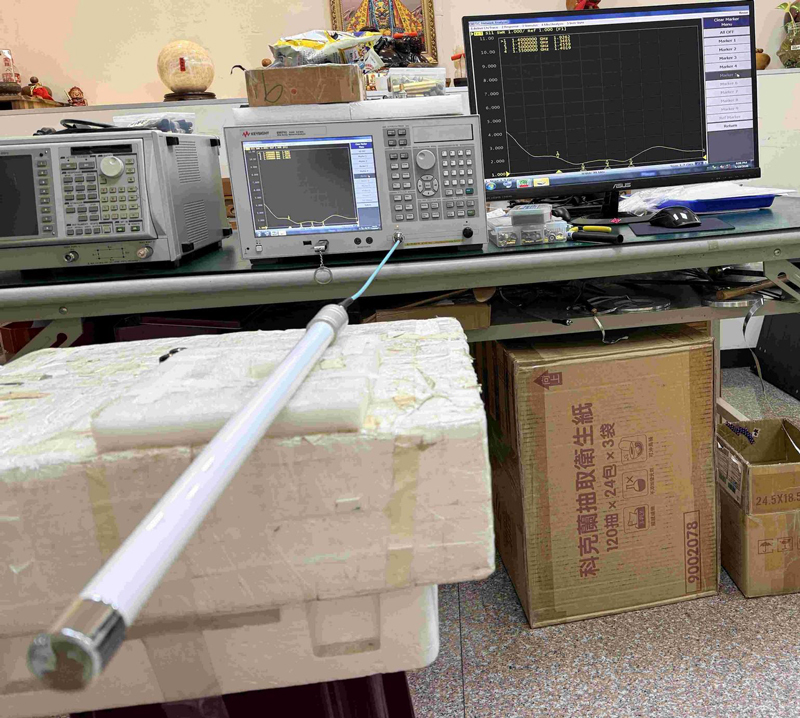

4.Test Environment

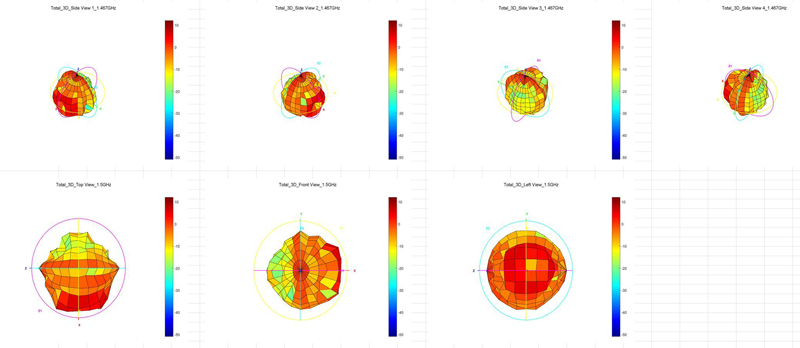

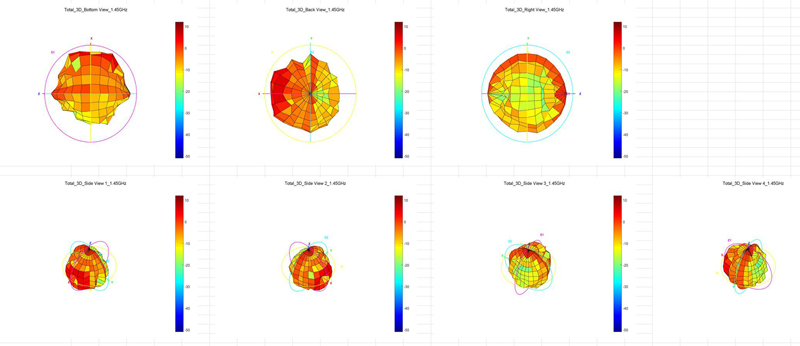

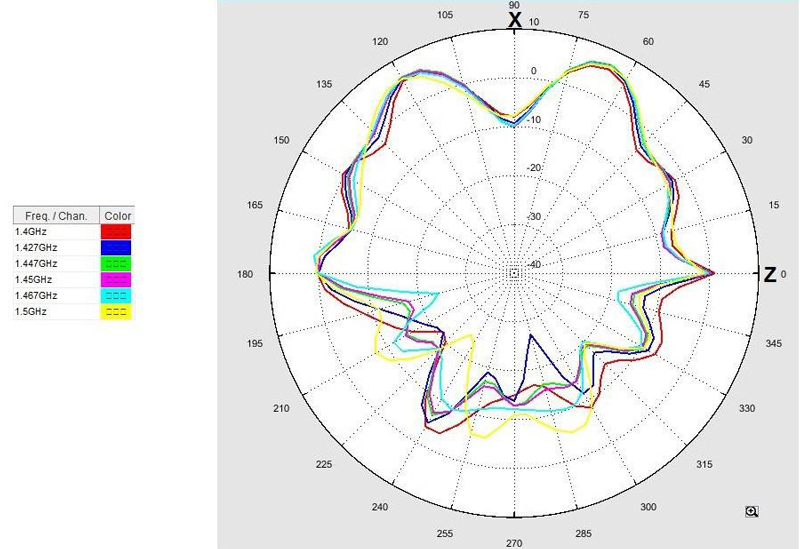

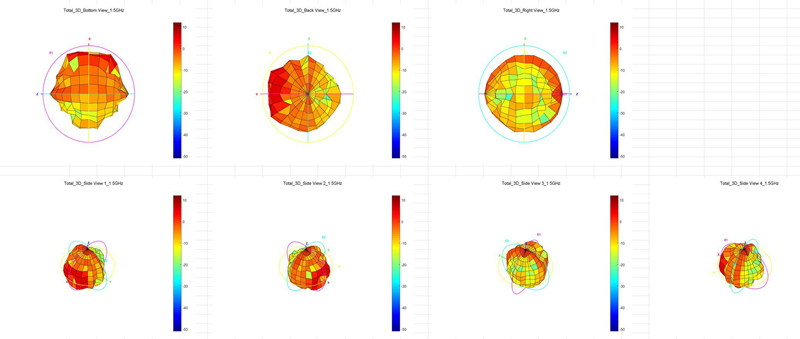

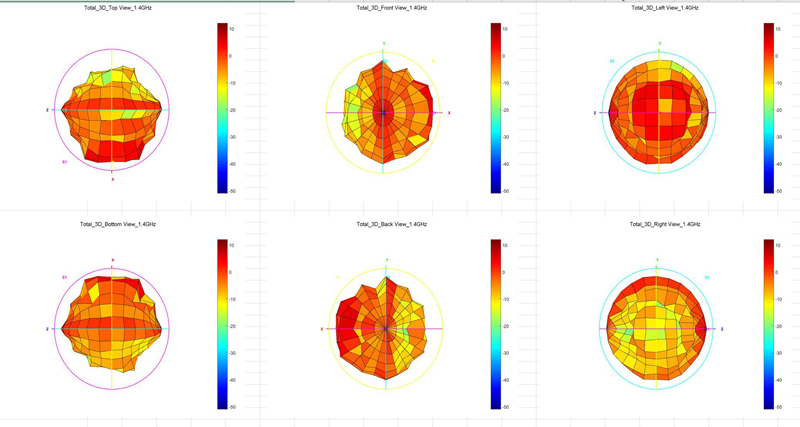

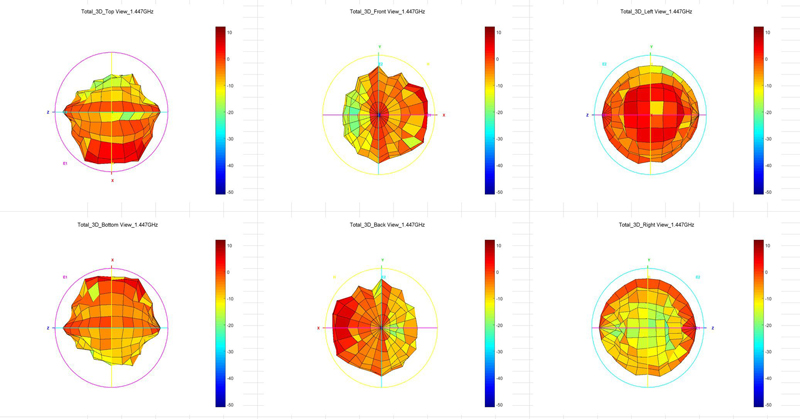

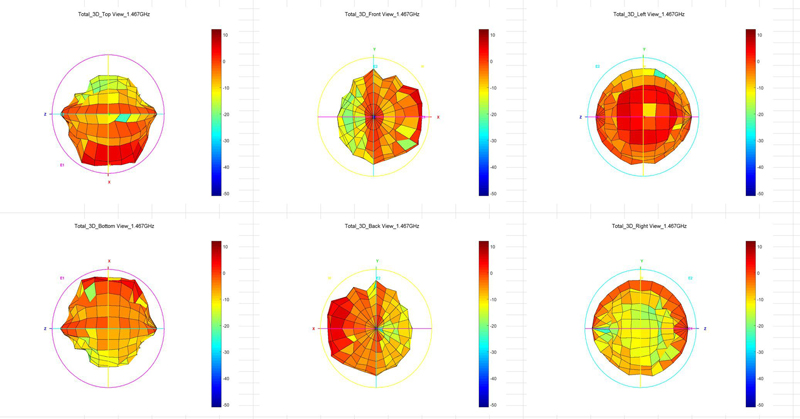

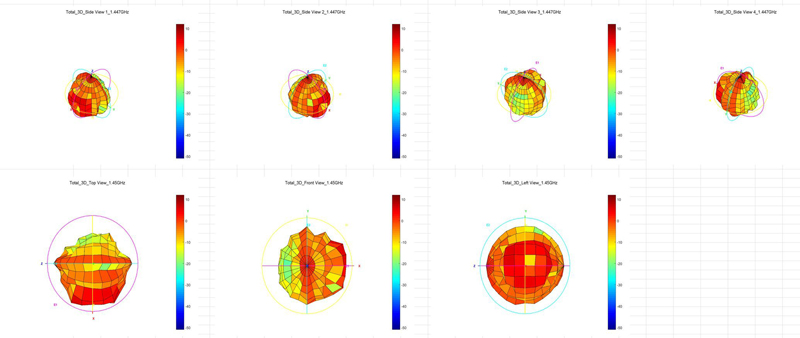

5.Radiation Pattern

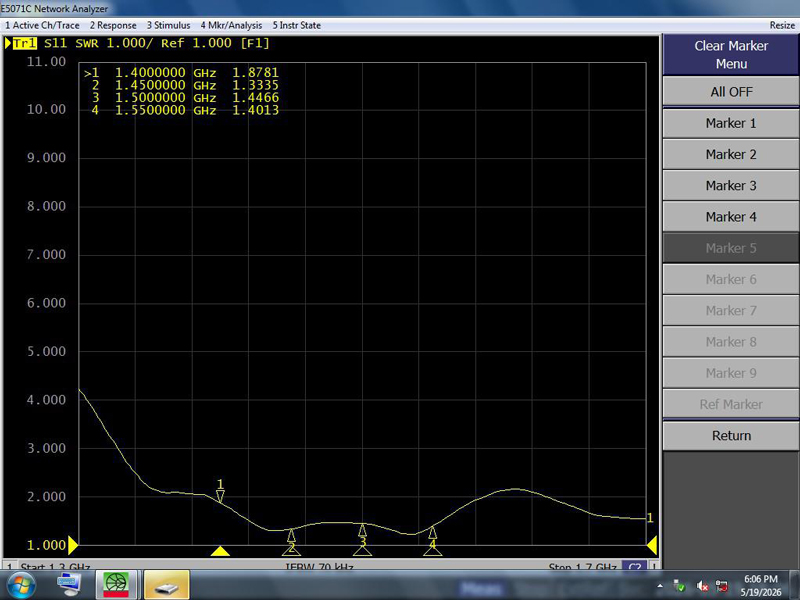

6.Test Report

Frequency 1.4GHz 1.427GHz 1.447GHz 1.45GHz 1.467GHz 1.5GHz
Horizontal+Vertical
Efficiency (%) 57.41 54.2 55.21 53.58 52.72 55.98
Gain (dBi) 5.42 5.92 6.25 6.08 5.95 5.99
Horizontal
H Efficiency (%) 21.23 22.59 23.77 22.91 22.18 22.7
H Gain (dBi) 5.42 5.92 6.24 6.07 5.94 5.89
Vertical
V Efficiency (%) 36.22 31.55 31.48 30.69 30.55 33.27
V Gain (dBi) 3.77 4.21 4.65 4.64 4.94 5.34
