| Frequency range |
430~440Mhz |
| Gain |
3dBi |

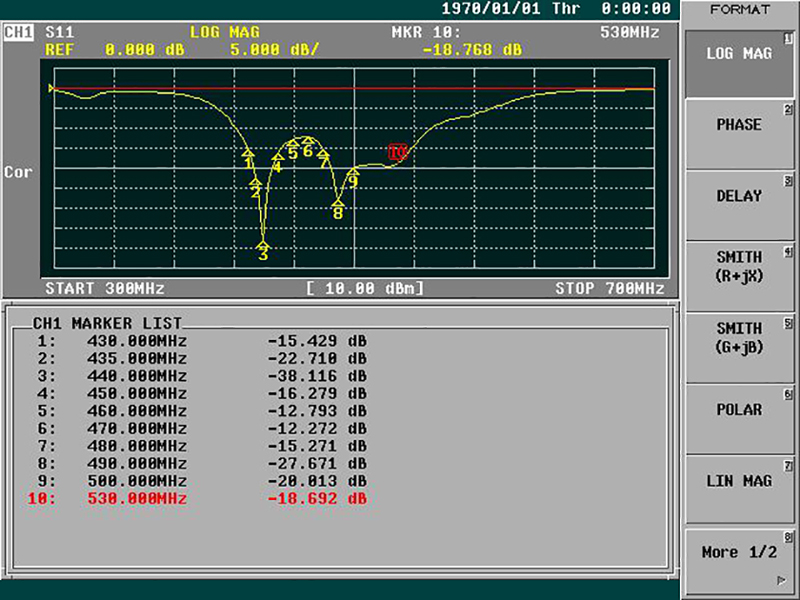

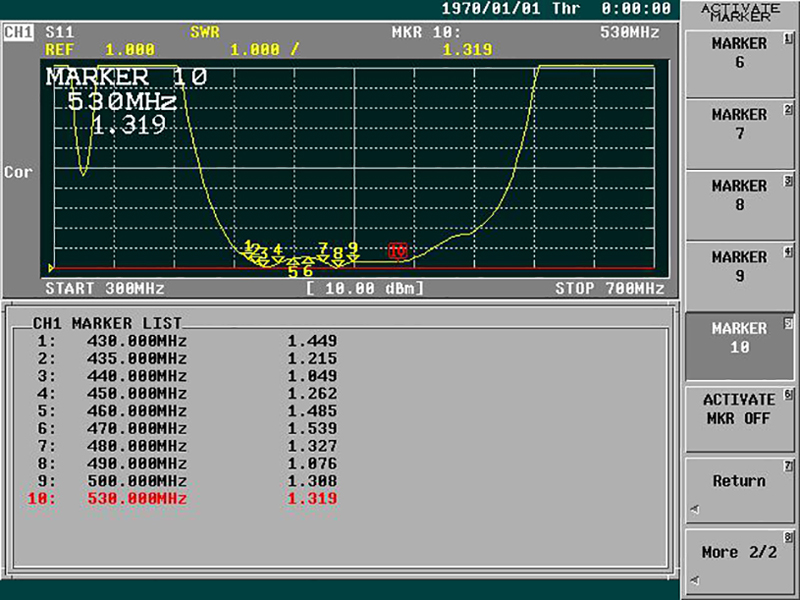

| V.S.W.R |
2.0 |

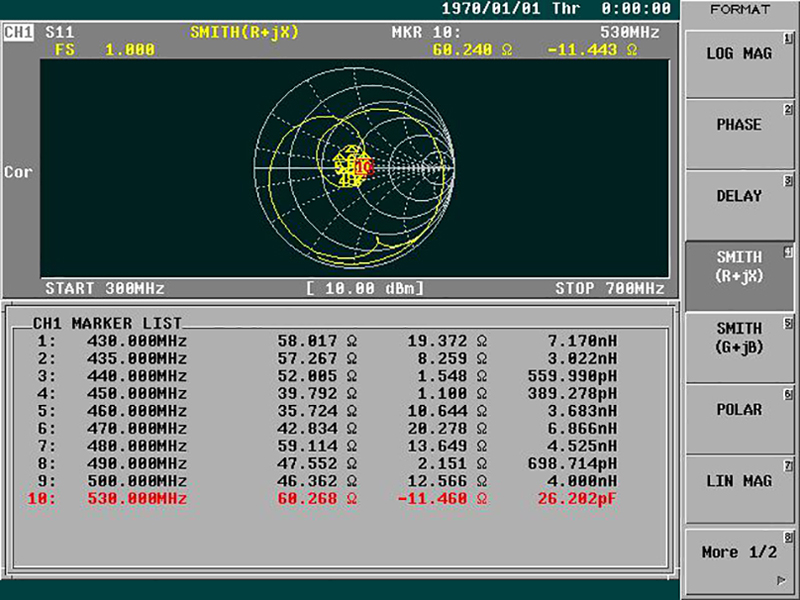

| Impedence |
50 ohm |
| Connector |
N Type male |

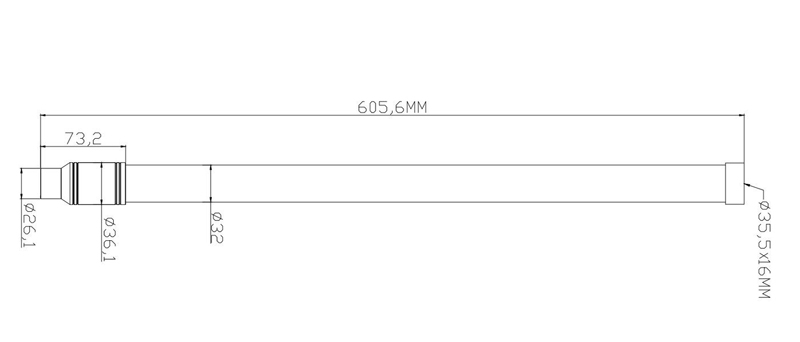

| Dimension |
605mm +/-10 x OD36mm |
| Weight |
0.34Kg |
| Polarization |
Vertical |
| Power handling |
100W |
| Materials |
Fiberglass & copper |
| Colour |
Black |
| Rated wind velocity |
60m/s |
| Working Temperature |
-40~60℃ |
| Lightning Protection |
Direct Ground |
＊This specification is subject to change without prior notice

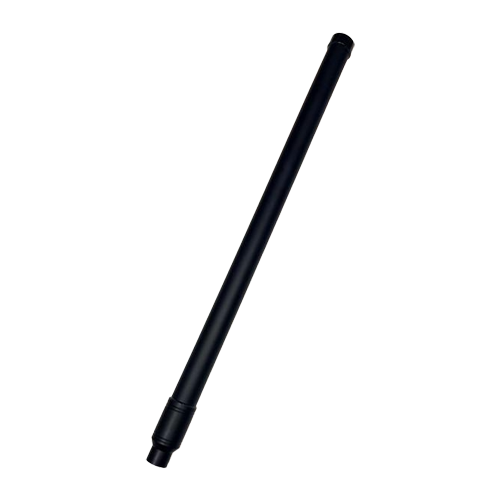

Our high-performance TH-435E & TH-885 UHF Passive Fiberglass Antenna are the ultimate, rugged transmission solution designed to meet the rigorous demands of modern industrial, scientific, and medical (ISM) applications. Engineered for both short-range and long-range communication services, this versatile antenna provides seamless connectivity across key technologies including IoT networks, RFID tracking, radio positioning, and critical radio communications. Built to withstand the elements, it features a heavy-duty fiberglass radome tube that drastically increases weather resistance and operational reliability in harsh environments. To ensure maximum signal integrity, the integrated N(M) connector boasts an advanced, encapsulated design for superior waterproofing against moisture ingress. Best of all, deployment is entirely tool-free; the antenna is engineered to be easily and directly twisted for rapid installation or removal in the field. Available in standard 430–440 MHz and 840–930 MHz bands—as well as fully customized frequencies tailored to your specific hardware—this antenna delivers the perfect balance of rugged durability and precision RF performance for your transmission infrastructure. Please don’t hesitate to email us if you have any questions.
