| Frequency range |
433.92Mhz on on GND |
| Gain |
0 dBi |

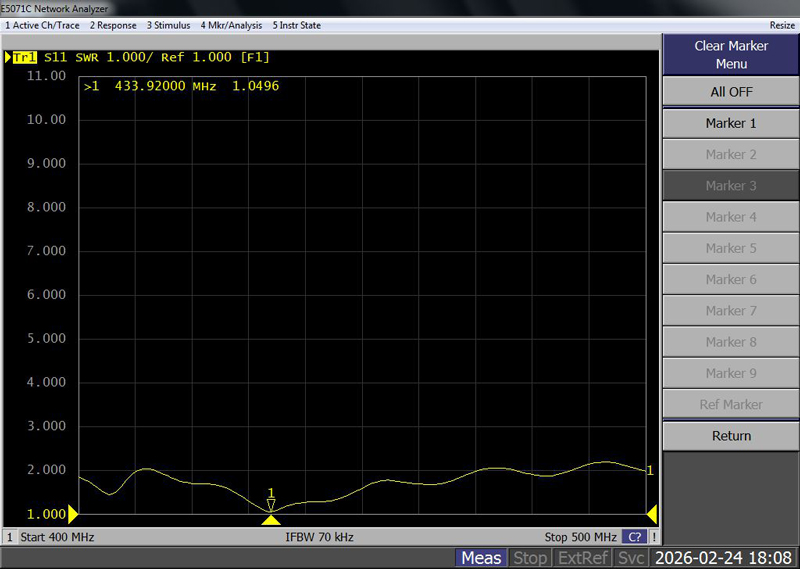

| V.S.W.R |
2.0:1 |

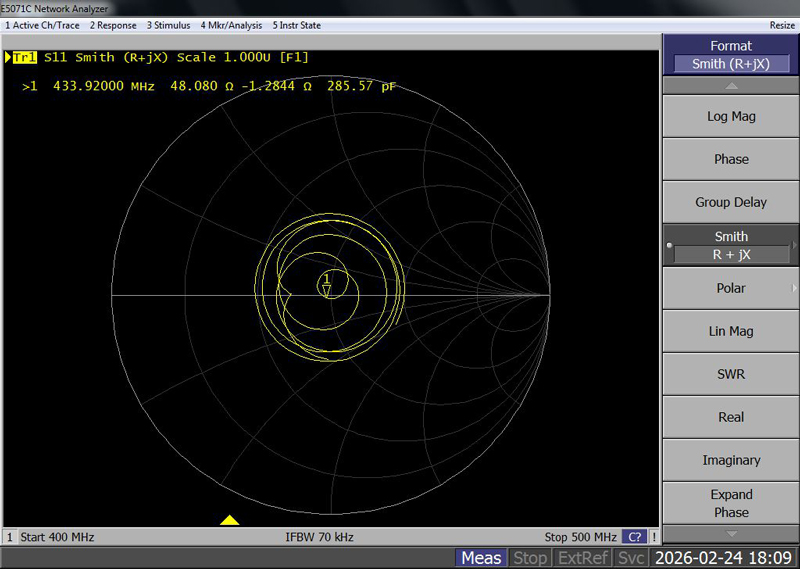

| Impedence |
50 ohm |
| Cable & Connector |
RG174-5M-SMA(M) |
| Dimension |
9.3(Dia.) × 122(L) mm |
Weight
Mounting (Optional) |
80g (With 5M cable)
A:7.9~10.3 mm / B:25.4mm / C:22.2mm / D:19.1mm / E:1.6mm / F:10.2mm |
＊This specification is subject to change without prior notice
