1.GENERAL DESCRIPTION

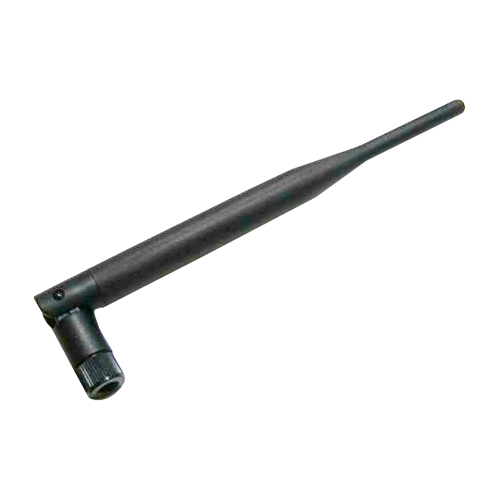

| Model No |
| TH2050D-RPSMA(M) |
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2.0~2.1GHz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

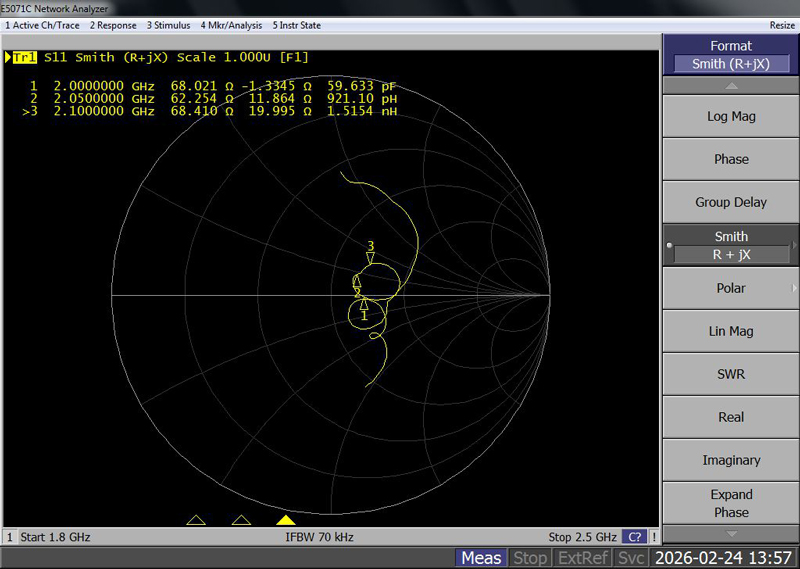

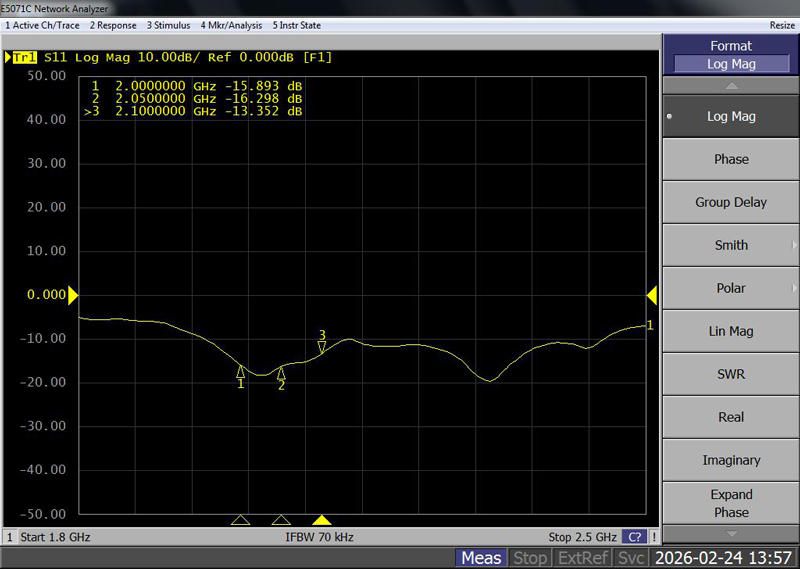

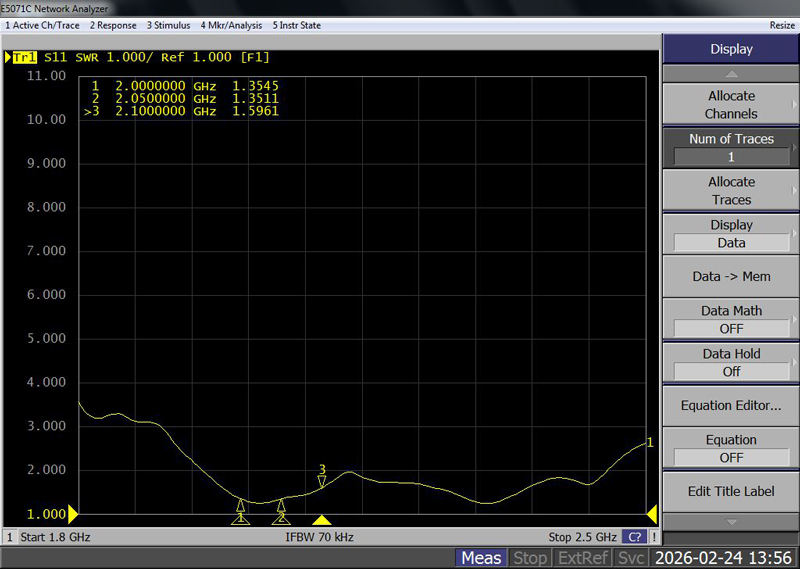

| V.S.W.R |
2.0:1 |
| Gain |
1-3db |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Materal |
TPE |
| Touch Type |
Screw Type |
| Connector Type |
RPSMA(M) connector or SMA(M) |

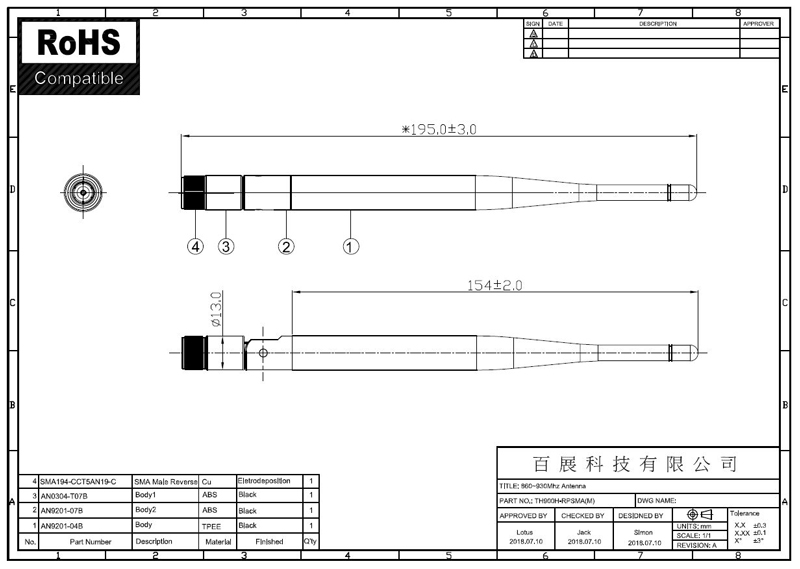

| Antenna Dimensions |
195mm ±3.0 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
