TH2050C
  • Product Description
  • Product Specification

1. Electrical Properties

Parameter Description
Frequency Band 2.0~2.1Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave Dipole

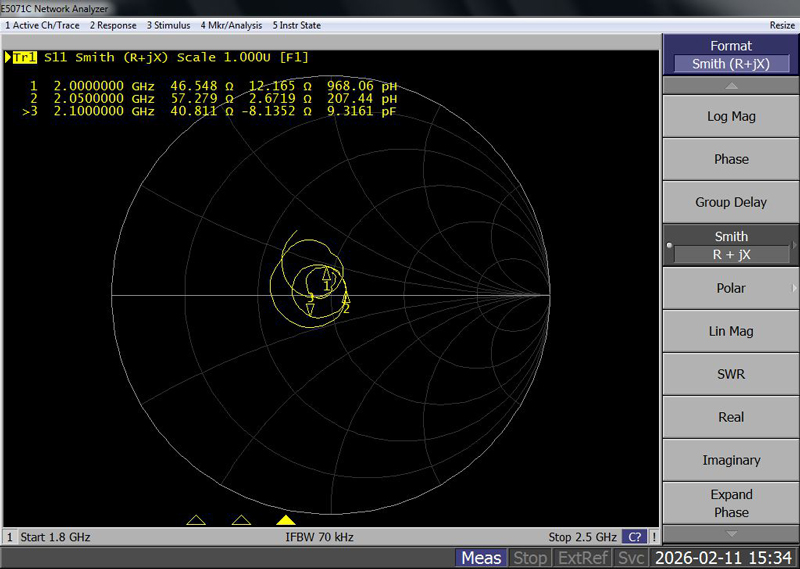

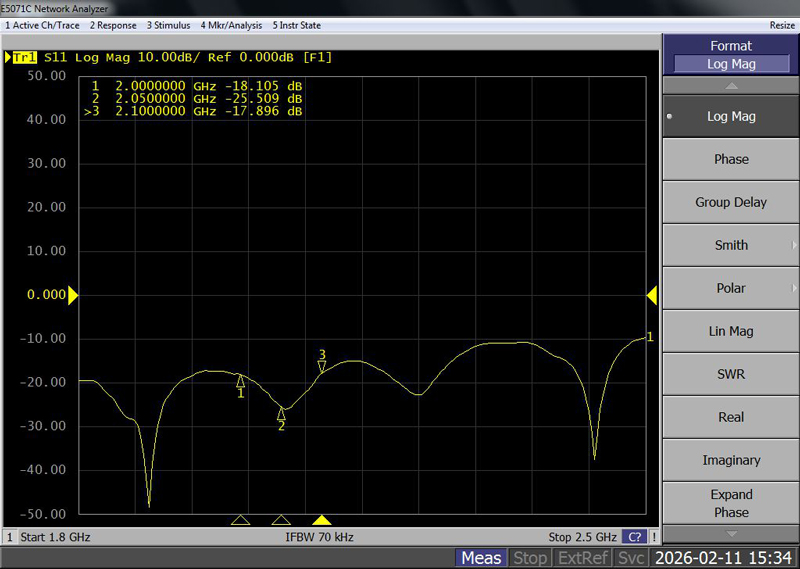

Return Loss Please See Data-1

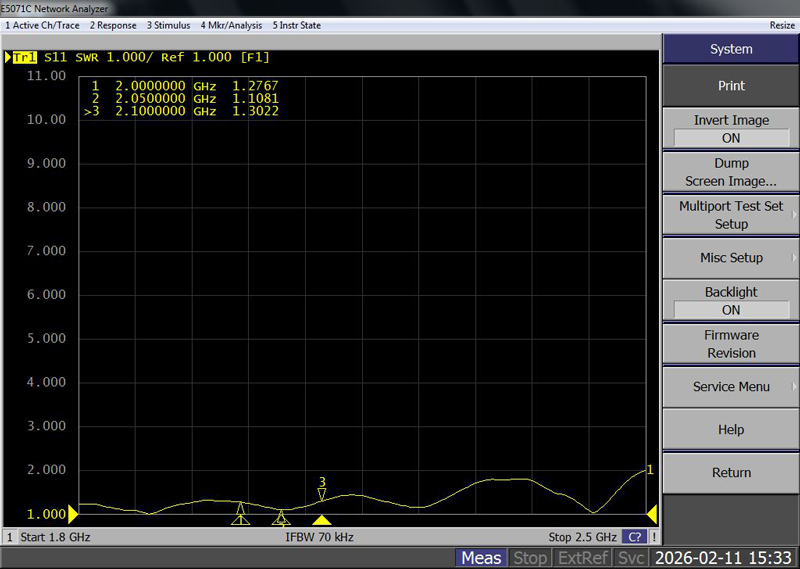

V.S.W.R 2.0:1
Antenna Peak Gain 3dBi


2. Mechanical Properties

Parameter Description
Antenna Type External Antenna
Connector Type SMA(M)

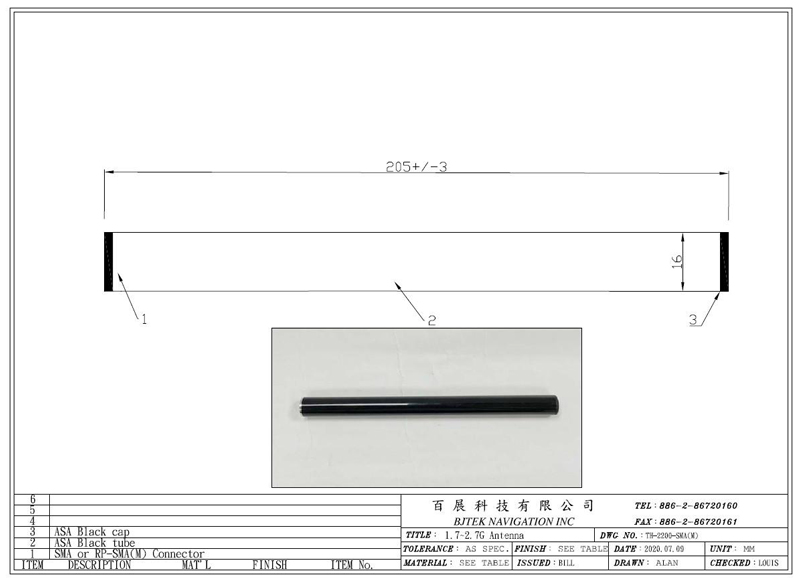

Antenna Dimensions 205 mm ± 3
Antenna Color ASA-UV-Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C




Frequency (MHz) 1900 2000 2100 2200
Peak
Gain (dBi)		 3.44 2.47 2.23 2.94
Efficiency (%) 62.83 51.93 56.27 70.10

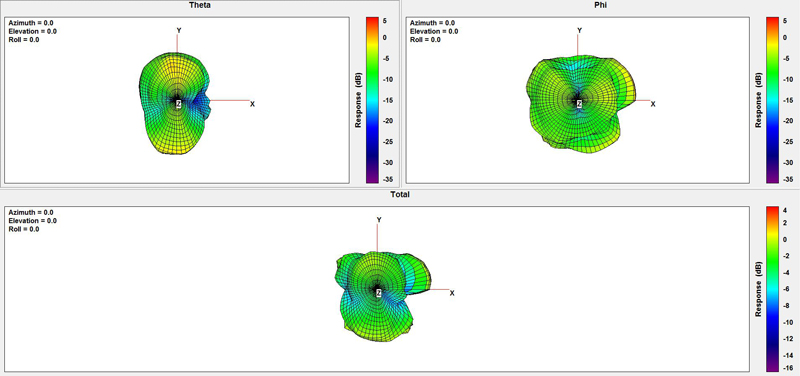

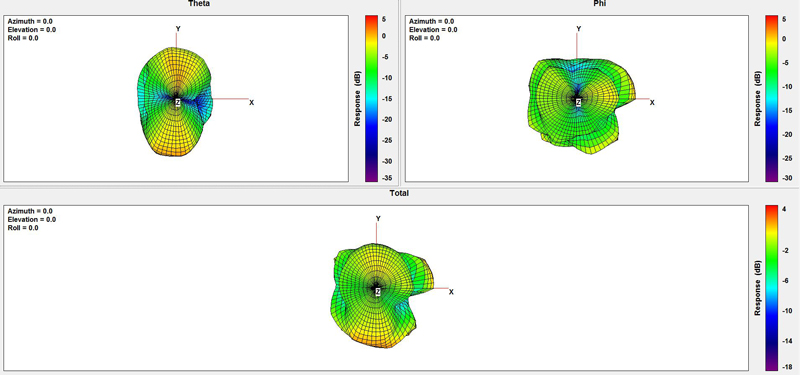

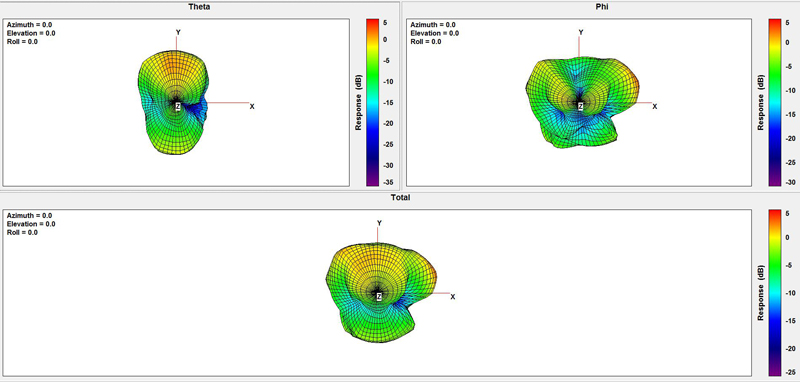

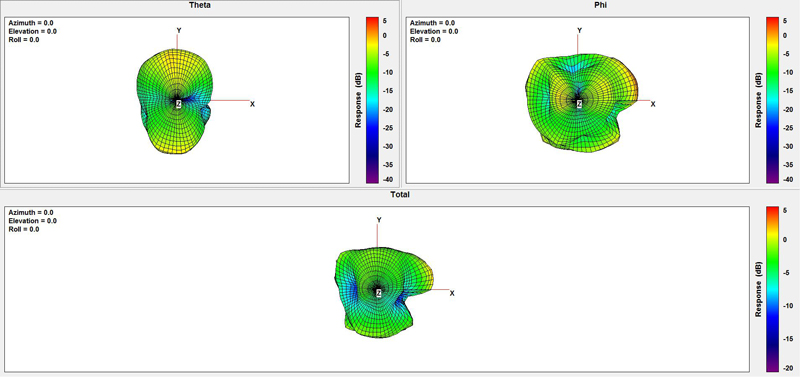

1900Mhz:


2000Mhz:

2100Mhz:

2200Mhz:
