TH-1620C-SMA(M)
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

P/N
Model : TH-1620C-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1550~1750GHz
Nominal Impedance 50 ohm
Polarization R.H.C.P.  4-axis Ceramic helix antenna
V.S.W.R 2.0:1
Gain 2dbi

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Cover TPE
Touch  Type Screw Type
Connector Type SMA 180°(Male) for RG178 Cable
Antenna Dimensions 108.5mm±1.5
Antenna Color Black
Operating Temperature Range -30°C~+80°C
Storage Temperature Range -30°C~+80°C

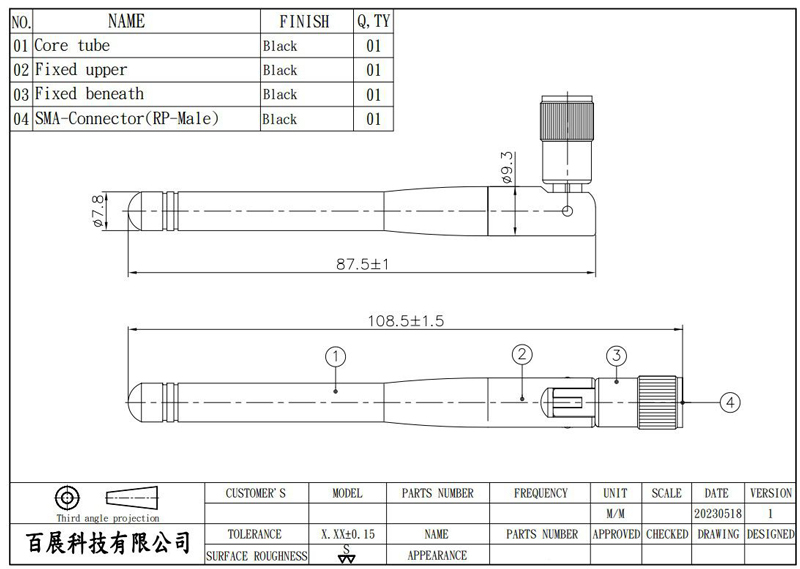

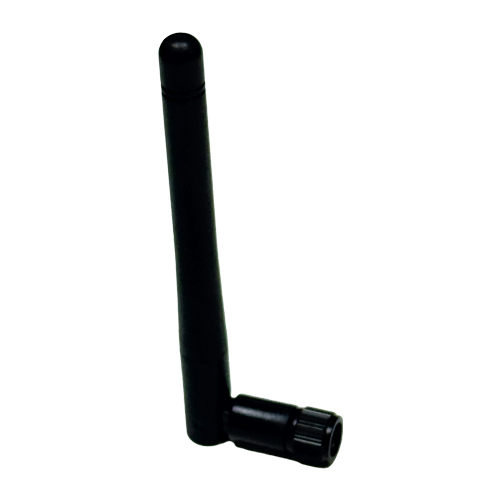

2. APPEARANCE:

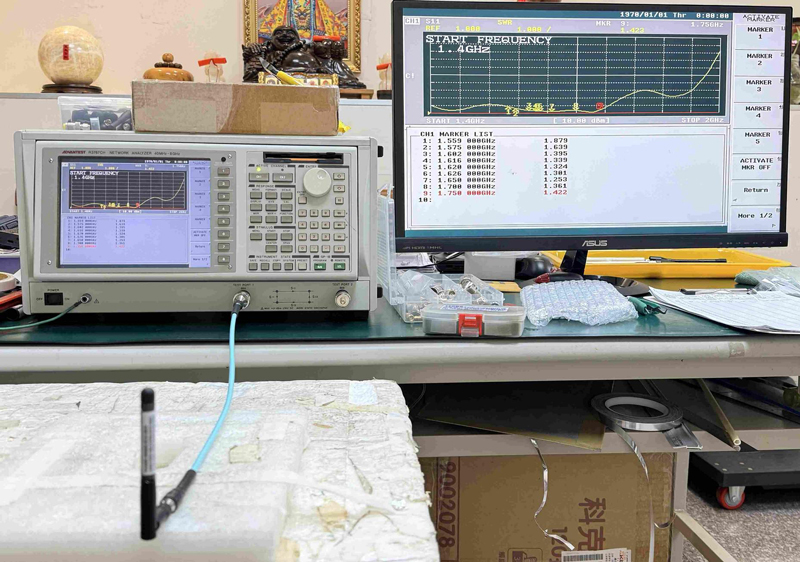

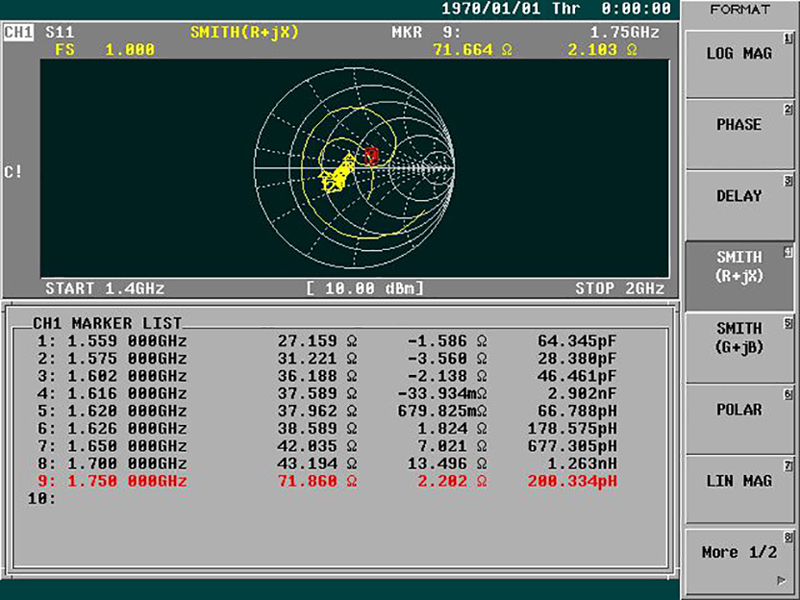

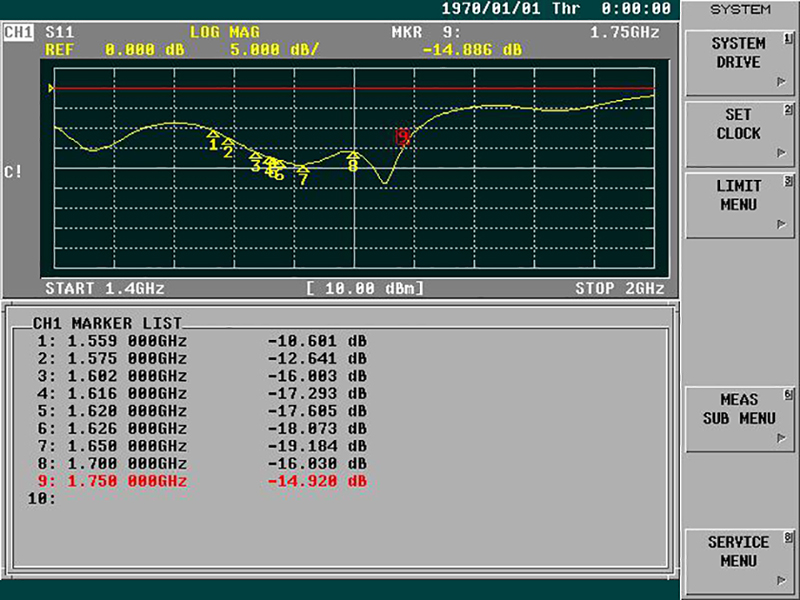

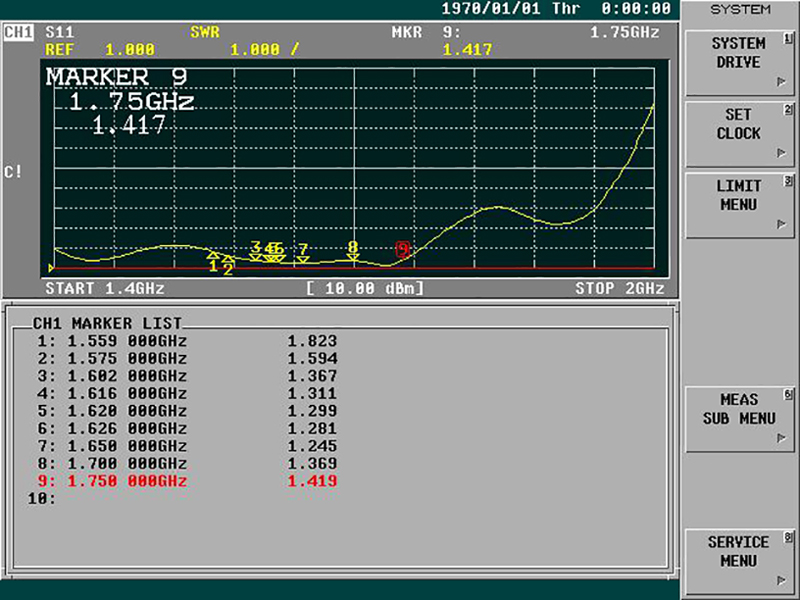

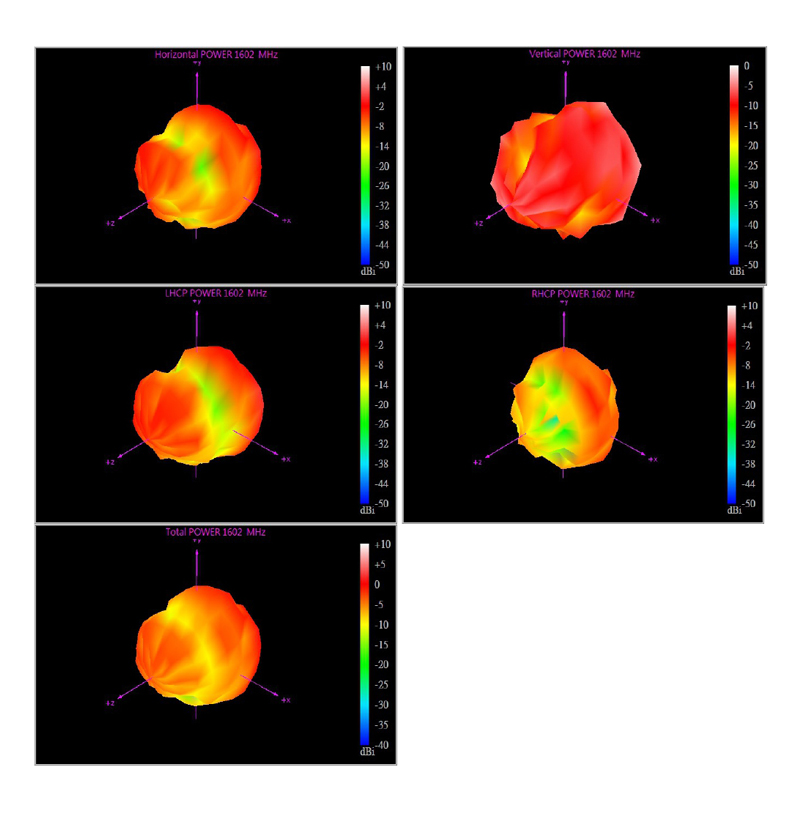

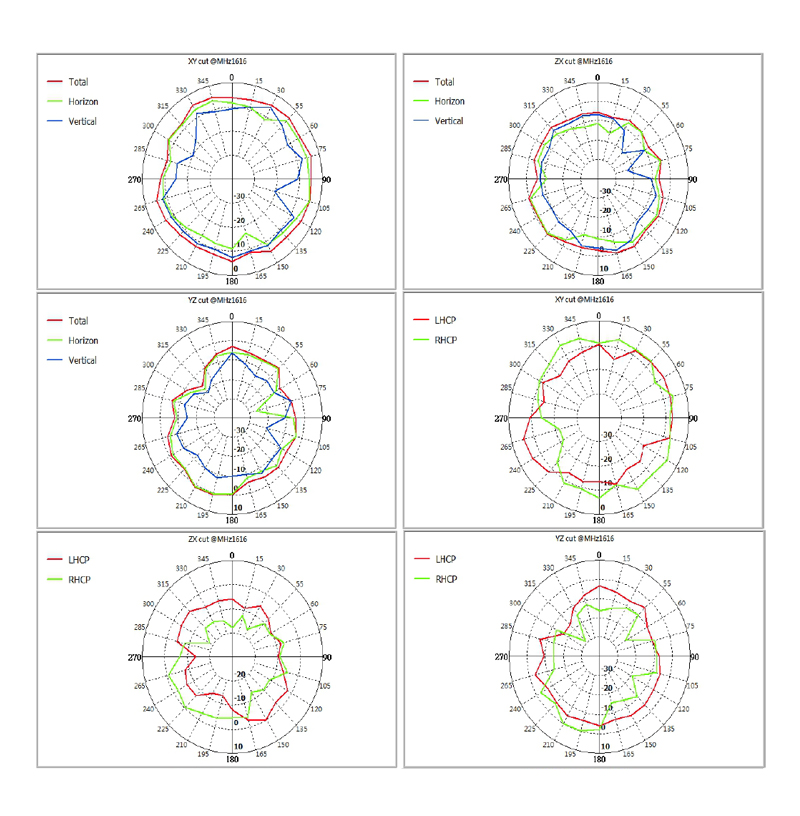

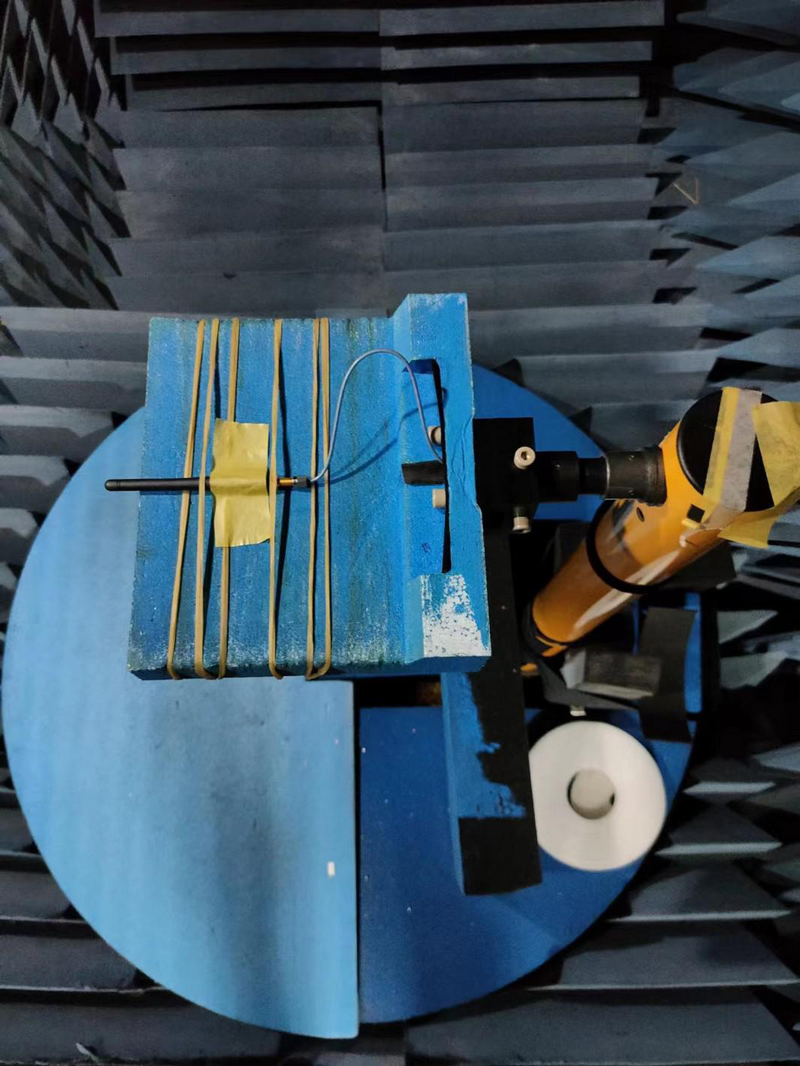

3. Return Loss, V.S.W.R. and Smith Chart

3D Total

Frequency
(MHz)		 Upper Hem.PRP
(dBm)		 Lower HEM.PRP
(dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain
(dBi)		 Tot. Rad.Pwr.
(dBm)
1550 MHz -9.77 -6.56 -4.86 32.65 1.25 -4.86
1559 MHz -9.66 -6.62 -4.87 32.57 0.63 -4.87
1561 MHz -9.41 -6.59 -4.76 33.38 1.10 -4.76
1570 MHz -8.39 -5.09 -3.42 45.47 2.12 -3.42
1575 MHz -8.44 -5.52 -3.73 42.37 1.87 -3.73
1602 MHz -8.68 -5.35 -3.69 42.72 1.94 -3.69
1616 MHz -8.83 -5.44 -3.80 41.69 1.96 -3.80
1620 MHz -8.93 -5.61 -3.95 40.29 1.42 -3.95
1626 MHz -9.03 -5.67 -4.02 39.61 2.67 -4.02
1630 MHz -8.88 -5.51 -3.86 41.08 3.00 -3.86
1640 MHz -8.66 -5.50 -3.79 41.80 2.32 -3.79
1650 MHz -8.67 -5.15 -3.56 44.08 2.89 -3.56
1700 MHz -7.96 -4.77 -3.07 49.34 3.73 -3.07
1750 MHz -7.68 -4.31 -2.67 54.11 3.92 -2.67

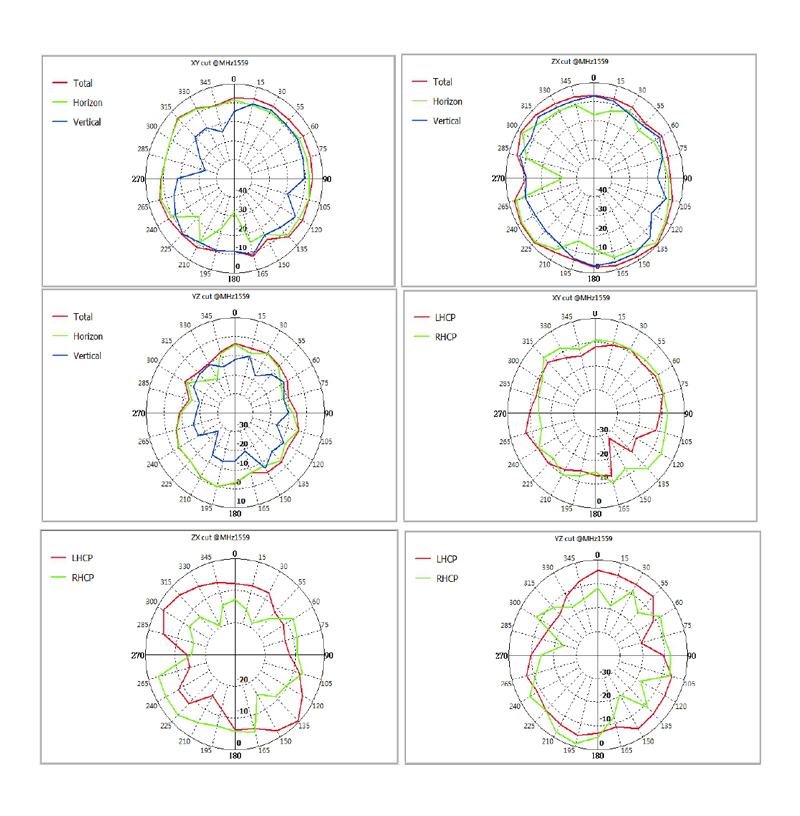

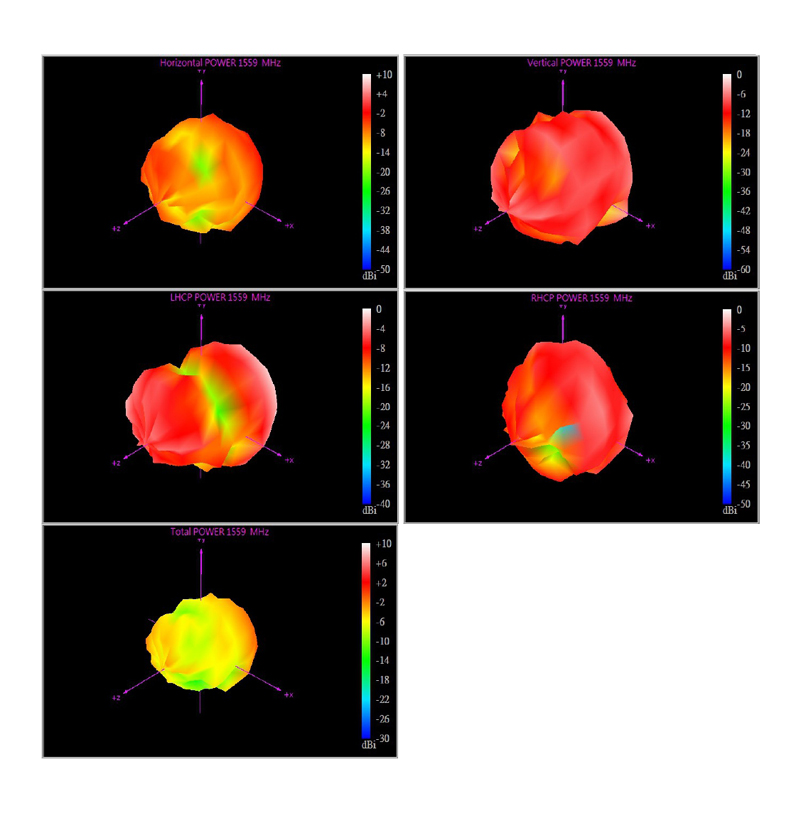

1559Mhz:

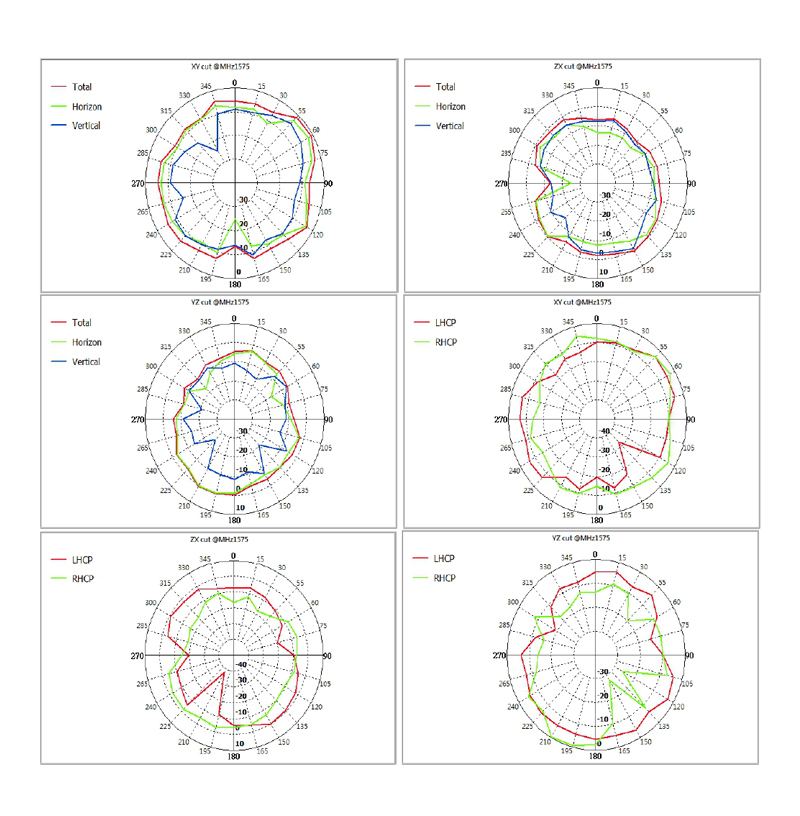

1575Mhz:

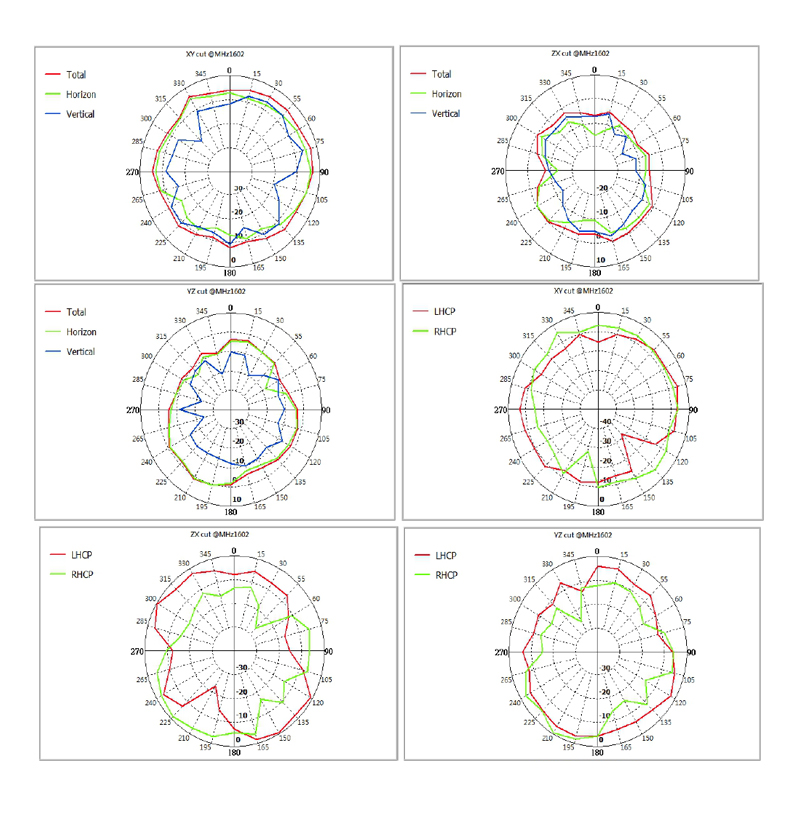

1602Mhz:

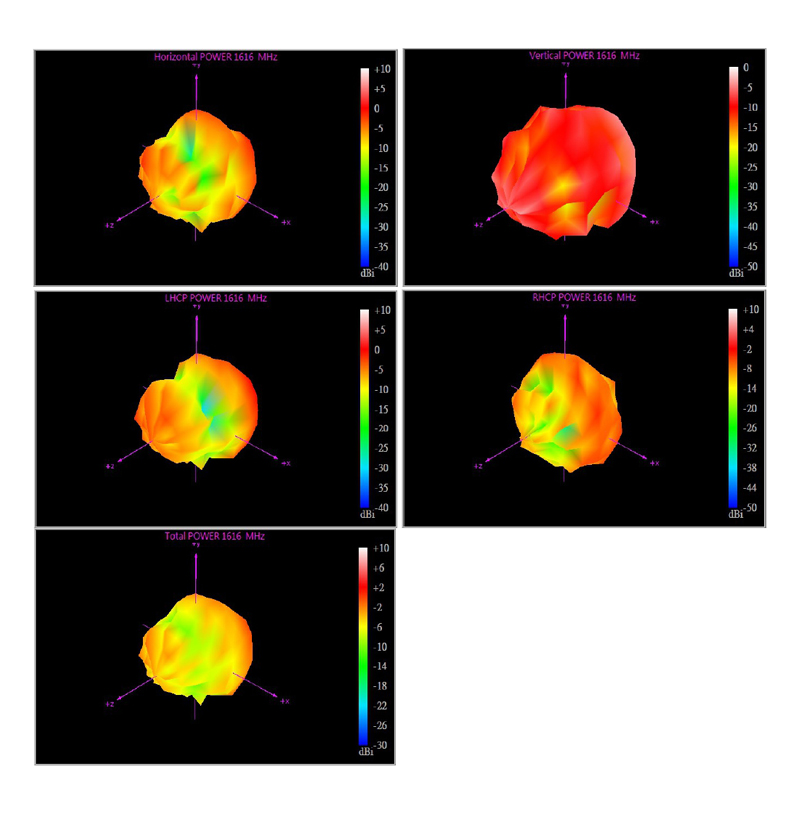

1616Mhz:

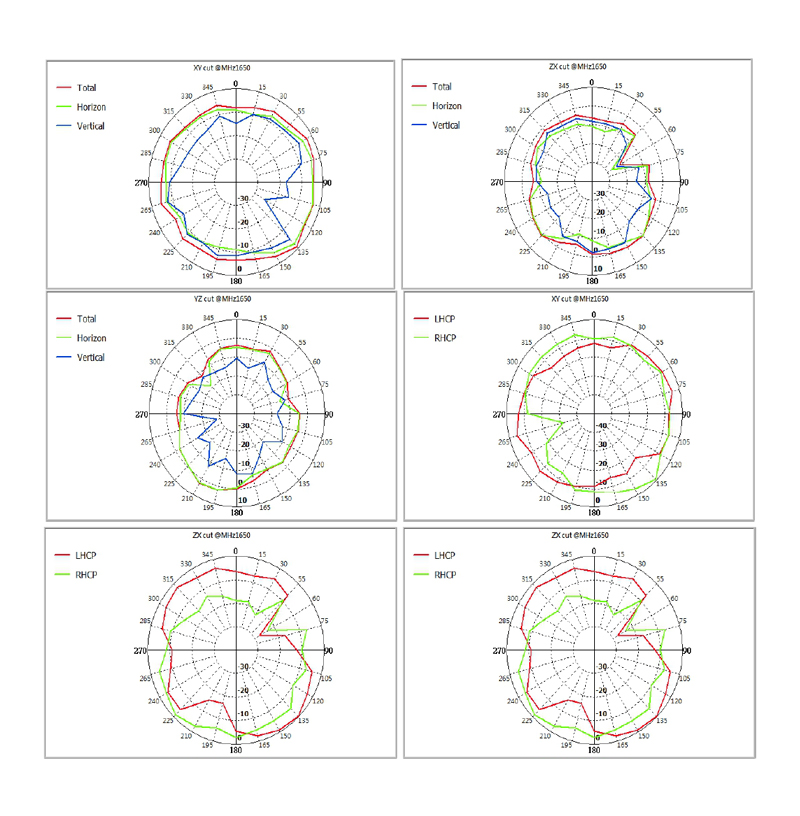

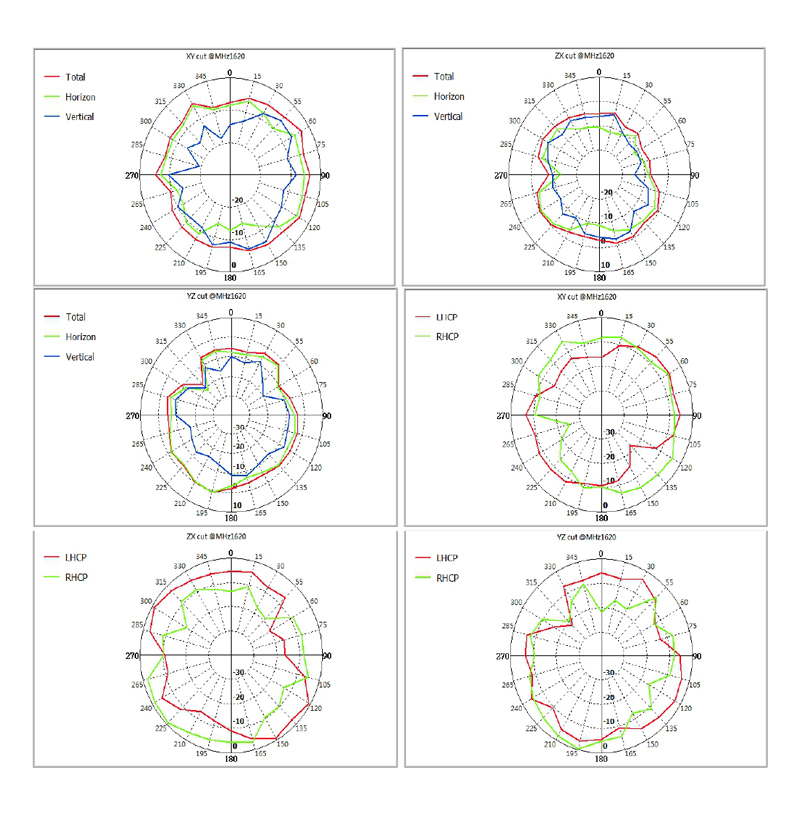

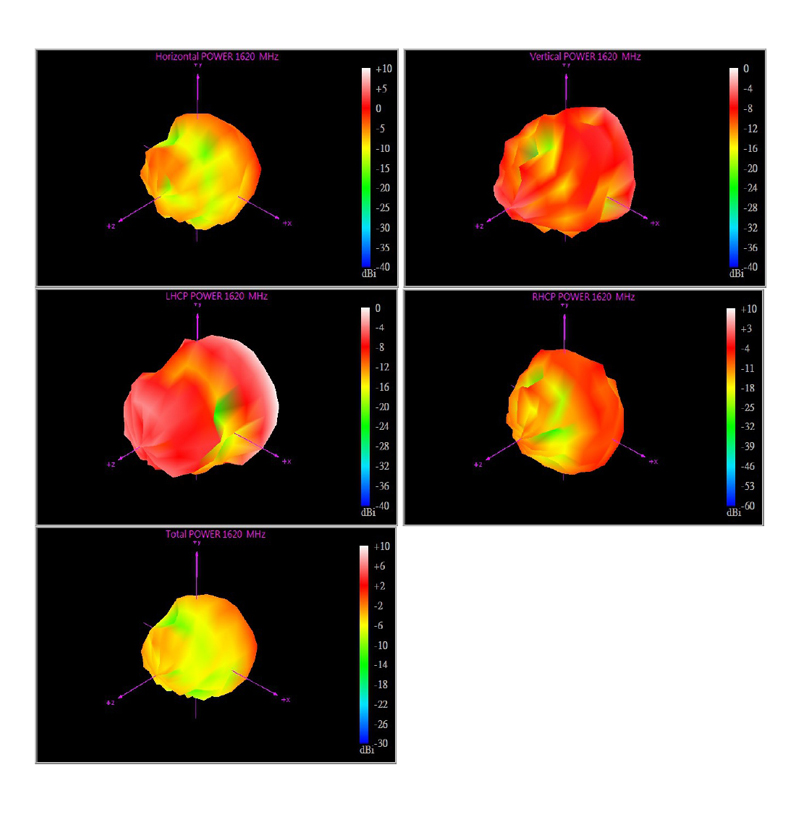

1620Mhz:

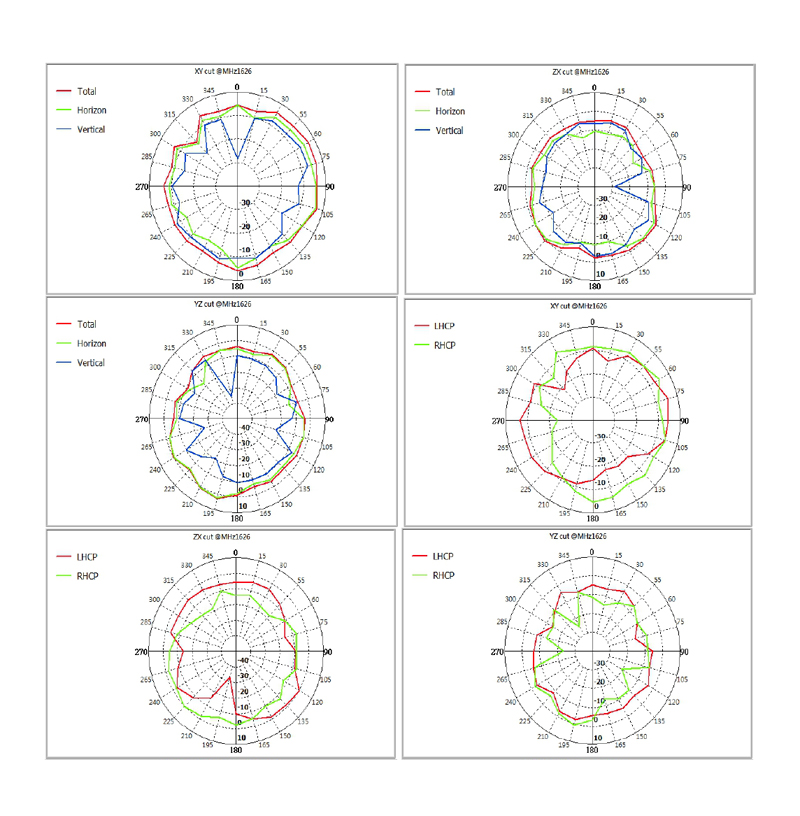

1626Mhz:

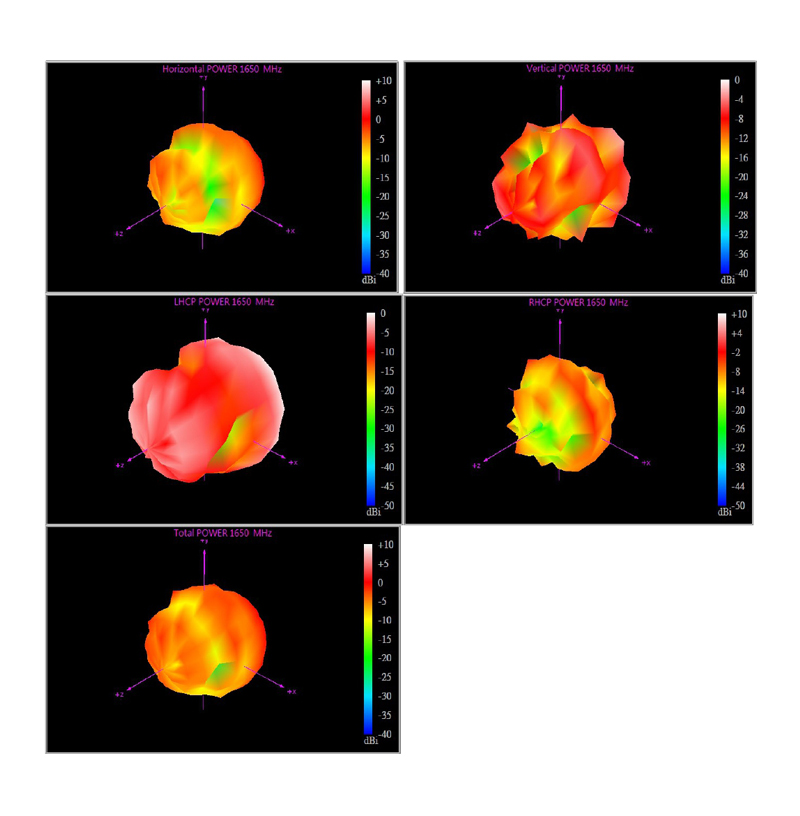

1650Mhz:
