1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
430-470 MHz ON GND |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

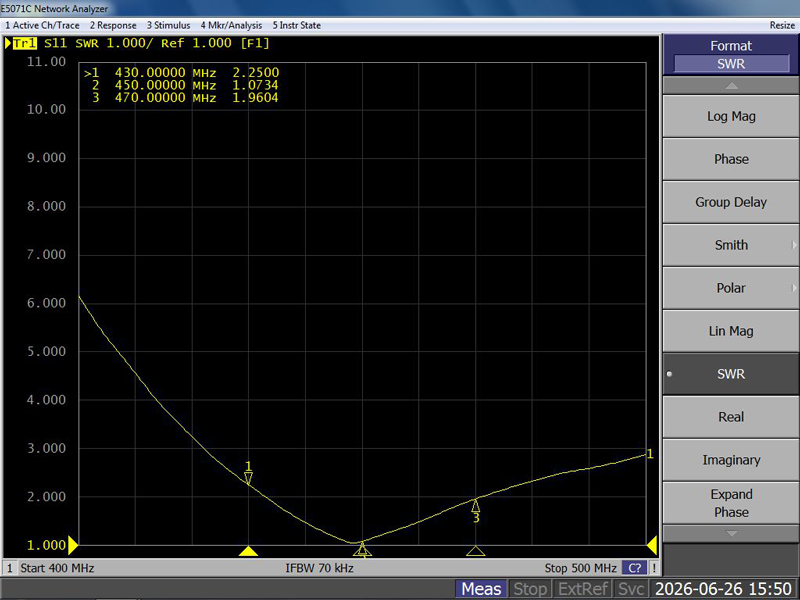

| V.S.W.R |
2.5:1 |
| Antenna Peak Gain |
0dBi |
| Note: Gain includes the cable loss |
1.2 Mechanical Properties
| Parameter |
Description |

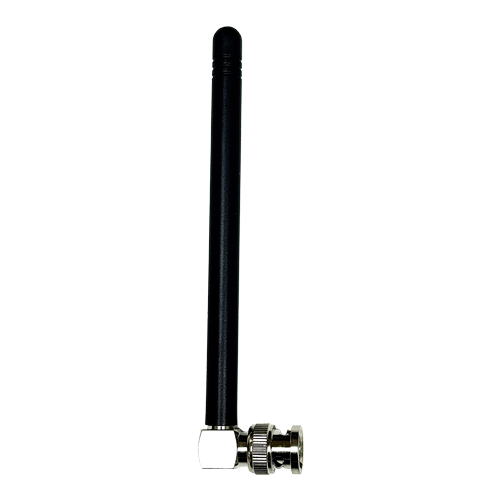

| Antenna Type |
External Antenna |
| Antenna Cover |
ASA |
| Touch Type |
Screw Type |
| Connector Type |
BNC 90°(Male) |

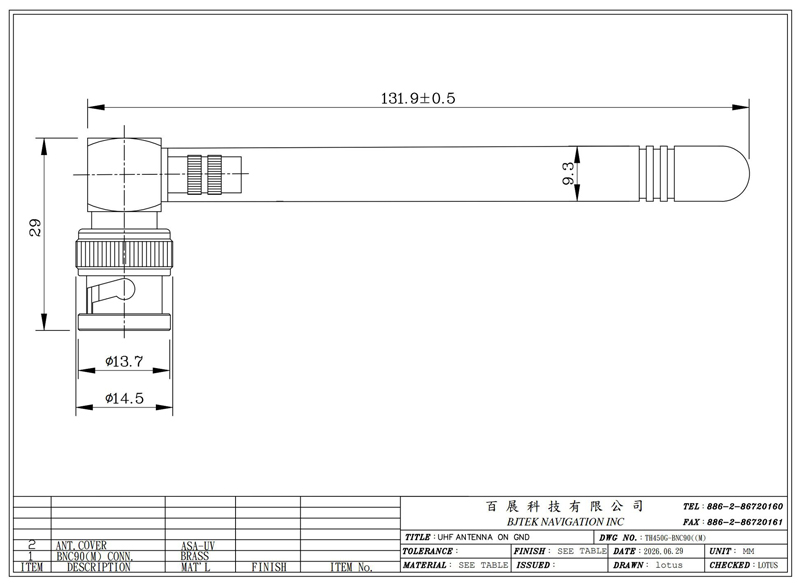

| Antenna Dimensions |
131.9mm±0.5 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+80°C |
| Storage Temperature Range |
-30°C~+80°C |
