TH-433J
  • Product Description
  • Product Specification

1.Specifications

Frequency range 433Mhz
Gain 3dBi
V.S.W.R 2.0
Impedence 50 ohm
Connector N Type male
Dimension 600mm +/-10 x OD22mm
Weight 0.29Kg
Polarization vertical
Power handling 50W
Materials Fiberglass & copper
Colour White
Rated wind velocity 60m/s
Working Temperature -40~60°C
Lightning Protection Direct Ground

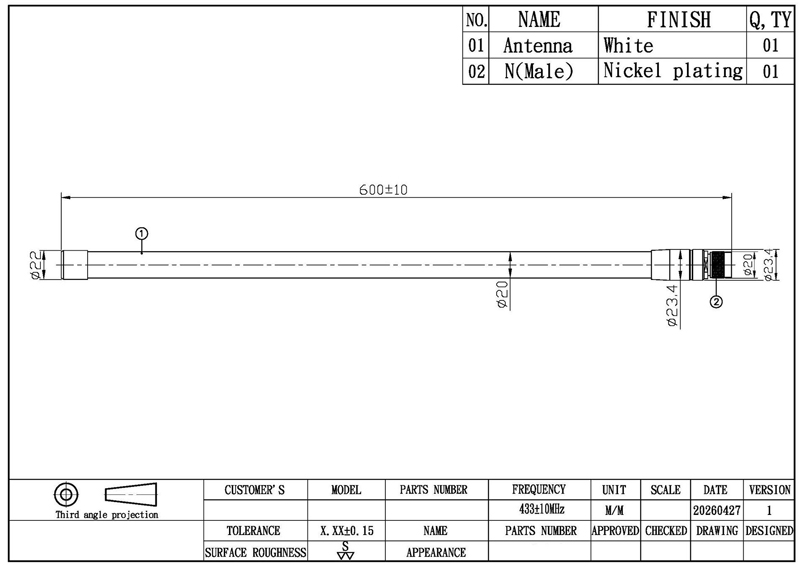

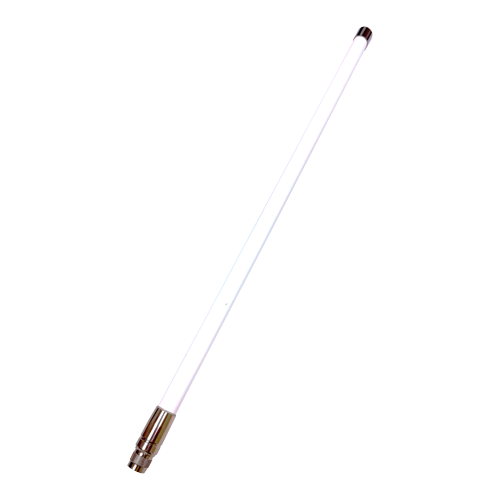

2.APPEARANCE:

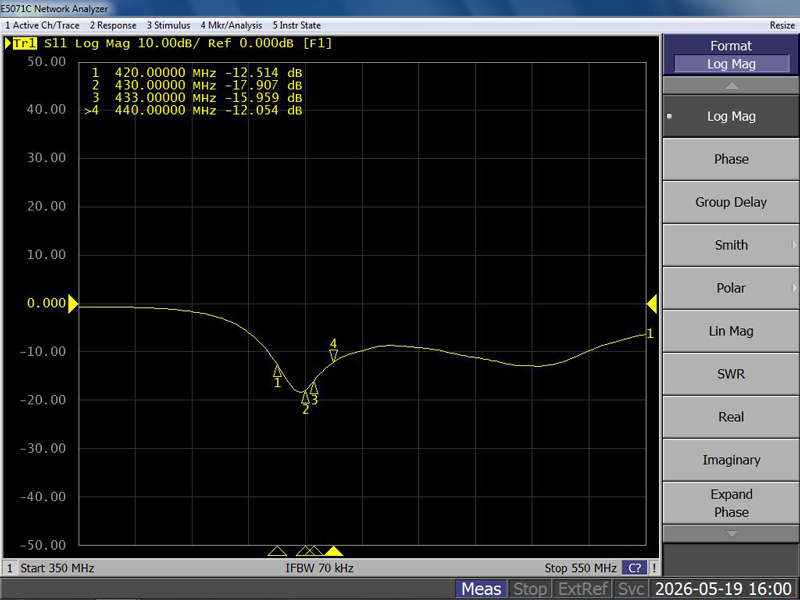

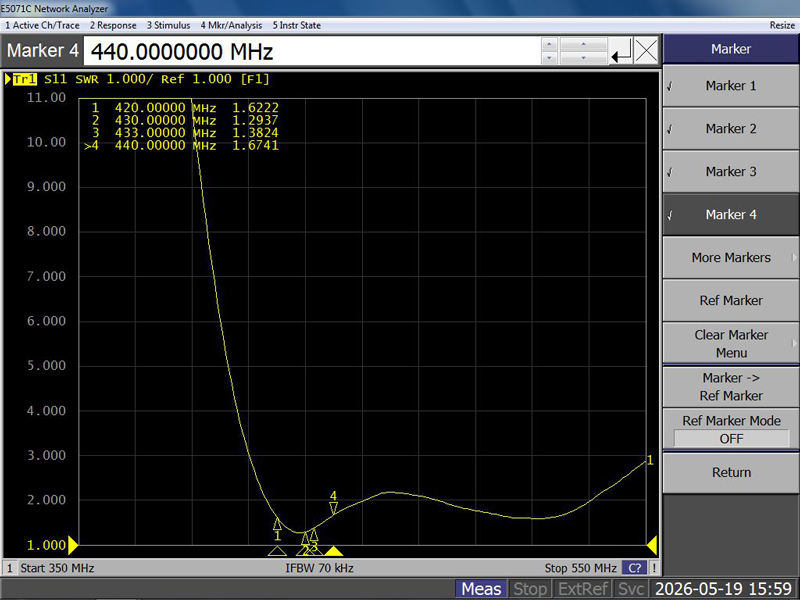

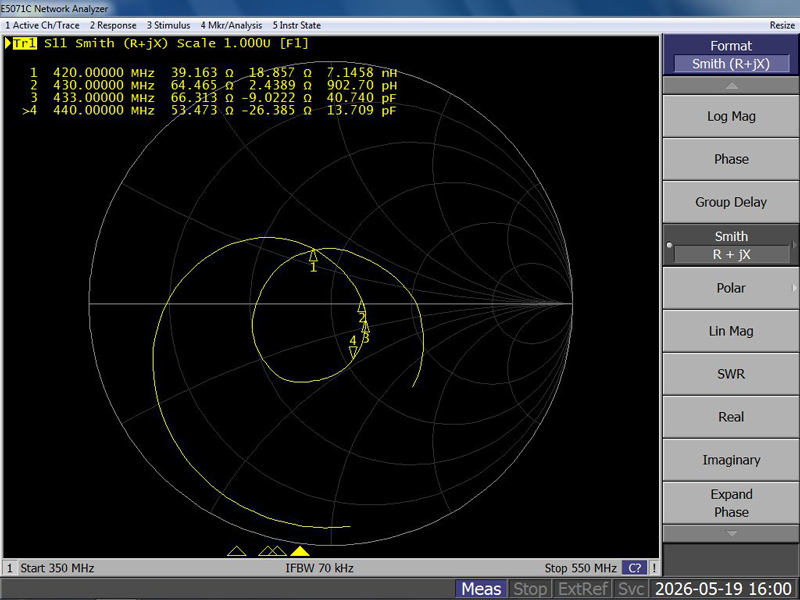

3.FREQUENCY:

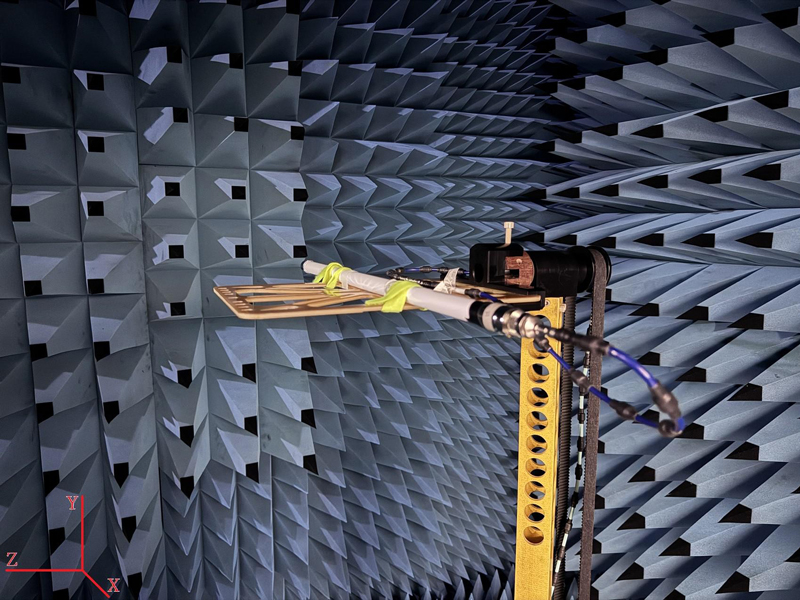

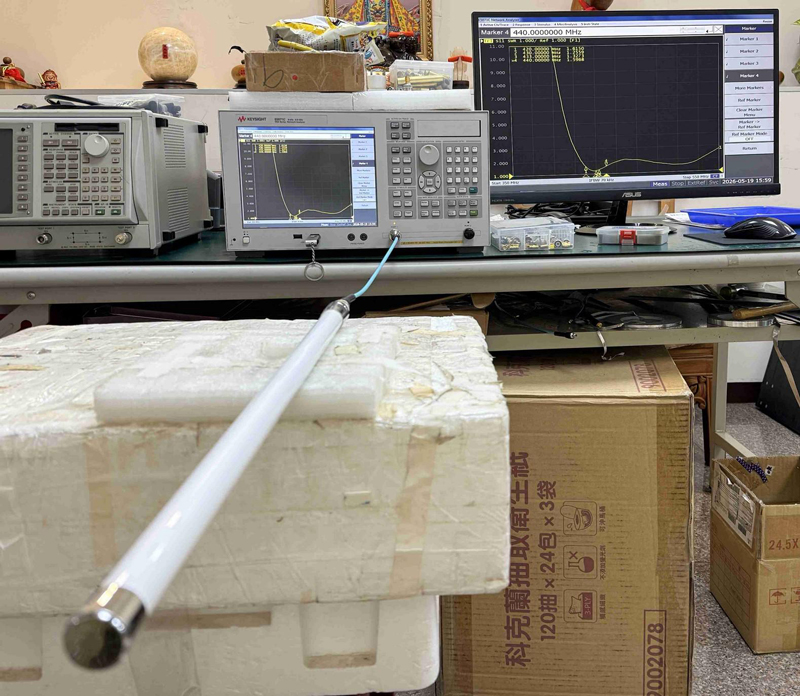

4.Test Environment

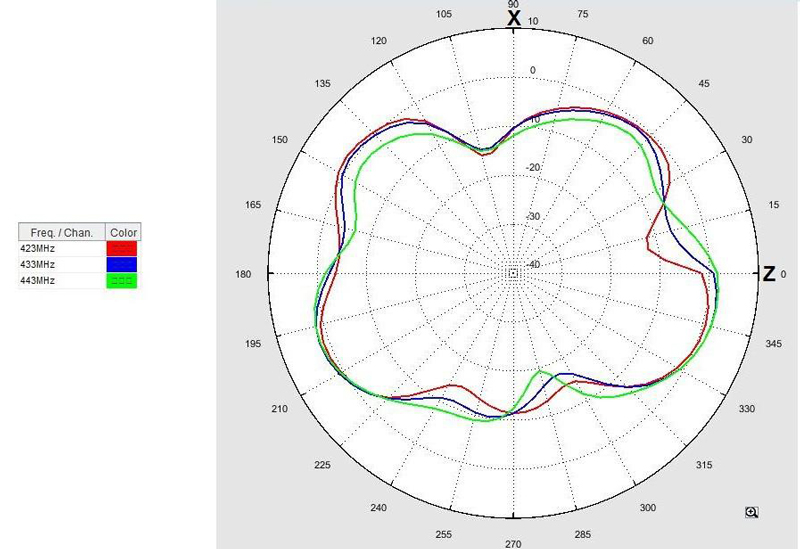

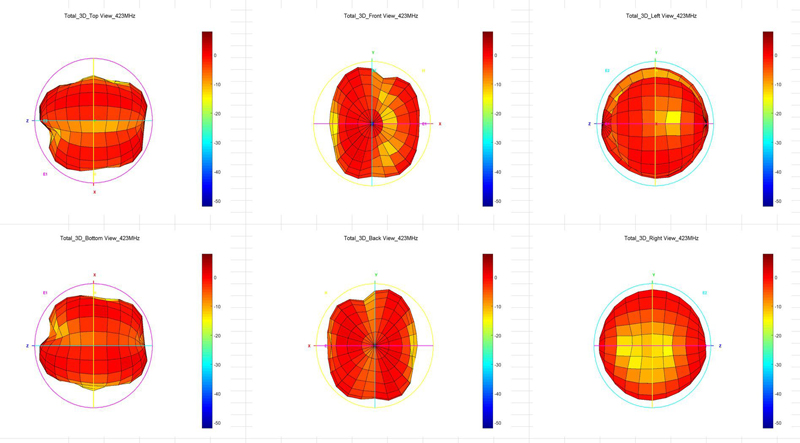

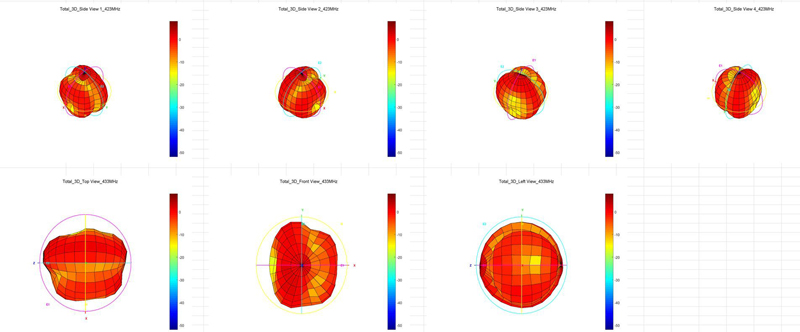

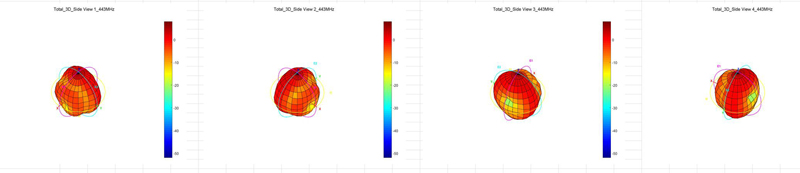

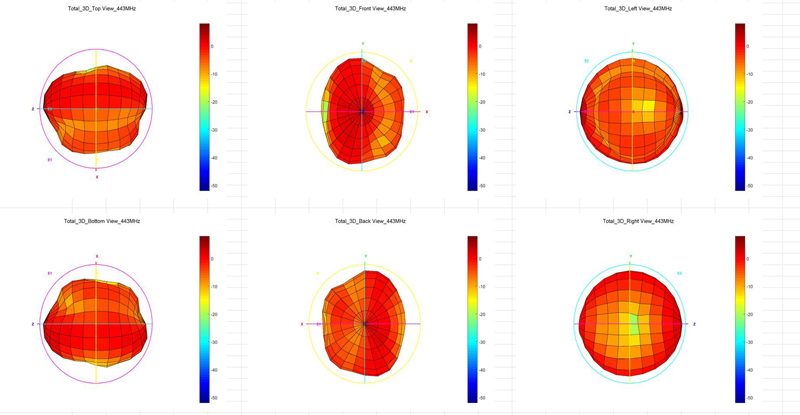

5.Radiation Pattern

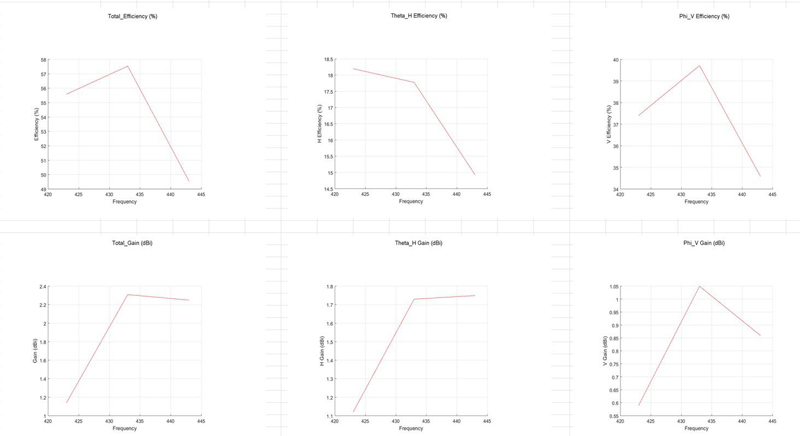

Frequency 423MHz 433MHz 443MHz
Horizontal+Vertical
Efficiency (%) 55.59 57.54 49.55
Gain (dBi) 3.14 3.31 3.25
Horizontal
H Efficiency (%) 18.2 17.78 14.93
H Gain (dBi) 2.12 2.73 2.75
Vertical
V Efficiency (%) 37.41 39.72 34.59
V Gain (dBi) 1.59 2.05 1.86
