1.GENERAL DESCRIPTION
| Model No |
P/N |
| GA90R |
GA90R-TNC(M) |
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1582.5±23.5MHz(L1), 1268±12MHz(L2), 1247±5MHz(L2),
1227±5.5MHz(L2), 1207±12MHz(L2) and 1176±12MHz(L5)
PS. When covered with a radome and measured on LNA ground plane |
| Nominal Impedance |
50 ohm |
| Polarization |
R.H.C.P |

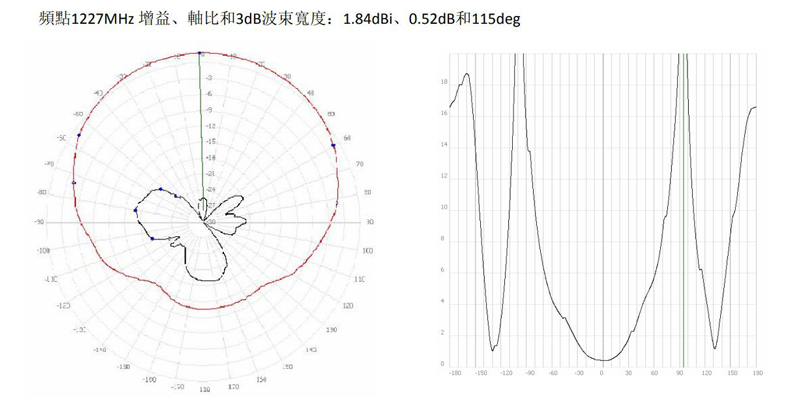

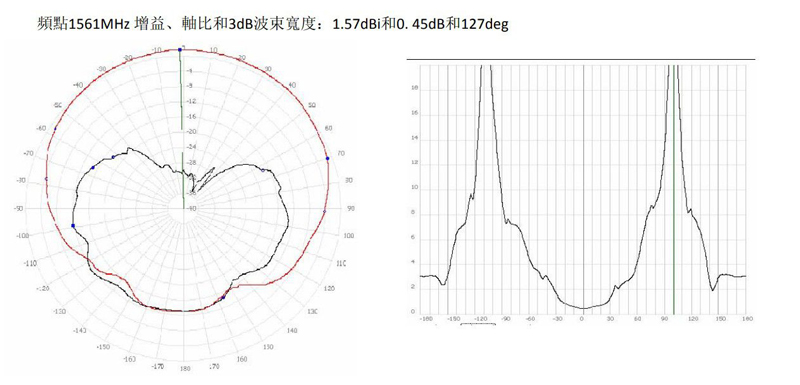

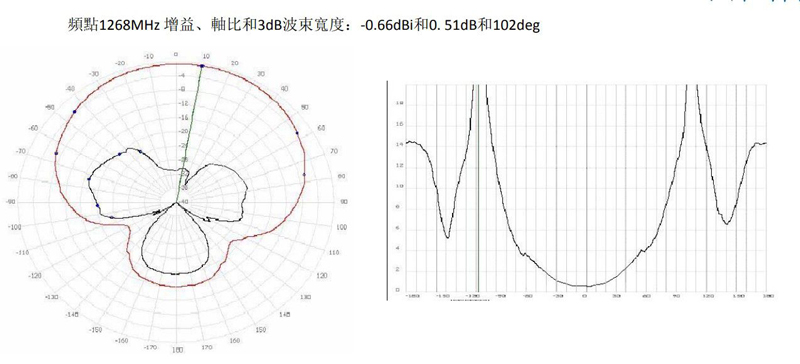

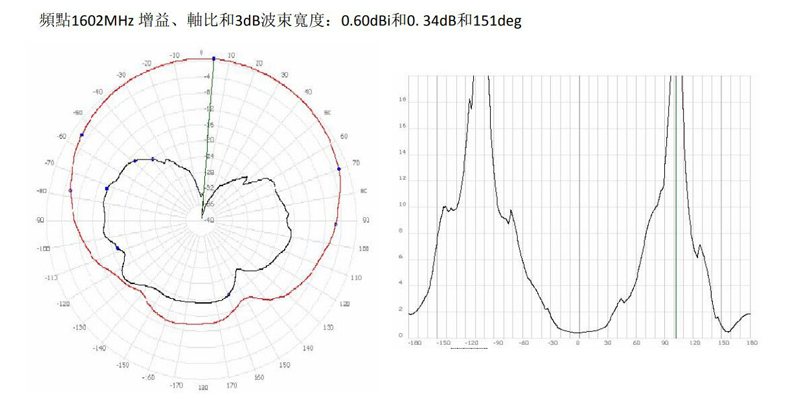

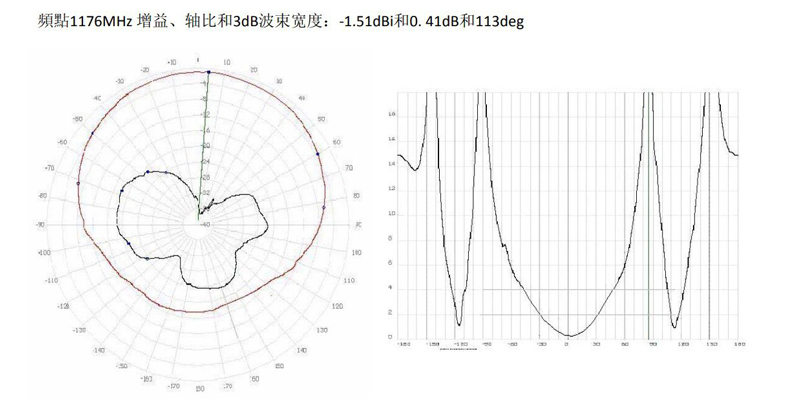

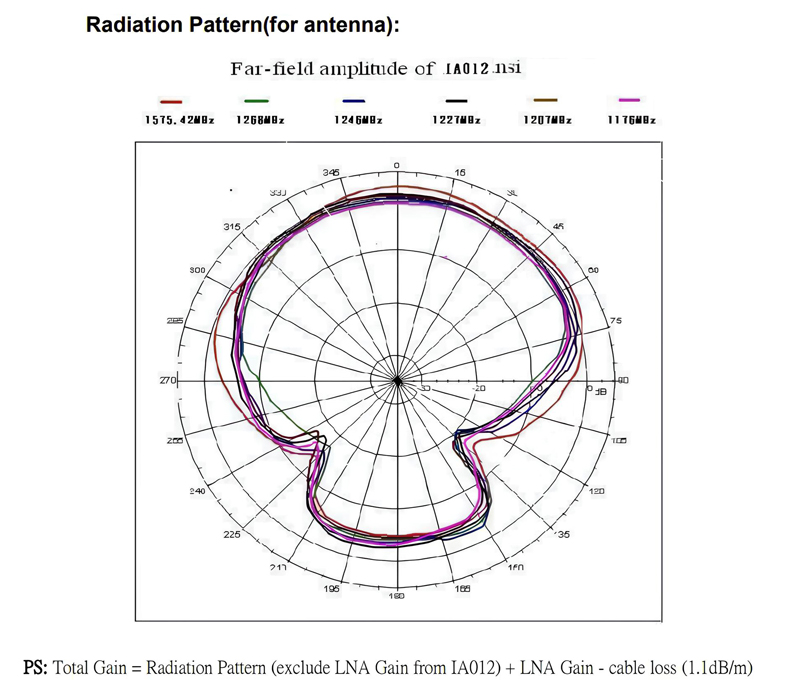

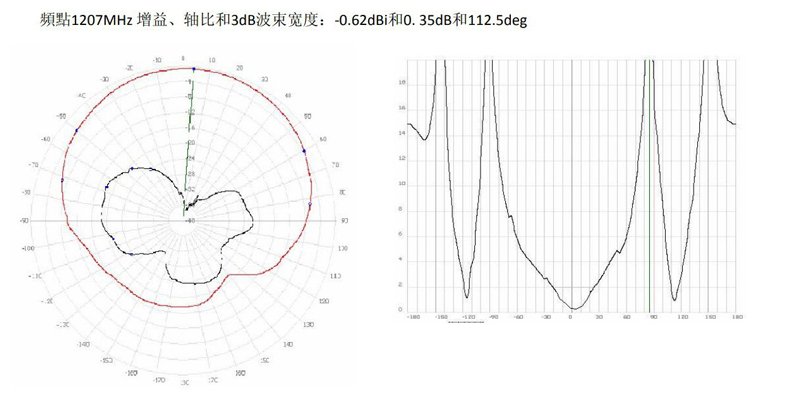

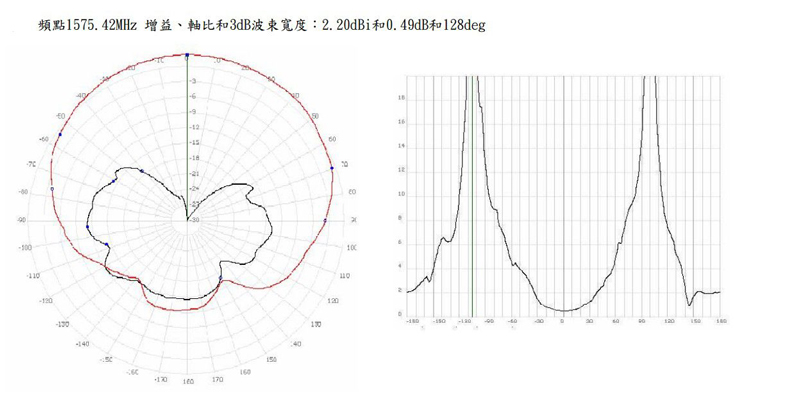

| Gain at Zenith |
2 dBic typical @ L1; 1 dBic typical @ L2; -2 dBic typical @ L5 |
| Gain at 10° elevation |
0 dBic typical @ L1; -2 dBic typical @ L2; -5 dBic typical @ L5 |
| Axial ratio |
0.5 dB typical (L1, L2 and L5) |

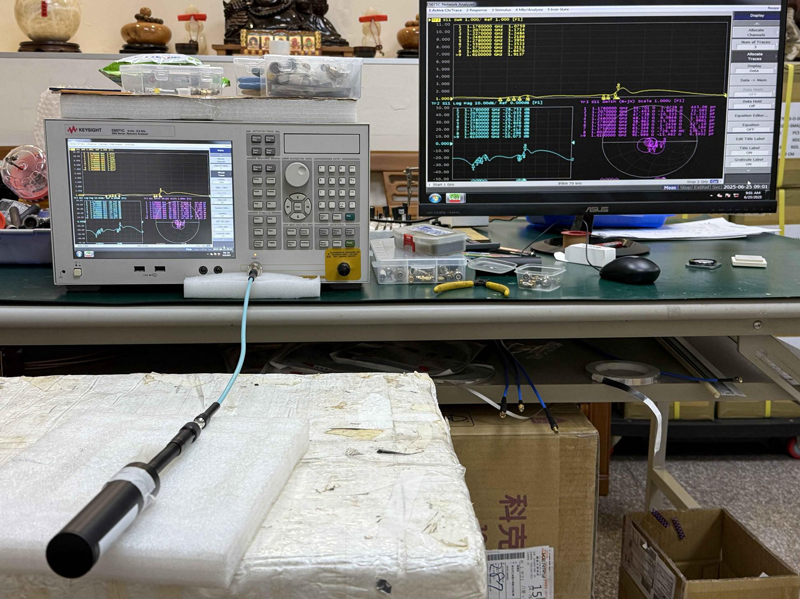

| Return Loss |
Please See Data-1 |
| V.S.W.R |
2.0：1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Working Frequency |
1582.5±23.5MHz(L1), 1268±12MHz(L2), 1247±5MHz(L2),
1227±5.5MHz(L2), 1207±12MHz(L2) and 1176±12MHz(L5) |

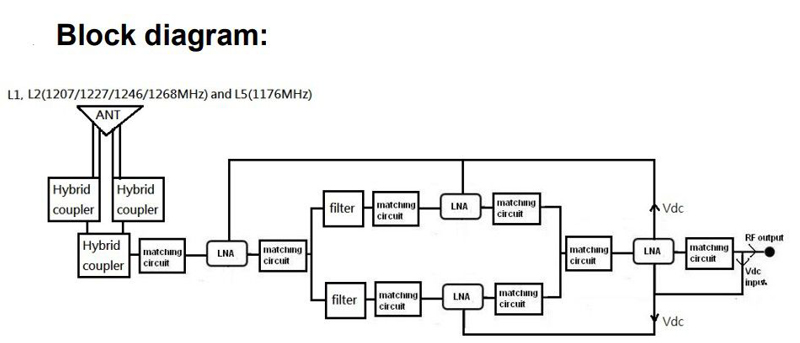

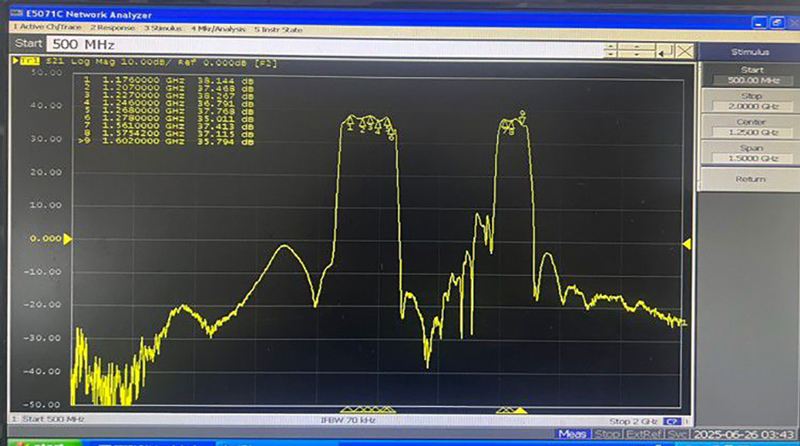

| Gain |
36±3 dB typical at 3.3V (L1, L2 and L5) |
| Noise Figure |
1.5 dB typical at 3.3V (L1, L2 and L5) |
| Filter (Out of band attenuation) |
Saw filter 30dB typical fo±50MHz 40dB typical fo±100MHz
(fo=L1,L2~L5 band) |
| Impedance |
50 Ω |
| Output V.S.W.R |
2.0 max |
| Input Voltage |
DC = 3~16V |
| Current |
DC =16±5mA at 3V~16V |
1.3 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC(Male) OR SMA(M) |

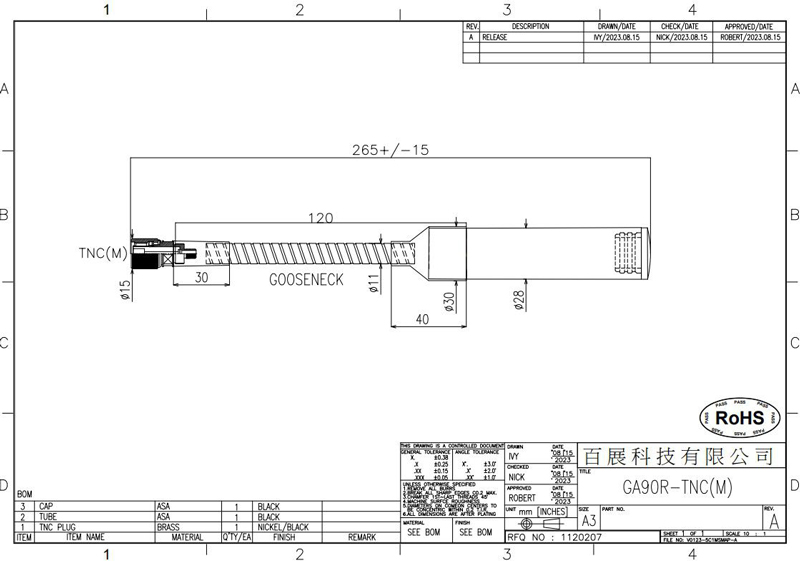

| Antenna Dimensions |
265mm ±15 & 258mm+/-15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |

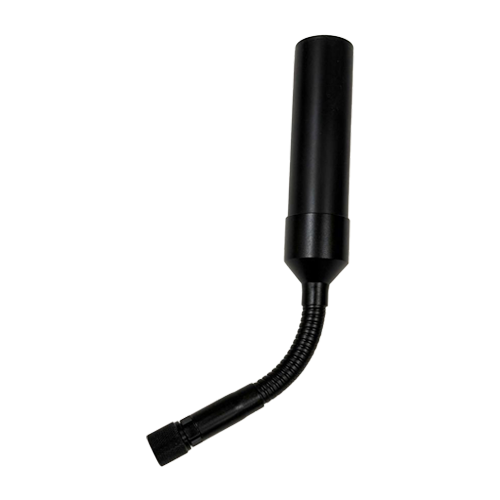

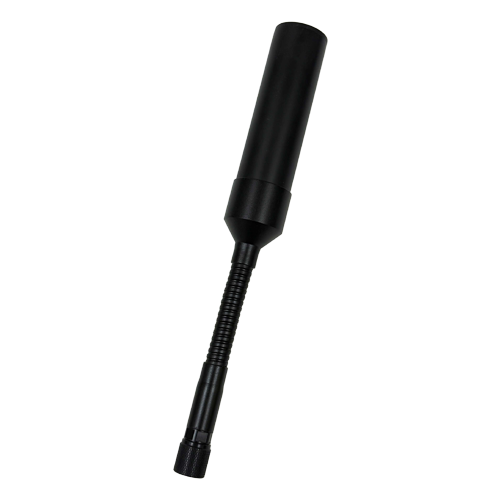

Our GA-90R is an Active antenna for high-precision GNSS L1/L2/L5 receivers. It’s best for unmanned vehicles, drones, agricultural machinery, lawn mowers, land surveying, and professional field radio equipment... etc. The ASA is boasts excellent weather resistance, with aging resistance over 10 times that of ABS. It also offers excellent high-temperature resistance and a fire rating of UL94-HB or higher. The gooseneck design allows the antenna to be bending flexibly while adjusting. The internal design utilizes a four-arm spiral circular polarization. Please don’t hesitate to email us if you have any questions.
