| Band |
2.4 GHz |
| Frequency range |
2400~2500Mhz |
| Gain |
5dBi |
| V.S.W.R |
≤ 2.0 |
| Impedence |
50 ohm |
| Connector |
N Type male |
| Dimension |
605mm (±10) x OD36mm |
| Weight |
0.34Kg |
| Polarization |
vertical |
| Power handling |
100W |
| Materials |
Fiberglass & copper |
| Colour |
Black |
| Rated wind velocity |
60m/s |
| Working Temperature |
-40~60℃ |
| Lightning Protection |
Direct Ground |
＊This specification is subject to change without prior notice

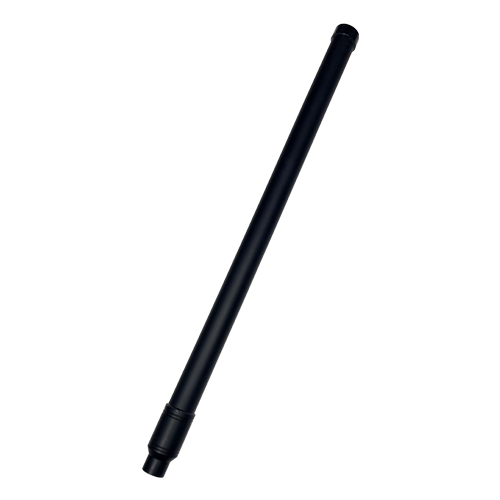

Engineered for critical communication across industrial, scientific, and military sectors, this heavy-duty passive TH-5800C/ TH-5250B/ TH-2450 WiFi antenna ensures seamless data transmission and reception in the harshest environments. Built with a high-strength fiberglass tube, the outer housing provides exceptional weather resistance and long-term mechanical reliability, protecting sensitive internal components against UV exposure, corrosion, and extreme temperatures. For superior moisture protection, the integrated N-Male connector features a fully encapsulated, waterproof design that prevents water ingress even during prolonged outdoor deployment.
Designed for convenience and field versatility, the antenna supports direct twist-on installation and removal without requiring specialized tools. It operates across standard WiFi bands, including 2400–2500 MHz and 5150–5900 MHz, with tailored frequency customization available to meet specific operational requirements. Whether deployed for remote telemetry, automated factory monitoring, or tactical field networks, this antenna delivers the rugged durability and uninterrupted connectivity your infrastructure demands. Contact our engineering team today to request custom frequency specifications or secure bulk ordering for your next project. Please don’t hesitate to email us if you have any questions.
