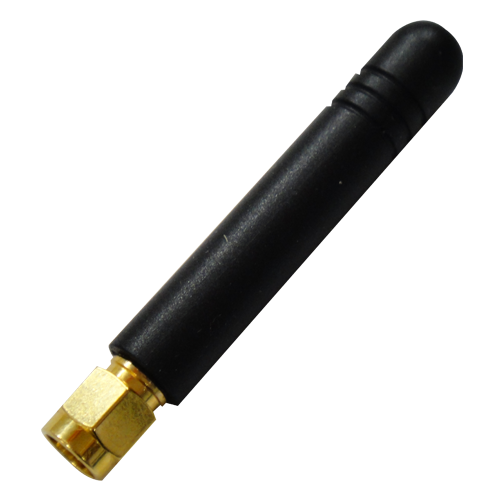

TH81-2.5G & 5.8G

2.4 & 5.8G Antenna

Inquiry PDF

Product Feature

1.1 Electrical Properties

ParameterDescription
Frequency Band 2.4 ~2.5GHz & 4.9~5.85Ghz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 2.5:1
Gain 1-2db
Note: Gain includes the cable loss

1.2 Mechanical Properties

ParameterDescription
Antenna Type External Antenna
Antenna Material TPU
Touch Type Screw Type
Connector Type SMA 180˚(Male)
Antenna Dimensions 60mm ±2
Antenna Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C

Recommended
