TP-518

External Panel Antenna

Inquiry PDF

Product Specification

Frequency range: 2.4~2.5GHz
Gain: 18 dBi
V.S.W.R: 1 : 1.5 Max
Impedence: 50 OHMS ±5Ω
Connector: N Type Female
Dimension: 270 x 205 x 15mm
Weight: 310g
Polarization Linear
Power handling 10W Max
Front to back ratio 30dB
HPBW / horizontal 10°
HPBW / vertical 10°
Radome color Gray-white
radome material PC and ABS

*This specification is subject to change without prior notice

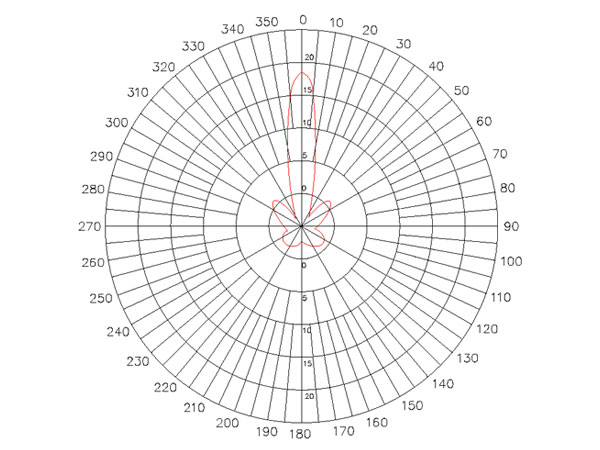

H-PLANE FIELD PATTERNS
E-PLANE FIELD PATTERNS
