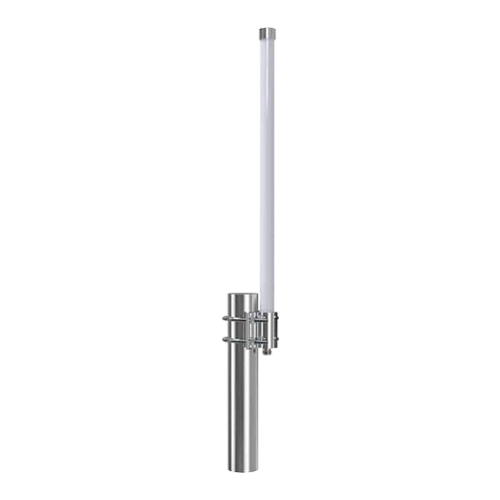

TH-240012

TH-240012

Inquiry

Download

Product Description
Product Specification

Electrical Specifications
Frequency	2400-2500 MHz
Gain	12 dBi

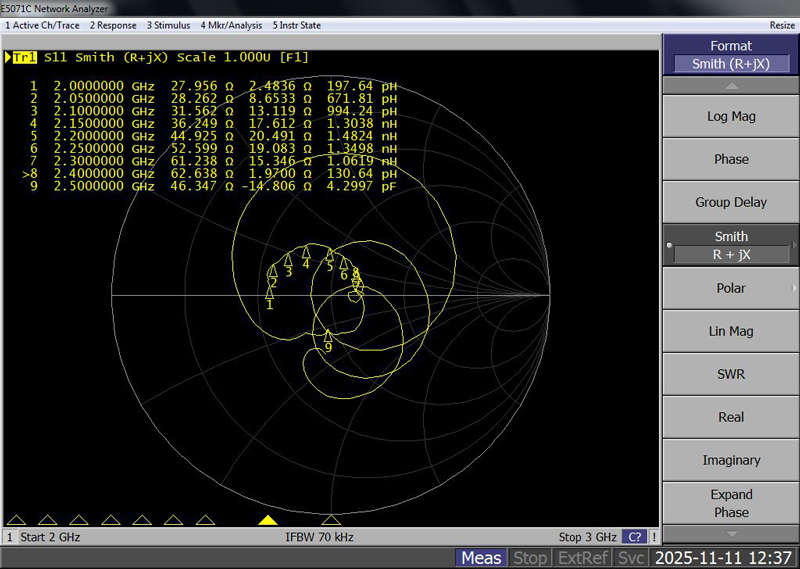

VSWR	<1.5
Polarization	Vertical
Horizontal Beam Width	360°
Vertical Beam Width	7.5°
Impedance	50 ohms
Max. Input Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	N Female
Dimension	Ø25×960mm
Weight	0.7kg
Mounting	Mast Ø40-Ø60 mm
Radome Material	Fiberglass (White)
Rate Wind Velocity	210km/h
Ingress Protection	IP66
Operating Temperature	-40℃ – +65℃
