TH-240Q

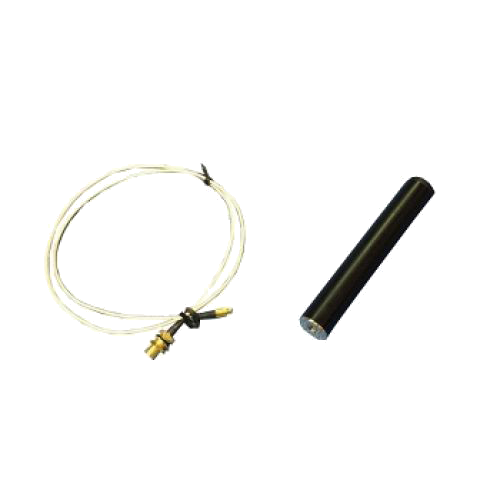

Mini Omni 2.4/5.8G Antenna

Inquiry PDF

Product Description

 Model No

TH240Q-SMA(M)

Below is a table summarizing the antenna design specification.

1.1 Electrical Properties

Parameter

Description

Frequency Band

2.4~2.5 & 5.1~5.85 GHz

Nominal Impedance

50 ohm

Polarization

Vertical

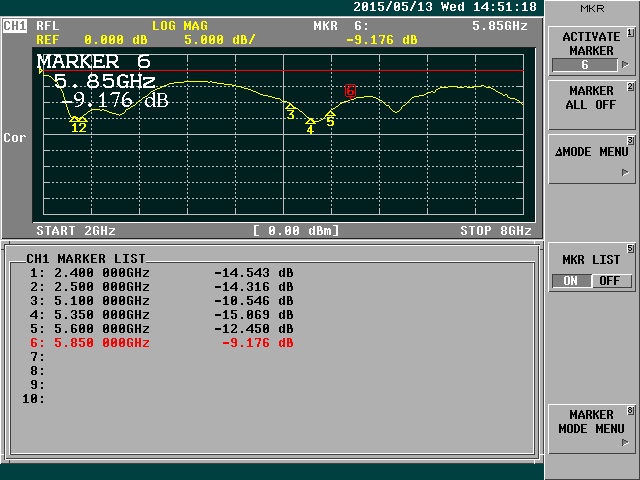

Return Loss

Please See Data-1

V.S.W.R

2.0:1

Gain

2~3db

Note: Gain includes the cable loss

1.2 Mechanical Properties

Parameter

Description

Antenna Type

External Antenna

Antenna Material

Tubing plastic

Touch  Type

Screw Type

Connector Type

SMA (Male)

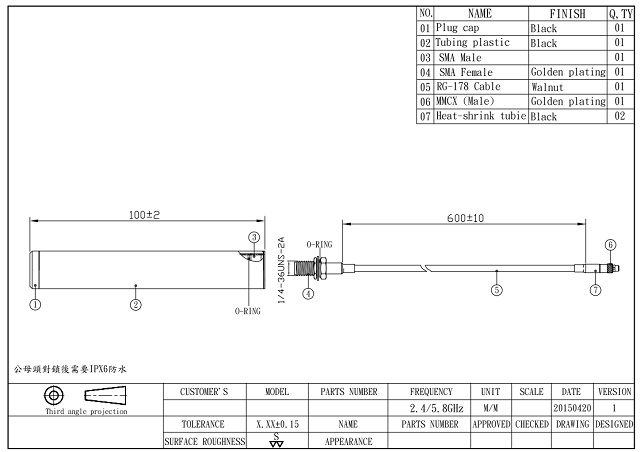

Antenna Dimensions

100mm ±2

Antenna Color

Black

Operating Temperature Range

-20°C~+60°C

Storage Temperature Range

-30°C~+70°C
