1. GENERAL DESCRIPTION
| Model No |
P/N |
| |
TC-821E-30CM-RPSMA(M) |
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
2.4~2.5/5.15~5.85Ghz |

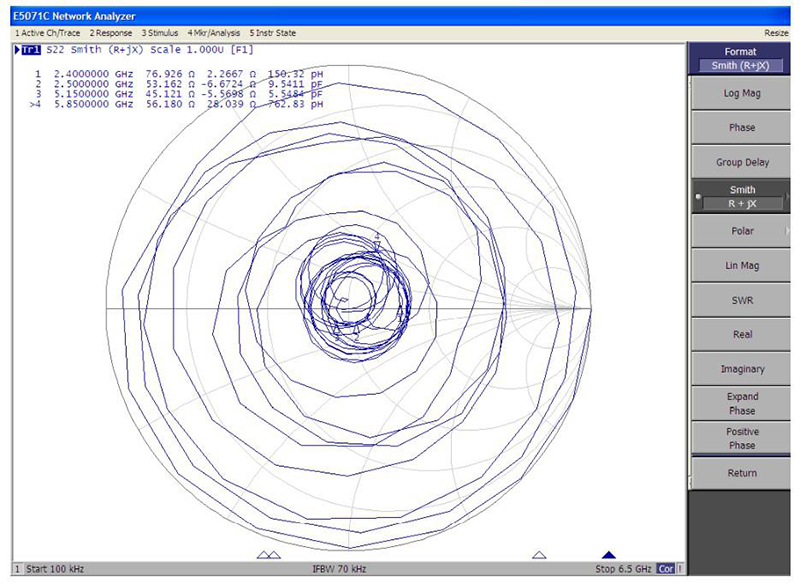

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |

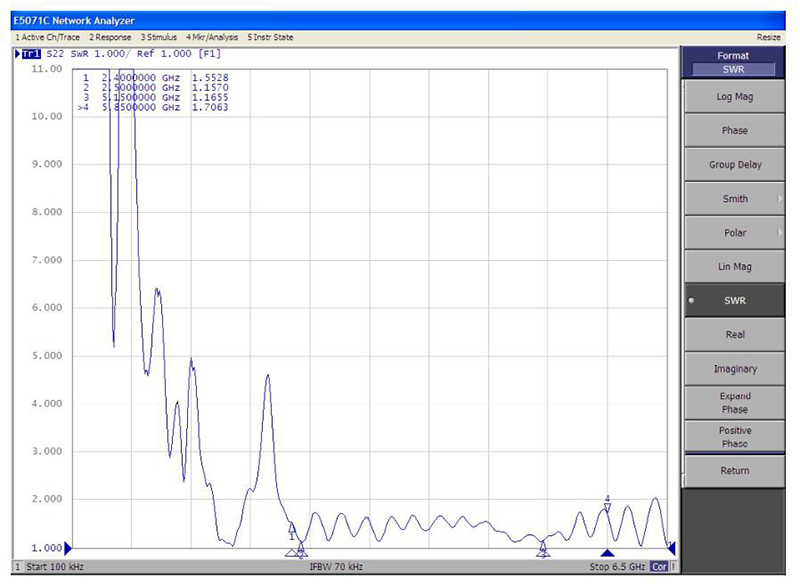

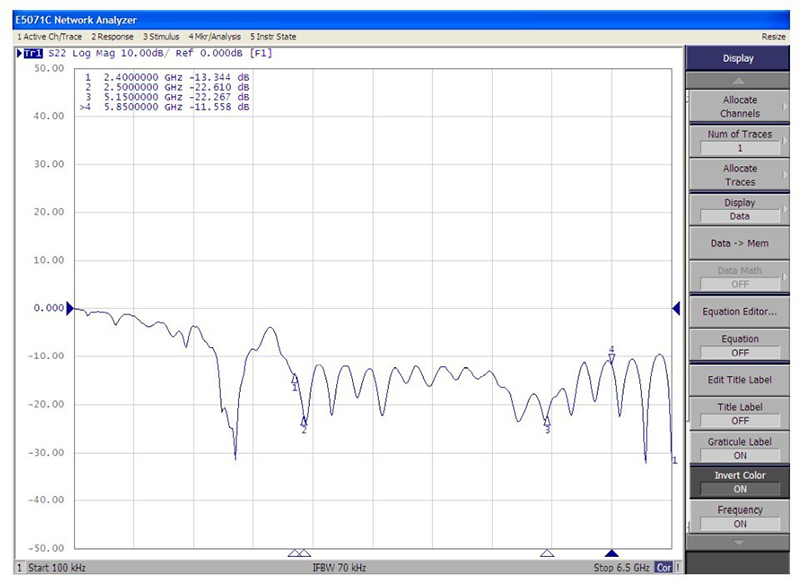

| V.S.W.R |
2.0:1 |

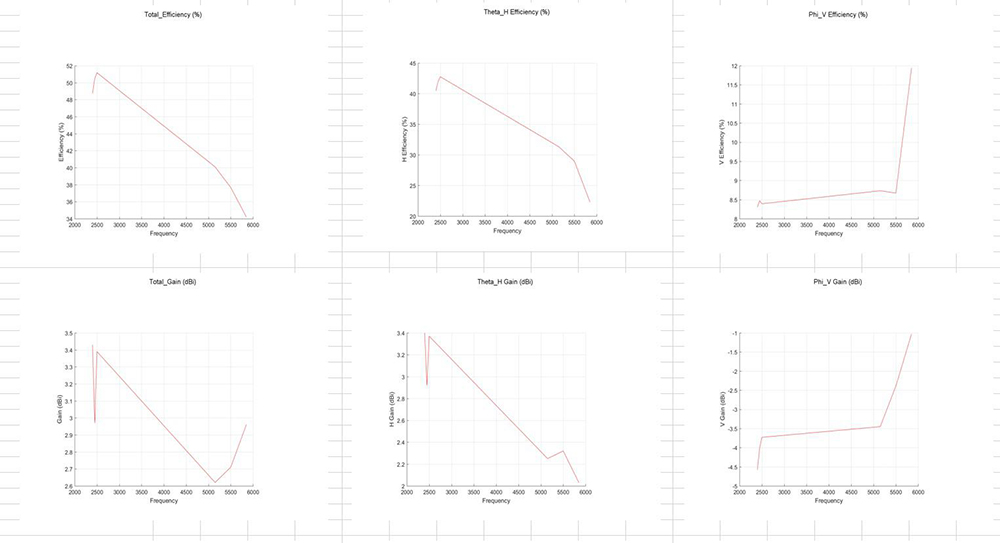

| Antenna Peak Gain |
2-3dBi |
| Note: Gain includes the cable loss 1.2db/M |

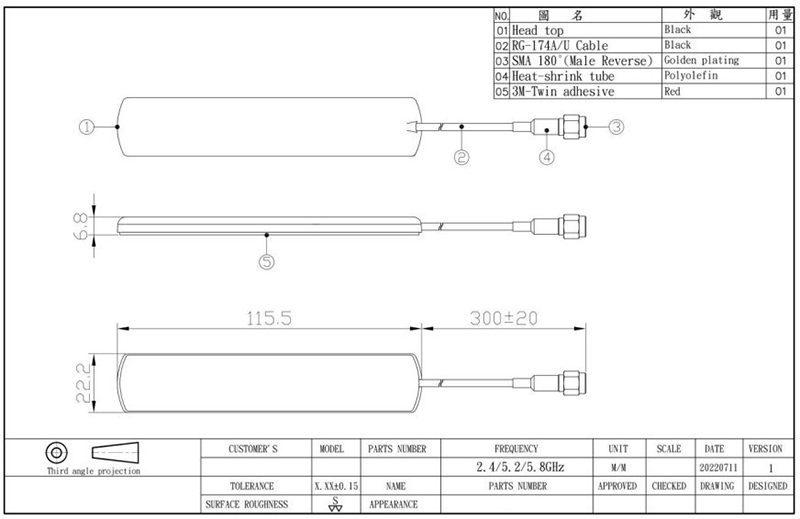

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Material |
ABS |
| Connector Type |
SMA 180° RP-Male |
| Antenna Dimensions |
115 mm ± 5 |
| Antenna Cable Total Length |
RG174-300mm ± 20 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+80°C |
| Storage Temperature Range |
-40°C~+80°C |
| Waterproof |
IPX7 |
