TH-2458T
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

Model No
TH-2458T-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 2.4~2.5/5.1~5.85/6~7.125GHz
Nominal Impedance 50 ohm
Polarization Vertical
V.S.W.R 3.0:1
Peak Gain 3~6dbi

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA(M) or RP-SMA(M)
Antenna Dimensions 22 x 210 mm ±3
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C

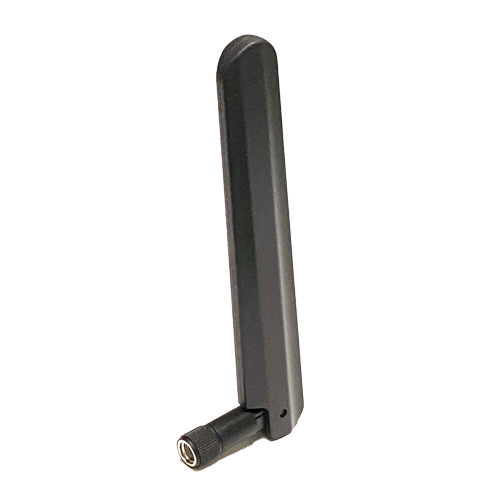

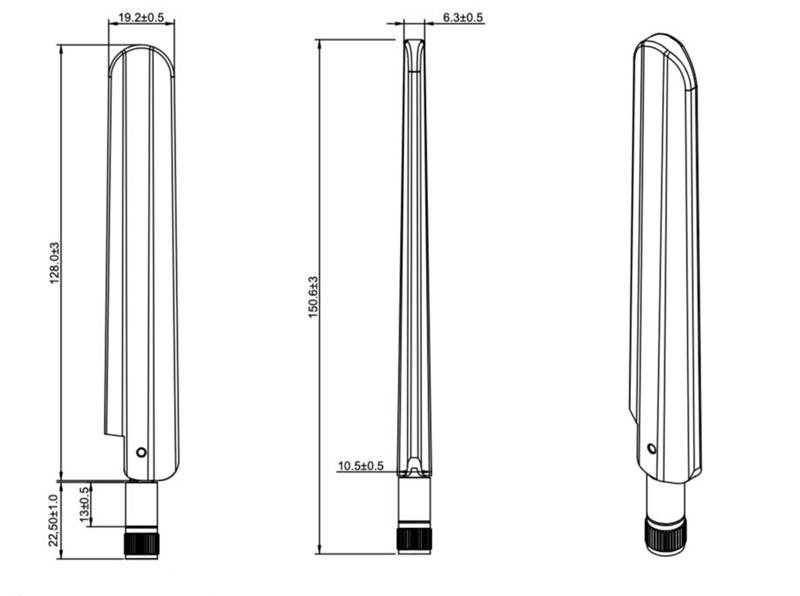

2. Appearance

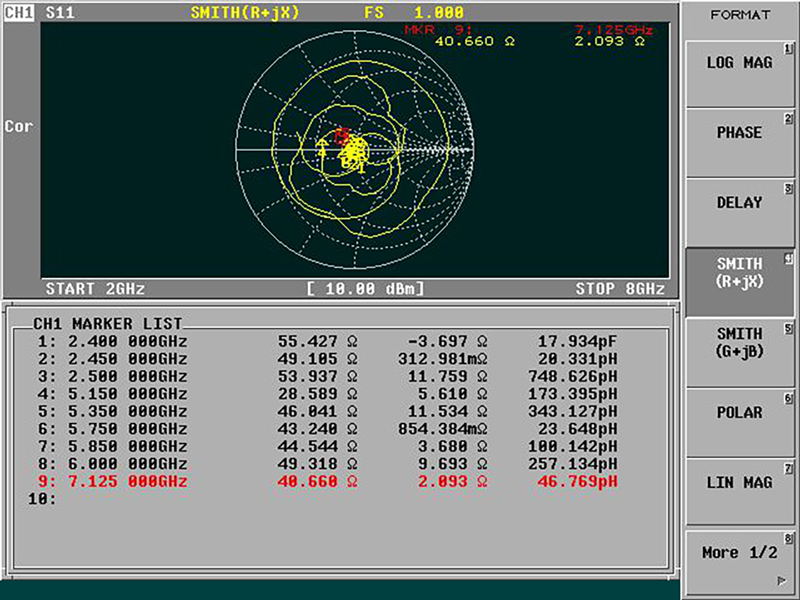

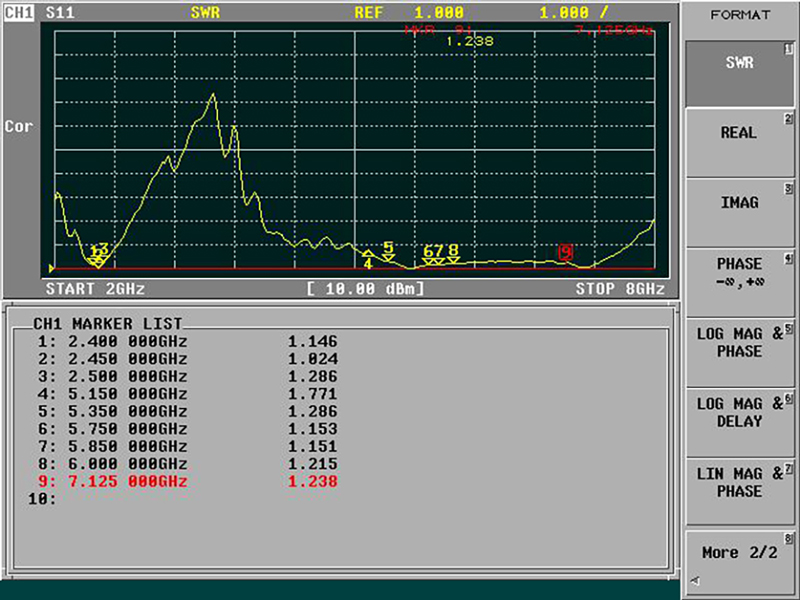

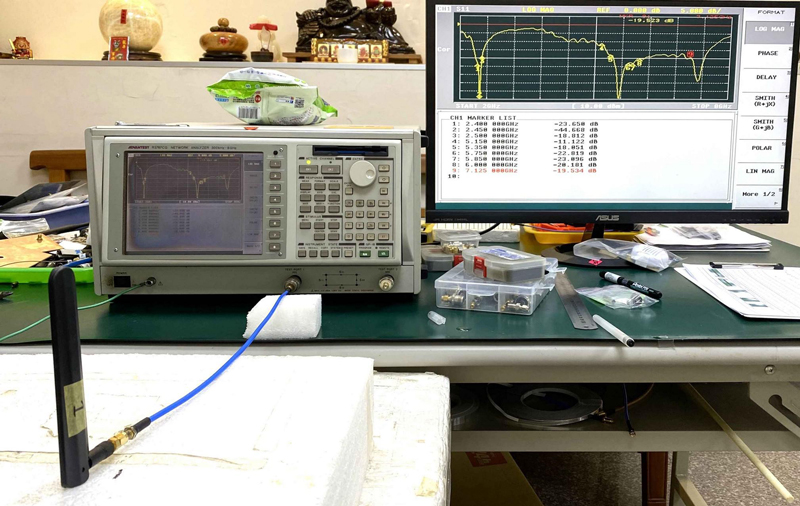

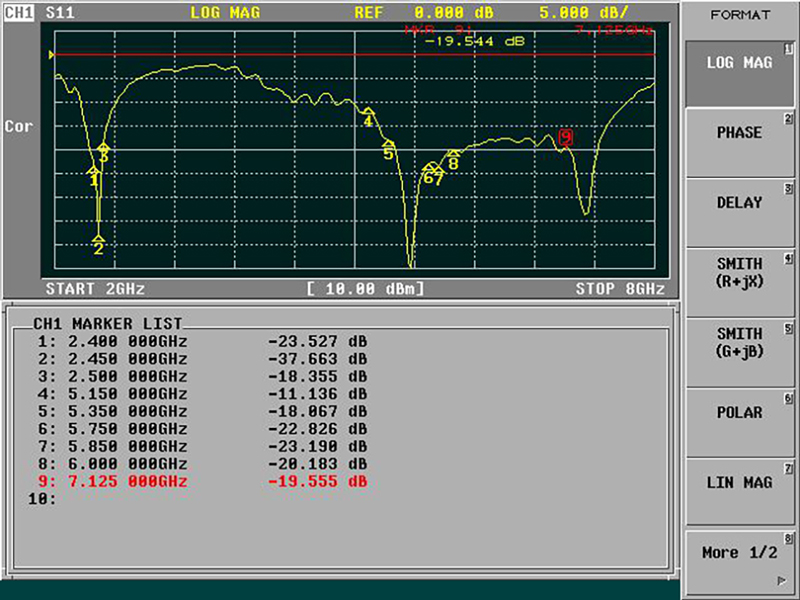

3. Return Loss, V.S.W.R. and Smith Chart

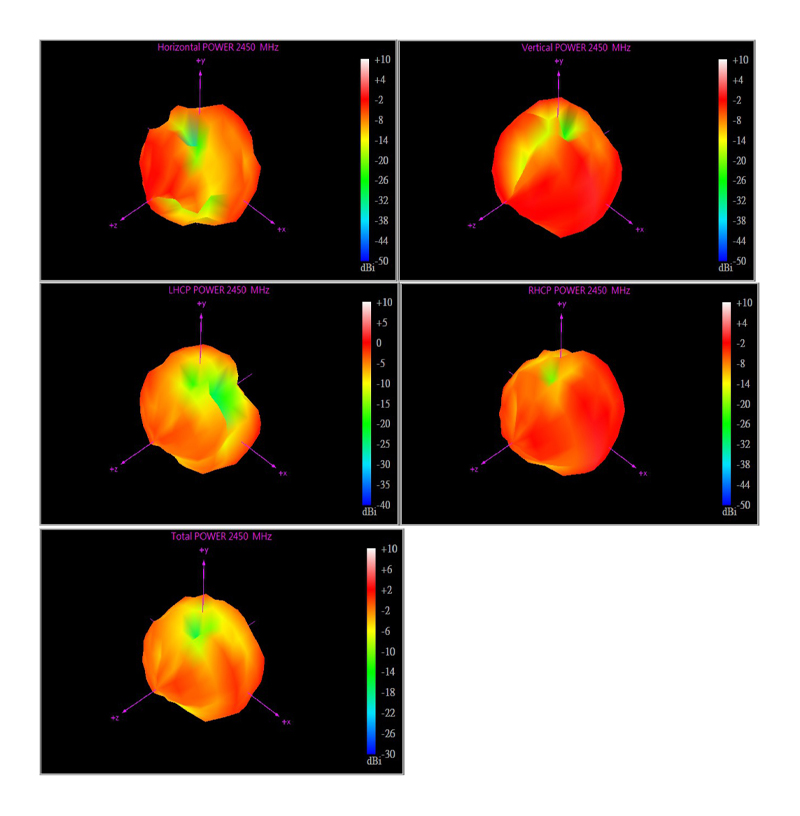

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
2400 MHz -7.22 -5.26 -3.12 48.76 2.85 -3.12
2450 MHz -6.09 -4.75 -2.36 58.06 3.02 -2.36
2483.5 MHz -6.20 -5.10 -2.61 54.83 2.43 -2.61
2500MHz -6.58 -5.44 -2.96 50.58 2.31 -2.96
5150 MHz -8.00 -4.76 -3.08 49.25 2.92 -3.08
5250 MHz -8.63 -5.79 -3.97 40.06 1.88 -3.97
5350 MHz -8.25 -5.39 -3.58 43.86 2.13 -3.58
5470 MHz -8.15 -5.13 -3.37 45.99 2.52 -3.37
5597.5 MHz -8.21 -4.76 -3.14 48.50 3.32 -3.14
5725 MHz -8.91 -4.79 -3.37 46.02 2.88 -3.37
5785 MHz -9.14 -5.20 -3.73 42.39 3.17 -3.73
5850 MHz -9.05 -4.89 -3.48 44.88 3.85 -3.48
5895 MHz -7.95 -4.39 -2.80 52.46 3.41 -2.80
5925 MHz -8.29 -4.28 -2.83 52.17 4.96 -2.83
6000 MHz -8.55 -5.09 -3.47 44.96 3.30 -3.47
6125 MHz -7.62 -4.38 -2.69 53.77 4.09 -2.69
6225 MHz -7.65 -4.23 -2.60 54.95 4.71 -2.60
6325 MHz -7.39 -4.34 -2.59 55.08 4.50 -2.59
6425 MHz -7.00 -3.81 -2.11 61.53 5.10 -2.11
6525 MHz -7.97 -6.04 -3.89 40.85 3.96 -3.89
6625 MHz -6.84 -5.18 -2.92 51.08 4.13 -2.92
6725 MHz -6.98 -5.53 -3.18 48.06 5.01 -3.18
6875 MHz -6.21 -6.40 -3.29 46.84 5.15 -3.29
7000 MHz -6.13 -5.35 -2.71 53.54 4.22 -2.71
7125 MHz -5.14 -4.01 -1.53 70.32 6.57 -1.53

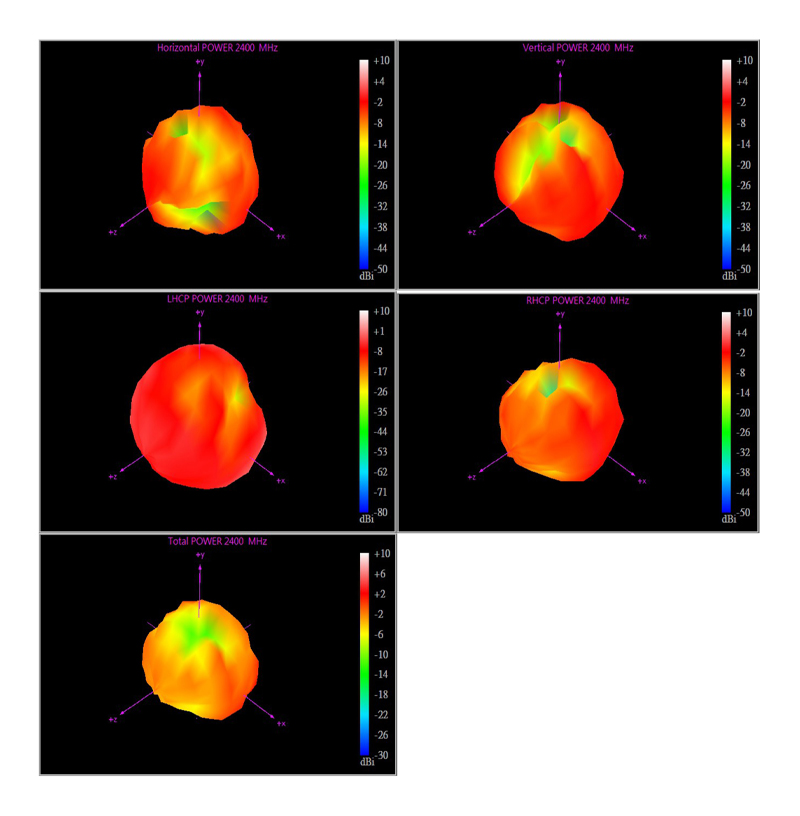

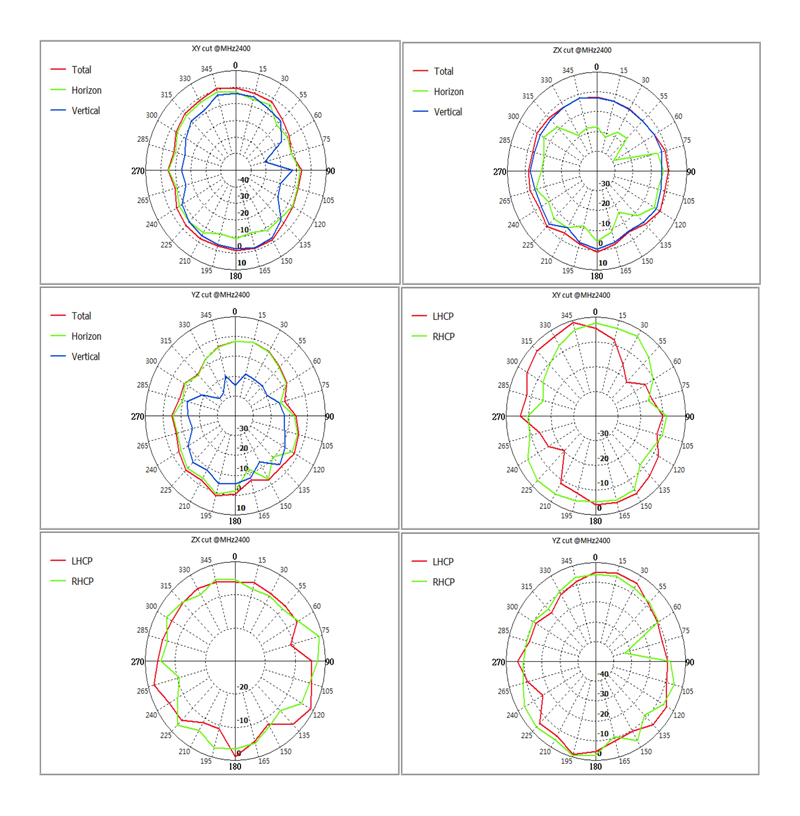

2400Mhz:

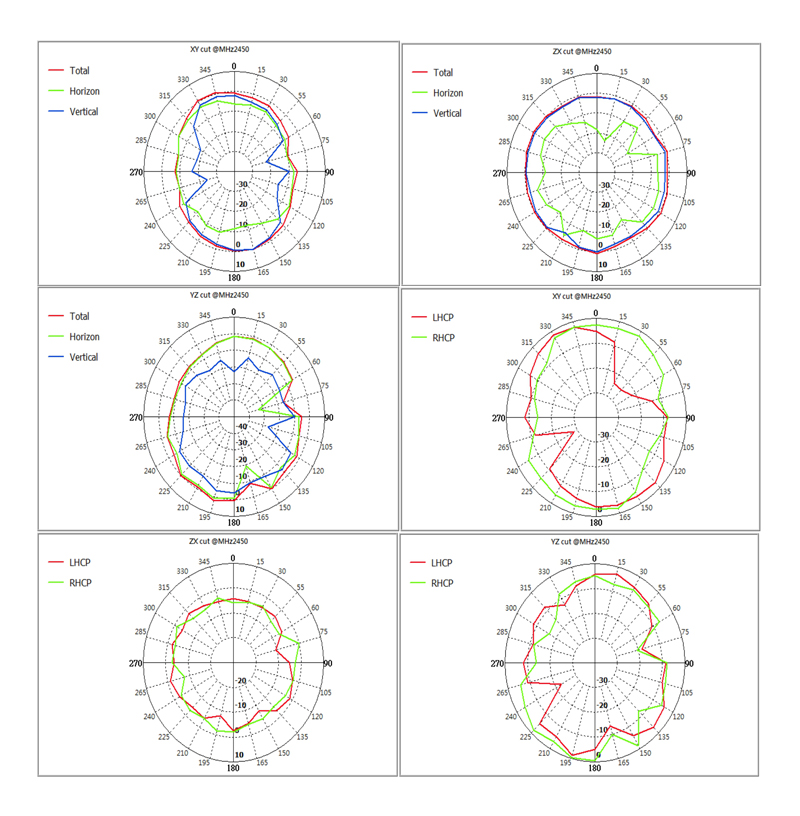

2450Mhz:

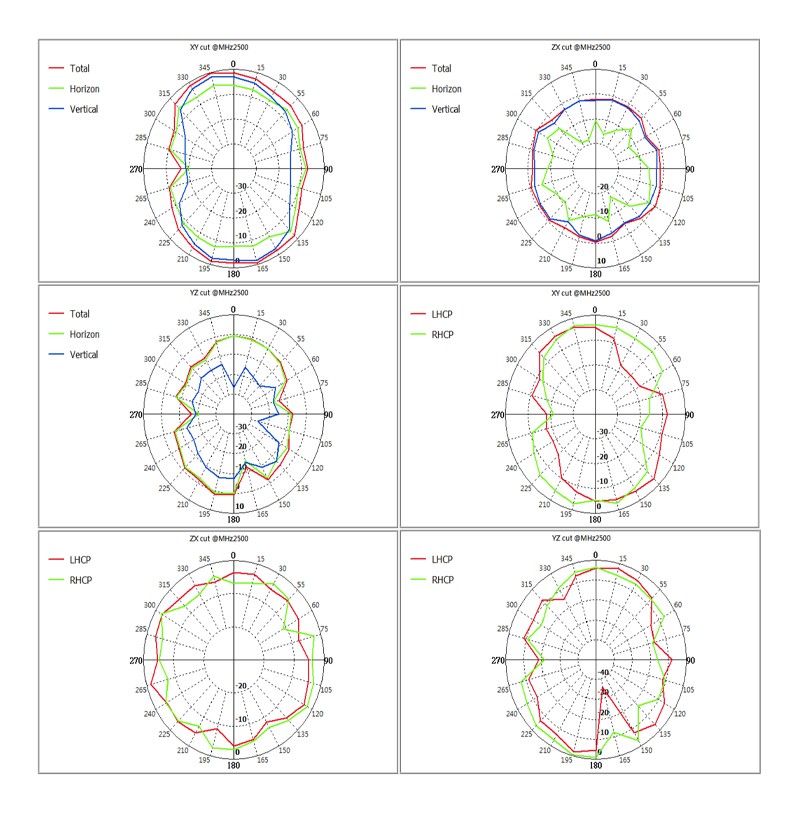

2500Mhz:

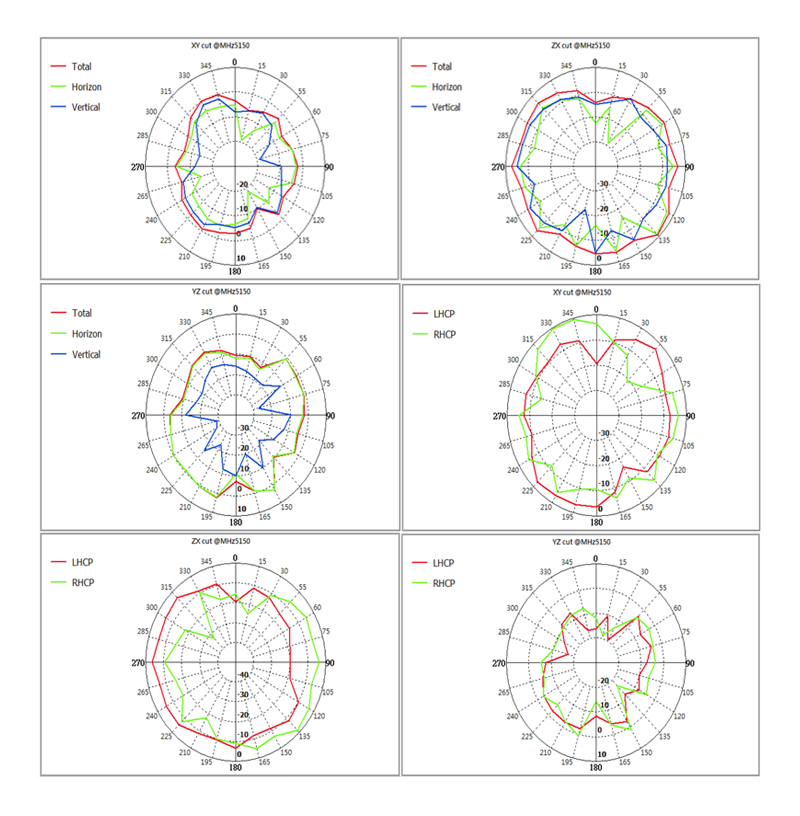

5150Mhz:

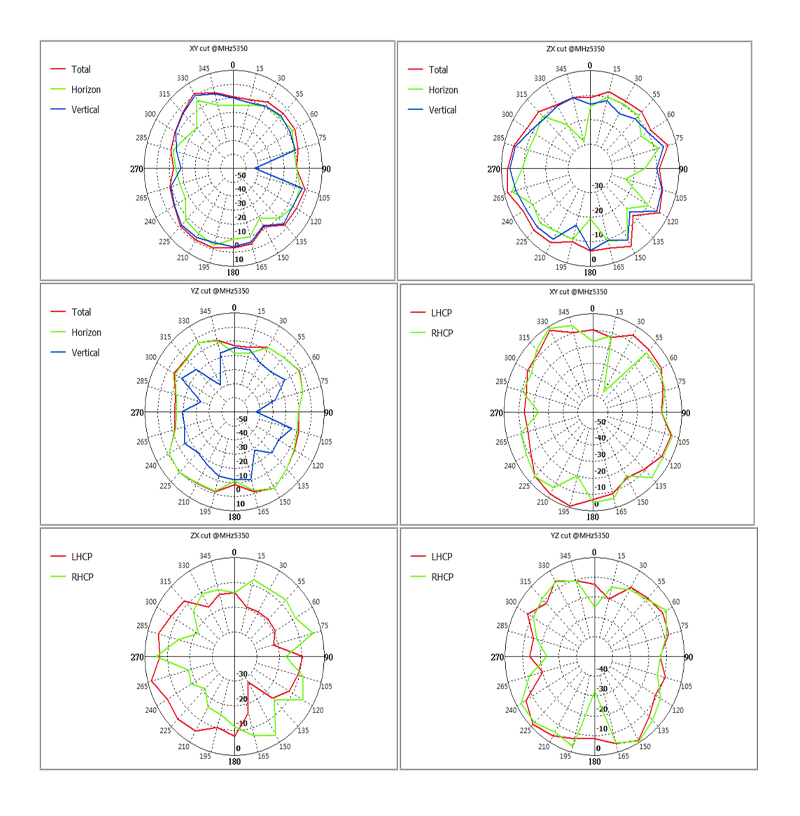

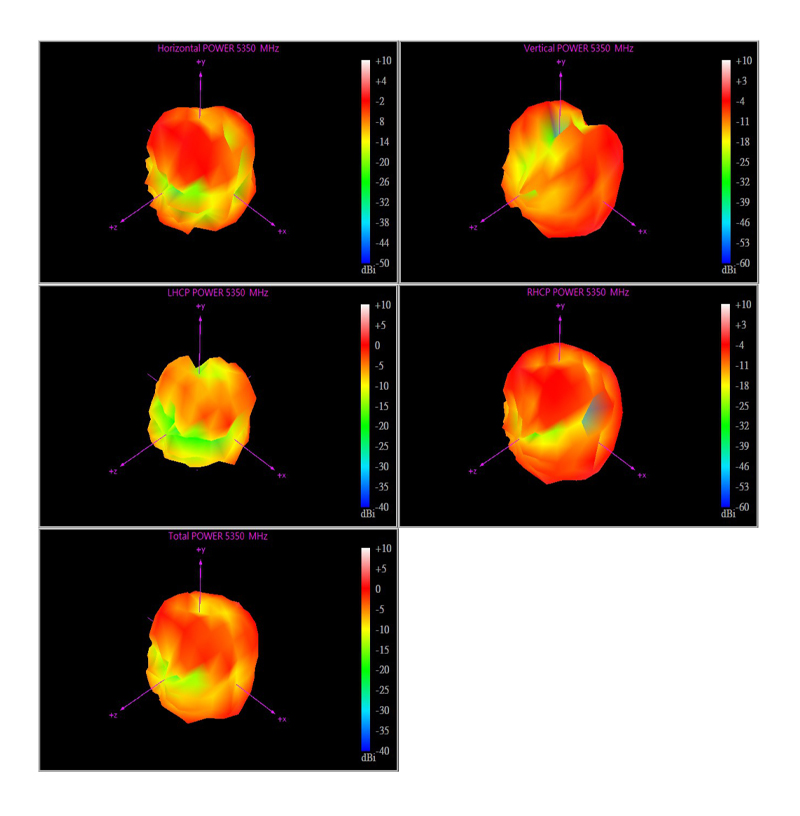

5350Mhz:

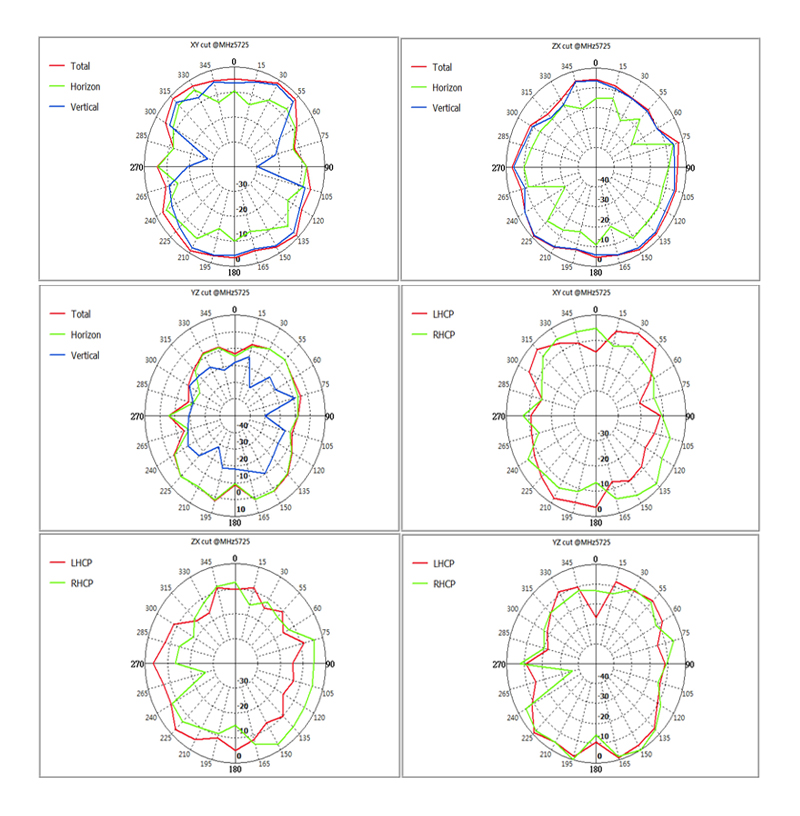

5725Mhz:

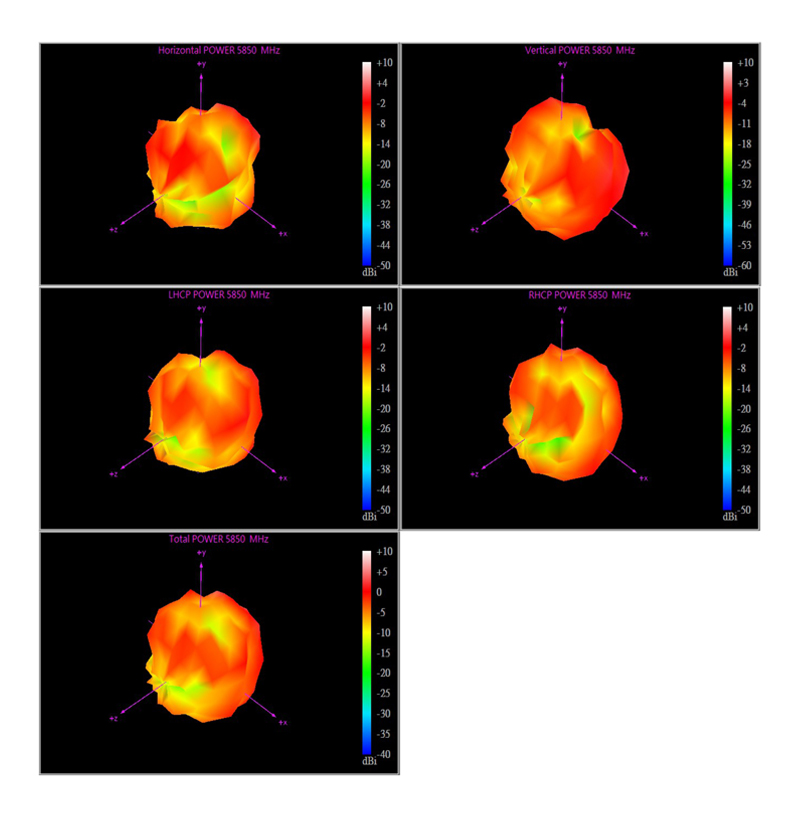

5850Mhz:

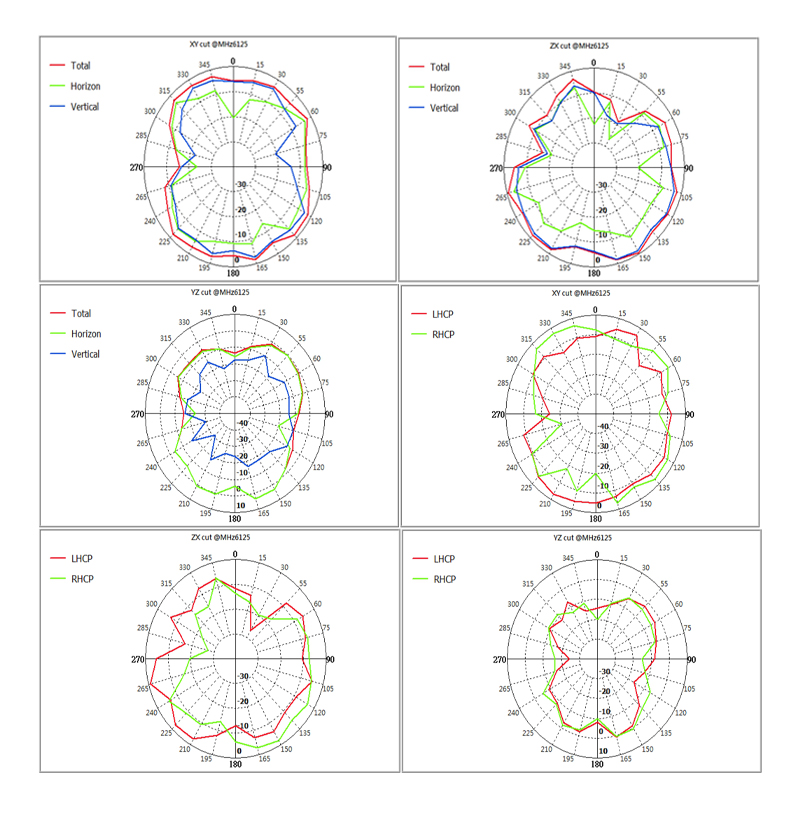

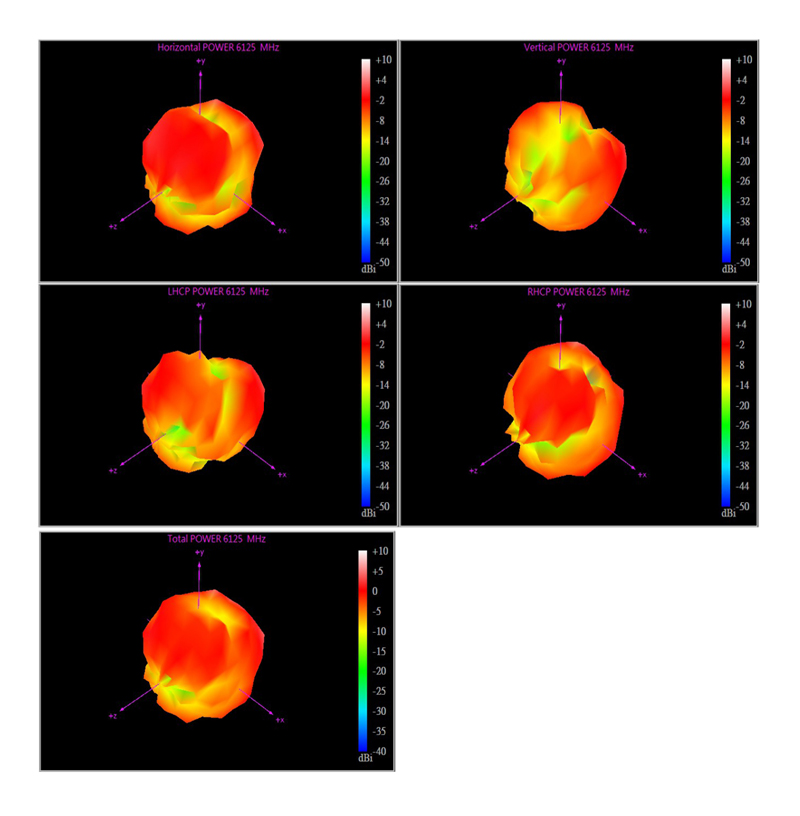

6125Mhz:

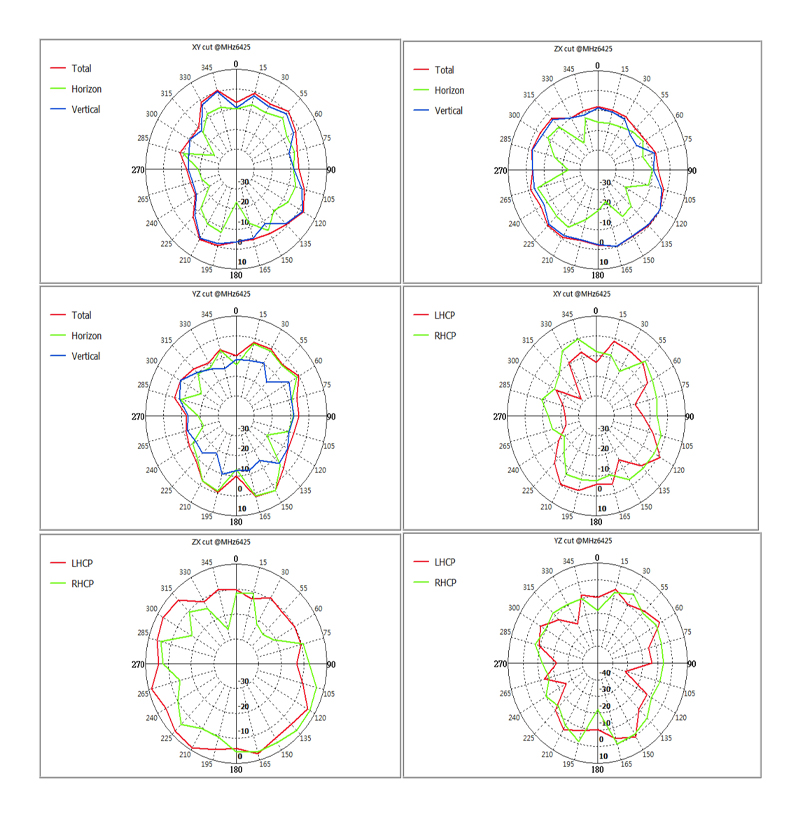

6425Mhz:

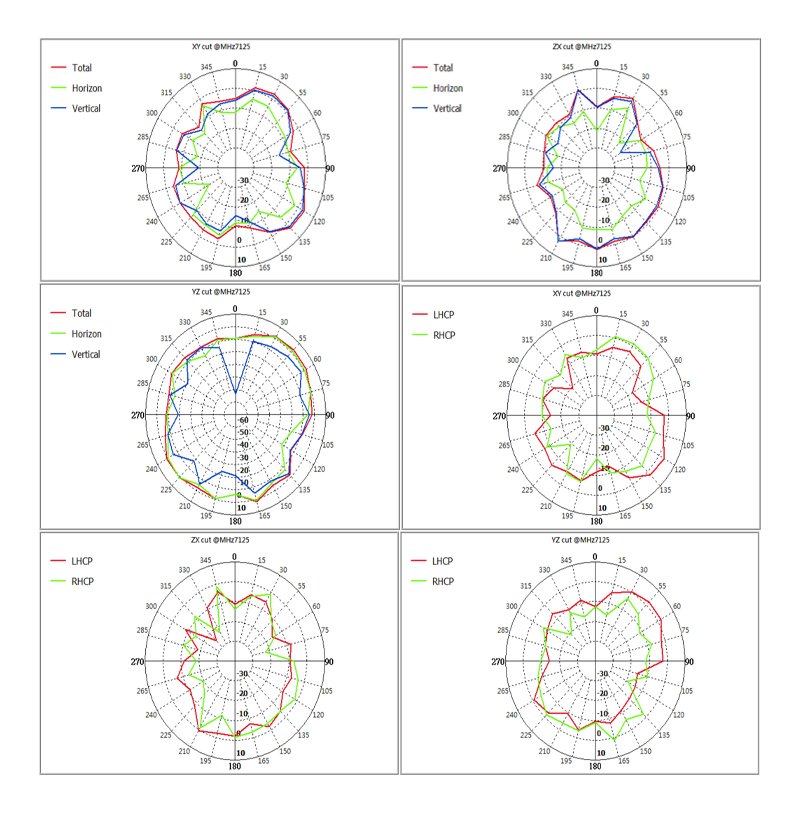

7125Mhz:
