TH915K
  • Product Description
  • Product Specification

1.GENERAL DESCRIPTION

P/N
TH915K-TNC(M)


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928MHz
Nominal Impedance 50 ohm
Polarization Vertical

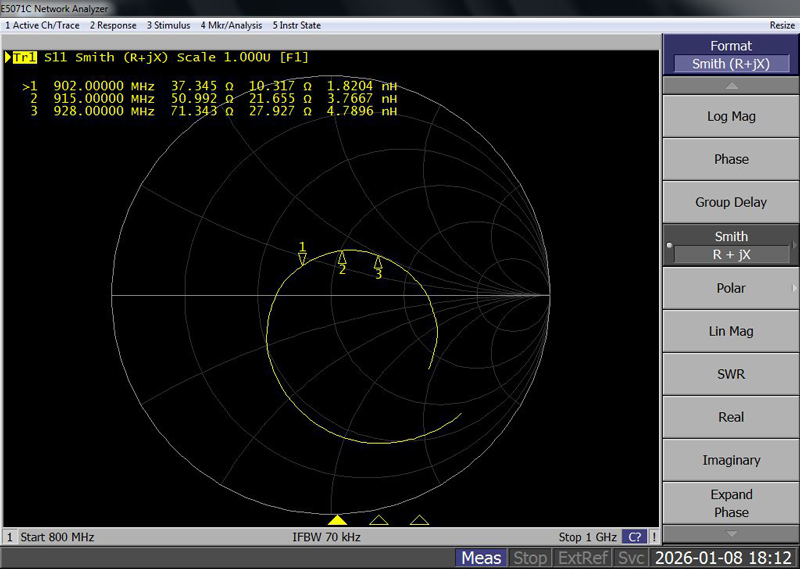

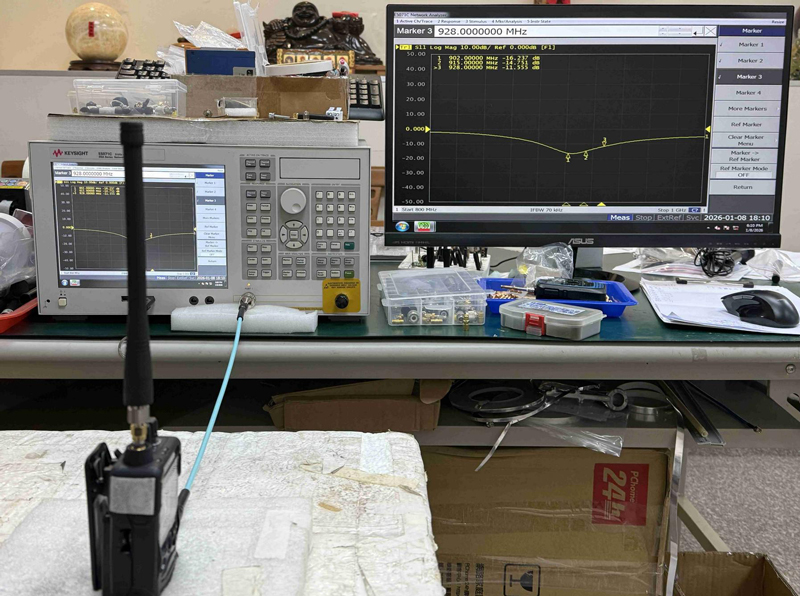

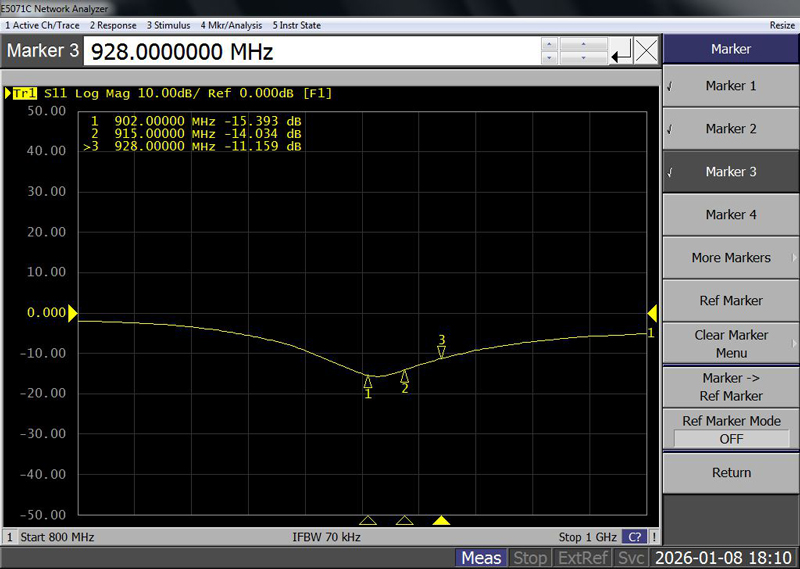

Return Loss Please See Data-1

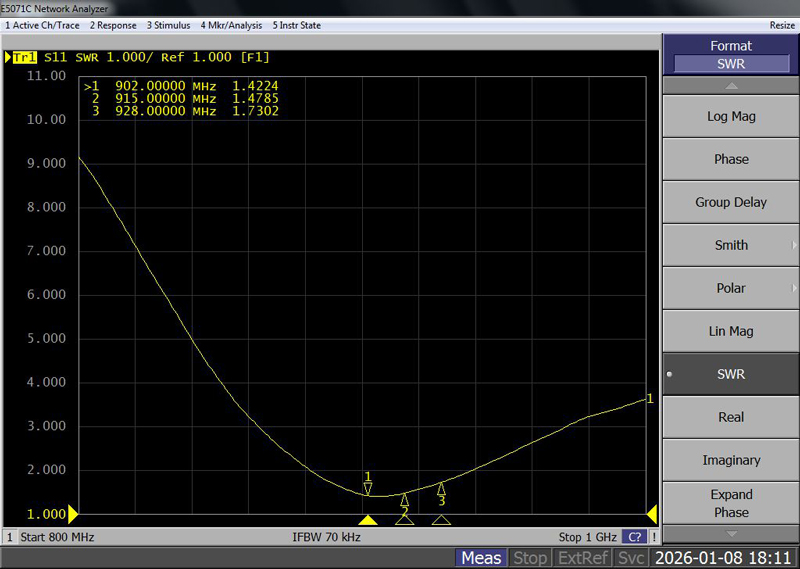

V.S.W.R 2.0:1


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type SMA (Female)
Antenna Dimensions OD16 x164mm±3
Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C
Waterproof IPX6

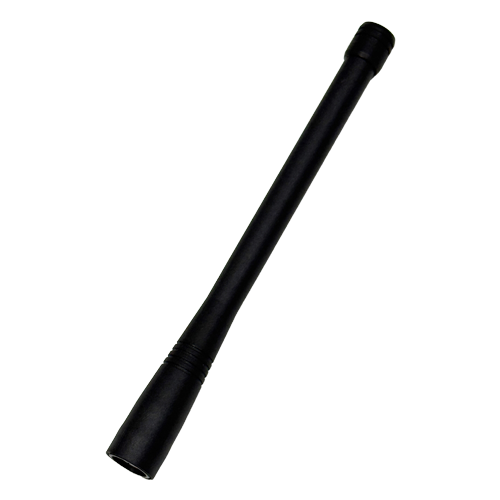

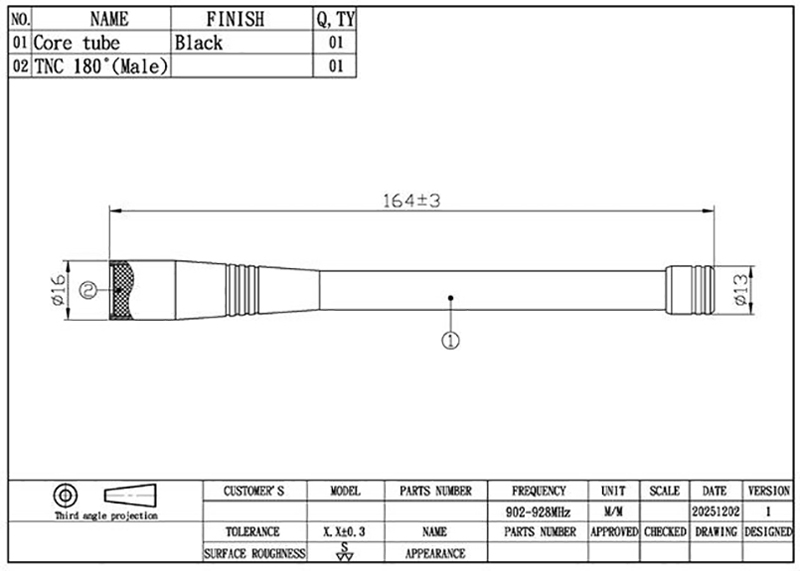

2. Appearance

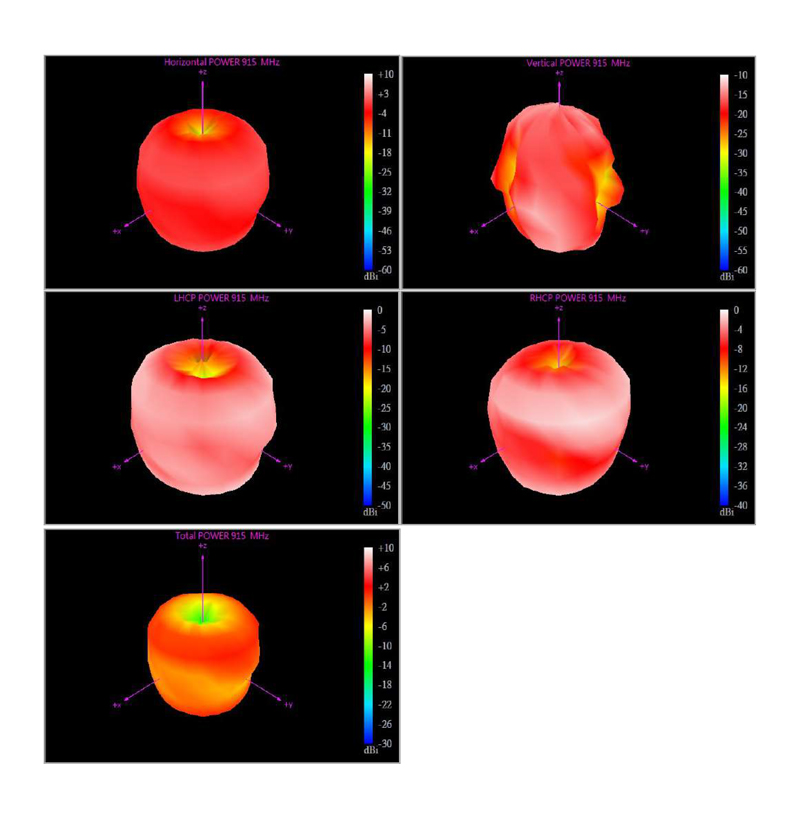

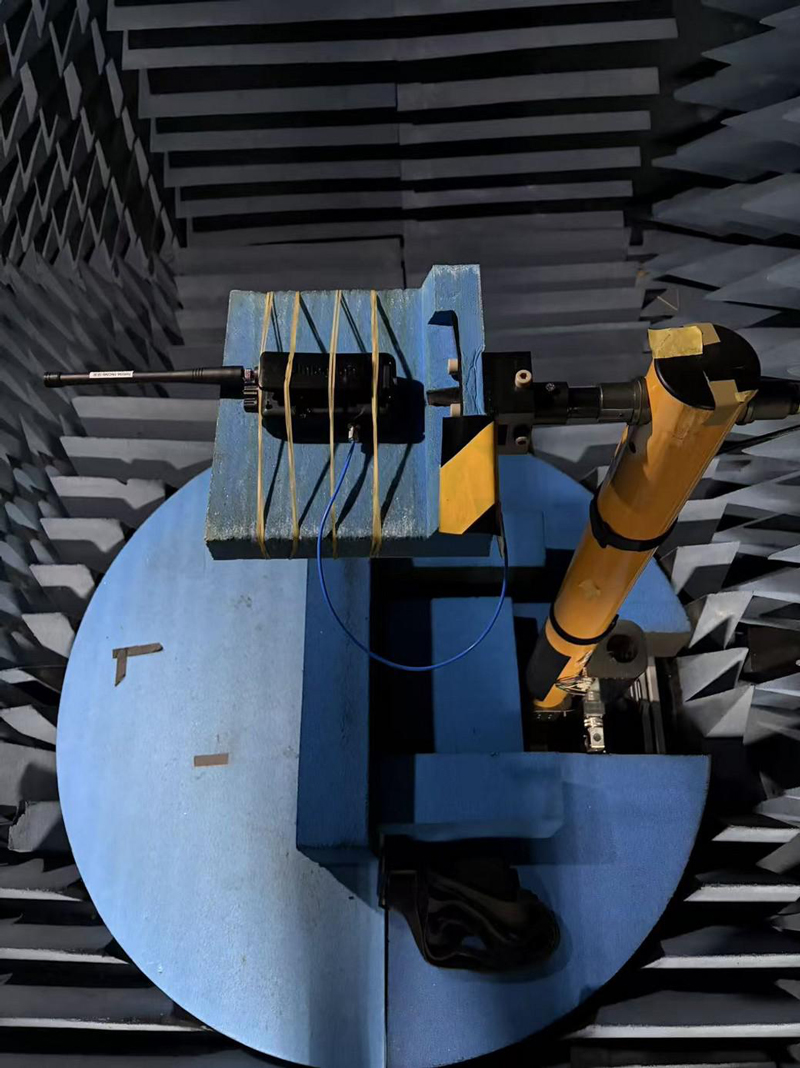

3. FREQUENCY





3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
860 MHz -6.38 -9.54 -4.67 34.11 -0.05 -4.67
868 MHz -5.97 -8.66 -4.10 38.88 -0.13 -4.10
874 MHz -5.83 -8.21 -3.85 41.24 0.05 -3.85
902 MHz -4.03 -5.28 -1.60 69.16 1.56 -1.60
915 MHz -4.37 -5.20 -1.76 66.71 1.28 -1.76
928 MHz -4.63 -5.07 -1.83 65.60 1.23 -1.83
930 MHz -4.83 -5.21 -2.01 63.01 1.06 -2.01
960 MHz -6.21 -5.82 -3.00 50.07 0.52 -3.00

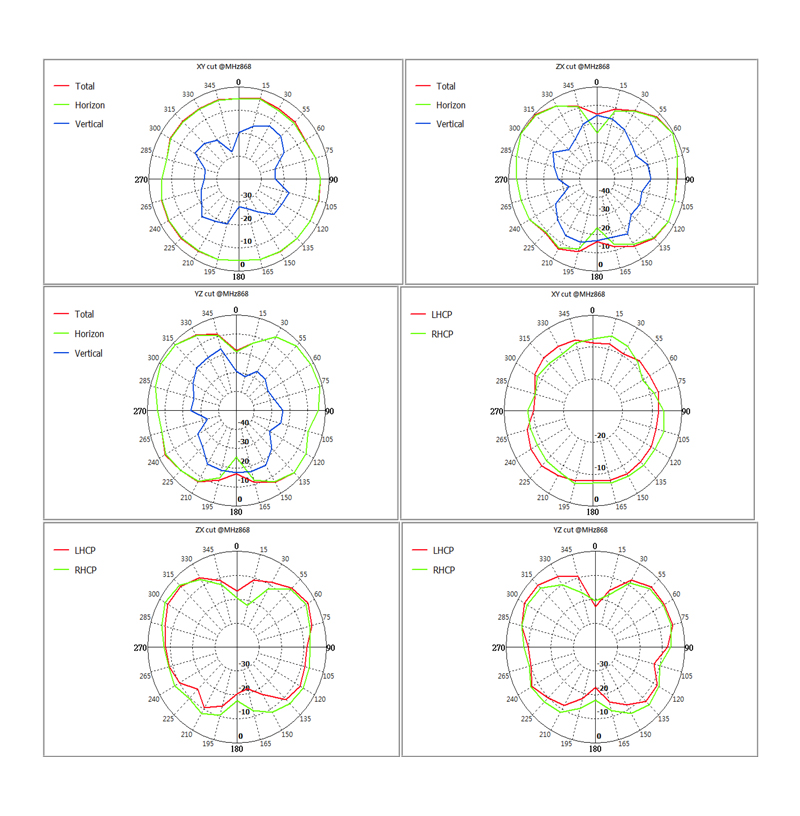

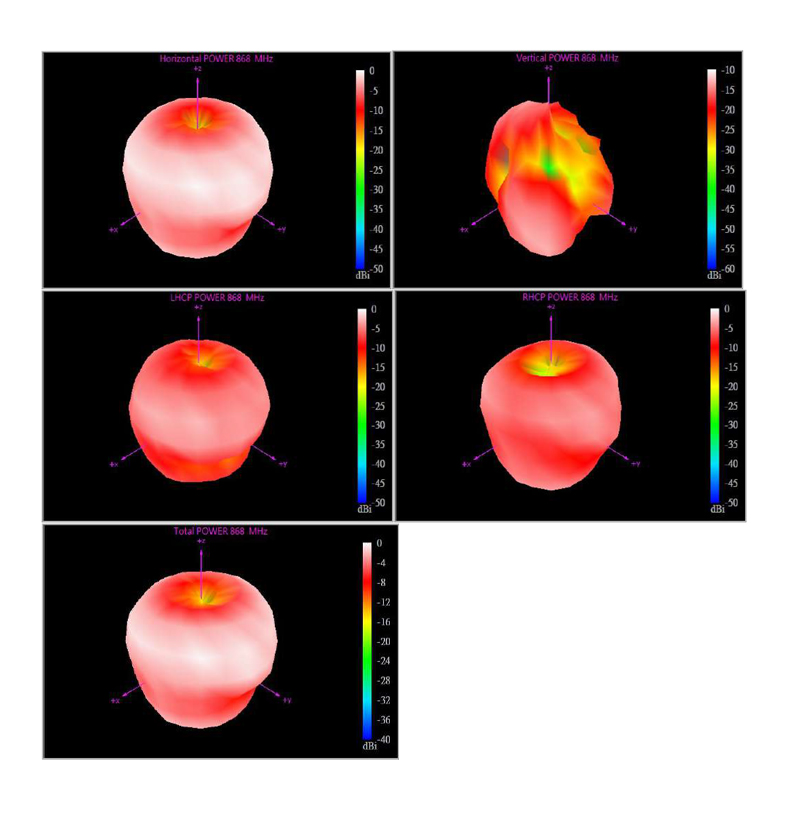

868Mhz:

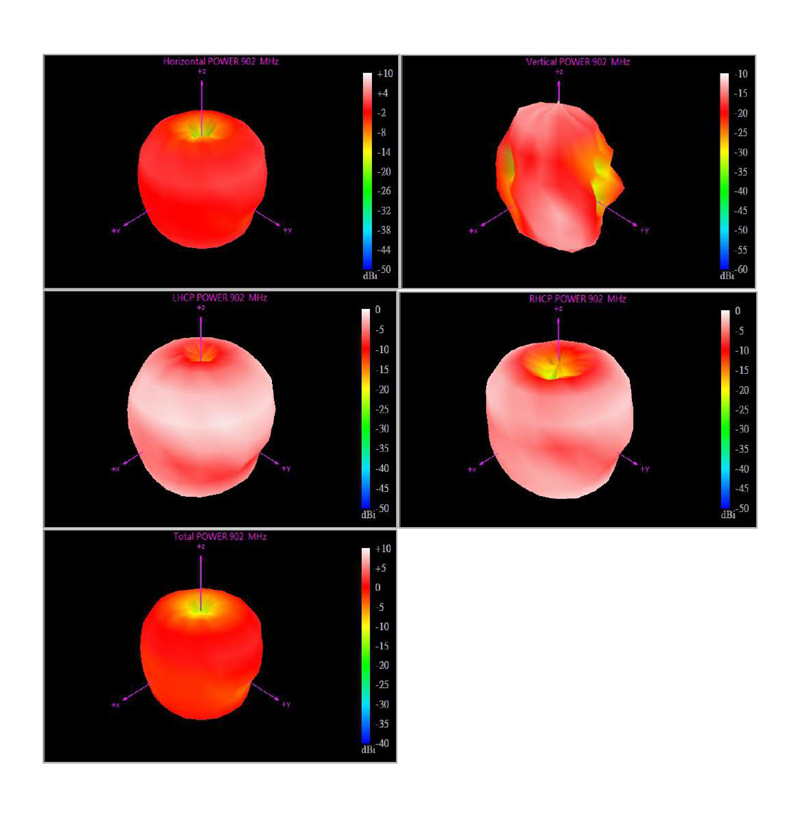

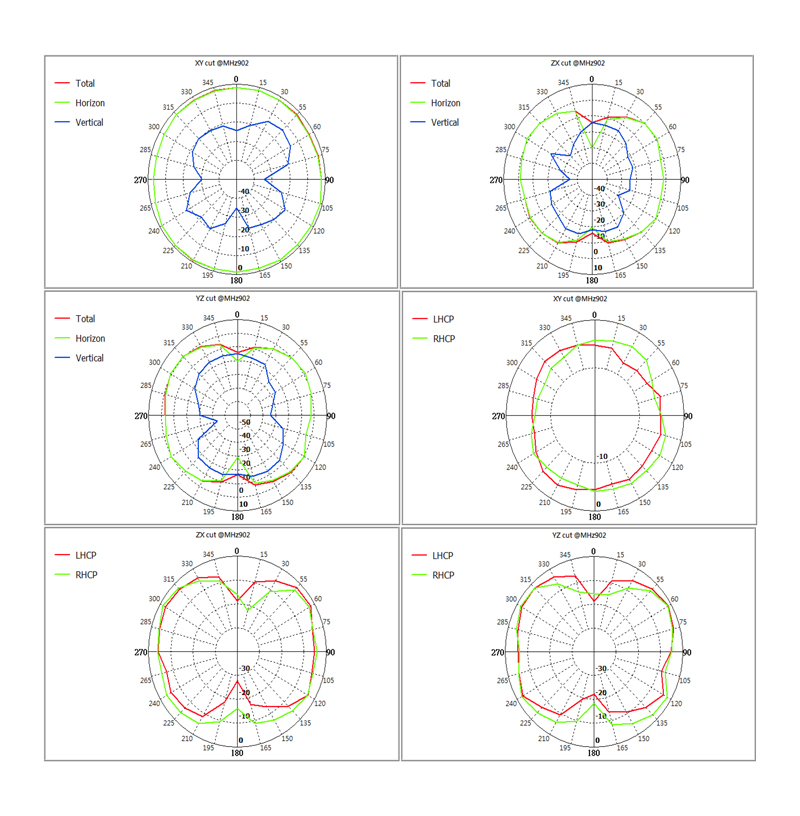

902Mhz:

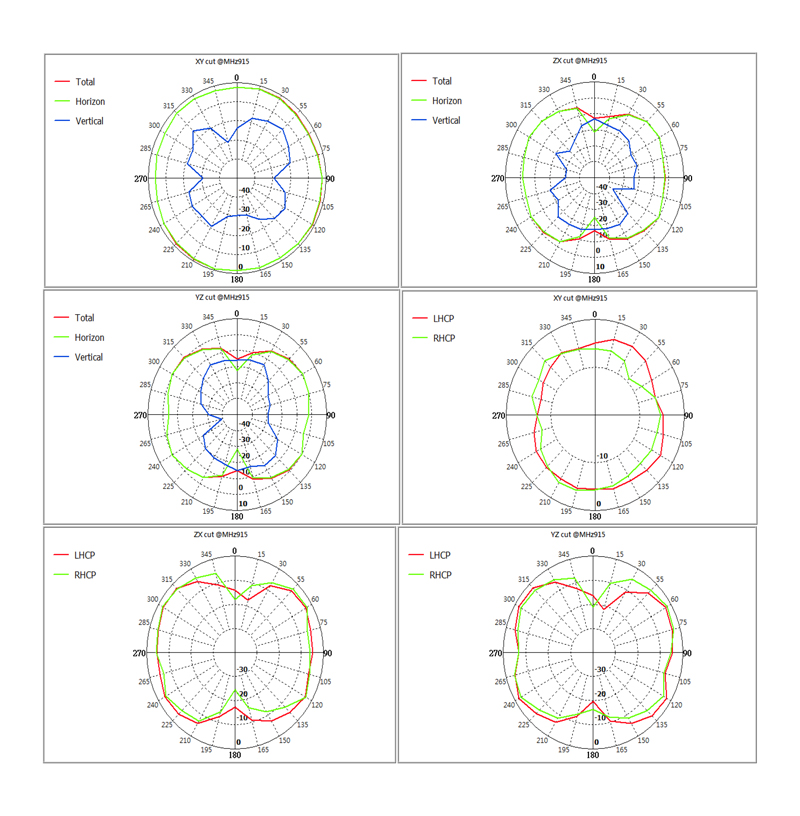

915Mhz:


928Mhz:
