TH900R
  • Product Description
  • Product Specification

FOR RFID UHF & ISM & ZigBee


1.GENERAL DESCRIPTION

P/N
TH900R-TNC(M)


1.1 Electrical Properties

Parameter Description
Frequency Band 860~930MHz
Nominal Impedance 50 ohm
Polarization Vertical

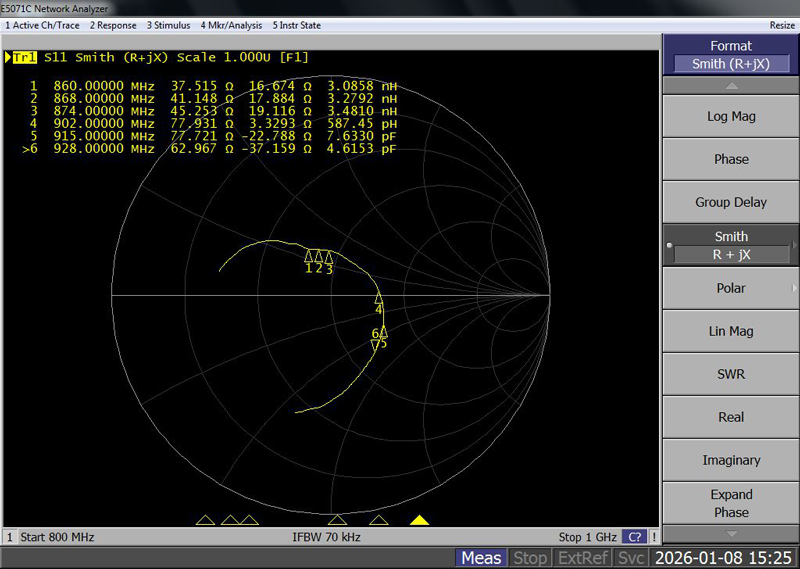

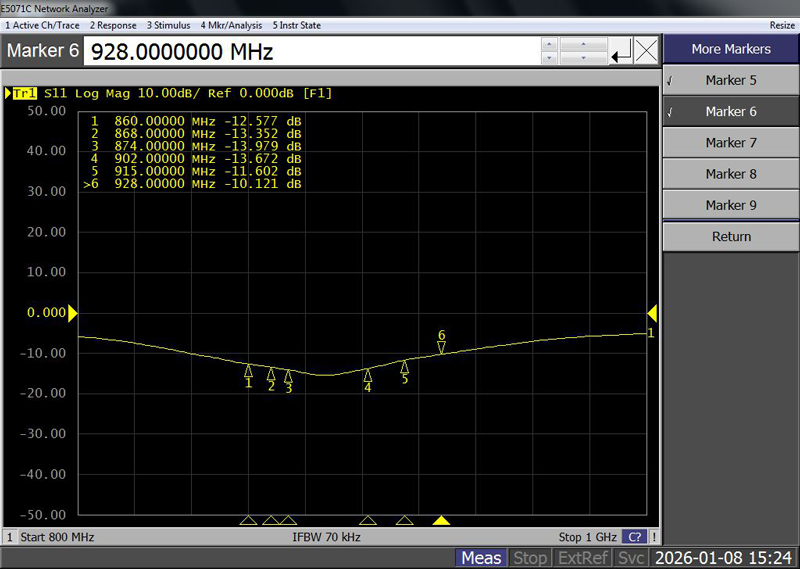

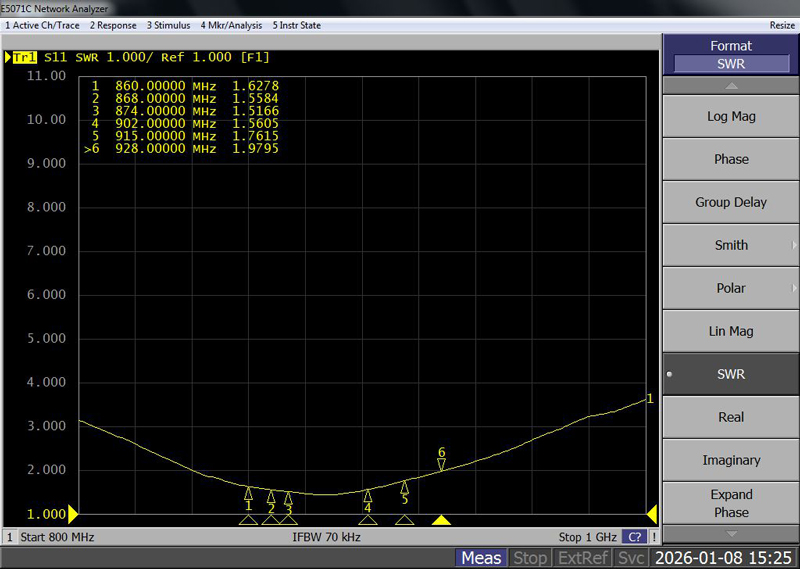

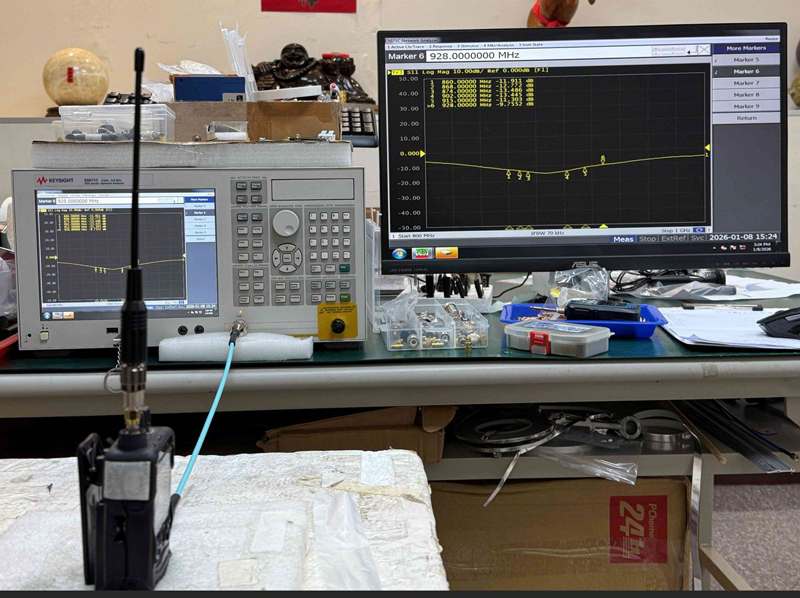

Return Loss Please See Data-1
V.S.W.R 2.0:1


1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Touch Type Screw Type
Connector Type TNC (male)
Antenna Dimensions OD14.9 x196mm±2
Color Black
Operating Temperature Range -30°C~+70°C
Storage Temperature Range -30°C~+70°C
Waterproof IPX6

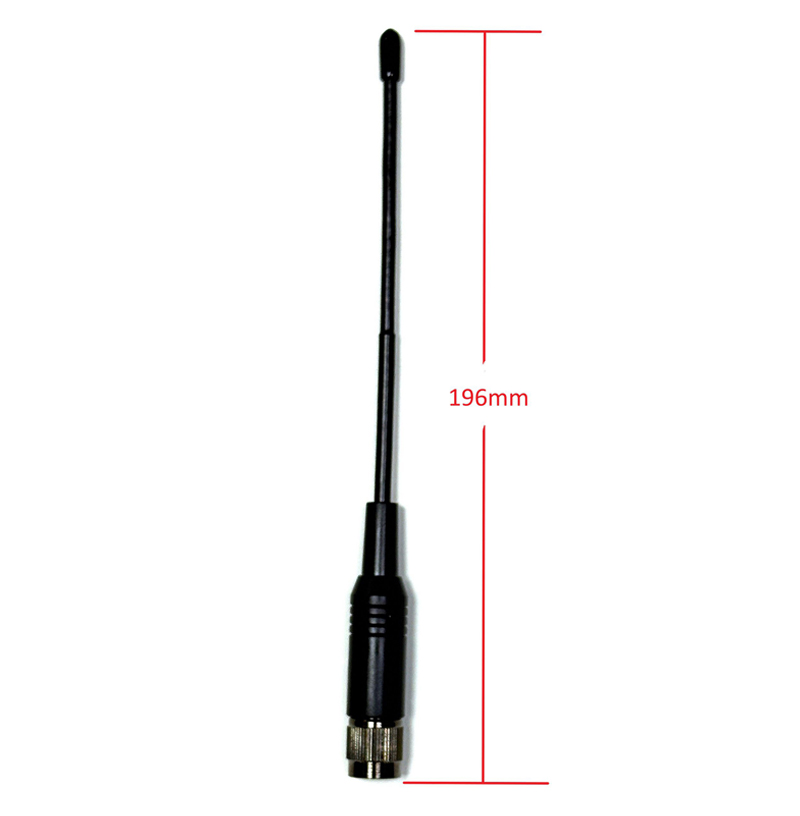

2.Appearance

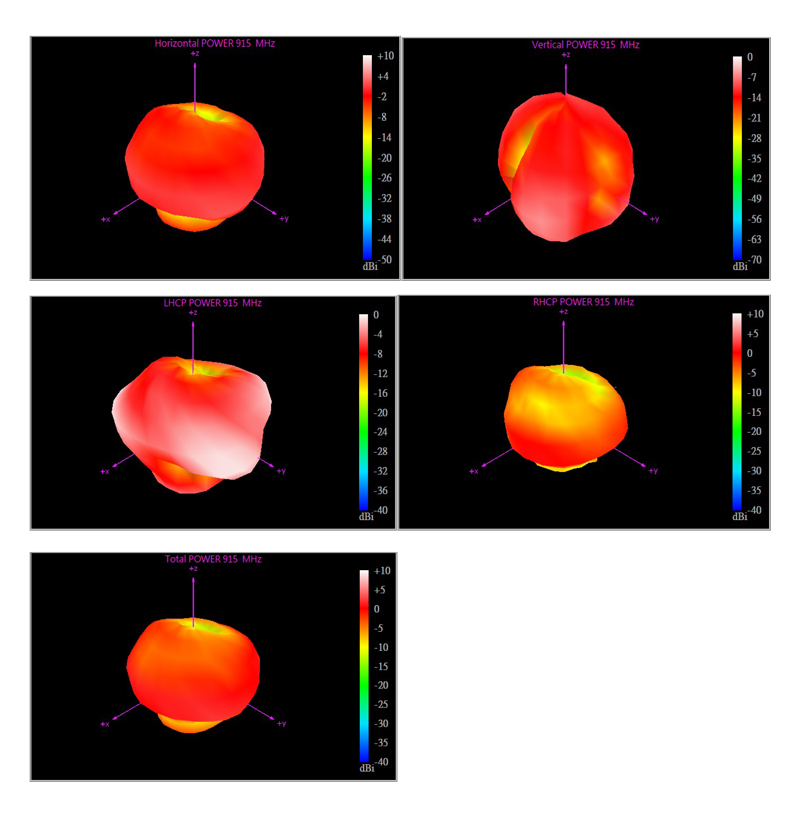

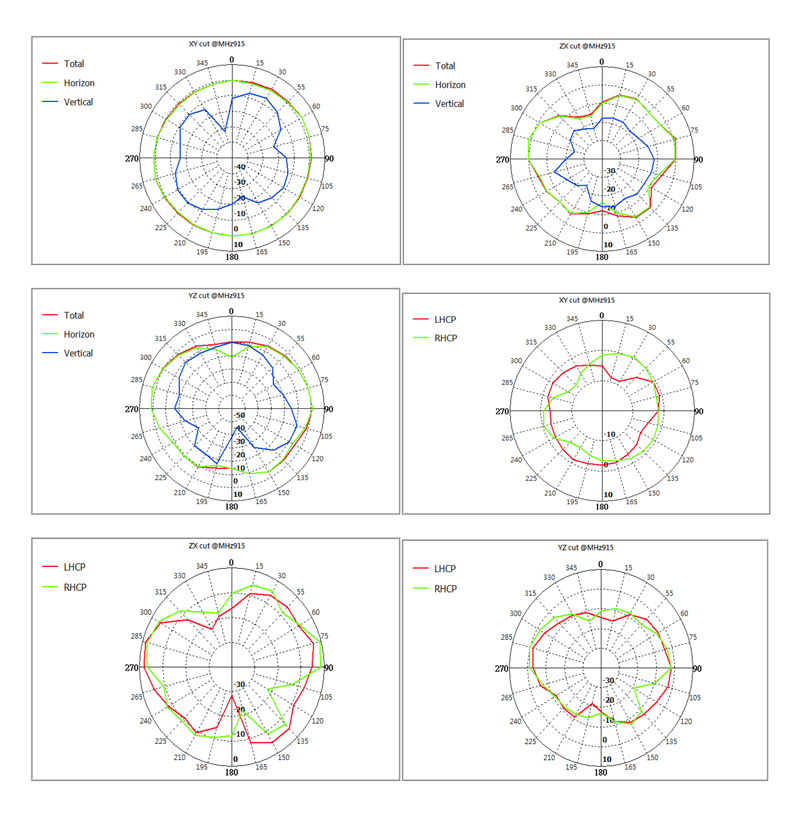

3.FREQUENCY





3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
850 MHz -5.21 -7.88 -3.33 46.42 1.94 -3.33
860 MHz -4.64 -7.24 -2.74 53.25 2.63 -2.74
868 MHz -4.83 -7.25 -2.86 51.71 2.41 -2.86
874 MHz -5.12 -7.41 -3.10 48.93 2.17 -3.10
902 MHz -4.17 -6.64 -2.22 59.98 3.26 -2.22
915 MHz -4.43 -7.03 -2.53 55.90 2.52 -2.53
928 MHz -4.66 -7.33 -2.78 52.67 1.89 -2.78
930 MHz -4.85 -7.61 -3.01 50.03 1.92 -3.01
960 MHz -6.26 -8.49 -4.22 37.82 0.62 -4.22

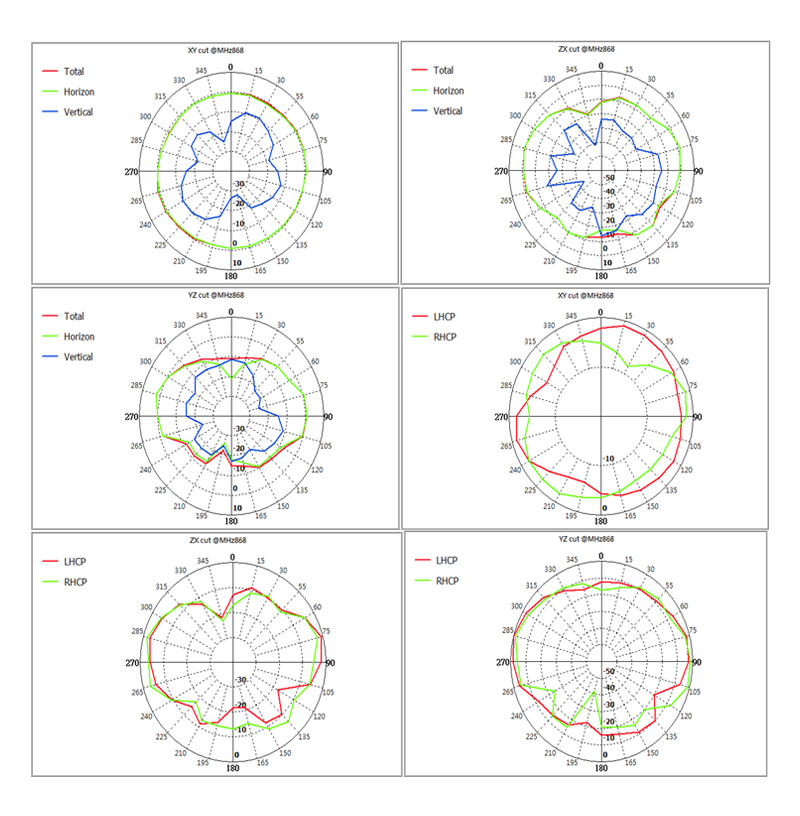

868Mhz:

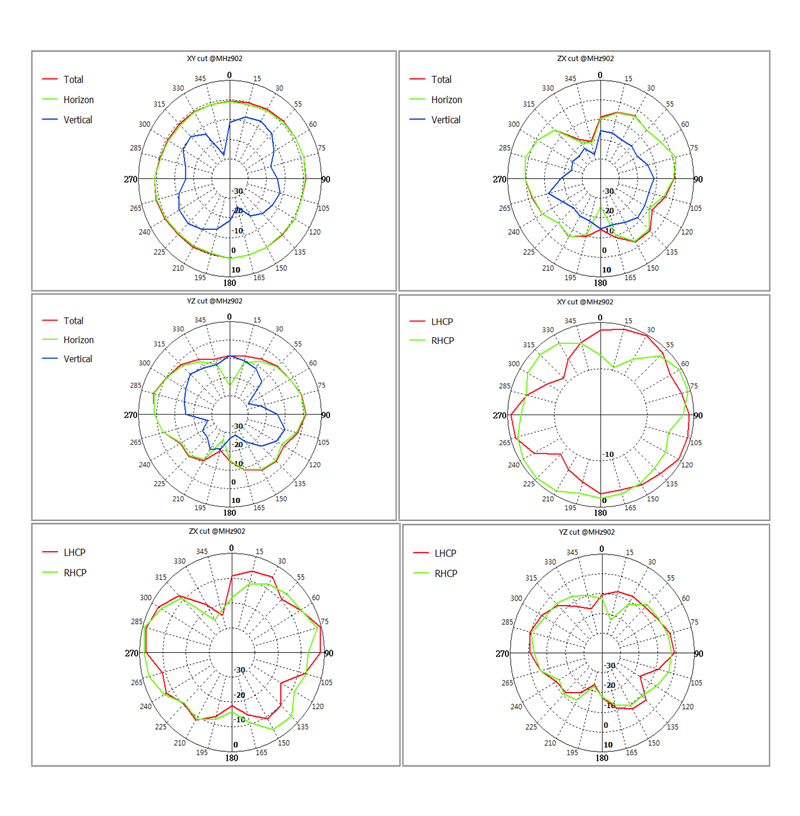

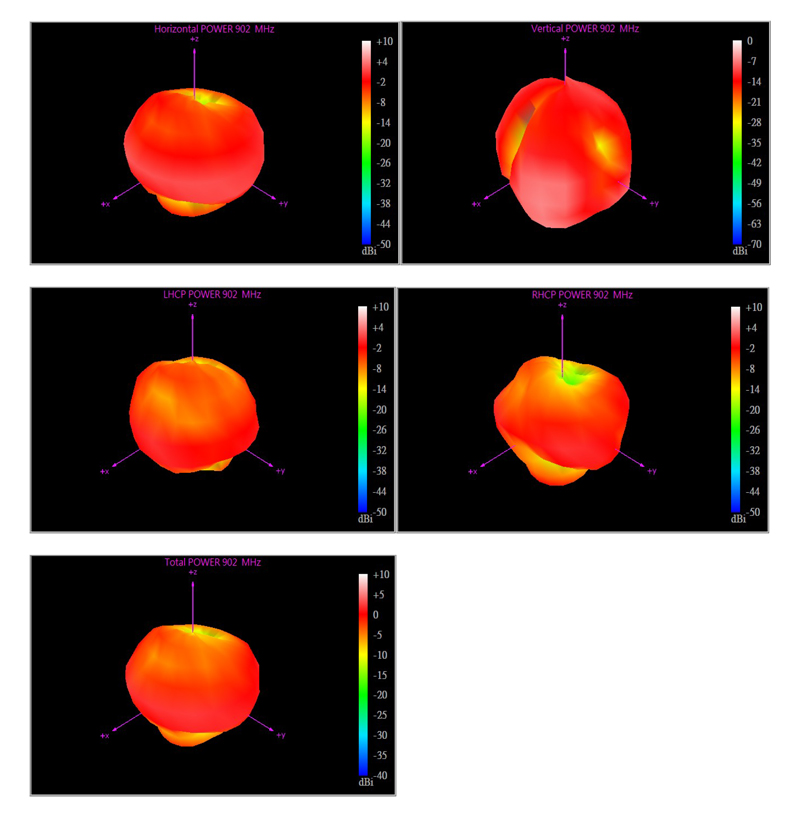

902Mhz:


915Mhz:

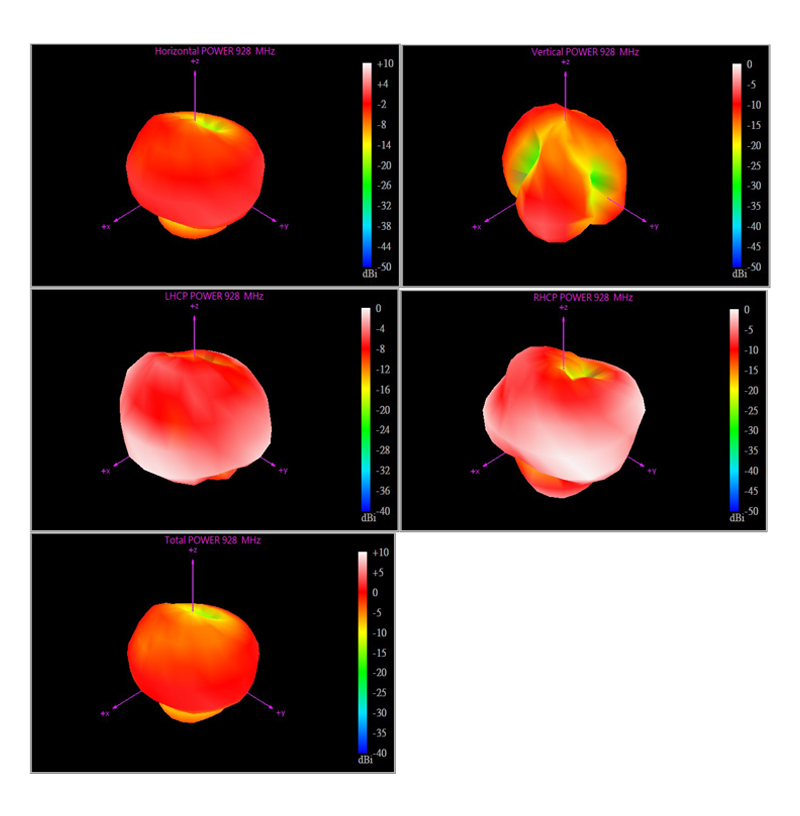

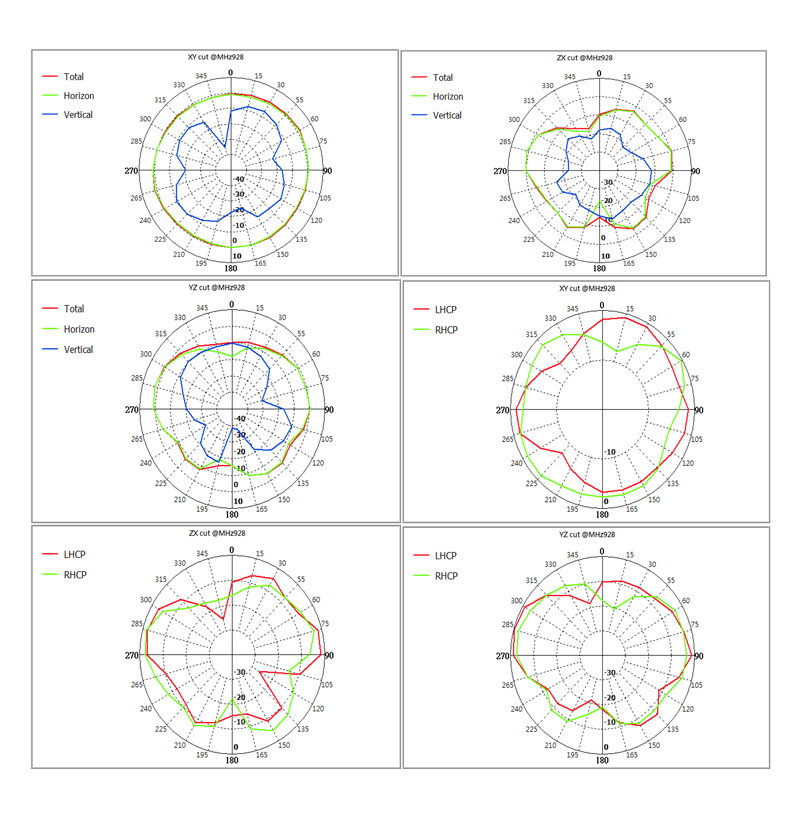

928Mhz:
