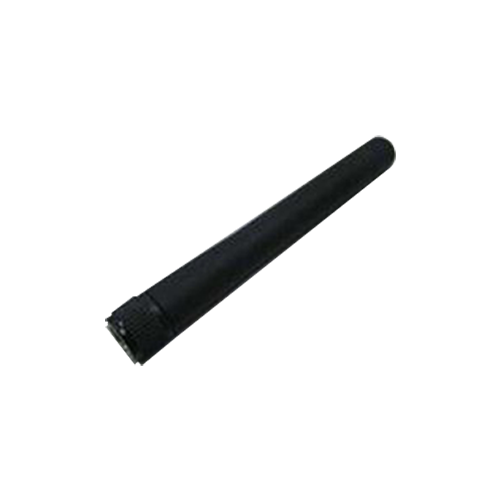

1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH86K |
TH86K-SMA(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
800~830MHz |

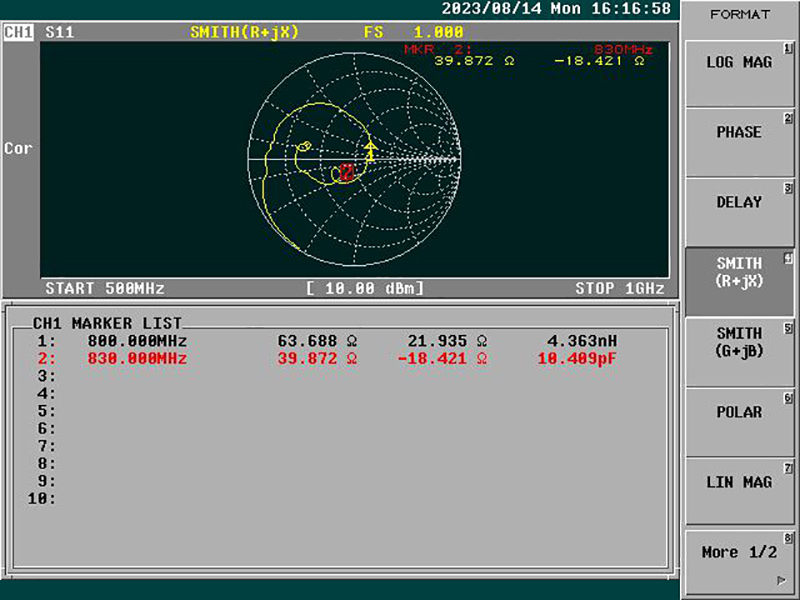

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
1 /4λ |
| Admitted Power radiation |
1W |

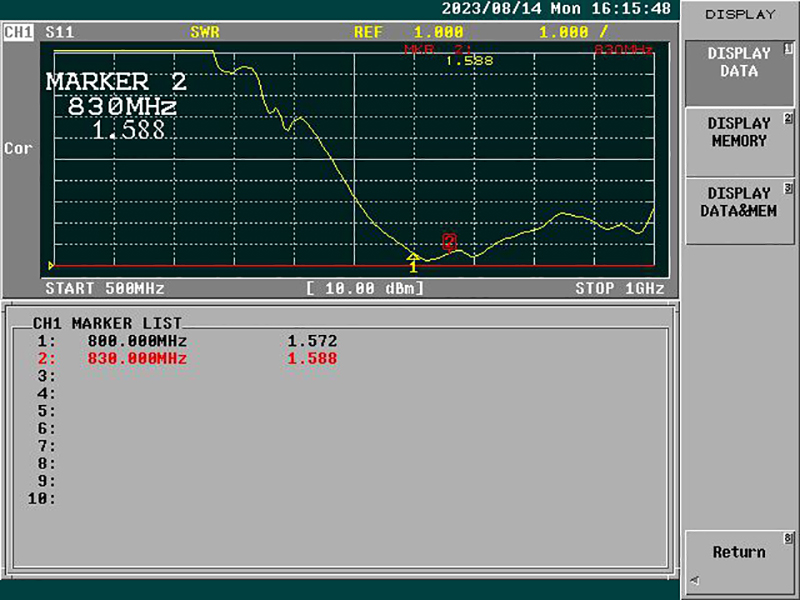

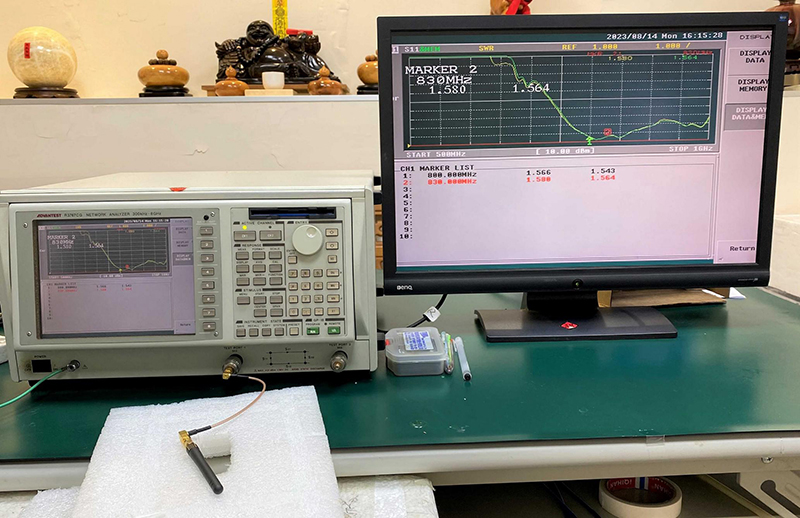

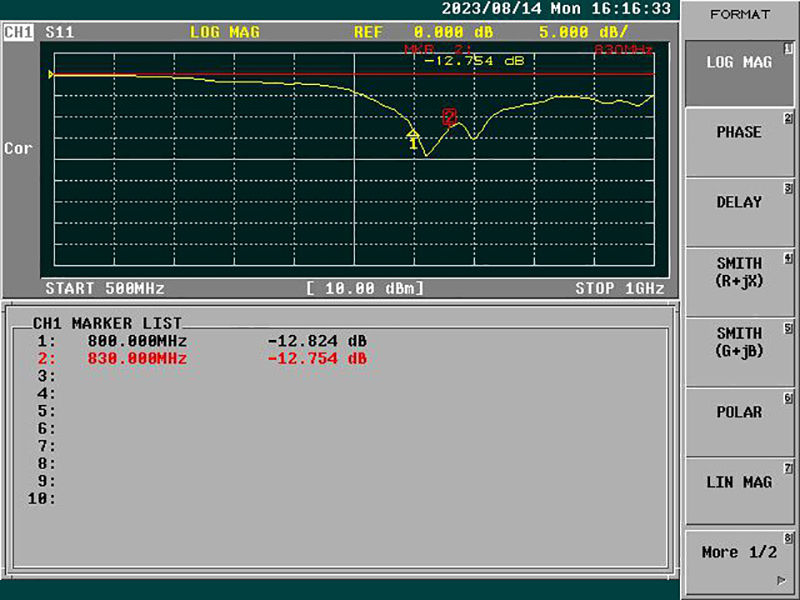

| V.S.W.R |
2.0:1 |
| Antenna Gain |
0 dBi |
| Note: Gain includes the cable loss |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Material |
TPU |
| Touch Type |
Screw Type |
| Connector Type |
SMA 180° (Male) |

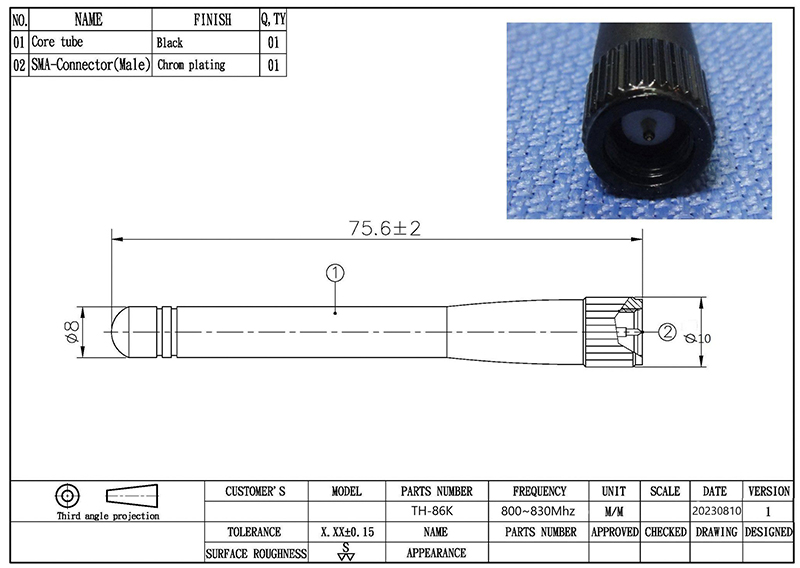

| Antenna Dimensions |
75.6mm±2 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |
