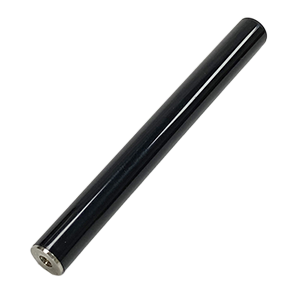

TH‐1625B
  • Product Description
  • Product Specification

1. GENERAL DESCRIPTION

Model No
TH1625B-SMA(M)

1.1 Electrical Properties

Parameter Description
Frequency Band 1600~2500Mhz
Nominal Impedance 50 ohm
Polarization Vertical

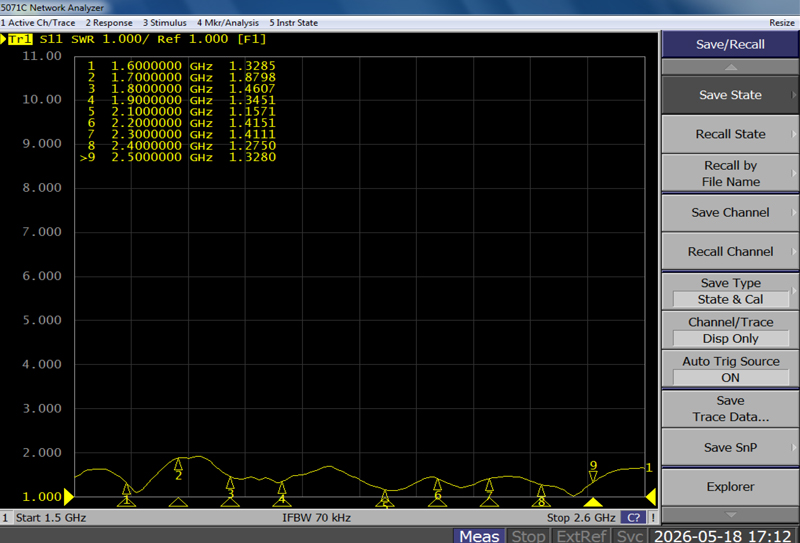

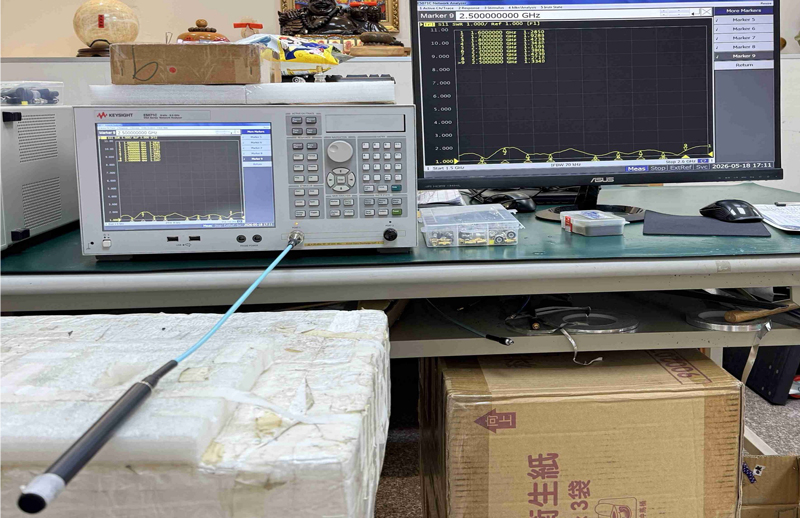

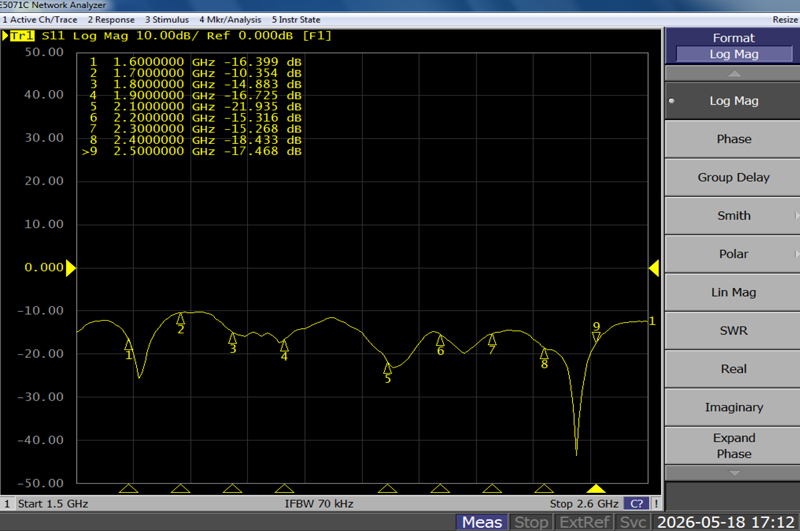

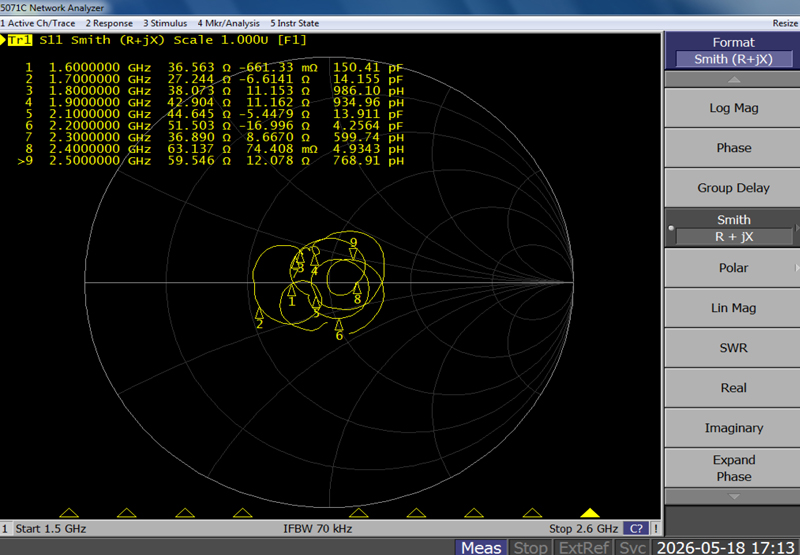

V.S.W.R 2.5:1
Peak Gain 0~3dbi
Power 20W

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Material ASA
Touch Type Screw Type
Connector Type SMA connector (Male)

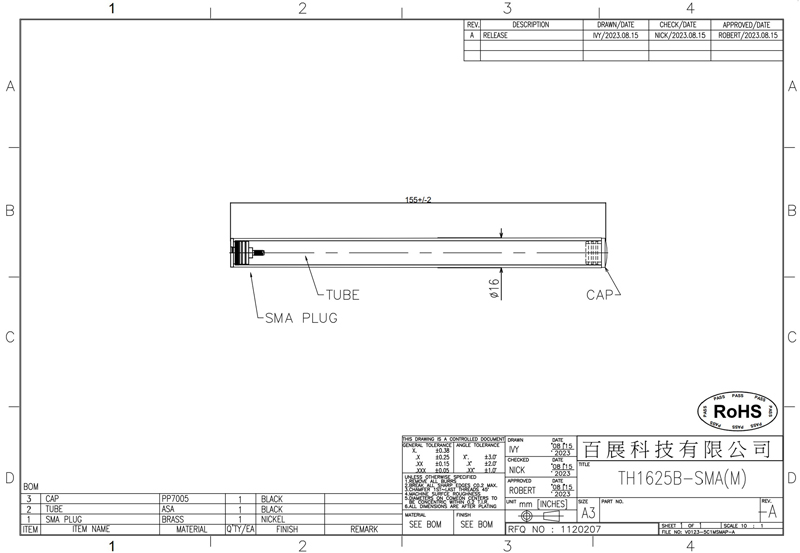

Antenna Dimensions Ø16 x 155mm ±3
Weight 35g
Antenna Color Black
Operating Temperature Range -40°C~+85°C
Storage Temperature Range -40°C~+85°C
water proof IP67

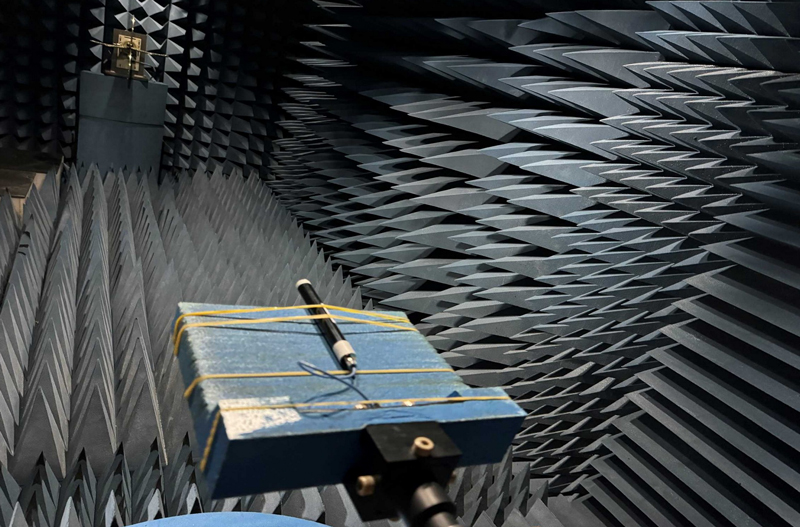

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
1600 MHz -5.45 -4.48 -1.93 64.14 1.36 -1.93
1700 MHz -5.83 -4.75 -2.25 59.56 1.32 -2.25
1800 MHz -6.79 -4.46 -2.46 56.72 1.06 -2.46
1900 MHz -7.10 -3.58 -1.99 63.28 1.98 -1.99
2000 MHz -8.42 -2.95 -1.87 65.09 2.84 -1.87
2100 MHz -9.16 -2.88 -1.96 63.67 3.73 -1.96
2200 MHz -7.56 -3.49 -2.05 62.36 3.27 -2.05
2300 MHz -5.97 -4.82 -2.35 58.24 1.61 -2.35
2400 MHz -6.56 -4.69 -2.52 55.99 2.26 -2.52
2500 MHz -5.69 -4.33 -1.95 63.88 3.67 -1.95

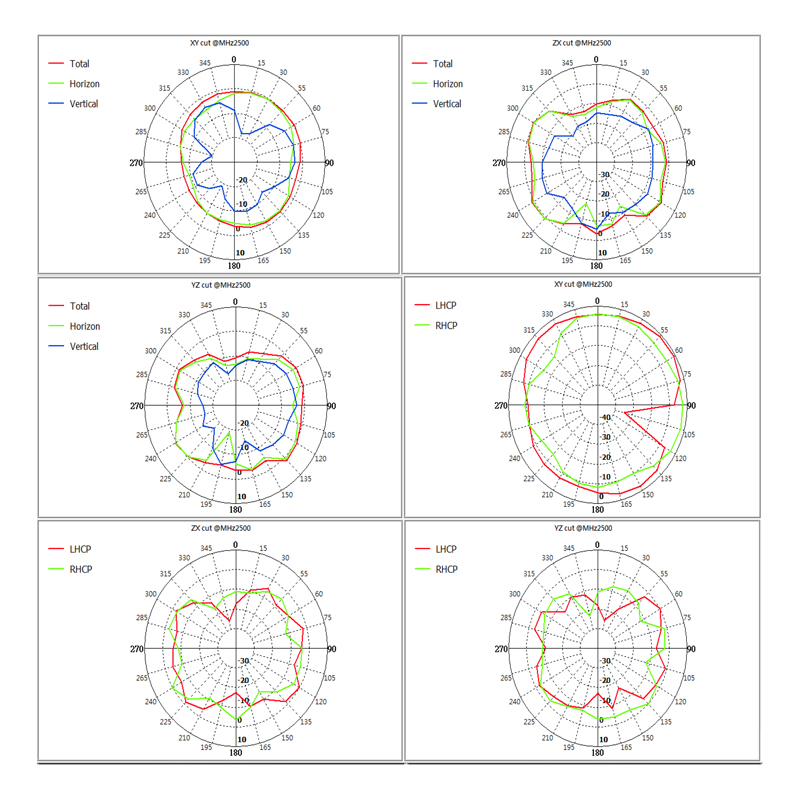

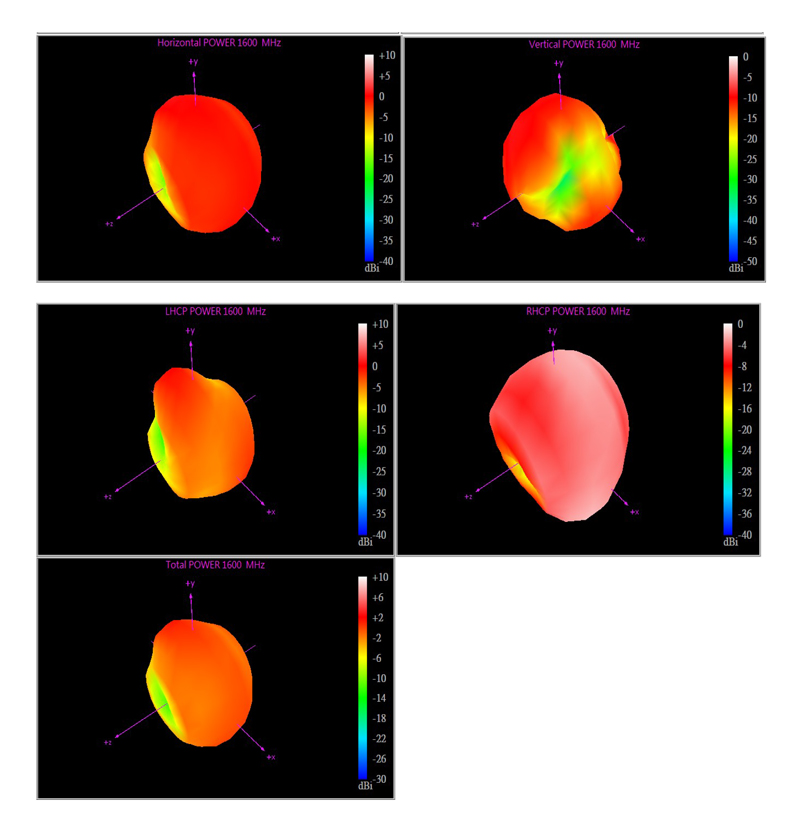

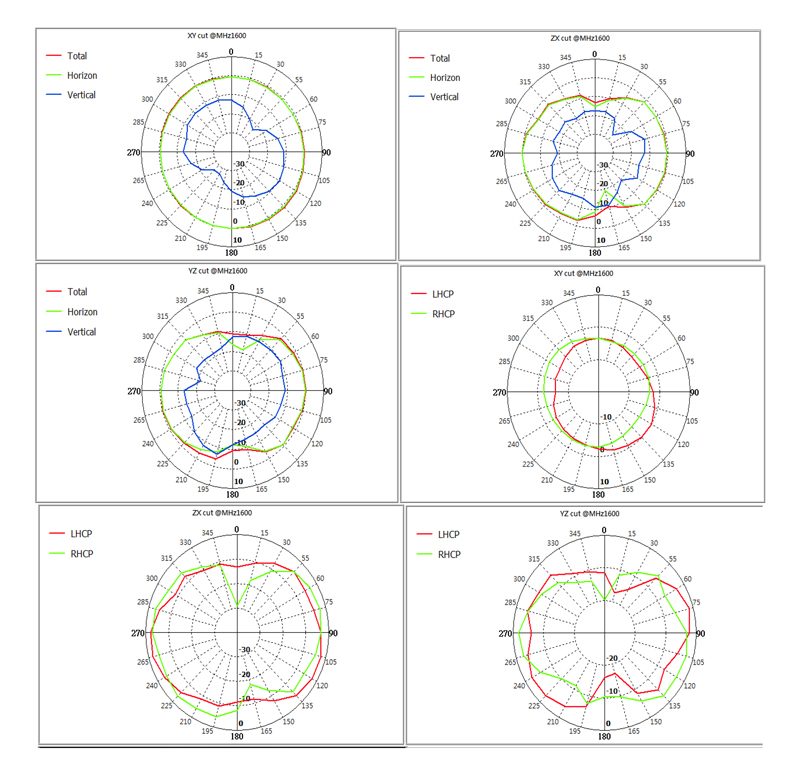

1600Mhz:

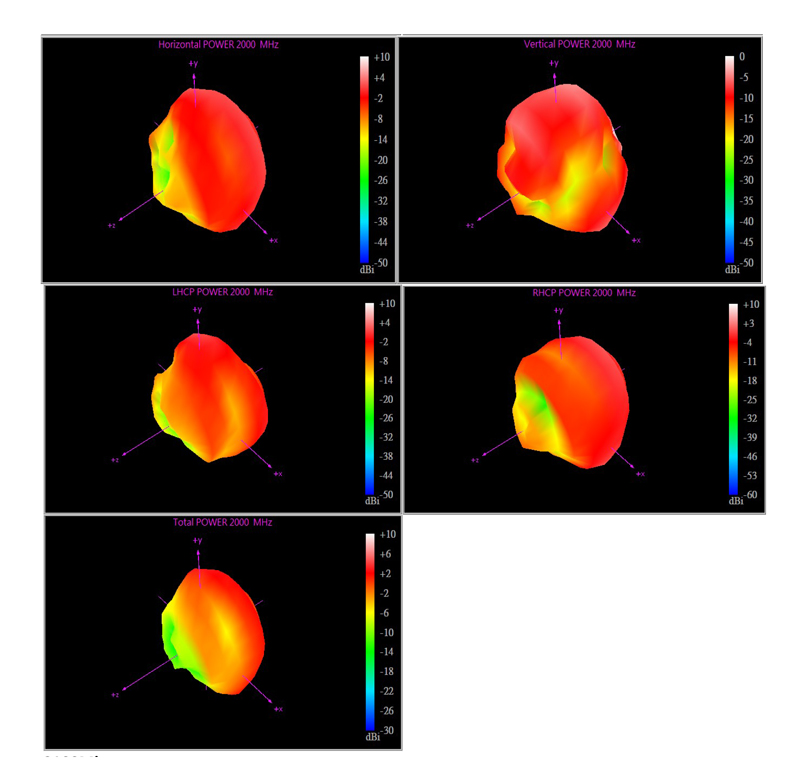

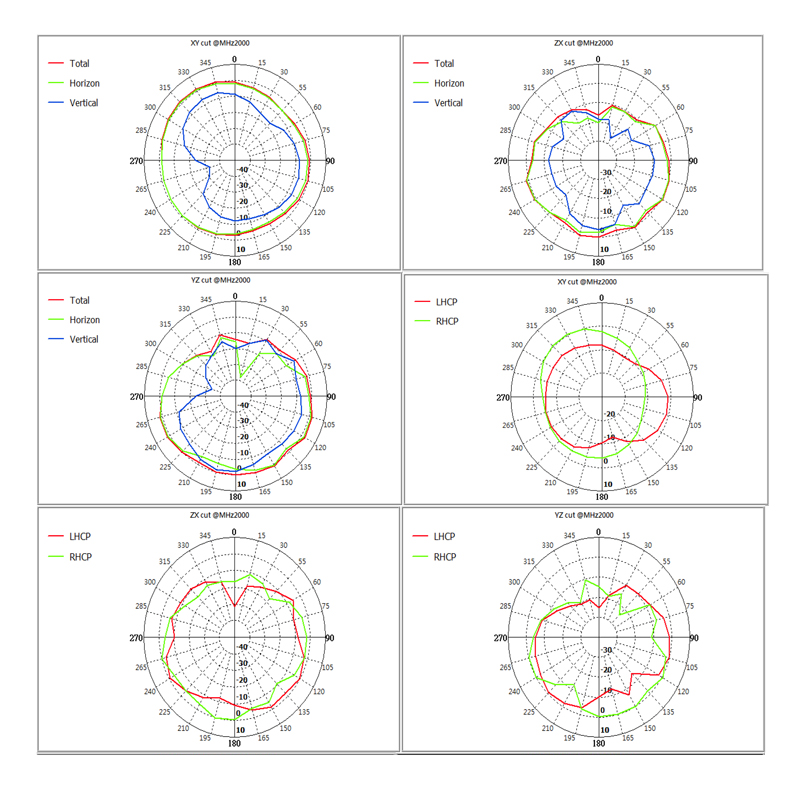

2000Mhz:

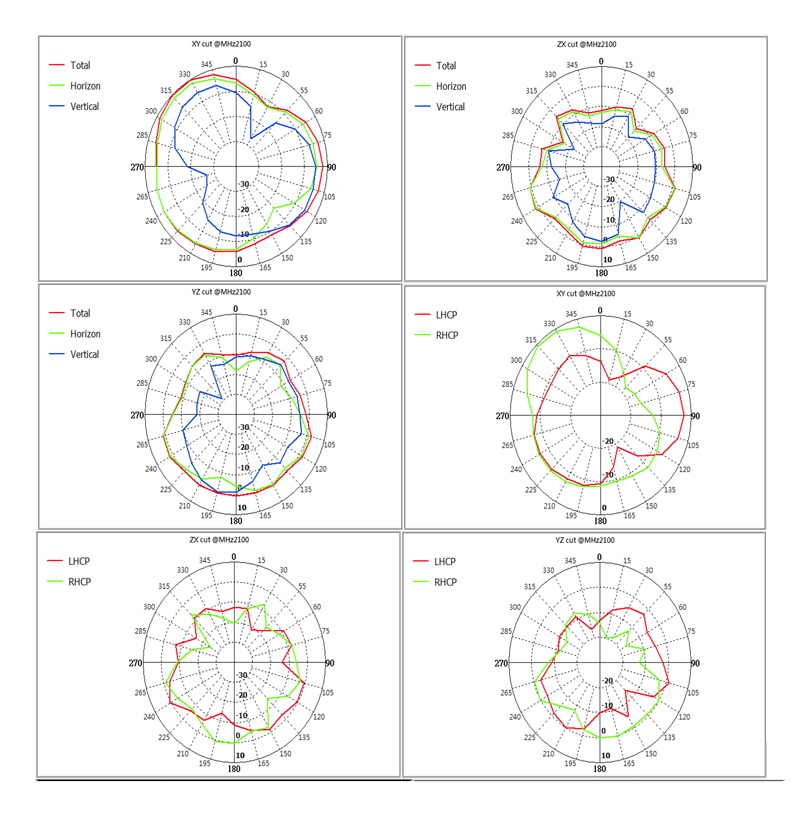

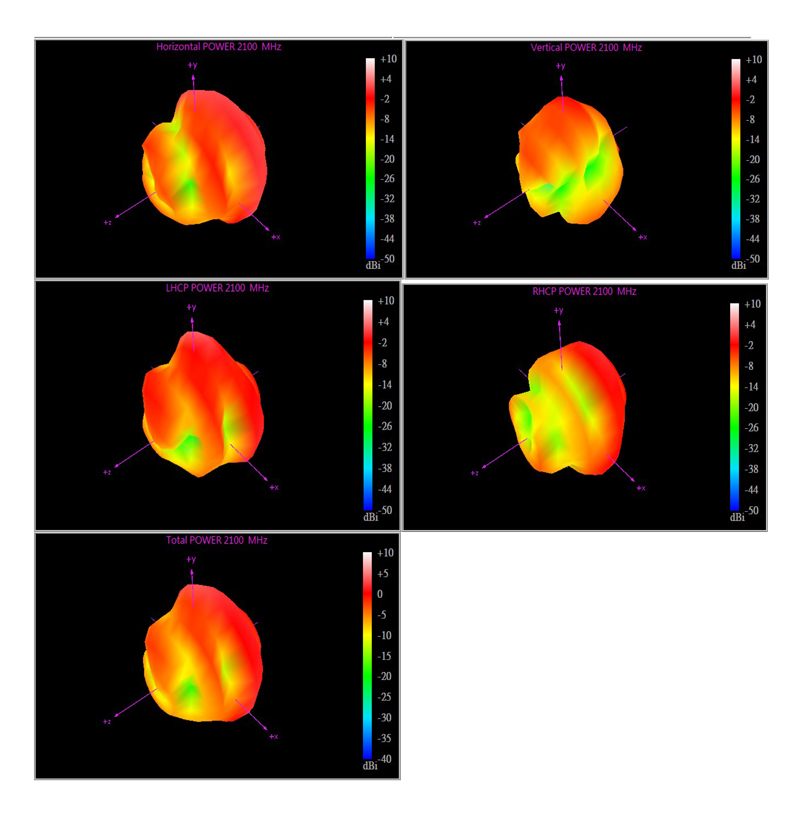

2100Mhz:

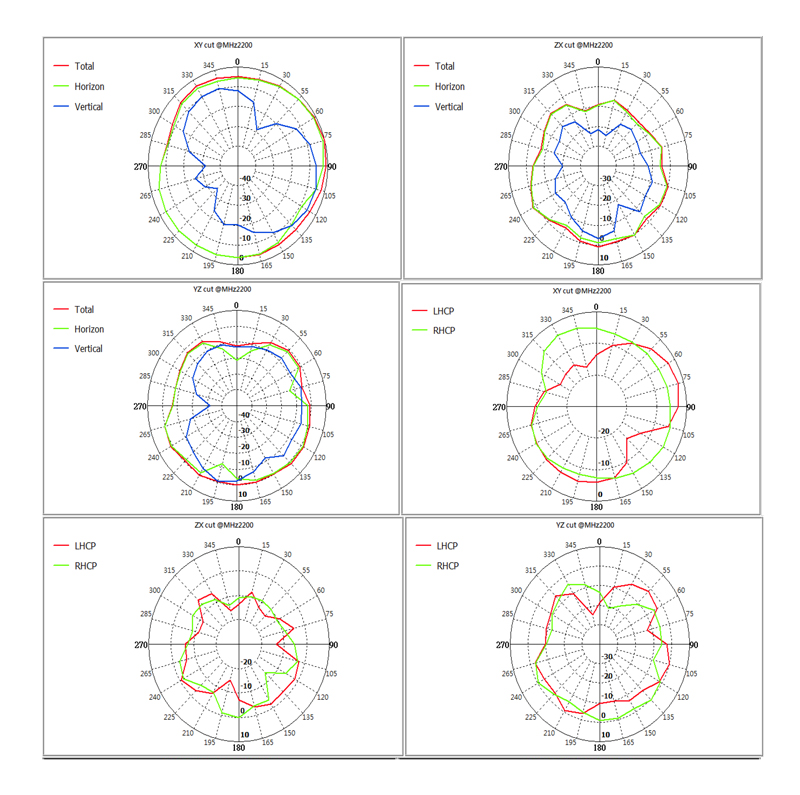

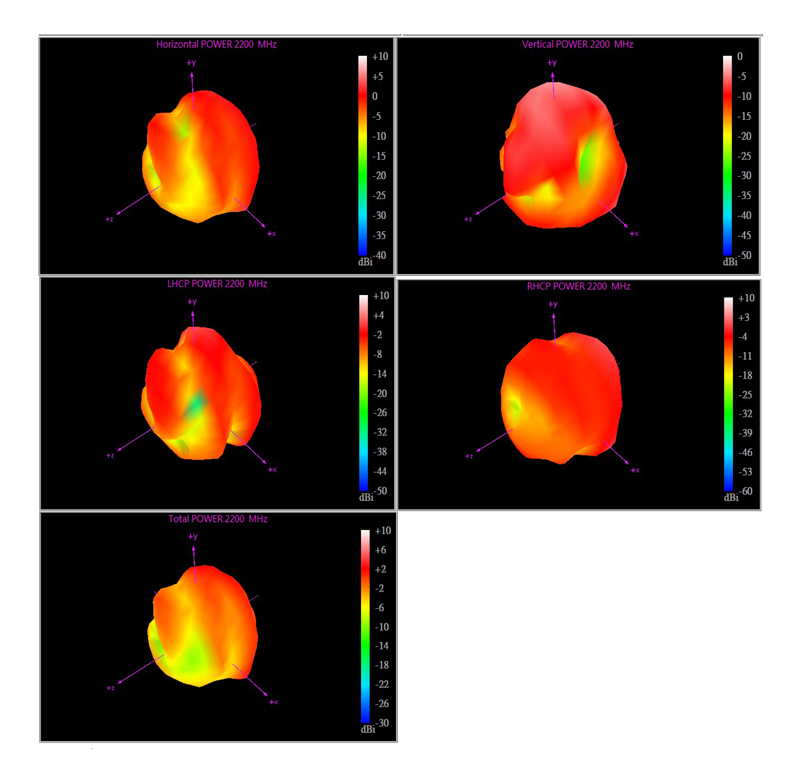

2200Mhz:

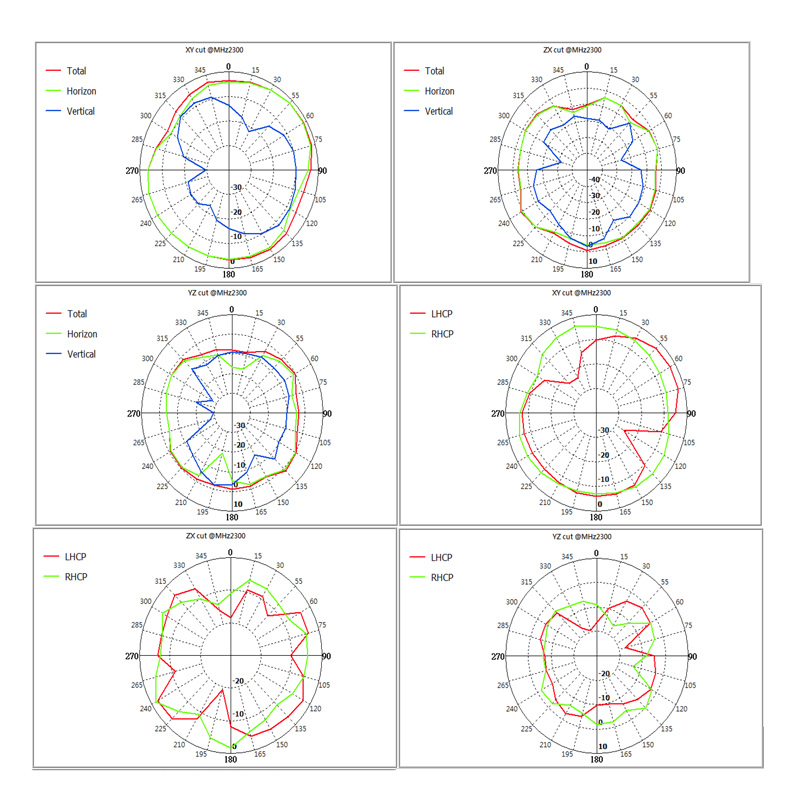

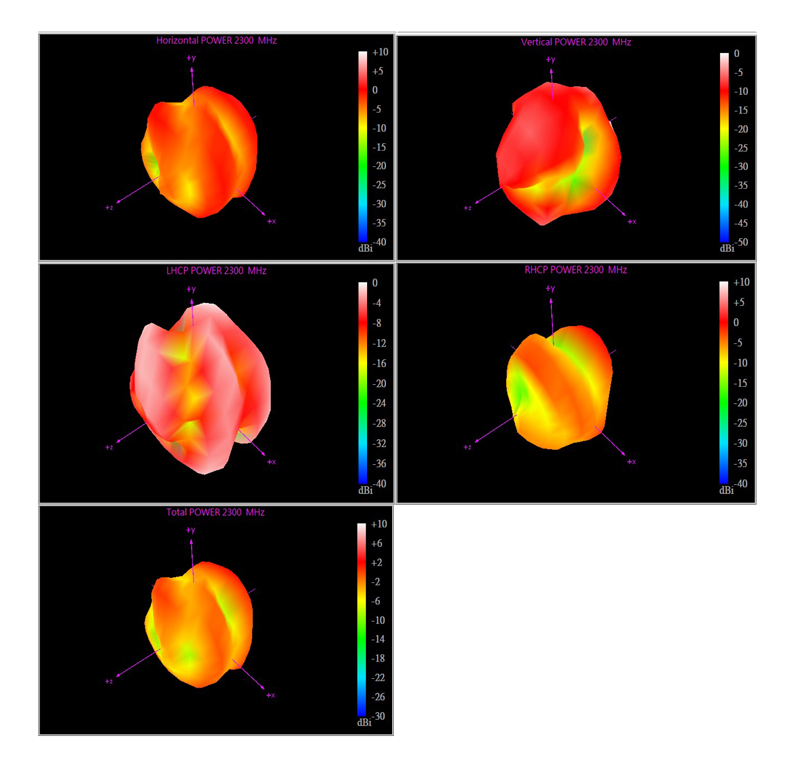

2300Mhz:

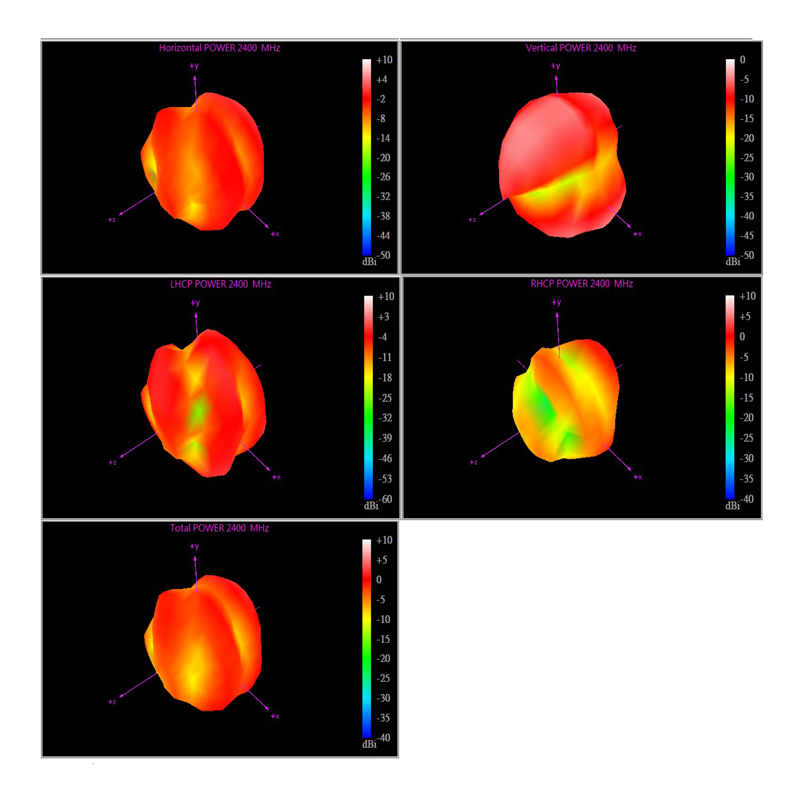

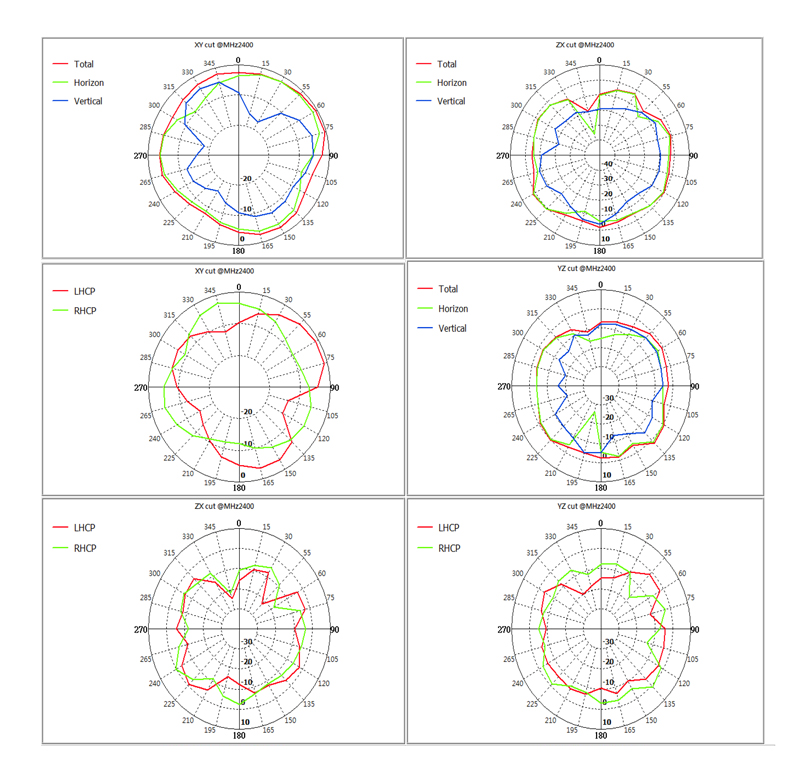

2400Mhz:

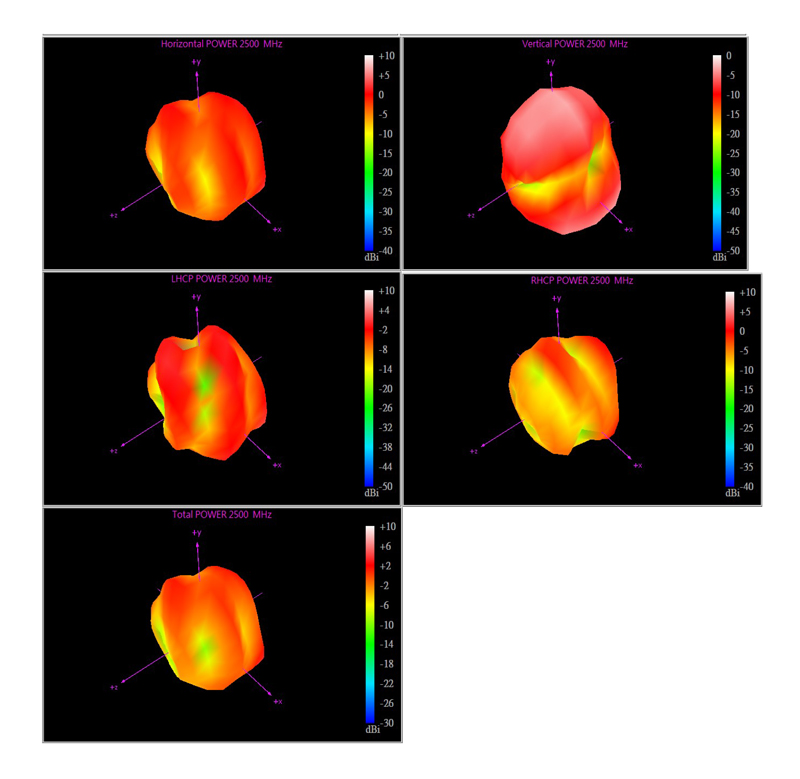

2500Mhz:
