1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH-1330 |
TH1330-TNC(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1350~3000Mhz |
| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical Wave |
Dipole |

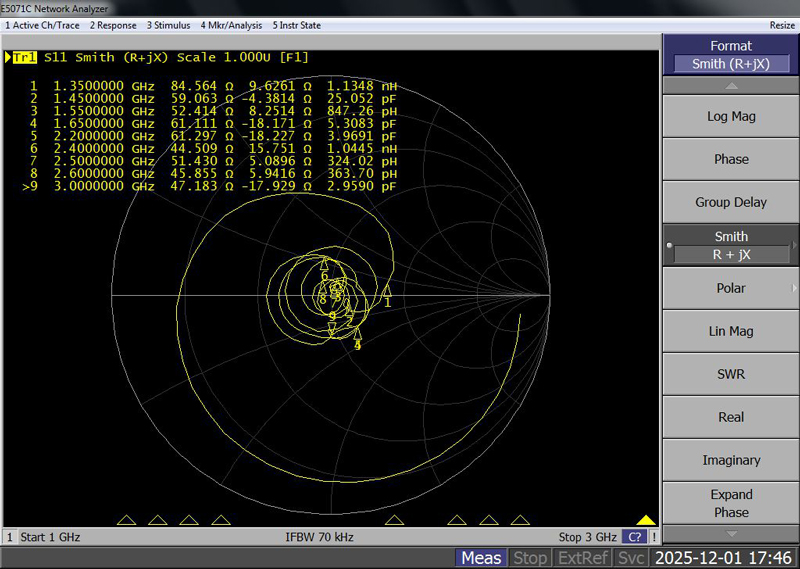

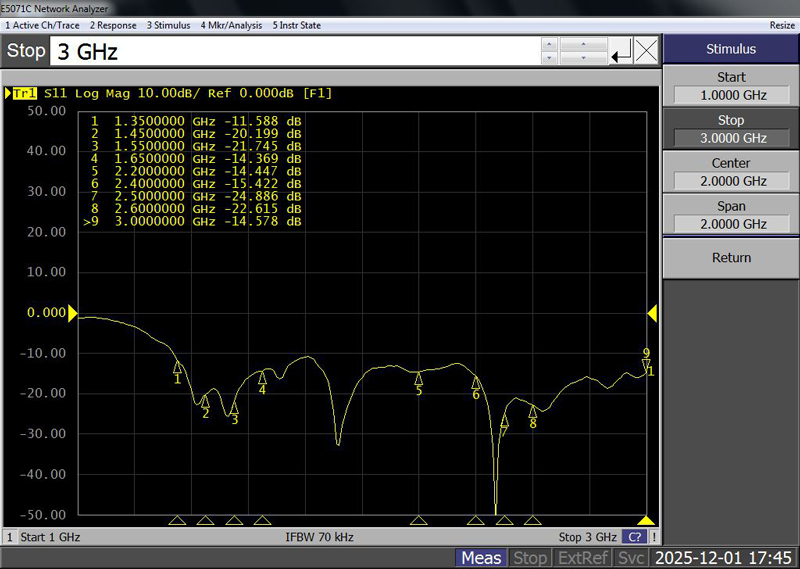

| Return Loss |
Please See Data-1 |

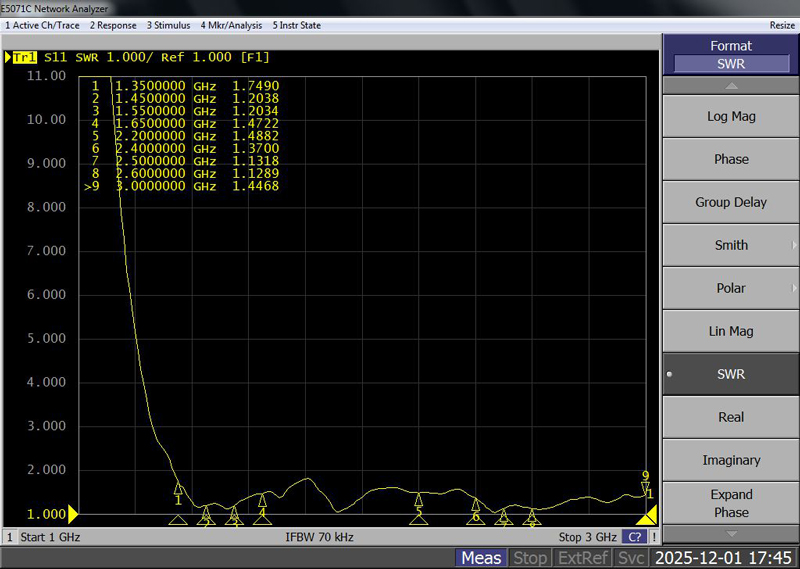

| V.S.W.R |
2.0:1 |
| Peak Gain |
2.5db |

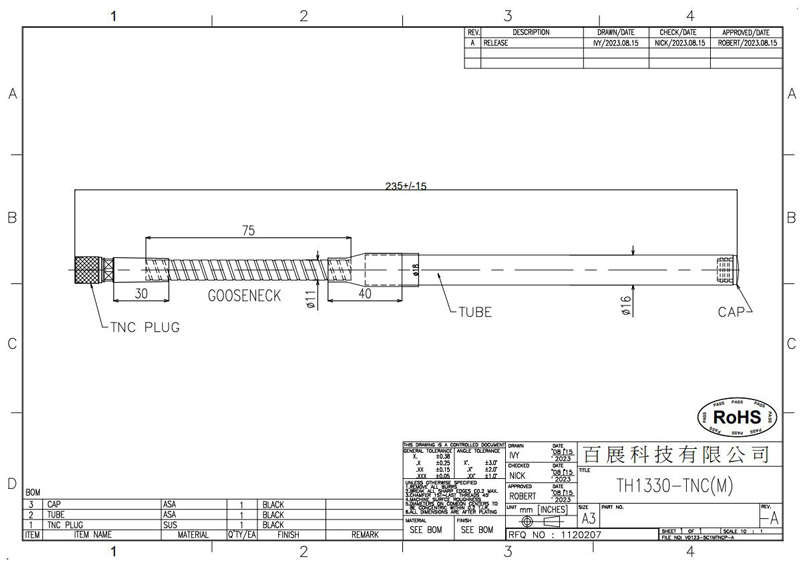

1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC(Male) |
| Antenna Dimensions |
235mm ±15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |

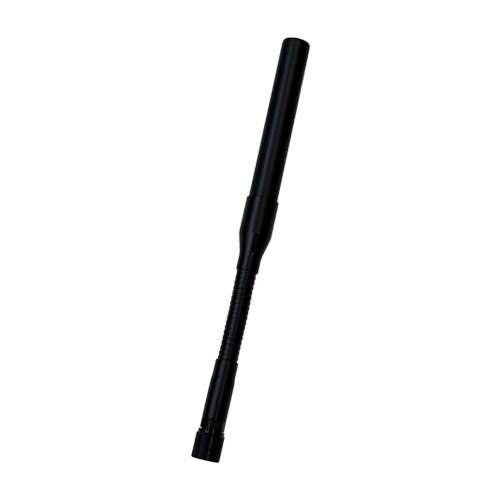

Experience seamless connectivity across the entire spectrum with our high-performance 1.5~3GHz Ultra-Wideband TH-1300 Gooseneck Antenna. Specifically engineered for versatility, this passive antenna serves as an all-in-one solution for L-band, 2.4GHz, and S-band radio systems, making it the ideal choice for RF transponders, industrial monitoring, and high-speed data transmission. Whether you are managing long-range communication links or scientific interference applications, our wideband design eliminates the need for multiple antennas by covering a massive frequency range with a single, streamlined device.
Built to withstand the most demanding environments, the antenna is encased in premium ASA plastic, which offers a level of durability that standard ABS simply cannot match. With anti-aging properties more than 10 times superior to ABS, this antenna is immune to the yellowing and degradation caused by direct sunlight, ensuring a long operational life in outdoor settings. Beyond its UV resistance, the housing boasts high-temperature stability and a UL94-HB fire ratingfor maximum safety. Coupled with a flexible gooseneck design that allows for precise angle adjustments and signal optimization, this antenna provides the perfect balance of rugged engineering and tactical flexibility for any RF project. Please don’t hesitate to email us if you have any questions.
