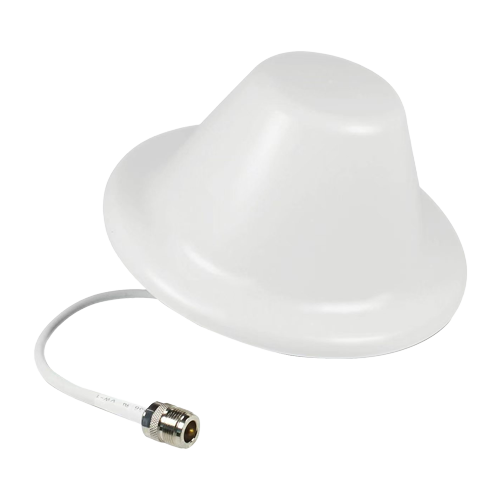

GSM-160B

GSM-160B

Inquiry

Download

Product Specification

Specifications:

Frequency range:	690~960/1710~3800Mhz
Gain:	3dBi
V.S.W.R:	<2.0
Impedence:	50 ohm
Cable & Connector:	RG58/U-30CM & N Female Type

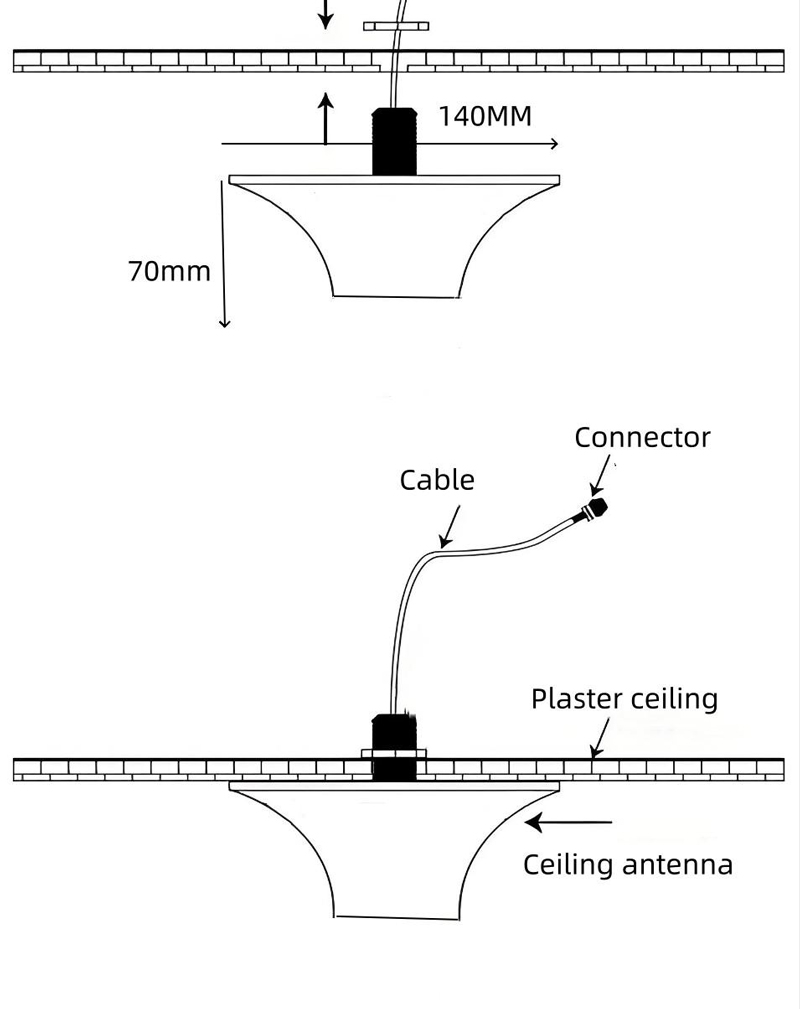

Dimension:	100mm +/-10 x OD168mm
Weight:	0.76Kg
Polarization :	vertical
Power handling :	50W
Colour :	white
Rated wind velocity :	60m/s
Working Temperature :	-40~70℃
Mounting Function	Ceiling Mount

＊This specification is subject to change without prior notice
