TH-81TC

GSM ANTENNA

Inquiry PDF

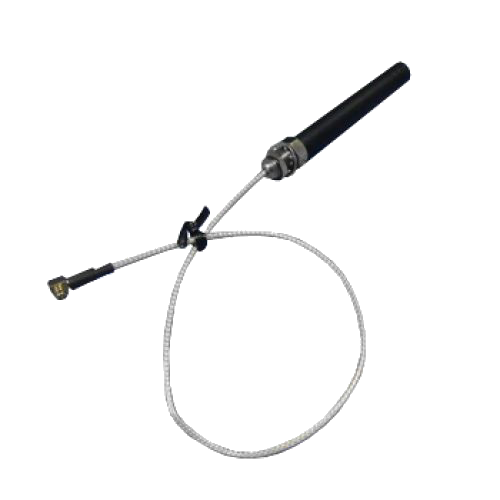

Product Description

Model No: TH81TC

P/N: TH81TC-50mm-MMCX90(M)

Product Specification

Electrical Properties

ParameterDescription
Frequency Band 824~960/1710~1990/1990~2170Mhz
Nominal Impedance 50 ohm
Polarization Vertical
Electrical Wave 1 /4λ
Admitted Power radiation 1 W

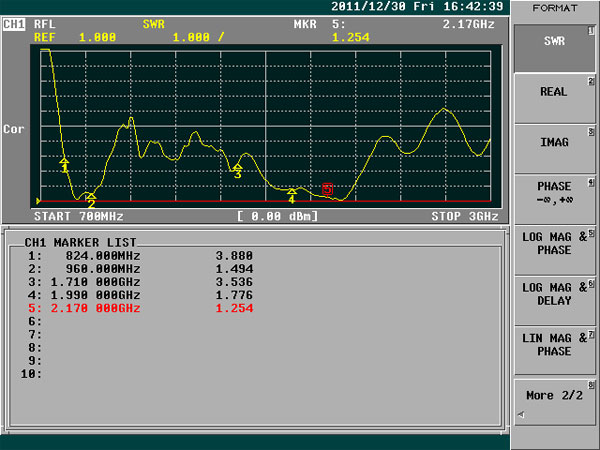

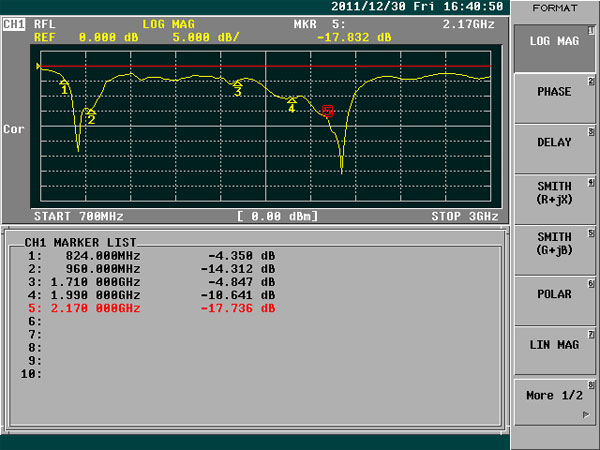

V.S.W.R 4.0:1
Antenna Average Gain 0 dBi
Note: Gain includes the cable loss

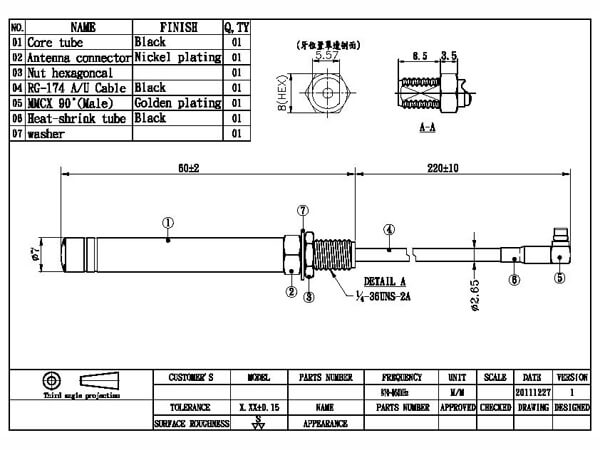

Mechanical Properties

ParameterDescription
Antenna Type External Antenna
Material PVC
Touch Type Screw Type
Connector Type MMCX 90° (Male)
Antenna Dimensions 51.2mm±2
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C
