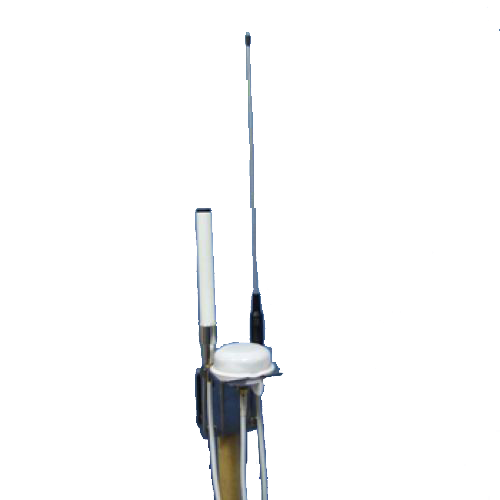

Small size and ruggedness, demand of vehicle locating and car navigation GPS antenna that will sustain harsh environment.

  • Low noise figure
  • Fully weather proof IPX7
  • Ultra-high Sensitivity
  • Compact construction
  • Excellent temperature stability

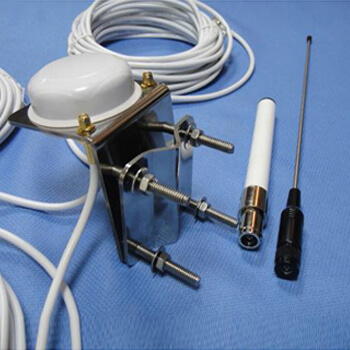

GPS antenna with double threaded bolts and through holes for cable routing with course & fine treaded pitch locking for wing-nut fastener and lock-nut to prevent vibrations and un-authorize removal.

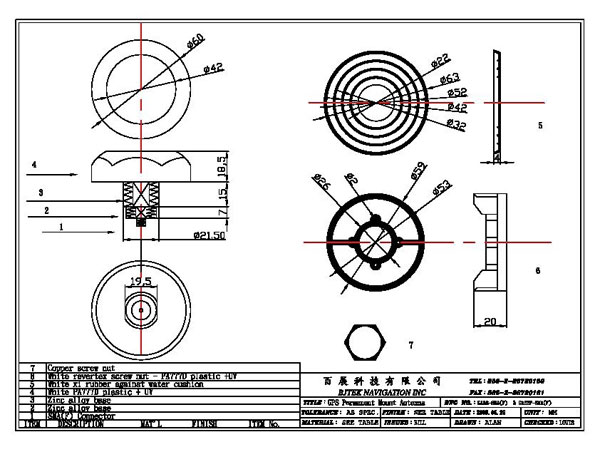

GPS antenna Specifications: GA62G

Physical Condition
Constructions: Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for  waterproof
Dimensions: 60mm(Dia.) x 18.5mm(H)
Weight: 65grams (w/o cable & connector).
Color: Standard in ivory white, other colours available upon request.
Mounting: Bulkhead mount with 0.8 inch threaded wing nut (standard accessory).
Cable & Connector
RF cable: TNC(M) +10 meter RG58 +BNC(M) (standard) other length (optional)
Pulling strength: 6 Kg @ 5sec. molded plastic on connector end for strain relief.
Connector TNC(F)or SMA(F)
Antenna Element
Center Frequency: 1575Mhz & 1596-1610 MHz
Polarization: R.H.C.P. (Right Handed Circular Polarization).
Bandwidth 10 MHz min. @S11-10 dB, 24MHz typ. @S11 < -8dB
Gain @ 10°C Elevation: 2 dBi typical.
Axial Ratio: 3 dB max.
Output VSWR: 1.5 max
Output Impedance: 50 ohm
Low Noise Amplifier
Power Gain: 1570 Mhz : 29db typ
1610 Mhz : 29db typ
Bandwidth: 50 MHz min.
Noise Figure: 1.5 typ
Outer Band Attenuation: 20 dB min. @ Fo +/-50 Mhz.
Supply Voltages: 2.3~5.5V DC.
Current Consumption: 2.5V : 6.6mA Typ.
3V: 10.6mA Typ.
4V: 14.6mA Typ.
5V: 20.6mA Typ.
Output Impedance: 50W ohm
Overall Performance: (antenna element, LNA & coax cable)
Center Frequency: 1570 ~1610 Mhz.
Gain: At 90° vertical to sky 30 ± 4.5dBi (cable loss)
Note:1 Mounted on the 60mm x 60mm square ground plane
Noise Figure: 2.0 max.
Axial Ratio: 3 dB max.
Bandwidth: 10MHz min.
VSWR: 2.0 max.
Output Impedance: 50W ohm
Environmental
Operating Temperature: -40°C~ +85°C.
Storage Temperature: -40°C~ +90°C.
Relative Humidity: 95% non-condensing.
Water Resistance: 100% waterproof.



GA62G FB6 SUS L- mounting :

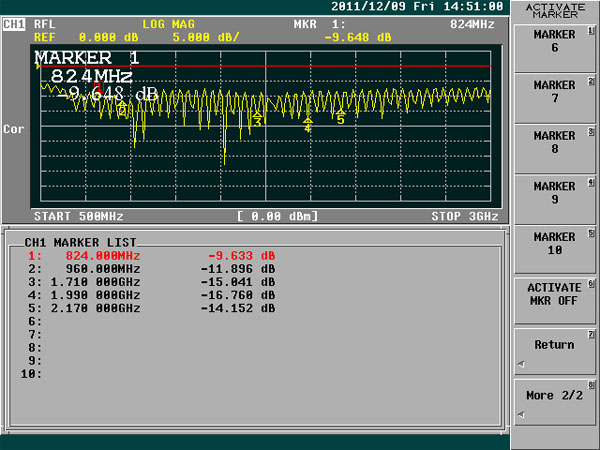

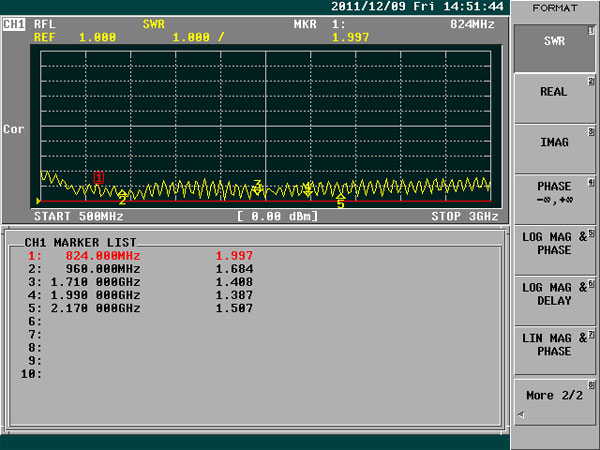

GSM Antenna Specifications: GSM-50A
Frequency range: 850/900/1800/1900/2170Mhz
Gain: 3dBi
V.S.W.R: < 2.0
Impedence: 50 ohm
Connector: SMA male
Dimension: 164mm +/-10 x OD16.2mm
Weight: 64g
Polarization : vertical
Power handling : 50W
Colour : white
Rated wind velocity : 60m/s
Working Temperature : -40~60°C
 Lightning Protection : Direct Ground
*This specification is subject to change without prior notice / Data Updated: Dec.07, 2011

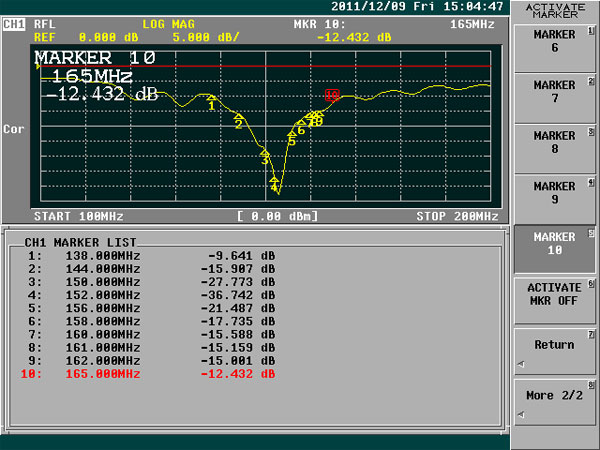

VHF Antenna Specifications: TH160B-SUS Whip Antenna

Frequency range: 138-165Mhz
Gain: 1dBi
V.S.W.R: < 2.0
Impedence: 50 ohm
Connector: SMA male
Dimension: 355mm +/-10 x OD14.7mm(SUS Whip 3.0mm)
Weight: 45g
Polarization : vertical
Power handling : 50W
Colour : Black
Rated wind velocity : 60m/s
Working Temperature : -40~60°C
 Lightning Protection : Direct Ground

*This specification is subject to change without prior notice / Data Updated: Dec.07, 2011
