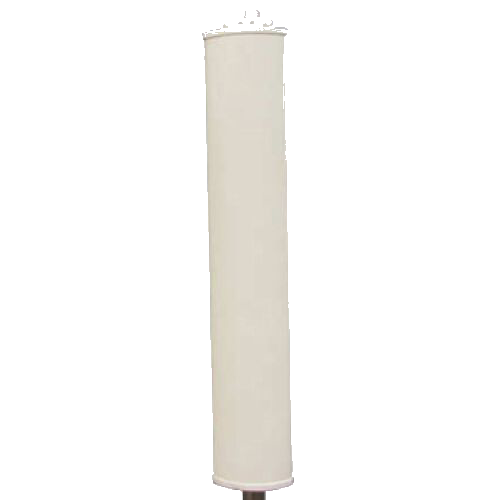

TP-2318-2 External Wimax Panel MIMO Antenna
  • Product Specification
Electrical Specifications
Model TP-2318-2
Frequency Range–MHz 2300-2400
Gain-dBi 18
Horizontal Beamwidth 65
Vertical Beamwidth 7
Front to Back Ratio-dB ≥ 25
VSWR ≤1.5
Input Impedance -Ω 50
Polarization ±45
Isolation-dB ≥ 28
Maximum Power -W 100
Connector N FEMALE x 2
Lighting Protection DC
Mechanical Specifications
Antenna Dimention-mm 970×165×65
Weight-kg 5
Cover Material PVC
Working Temperature-°C -40~60
