1. Electrica Properties
| Parameter |
Description |
| Frequency Band |
156~170Mhz ON GND |

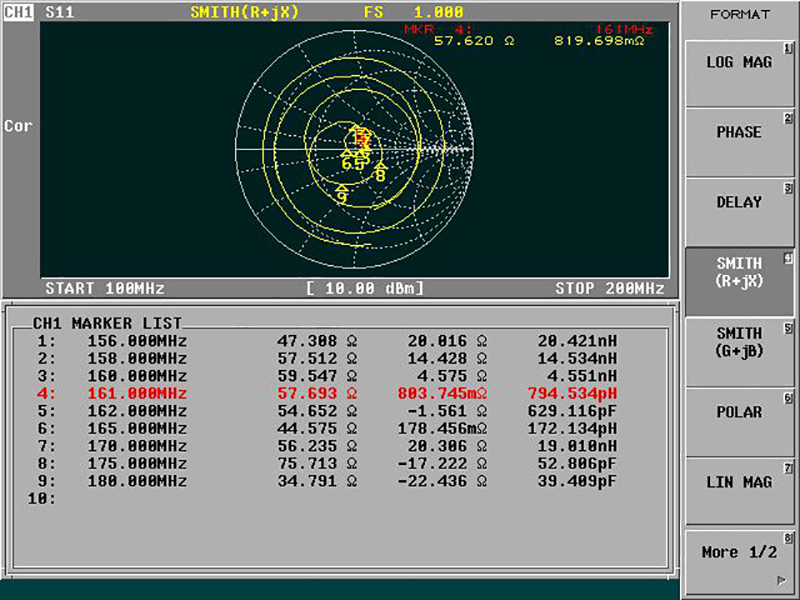

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |
| Electrical |
Dipole |

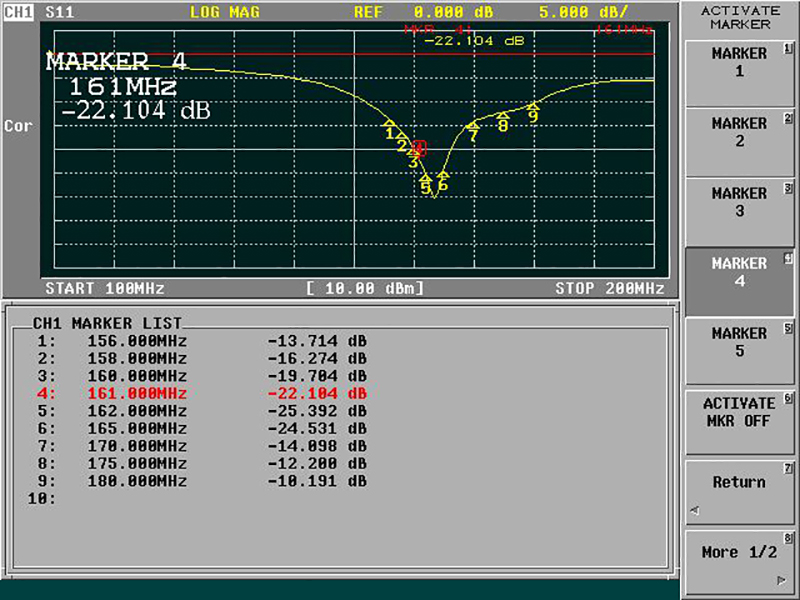

| Return Loss |
Please See Data-1 |

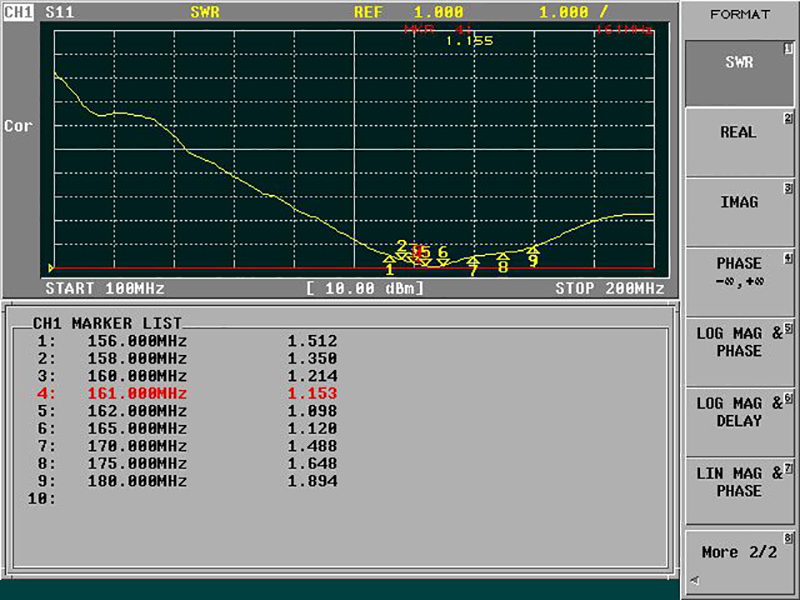

| V.S.W.R |
2.0:1 |
| Antenna Average Gain |
3db |
2. Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |

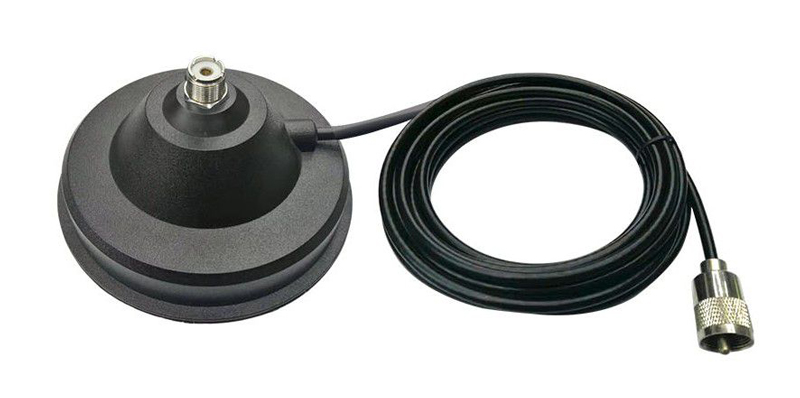

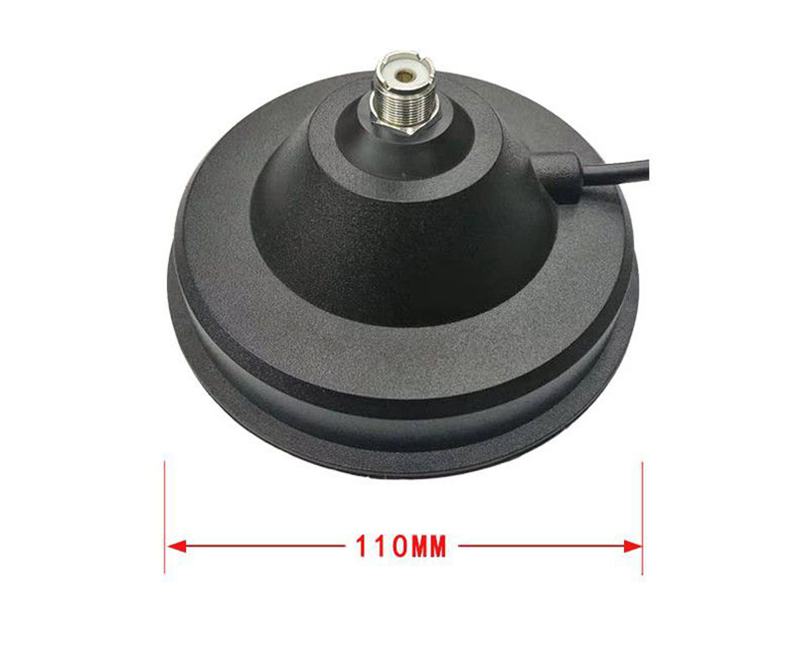

| Touch Type |
Magnet Type |
| Connector Type |
Pl259(M) |
| Antenna Dimensions |
520 mm ± 3 |
| Antenna Cable Total Length |
4500 mm ± 20 |
| Antenna Color |
Black |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |

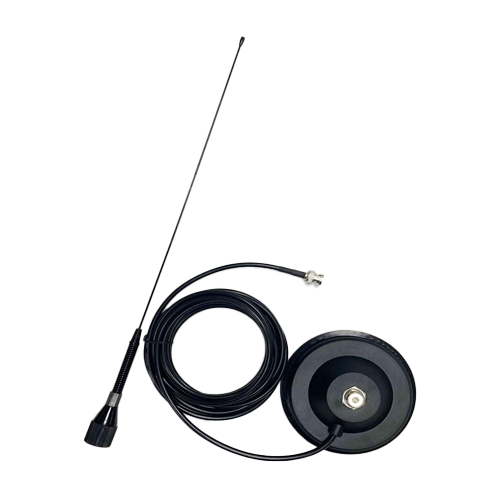

Our MA-162, premium transmit/receive antenna is specifically optimized for 156–170 MHz VHF radio and marine AIS equipment, making it an ideal choice for monitoring mobile testing environments across cars, trucks, ships, or land-based stations. Designed for maximum convenience and durability, it features an easily removable magnetic base alongside a robust stainless steel (SUS) whip and weather-resistant ABS shell built to withstand harsh outdoor elements. Engineered for high-performance functionality, the antenna leverages the strong VHF band penetration characteristic of shorter wavelengths. While it inherently features weaker diffraction, its superior penetration makes it exceptionally well-suited for urban environments, indoor applications, and reliable short-range, high-density communications. Please don’t hesitate to email us if you have any questions.
