1. GENERAL DESCRIPTION
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
470~860MHz (ON GND) |

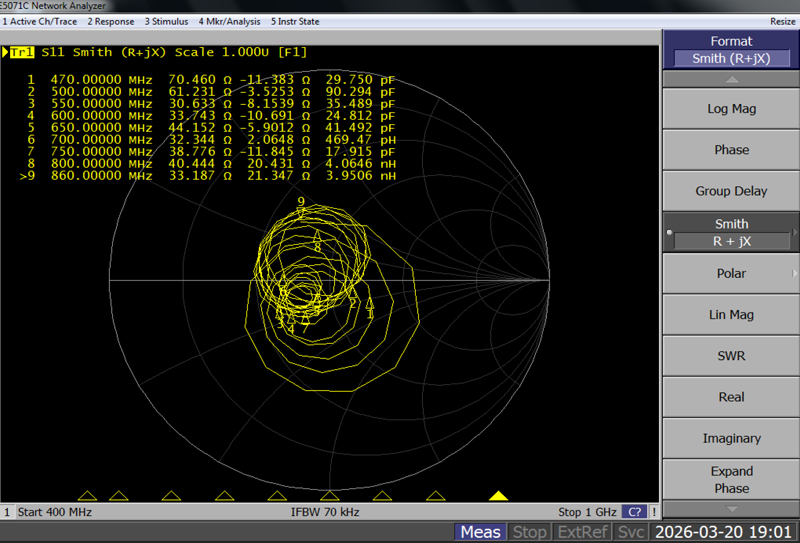

| Nominal Impedance |
50 ohm |
| Polarization |
Vertical |

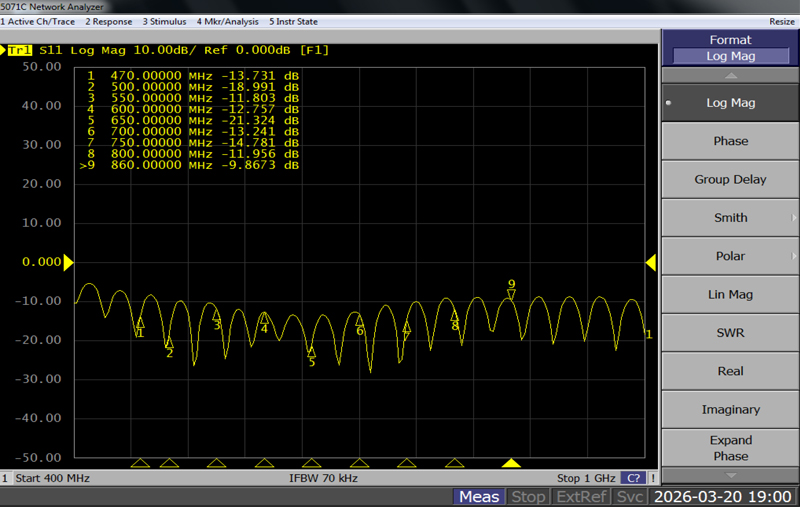

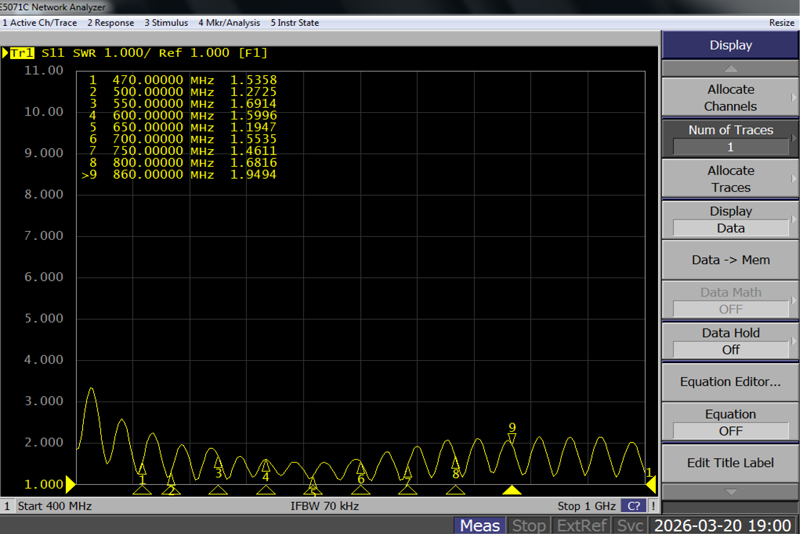

| V.S.W.R |
≤3.0:1 |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Mounting / Touch Type |
Screw Type |
| Connector Type |
F-Type Male |

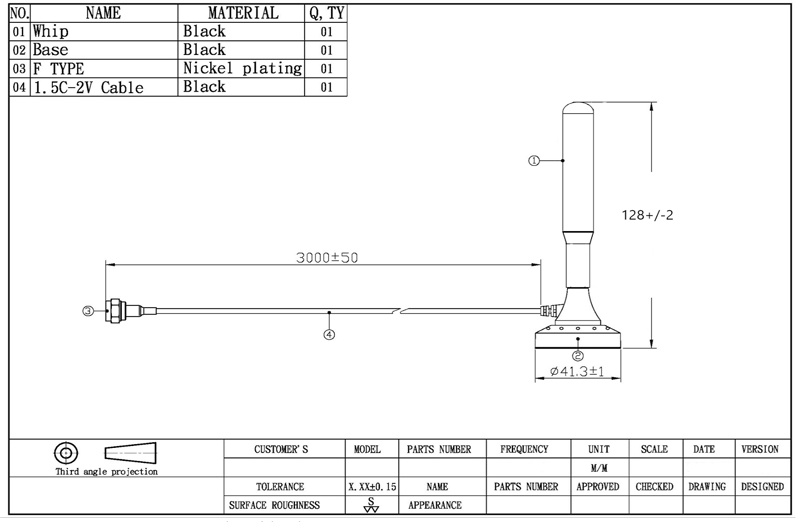

| Antenna Dimensions |
128 mm (±2 mm) |
| Cable Length |
3000 mm (±50 mm) |
| Operating Temperature Range |
-30°C~+70°C |
| Storage Temperature Range |
-30°C~+70°C |

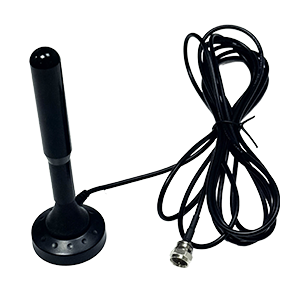

Turn your vehicle into a portable entertainment hub with our high-performance DAP-120C Passive Digital TV Antenna. Engineered specifically for mobile DVB-T and ISDB-T digital television reception, this compact powerhouse delivers crisp, crystal-clear HD channels wherever your drive takes you. Designed for total convenience on the road, it features a heavy-duty magnetic base that slaps instantly onto any metal surface, holding firm through highway vibrations while removing cleanly in seconds without scratching your paint. Because it operates as a 100% passive unit, there are no extra power cables, external power drains, or batteries to worry about—simply plug the connector into your mobile TV, truck display, or handheld receiver and start watching. Whether you are a long-haul trucker taking a break at a rest stop, a family on a cross-country road trip, or a camper hanging out in a tent, this weatherproof, omnidirectional antenna delivers reliable free-to-air live television, sports, and news without using a single byte of cellular data or requiring monthly subscriptions. Please don’t hesitate to email us if you have any questions.
