DVBT Active Antenna

DA-170A

Inquiry

Download

DA-170A External DVBT Active Antenna
  • Product Description
  • Product Specification

P/N: DA170A-5M-F(M)

Electrical Properties

Parameter Description
Frequency Band 174~240/460~800 MHz
Nominal Impedance 50 ohm
Polarization Vertical
Return Loss Please See Data-1
V.S.W.R 6.3:1

Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Cover
Touch Type 3M Type
Connector Type F 180°(Male)
Antenna Dimensions 5000mm±100
Antenna Color Black
Operating Temperature Range -20°C~+60°C
Storage Temperature Range -30°C~+70°C

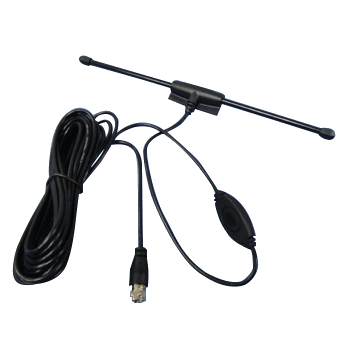

Appearance
Frequency
