1. GENERAL DESCRIPTION

Model No
TH9021-SMA(M)

Below is a table summarizing the antenna design specification.


1.1 Electrical Properties

Parameter Description
Frequency Band 902~928 & 1700-2300MHz
Nominal Impedance 50 ohm
Polarization Vertical

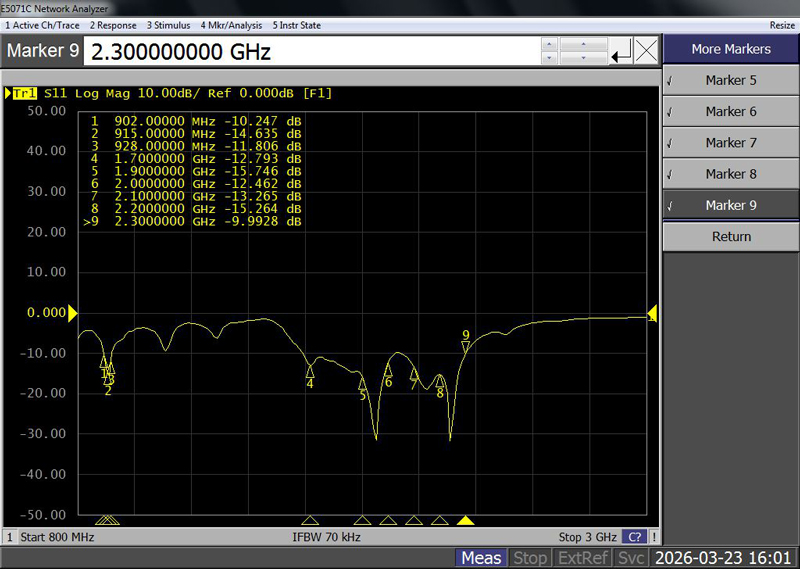

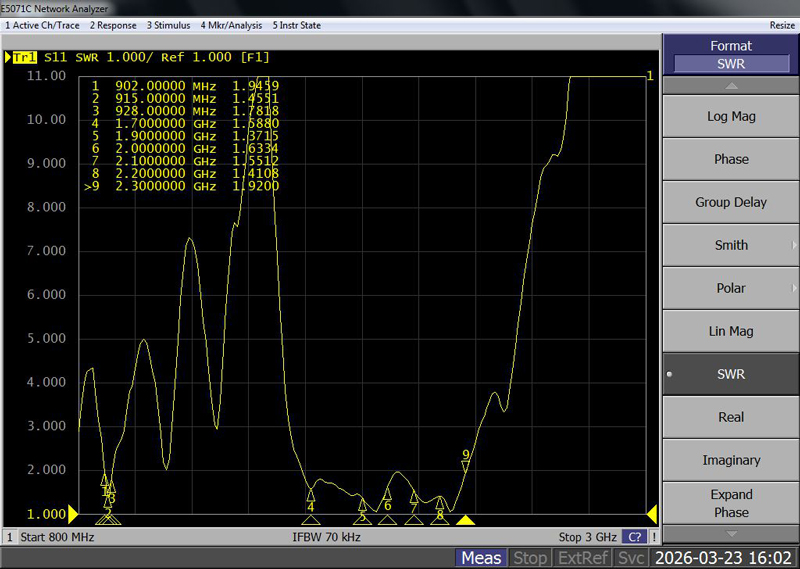

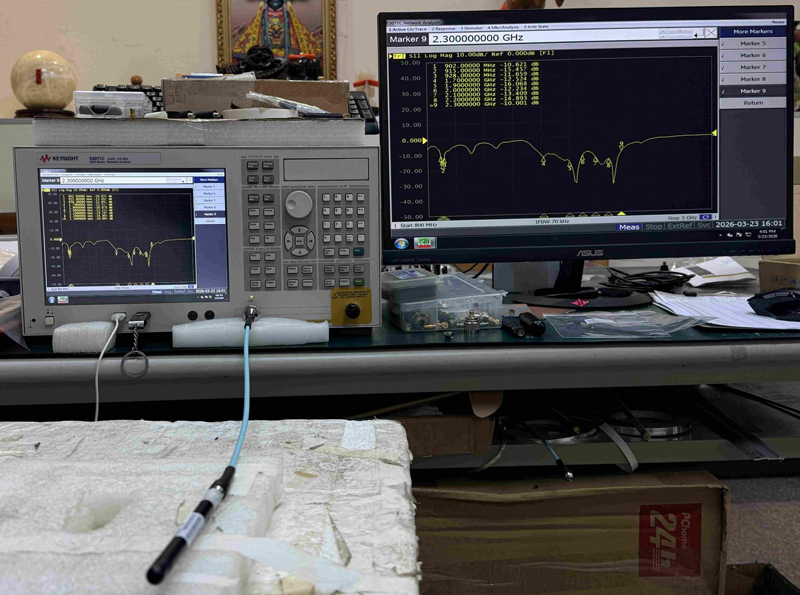

Return Loss Please See Data-1
V.S.W.R 2.0：1
Peak Gain 2-5db

1.2 Mechanical Properties

Parameter Description
Antenna Type External Antenna
Antenna Material ASA-UV UL94-HB
Touch Type Screw Type
Connector Type SMA 180˚(Male) OD10.0mm
Antenna Dimensions OD9.3 x 128.5mm ±0.5
Antenna Color Black
Operating Temperature Range -40°C~+80°C
Storage Temperature Range -40°C~+80°C

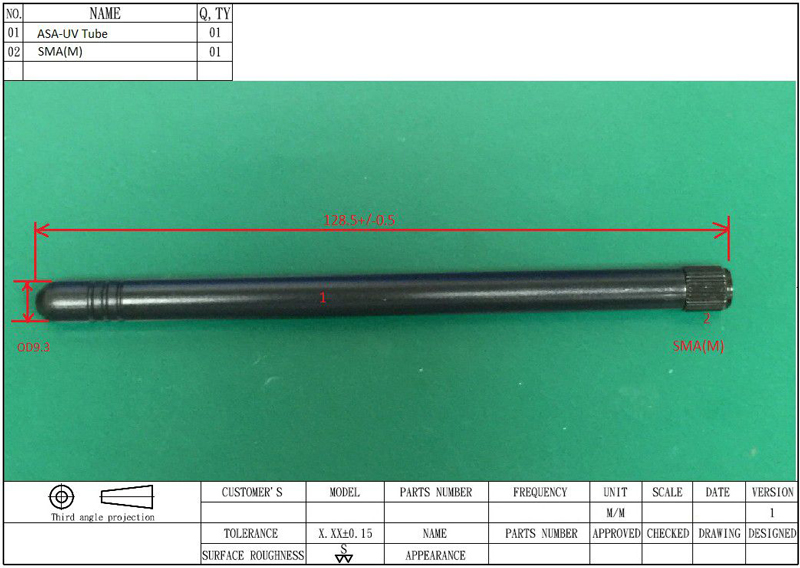

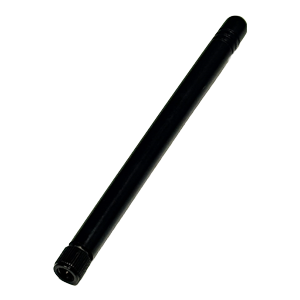

2.Appearance

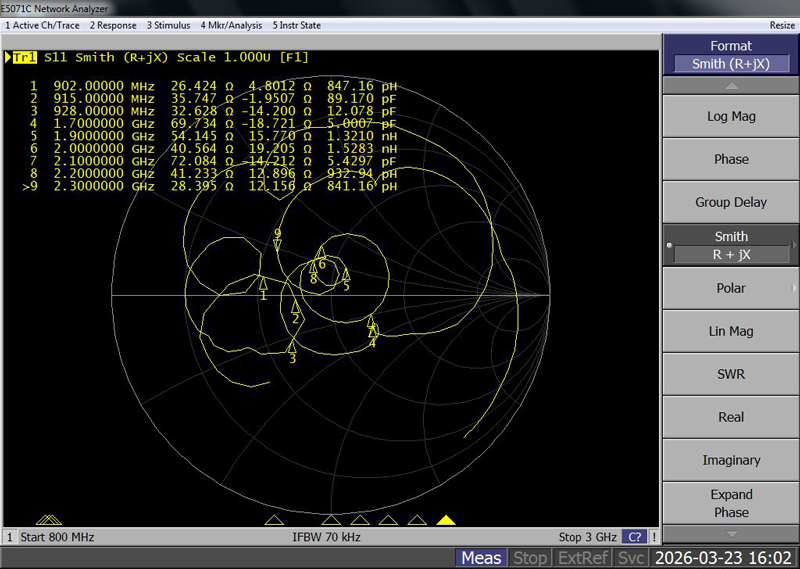

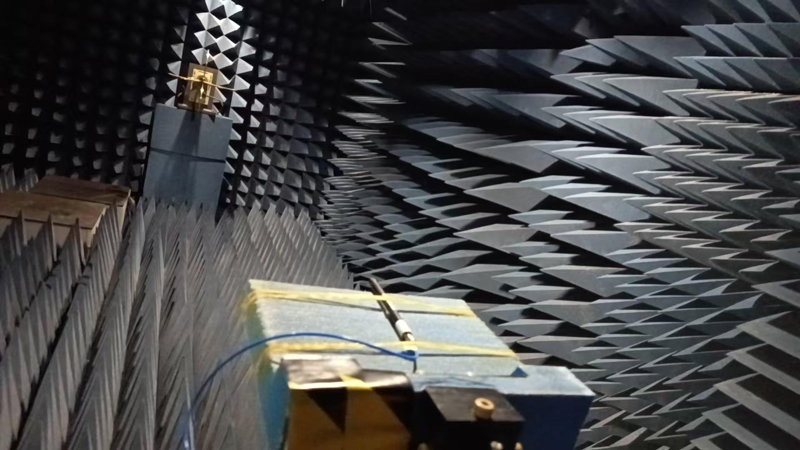

3.Frequency

3D Total

Frequency
(MHz)		 Upper Hem.
PRP (dBm)		 Lower HEM.
PRP (dBm)		 Efficiency
(dB)		 Efficiency
(%)		 Gain (dBi) Tot. Rad.Pwr.
(dBm)
902 MHz -5.23 -4.68 -1.93 64.07 4.60 -1.93
915 MHz -5.56 -5.05 -2.29 59.00 4.27 -2.29
930 MHz -6.07 -5.48 -2.75 53.04 3.68 -2.75
1700 MHz -10.03 -4.69 -3.58 43.87 3.48 -3.58
1750 MHz -10.08 -4.37 -3.34 46.38 3.51 -3.34
1800 MHz -10.50 -4.00 -3.12 48.72 4.15 -3.12
1850 MHz -7.97 -1.08 -3.27 47.11 4.36 -3.27
1900 MHz -10.13 -3.48 -2.63 54.57 5.26 -2.63
1950 MHz -10.00 -4.14 -3.14 48.52 4.57 -3.14
2000 MHz -8.10 -3.70 -2.36 58.09 4.93 -2.36
2050 MHz -7.70 -4.00 -2.46 56.81 4.41 -2.46
2100 MHz -7.20 -3.84 -2.19 60.37 4.37 -2.19
2150 MHz -7.17 -4.30 -2.49 56.39 3.81 -2.49
2200 MHz -6.86 -4.83 -2.72 53.46 3.35 -2.72
2250 MHz -7.34 -5.91 -3.56 44.10 2.12 -3.56
2300 MHz -6.83 -6.21 -3.50 44.67 2.11 -3.50
2350 MHz -7.47 -7.18 -4.31 37.05 1.26 -4.31

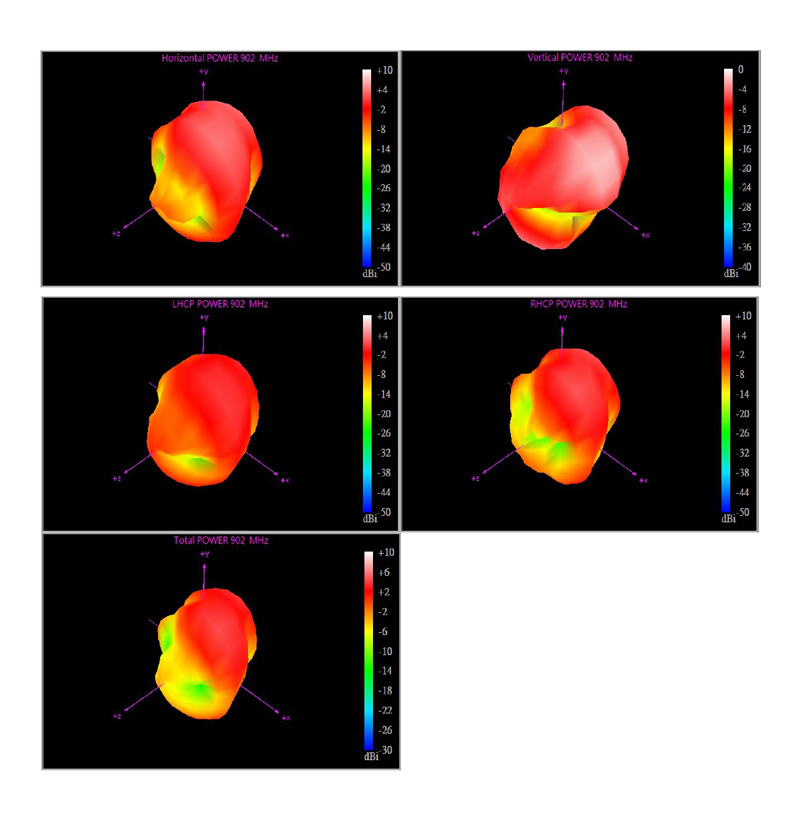

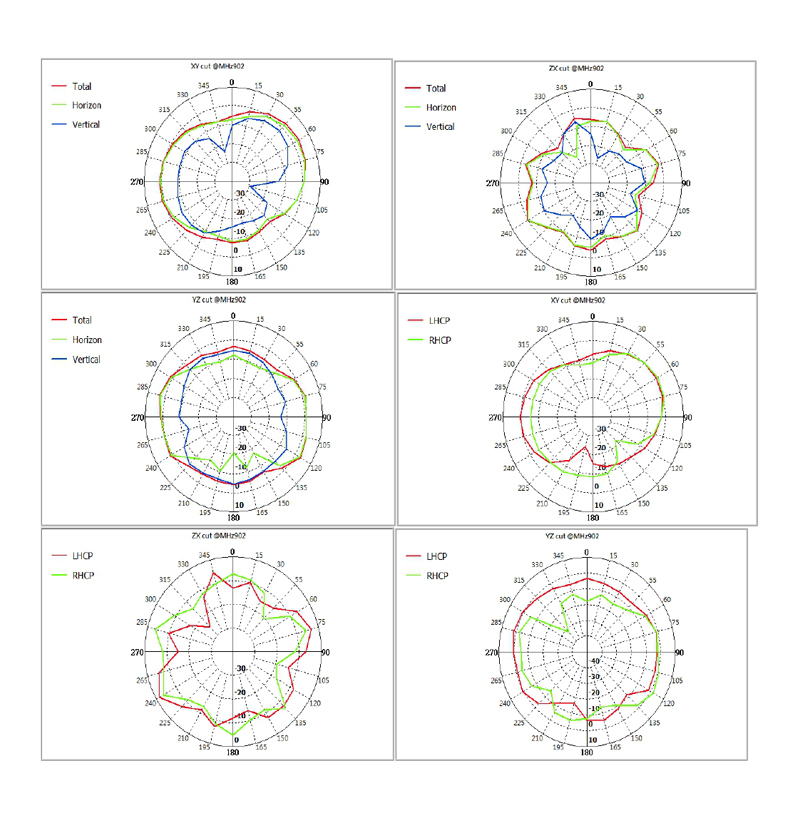

902Mhz:

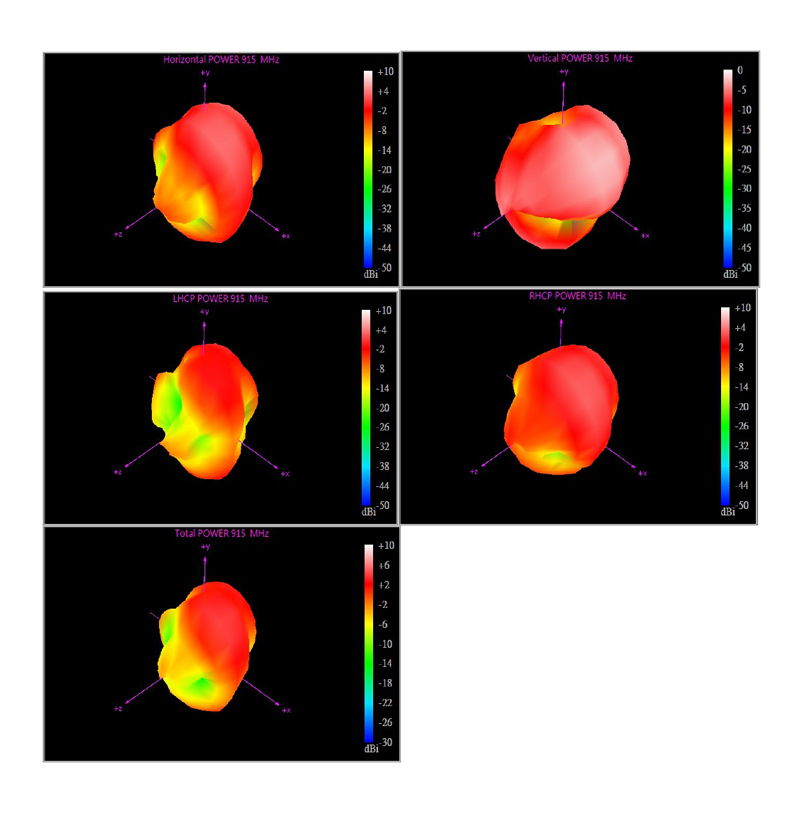

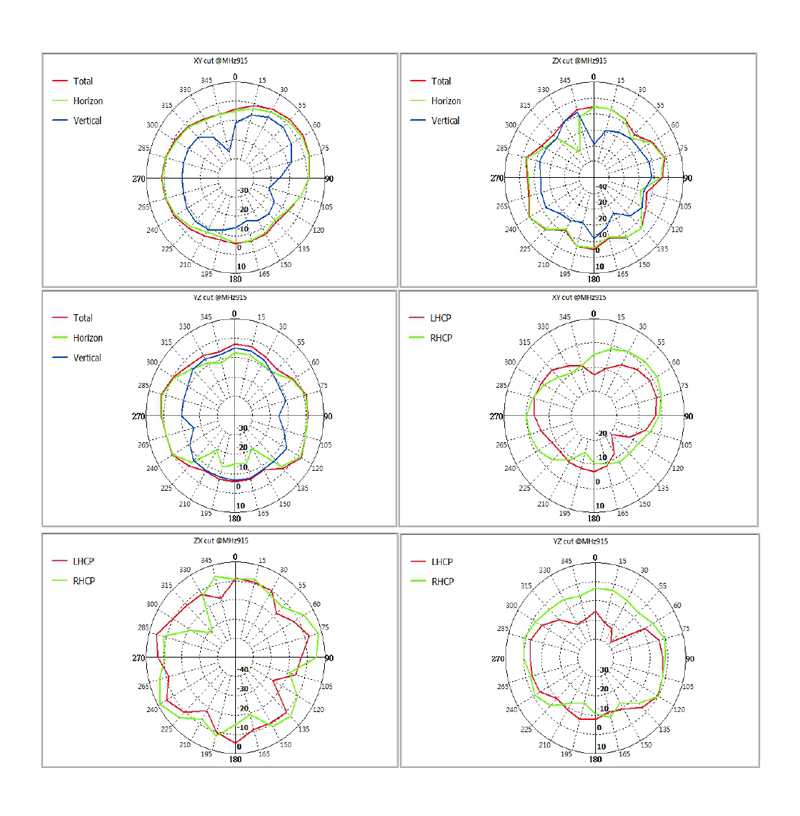

915Mhz:

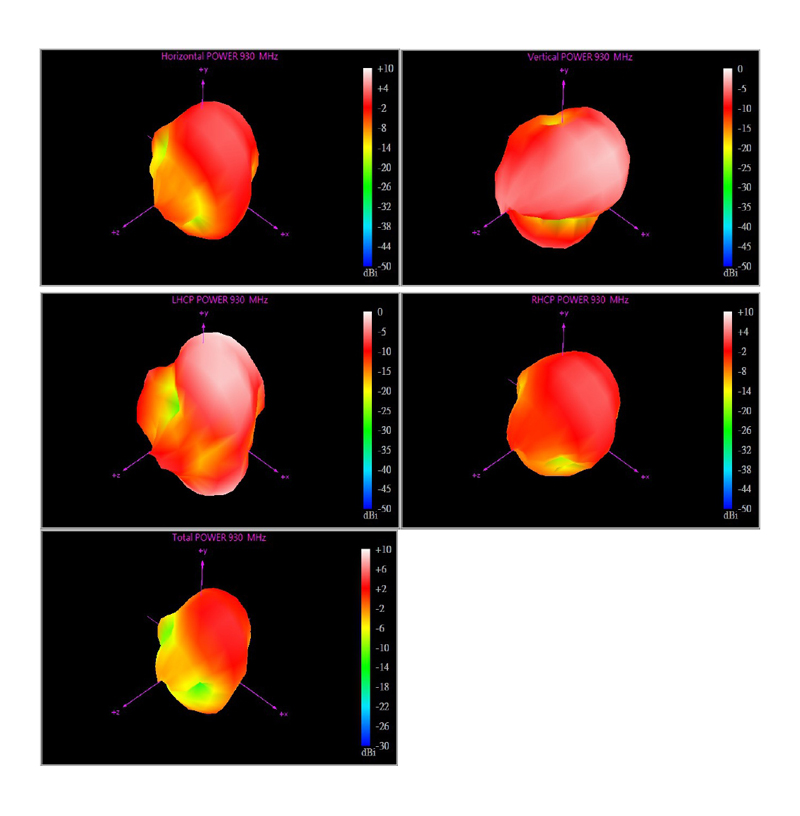

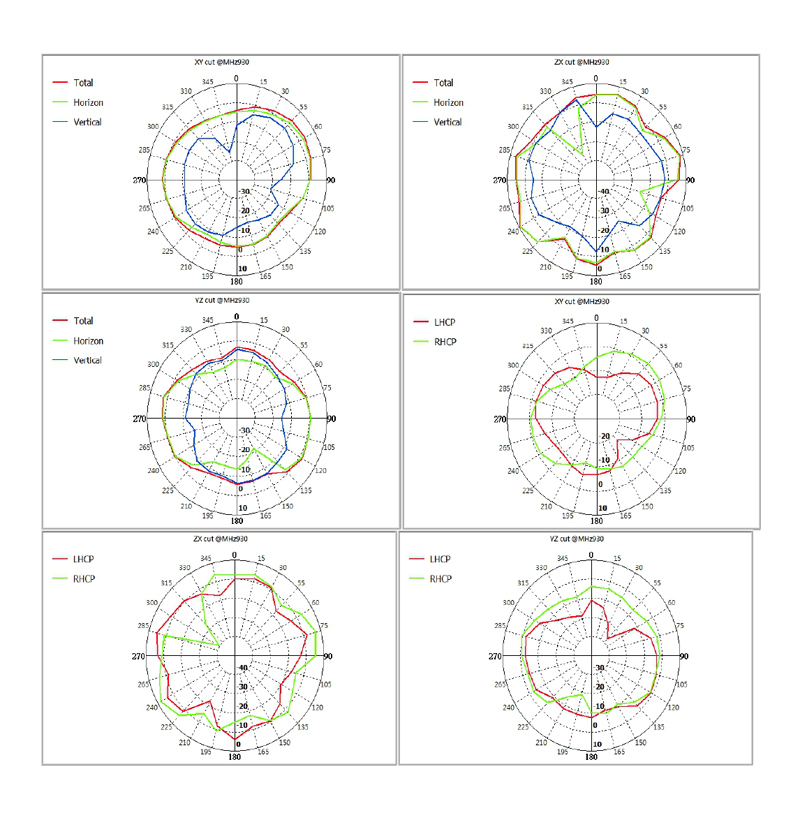

930Mhz:

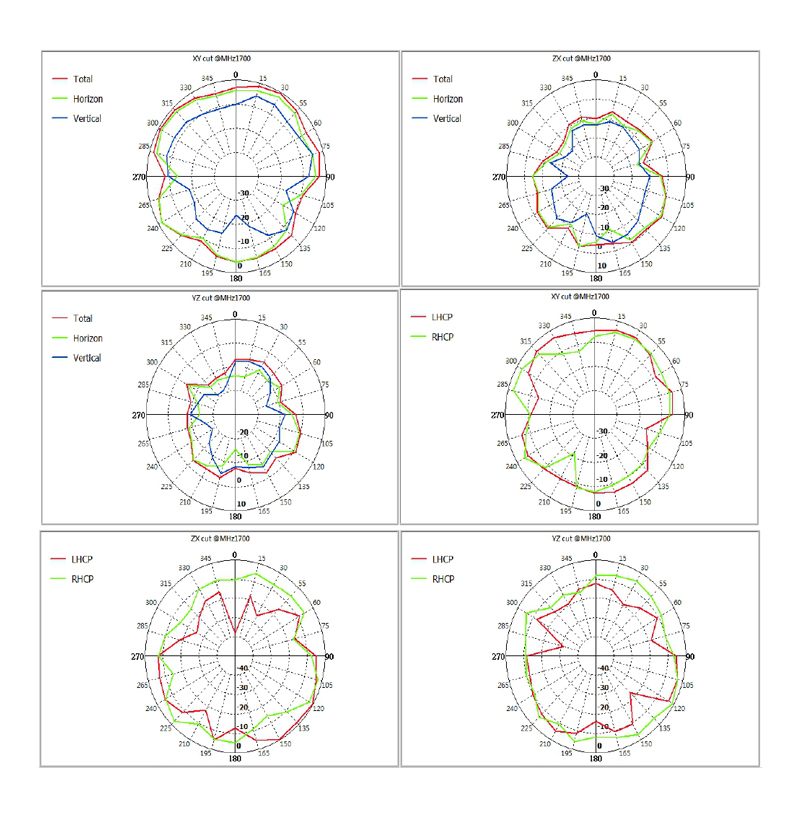

1700Mhz:

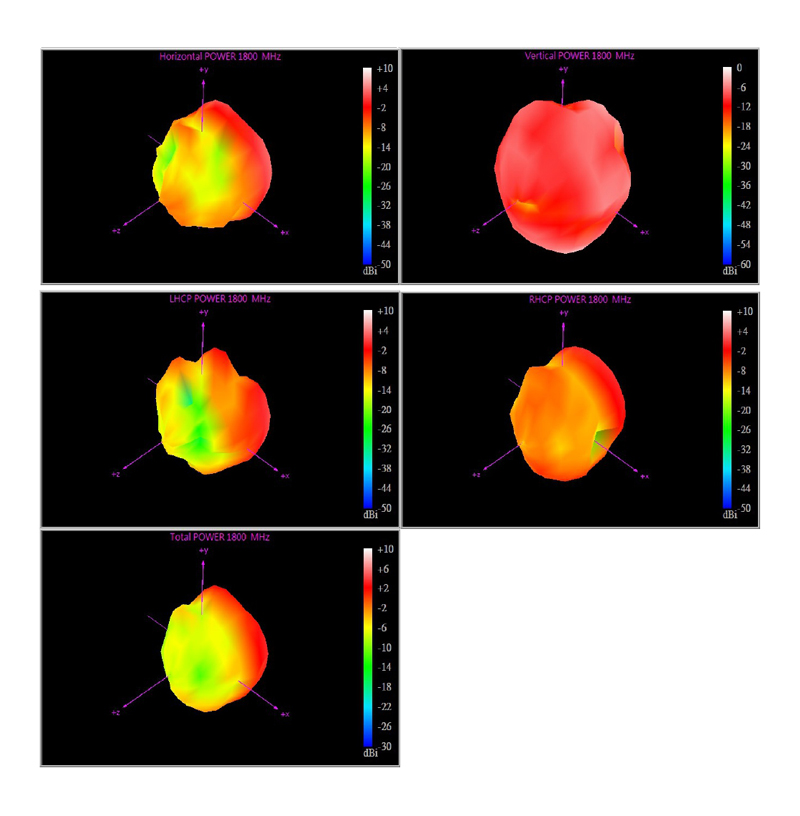

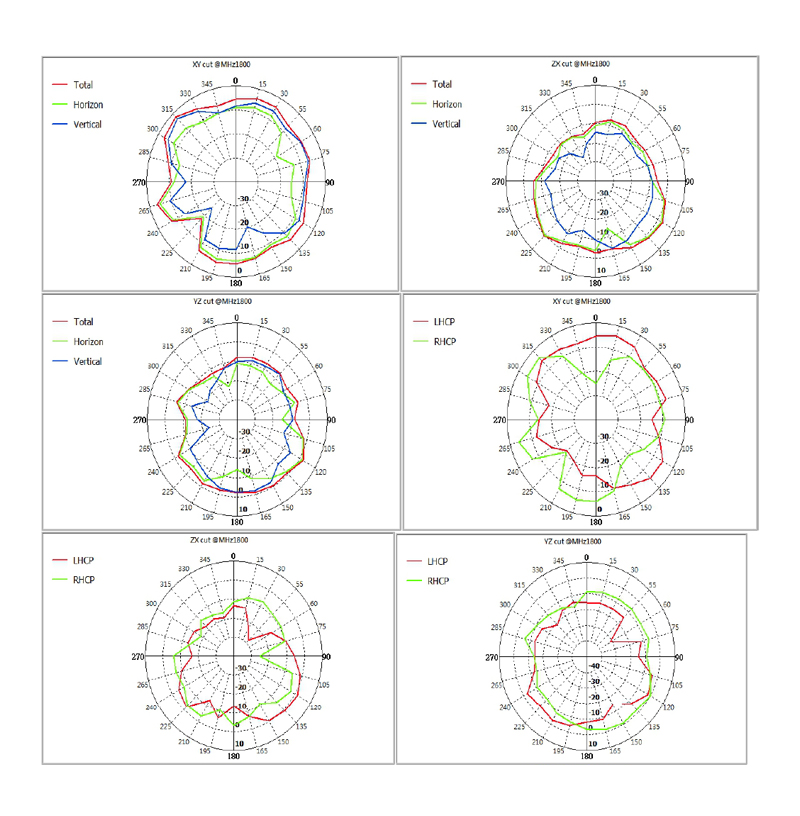

1800Mhz:

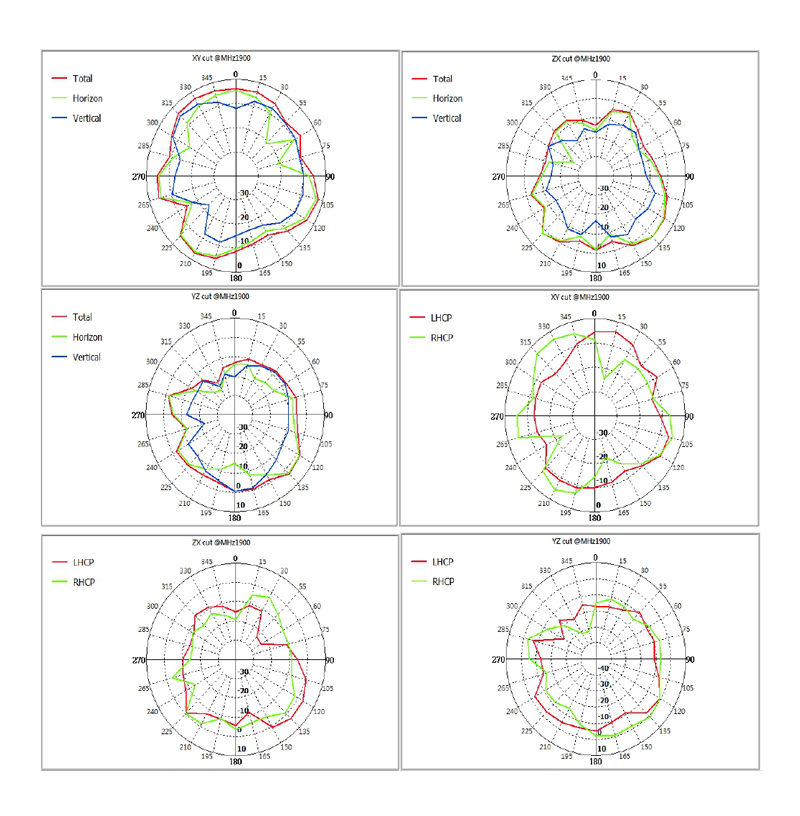

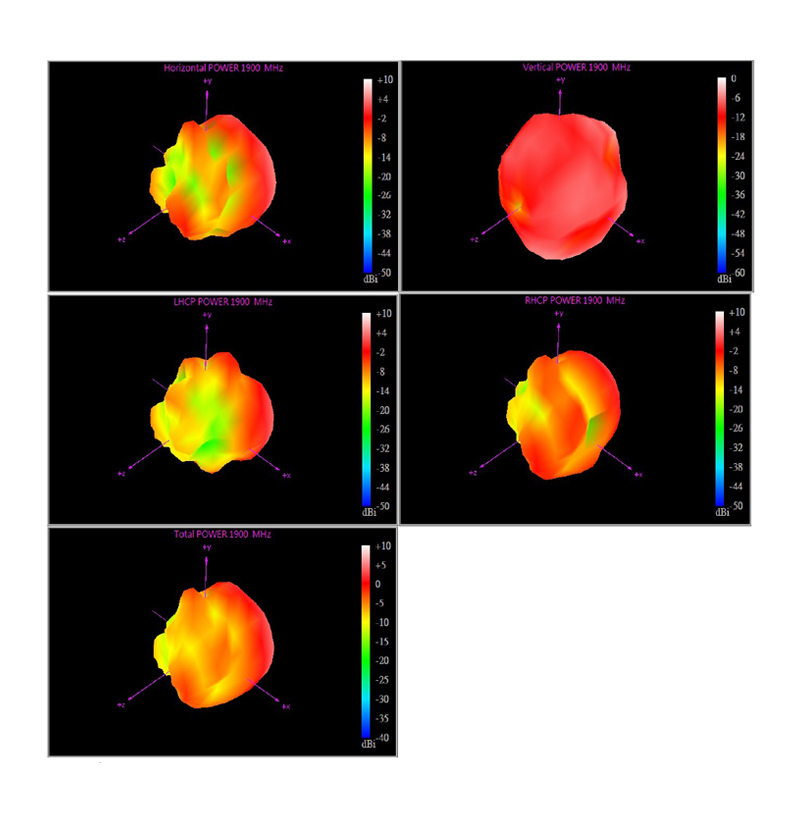

1900Mhz:

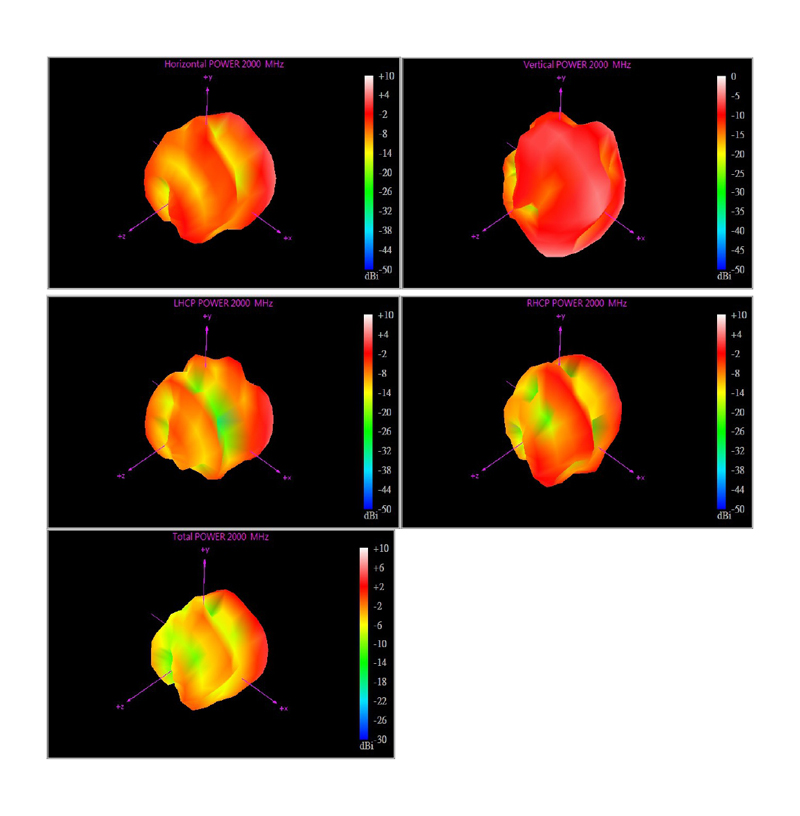

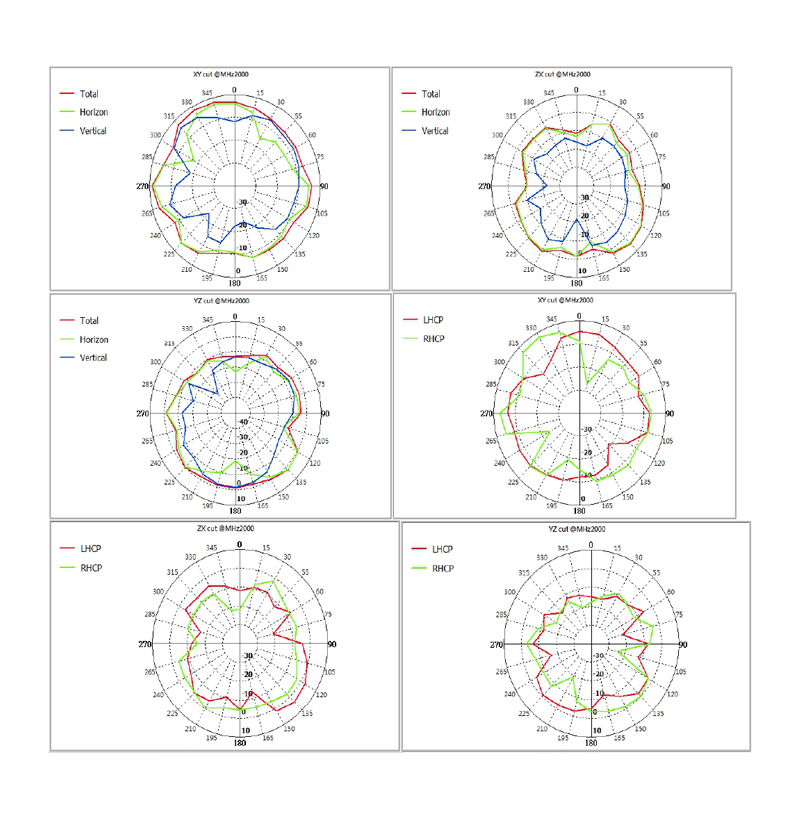

2000Mhz:

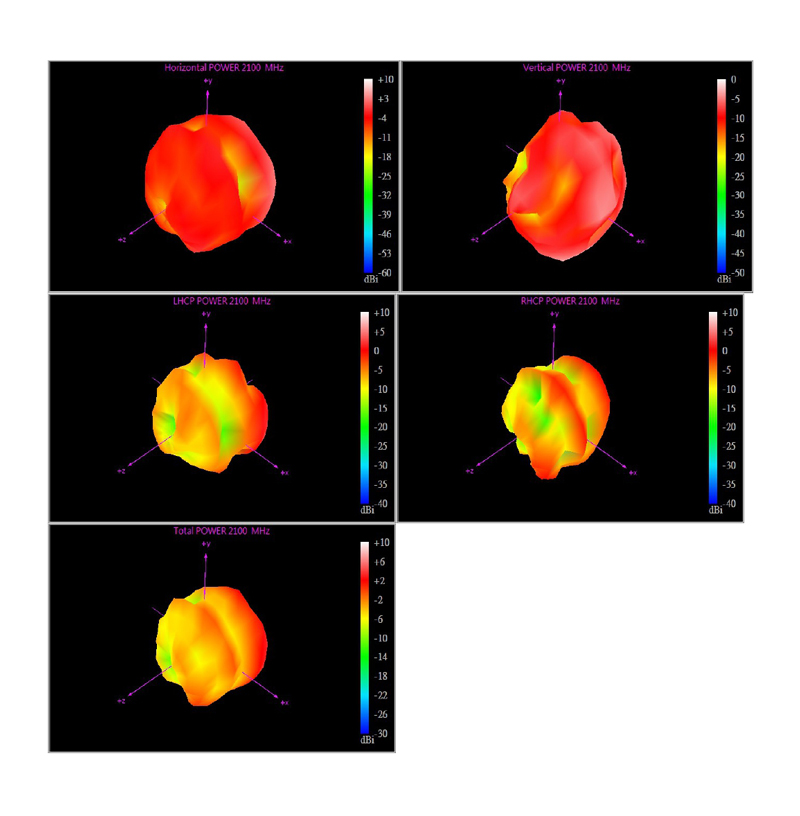

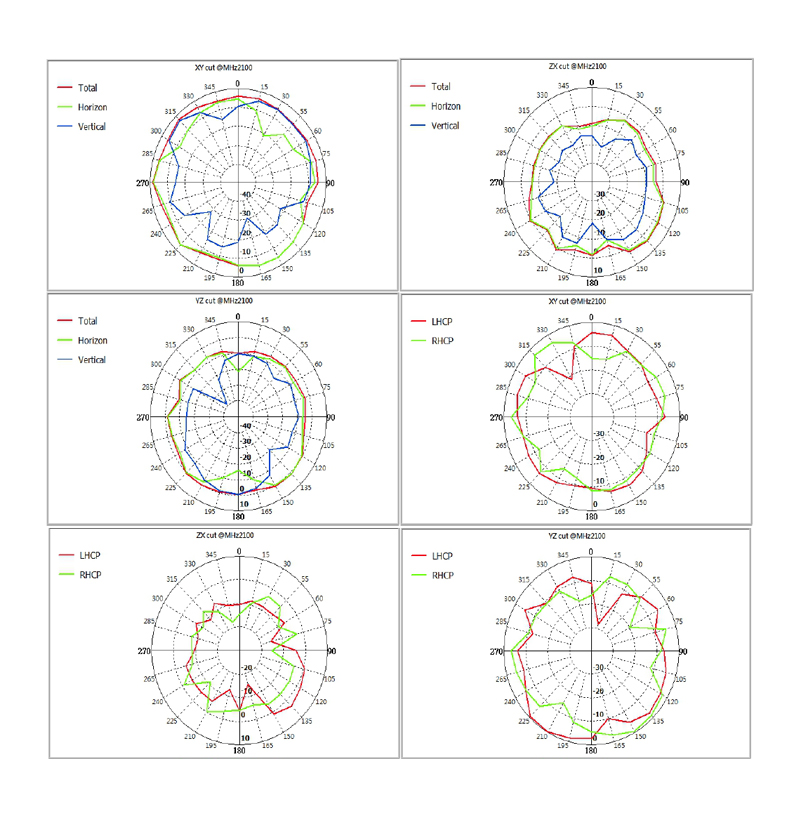

2100Mhz:

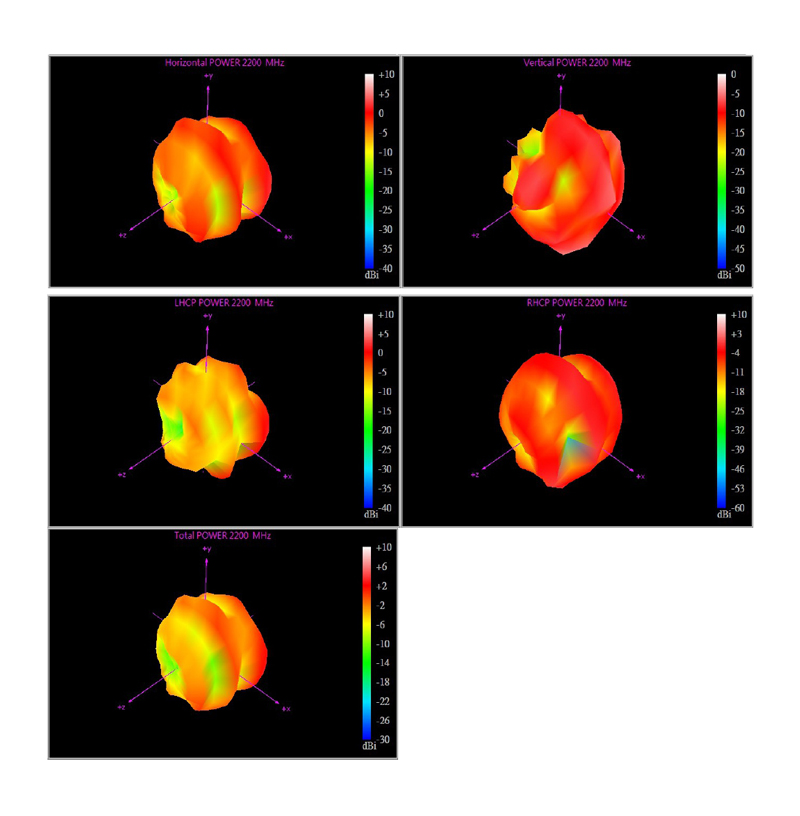

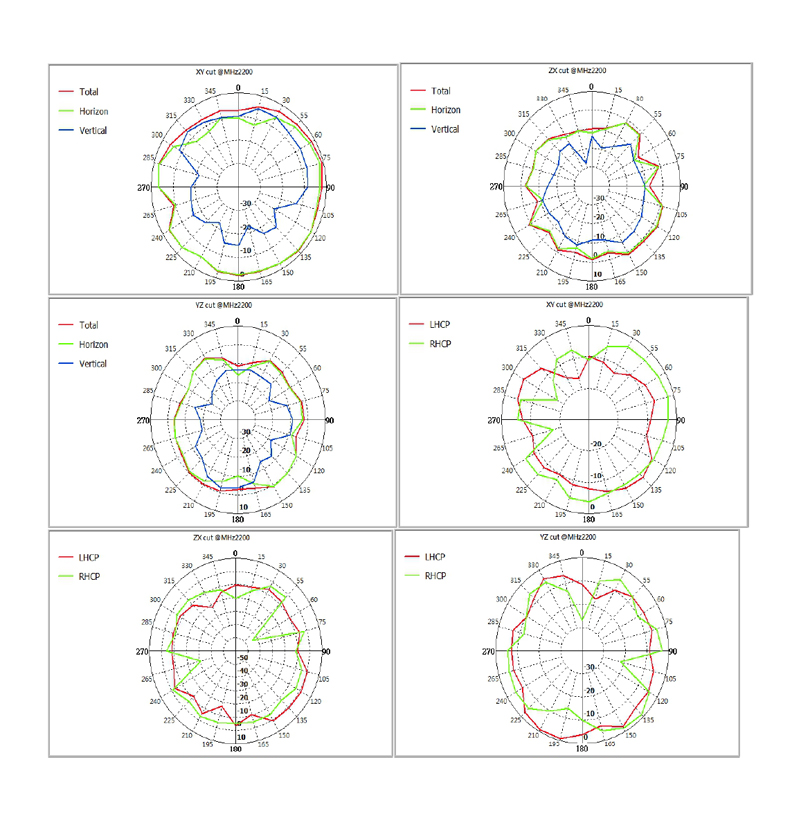

2200Mhz:

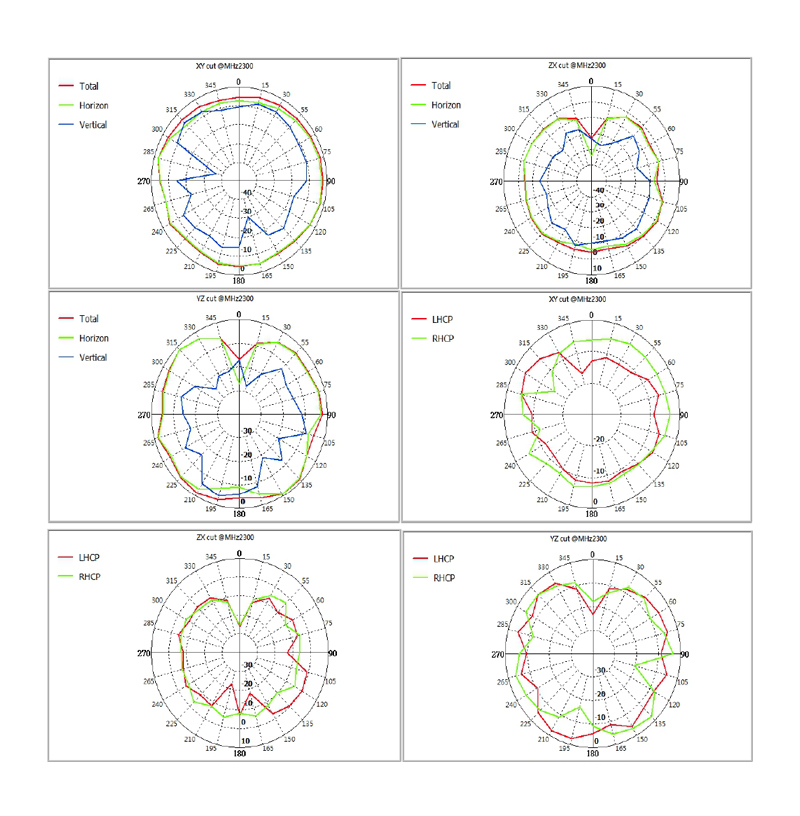

2300Mhz:
