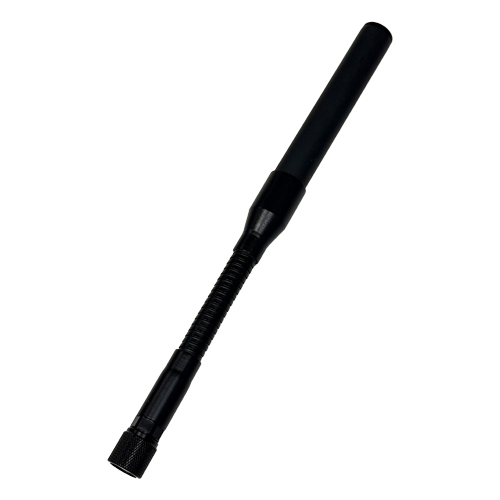

1.GENERAL DESCRIPTION
| Model No |
P/N |
| TH-1680 |
TH1680-TNC(M) |
Below is a table summarizing the antenna design specification.
1.1 Electrical Properties
| Parameter |
Description |
| Frequency Band |
1550~1650Mhz |
| Nominal Impedance |
50 ohm |
| Polarization |
RHCP |
| Return Loss |

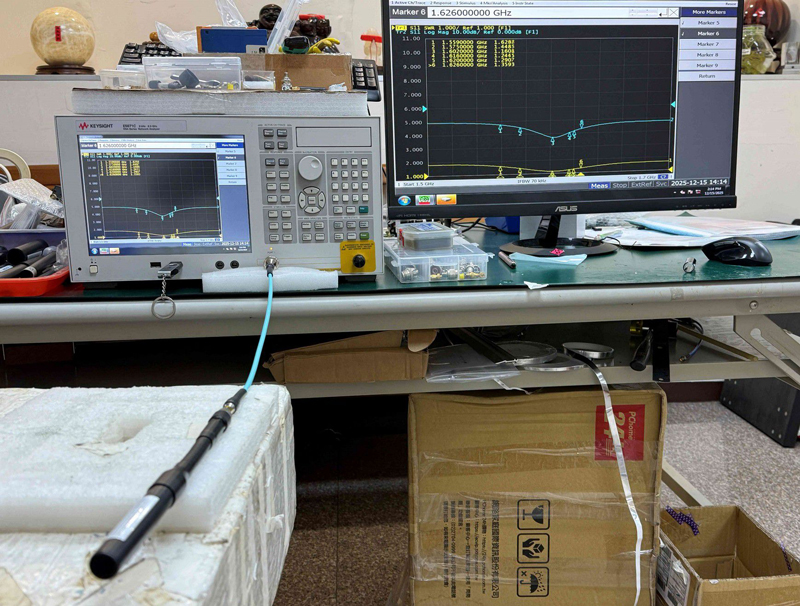

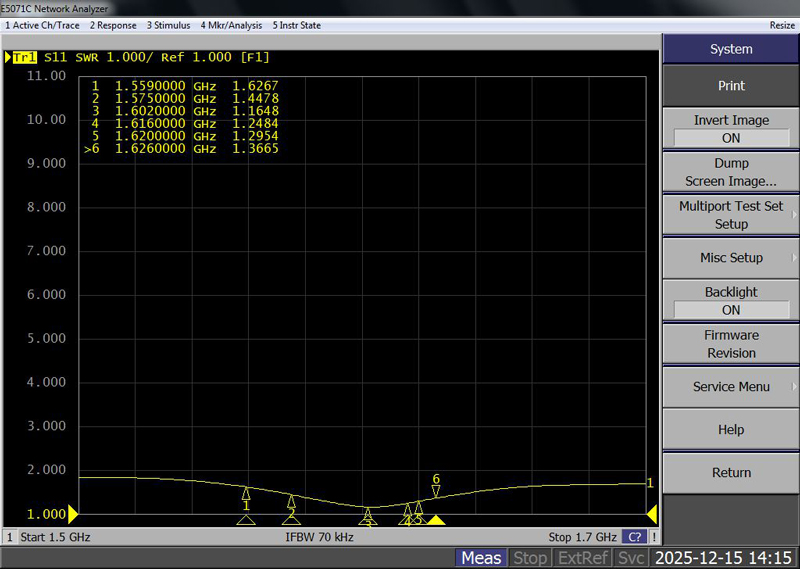

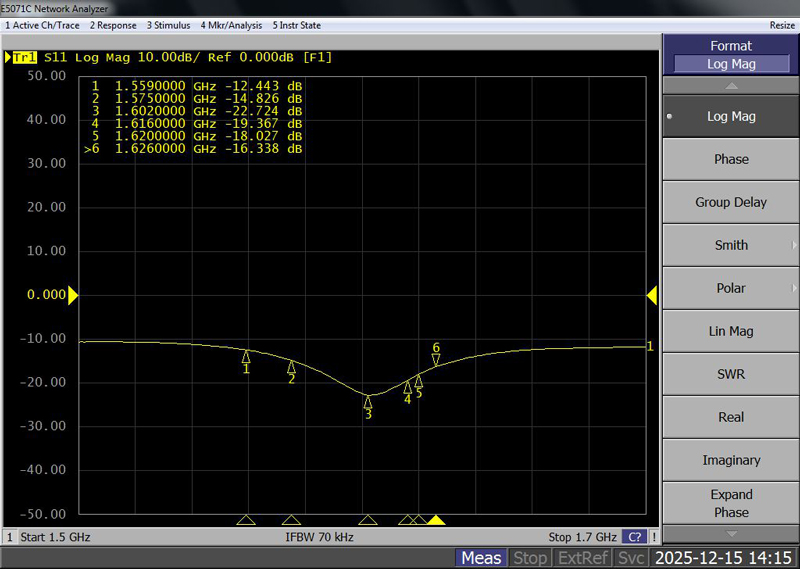

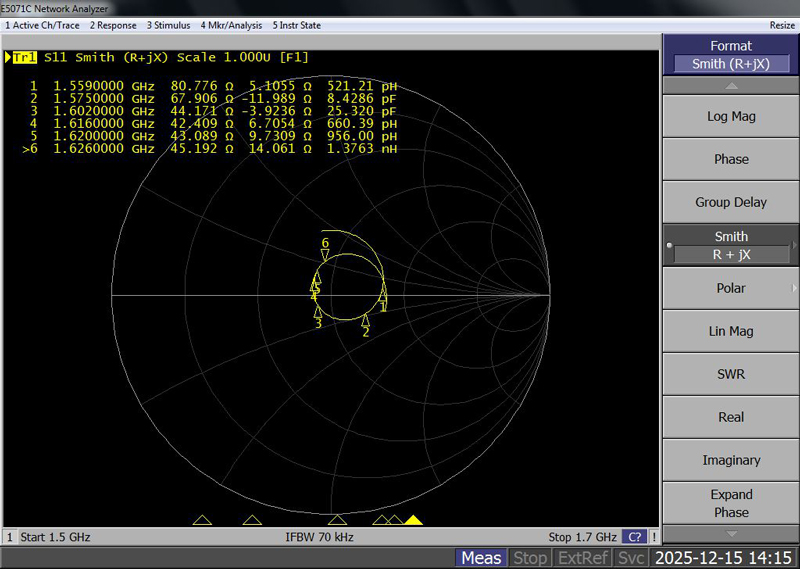

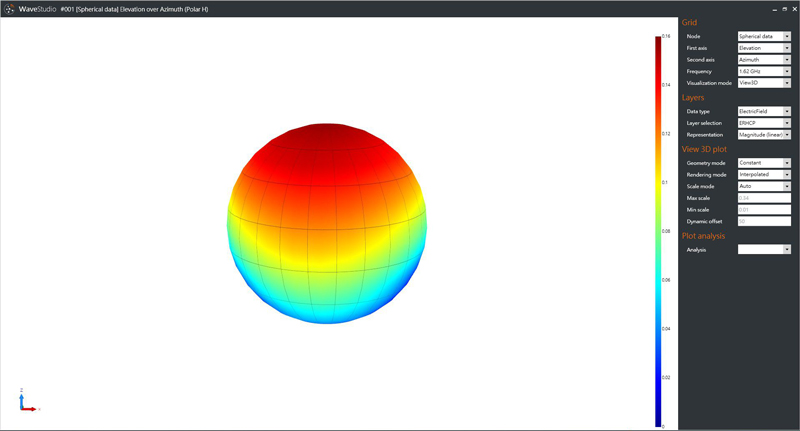

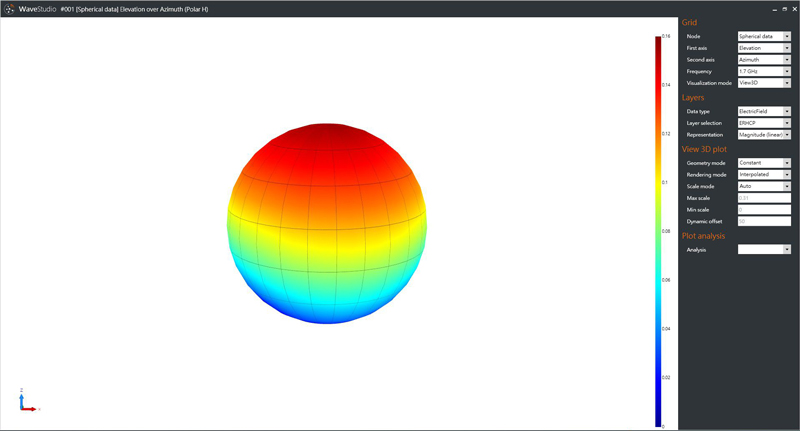

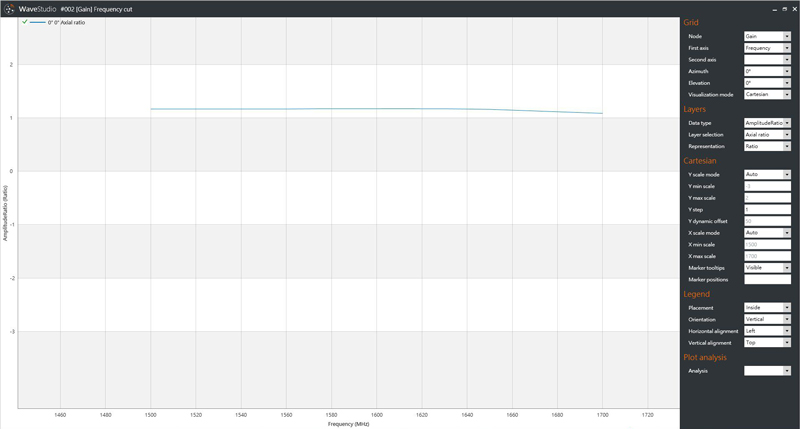

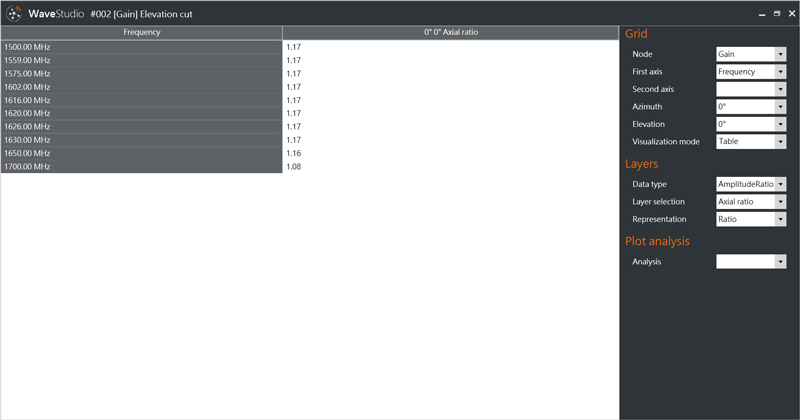

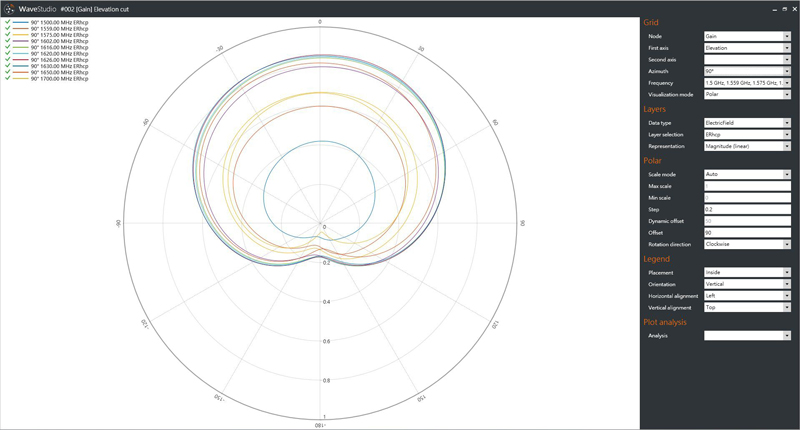

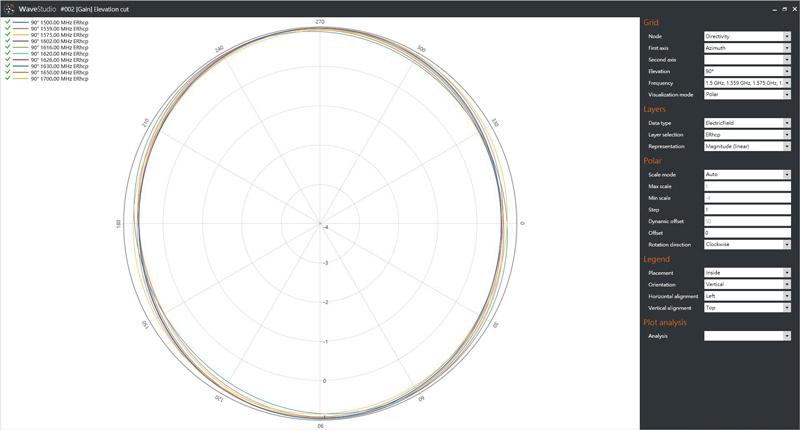

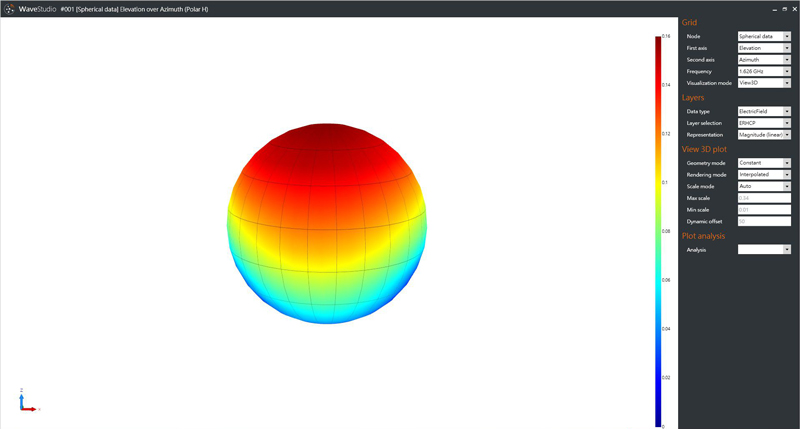

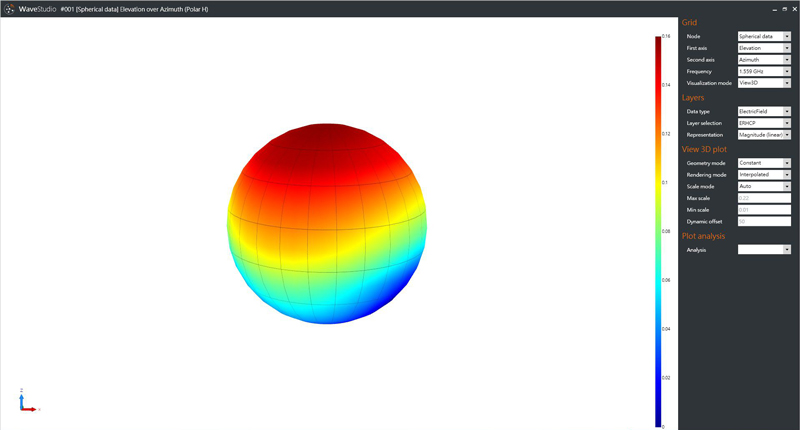

Please See Data-1 |
| V.S.W.R |
2.0:1 |

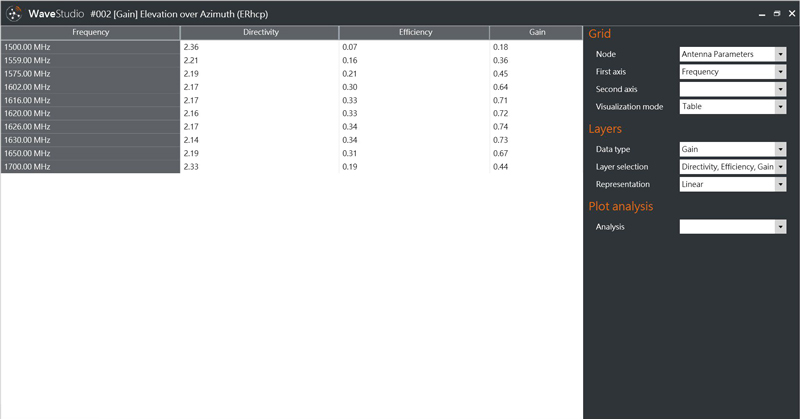

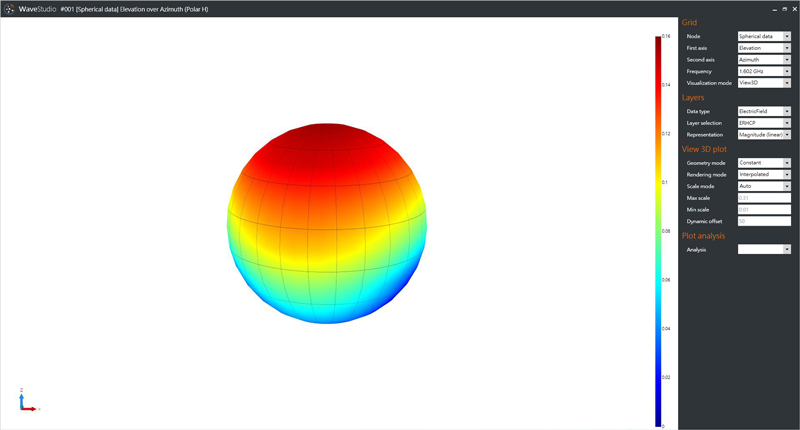

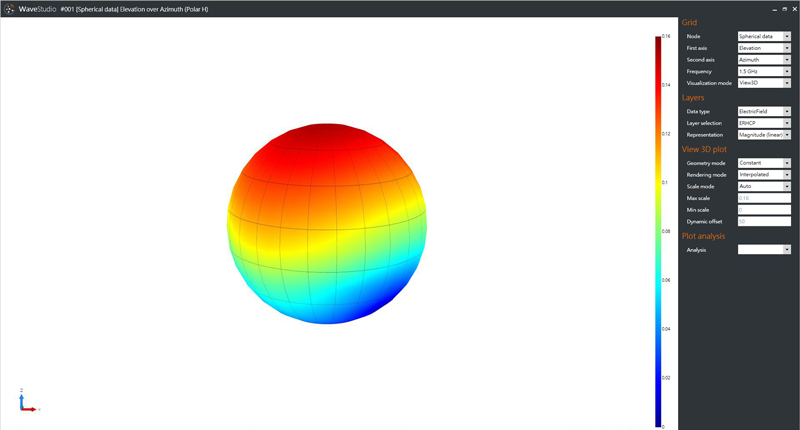

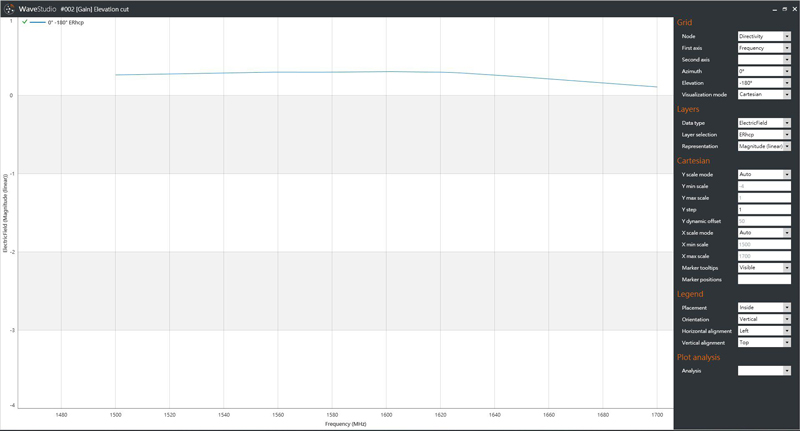

| Peak Gain |
0db |
1.2 Mechanical Properties
| Parameter |
Description |
| Antenna Type |
External Antenna |
| Touch Type |
Screw Type |
| Connector Type |
TNC(Male) |

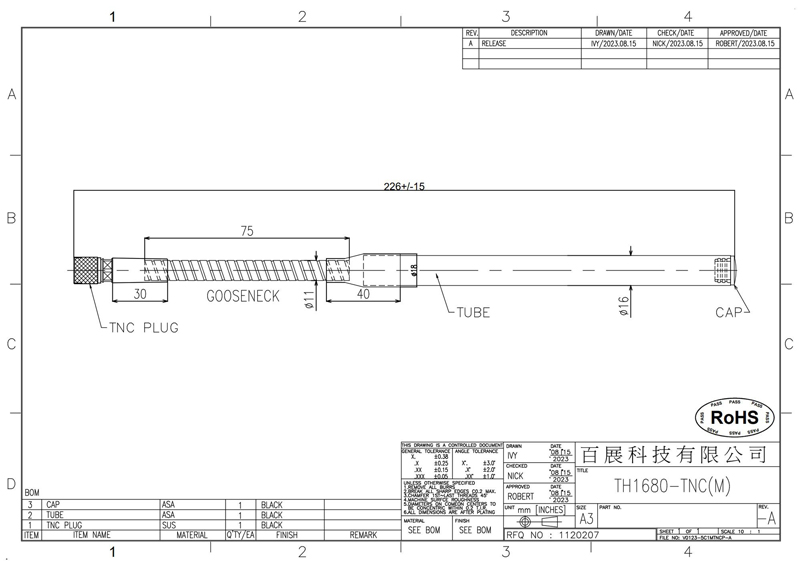

| Antenna Dimensions |
226mm ±15 |
| Antenna Color |
Black |
| Operating Temperature Range |
-40°C~+85°C |
| Storage Temperature Range |
-40°C~+85°C |
